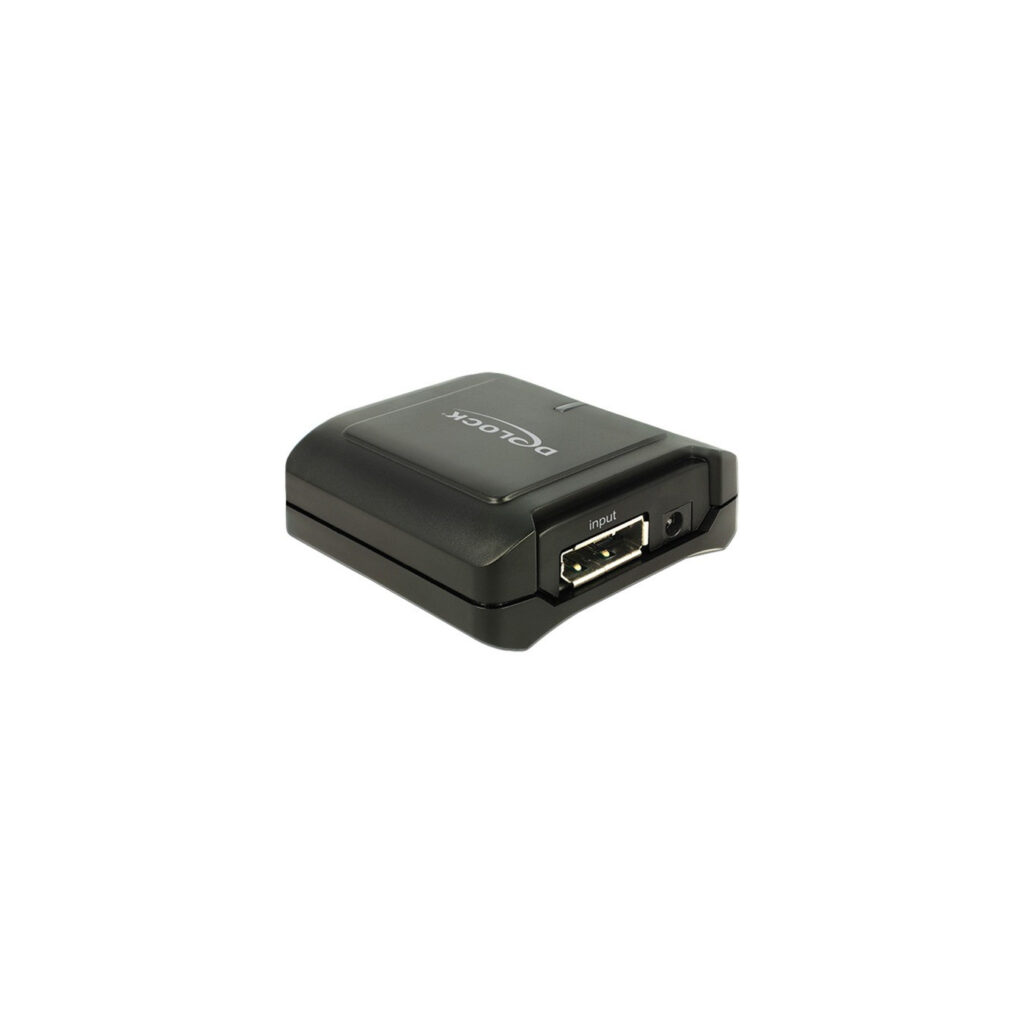

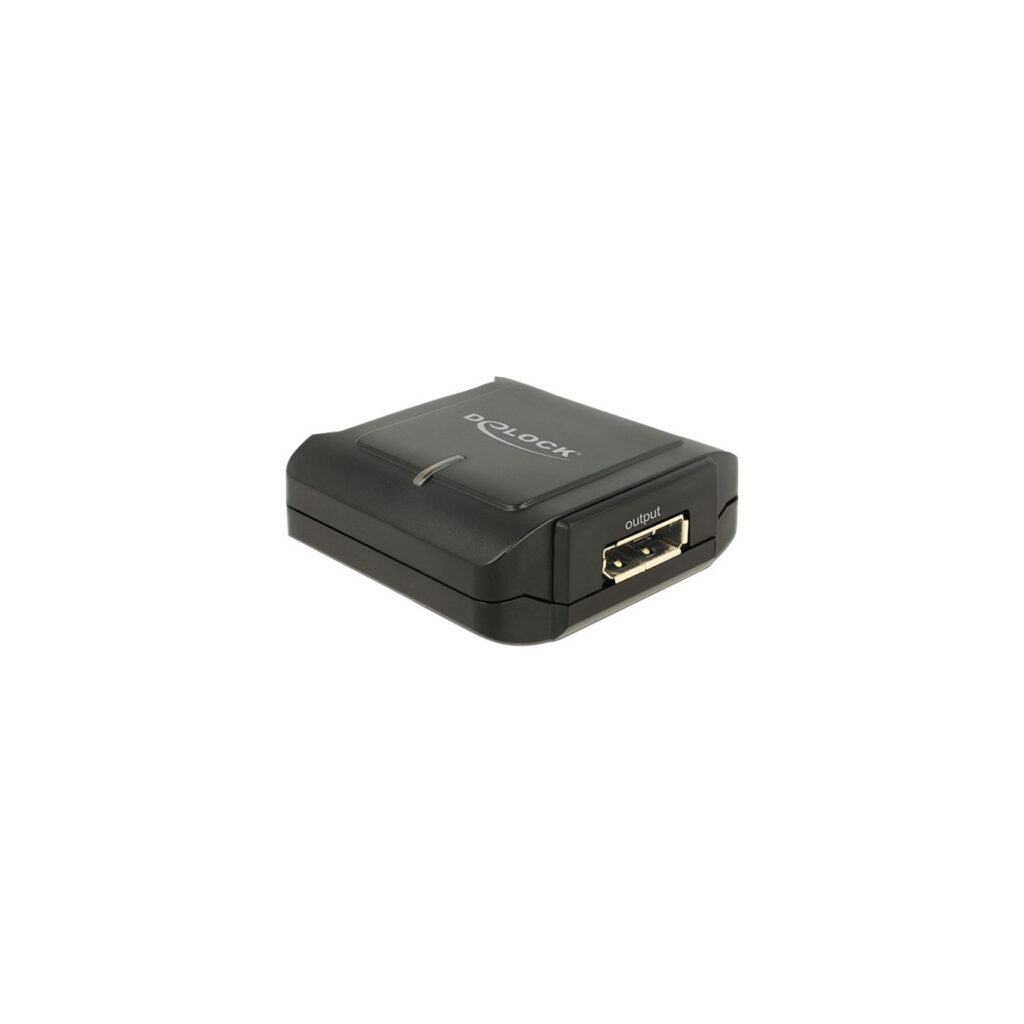

DisplayPort 1.2 repeater 4K 60Hz, graphics extension
The DisplayPort Repeater 11464 from Delock is used to amplify the signal of a DisplayPort connection up to 40m. A cable up to 20m long can be connected from the PC or notebook to t…
Available in 6–10 business days : 100 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The DisplayPort Repeater 11464 from Delock is used to amplify the signal of a DisplayPort connection up to 40m. A cable up to 20m long can be connected from the PC or notebook to the repeater input, and on the other side a cable up to 20m long can be connected to the output of the repeater, which is then connected to a display. The output is dual mode capable (DP++), so HDMI or DVI monitors can also be connected with appropriate adapters.
| Typ | Graphic extension |
| Color | schwarz |
| EAN | 4043619114641 |
| Manufacturer no. | 11464 |
| Application example | To boost a DisplayPort connection up to 40m |
| Area | Audio / Video |
| Connection - from | 1x DisplayPort (socket) |
| taps | 2 |
| Characteristics | Adapter, extern |
| More information | Displayport 1.2 specification, Displayport output supports dual mode DP++, audio input formats: 7.1 channel with a sampling rate up to 192 kHz, resolution up to 3,840 x 2,160 @ 60Hz (depending on the system and the connected hardware), resolution and maximum cable length: 3,840 x 2,160 @ 60Hz / 5m in, 5m out, 3,840 x 2,160 @ 30Hz / 15m in, 20m out, 2,560 x 1,600 @ 60Hz / 20m in, 20m out |
| Notice | When using a 20-pin DisplayPort cable at the output, the repeater can be powered by the display. Plug-in power supply input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.2A, output: 5 V / 1A |
| Accessories - available | External power supply, user manual |
| Dimensions | Width: 54mm x Height: 20mm x Depth/Length: 55mm |
| Weight | 150 Gramm |
