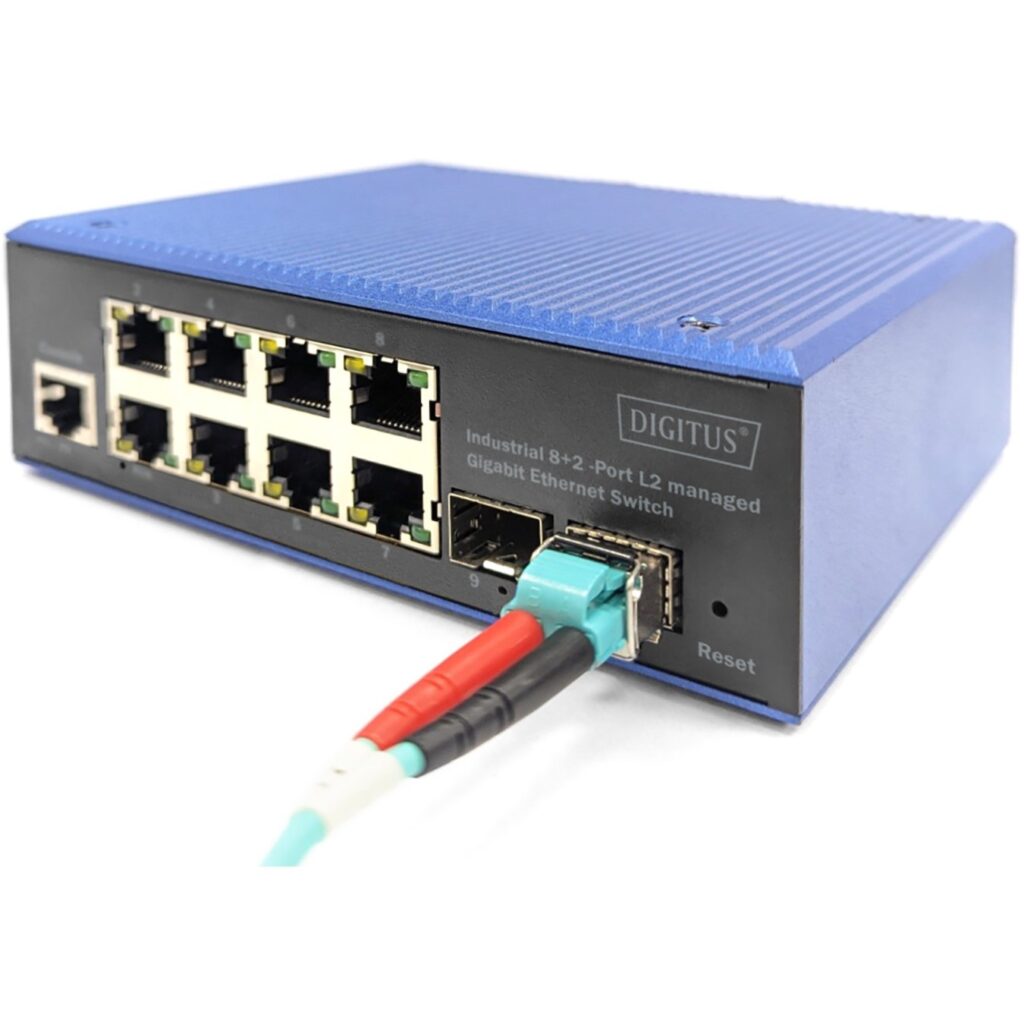

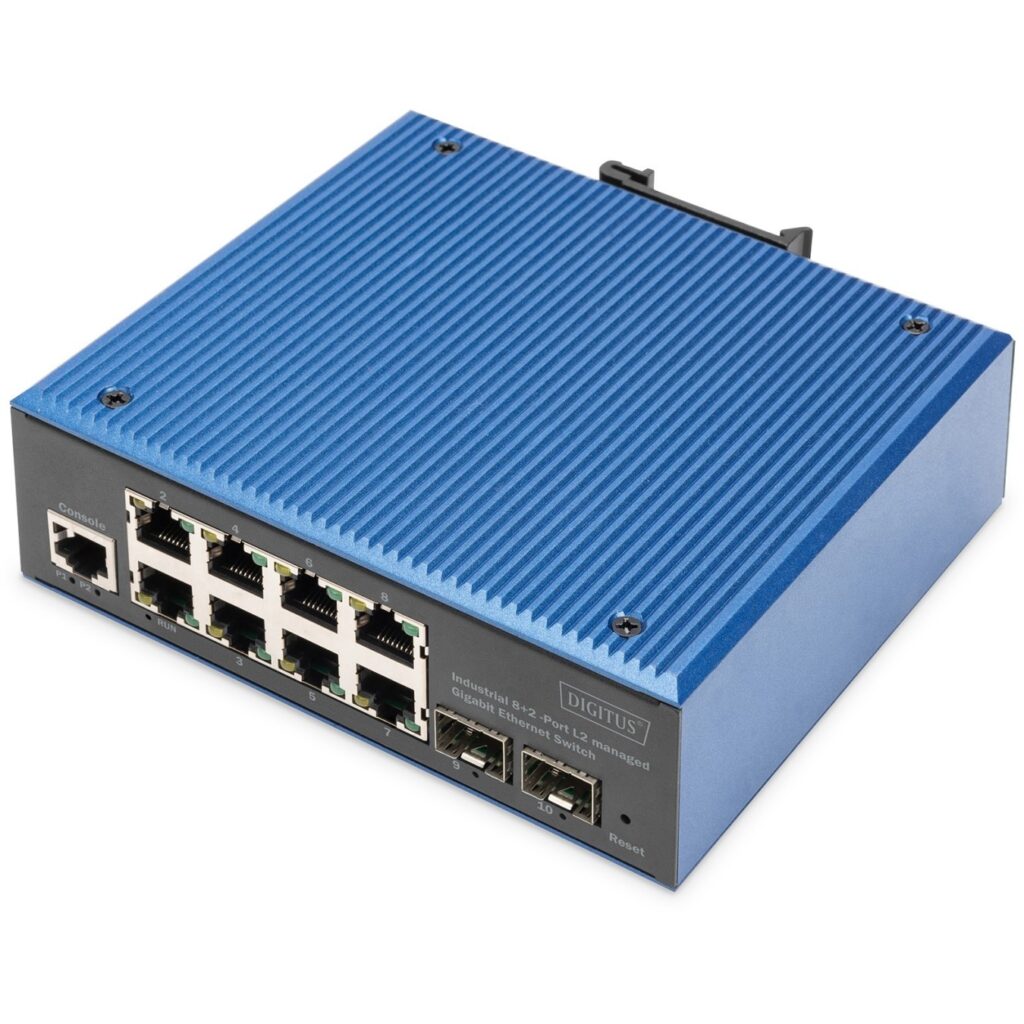

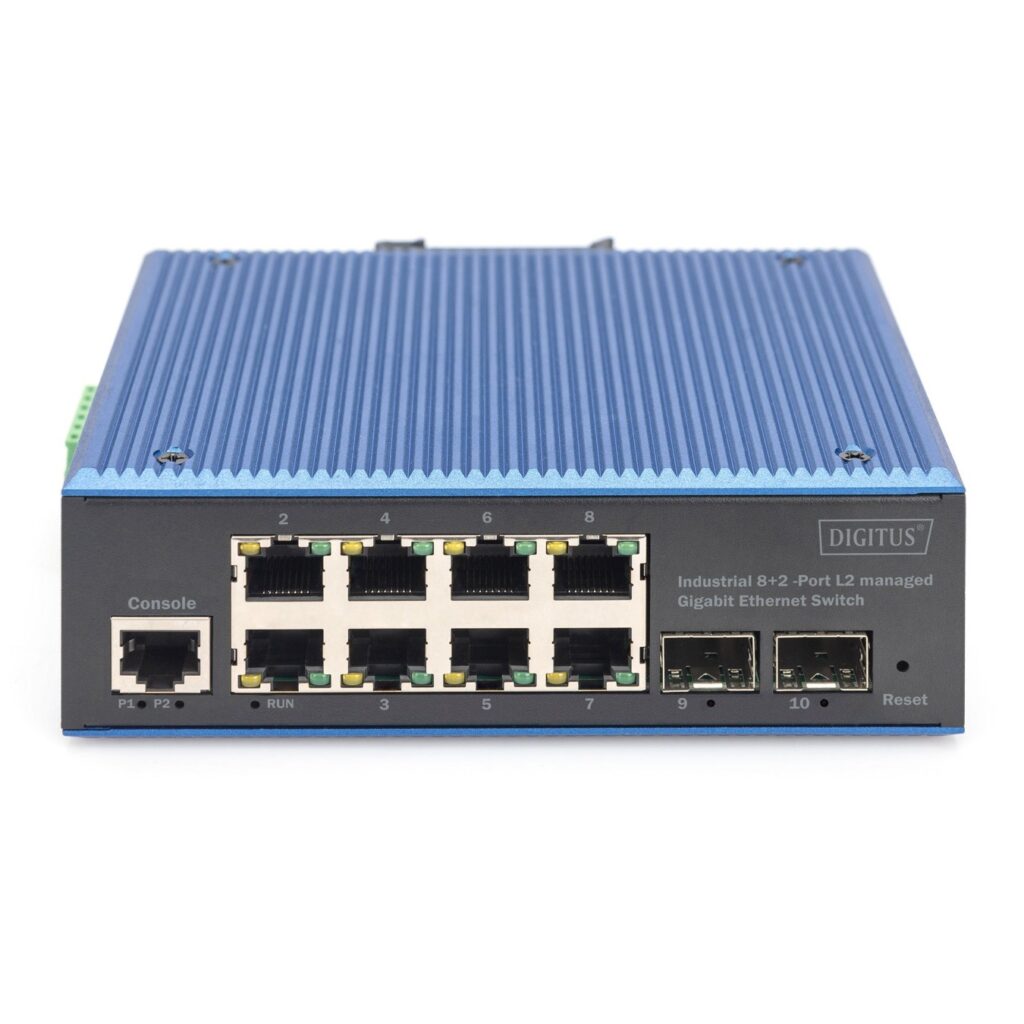

Digitus 8+2P Industrial Gigabit Ethernet Switch L2 Managed - 8x Gigabit Copper + 2x SFP - Black/Blue
311.00 €
Industrial L2 managed switch with 8x Gigabit copper ports and 2x SFP slots; supports VLANs, full duplex, rugged metal enclosure for harsh environments.
Available in 6–10 business days : 21 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Digitus Industrial 8+2 -Port L2 managed Gigabit Ethernet Switch. Switch type: Managed. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 8. Installed SFP modules quantity: 2. Full duplex. MAC address table: 4000 entries. Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3x. DC input voltage: 12 – 48 V
| Switch type | Managed |
| Switch layer | L2 |
| Feature | Quick start guide |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 2 |
| Fiber optic connector | SFP |
| Networking standards | IEEE 802.3x |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Virtual LAN features | IP subnet–based VLAN. MAC address-based VLAN. Port-based VLAN. Protocol-based VLAN. Voice VLAN |
| Number of VLANs | 4094 |
| Switching capacity | 1 Gbit/s |
| Forwarding rate | 15 Mpps |
| MAC address table | 4000 entries |
| Jumbo frames | 10240 |
| Packet buffer memory | 4.1 MB |
| Product colour | Black. Blue |
| Housing material | Metal |
| International Protection (IP) code | IP40 |
| Mean time between failures (MTBF) | 300000 h |
| Power source | DC |

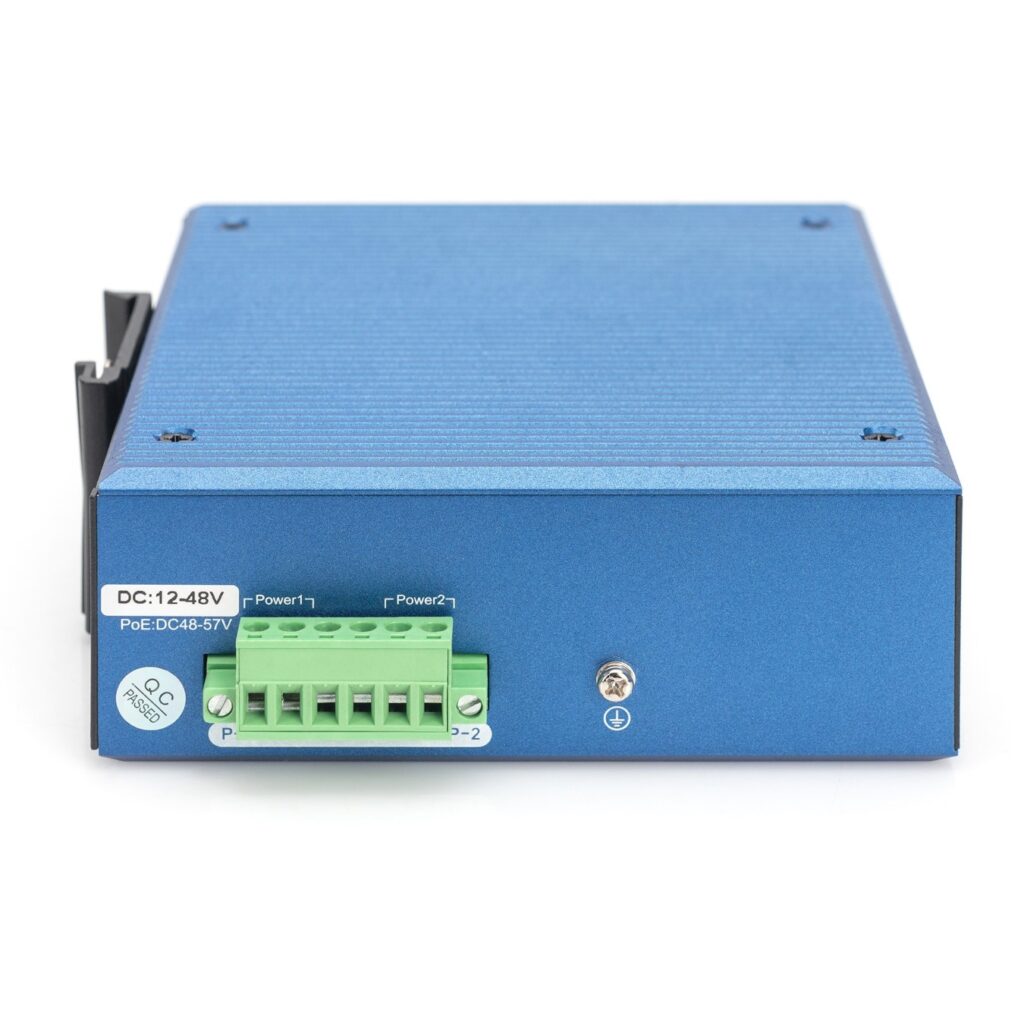

| DC input voltage | 12 - 48 V |
| Power consumption (typical) | 10 W |
| Surge protection voltage | 4 kV |
| Bandwidth | 20 Gbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 143.7 mm |
| Depth | 125 mm |
| Height | 47.7 mm |
| Weight | 600 g |
| Package width | 158 mm |
| Package depth | 66 mm |
| Package height | 213 mm |
| Package volume | 2221.16 cm³ |
| Package weight | 735 g |
| UK Trade Tariff code | 85176200 |
| Country of origin | China |
