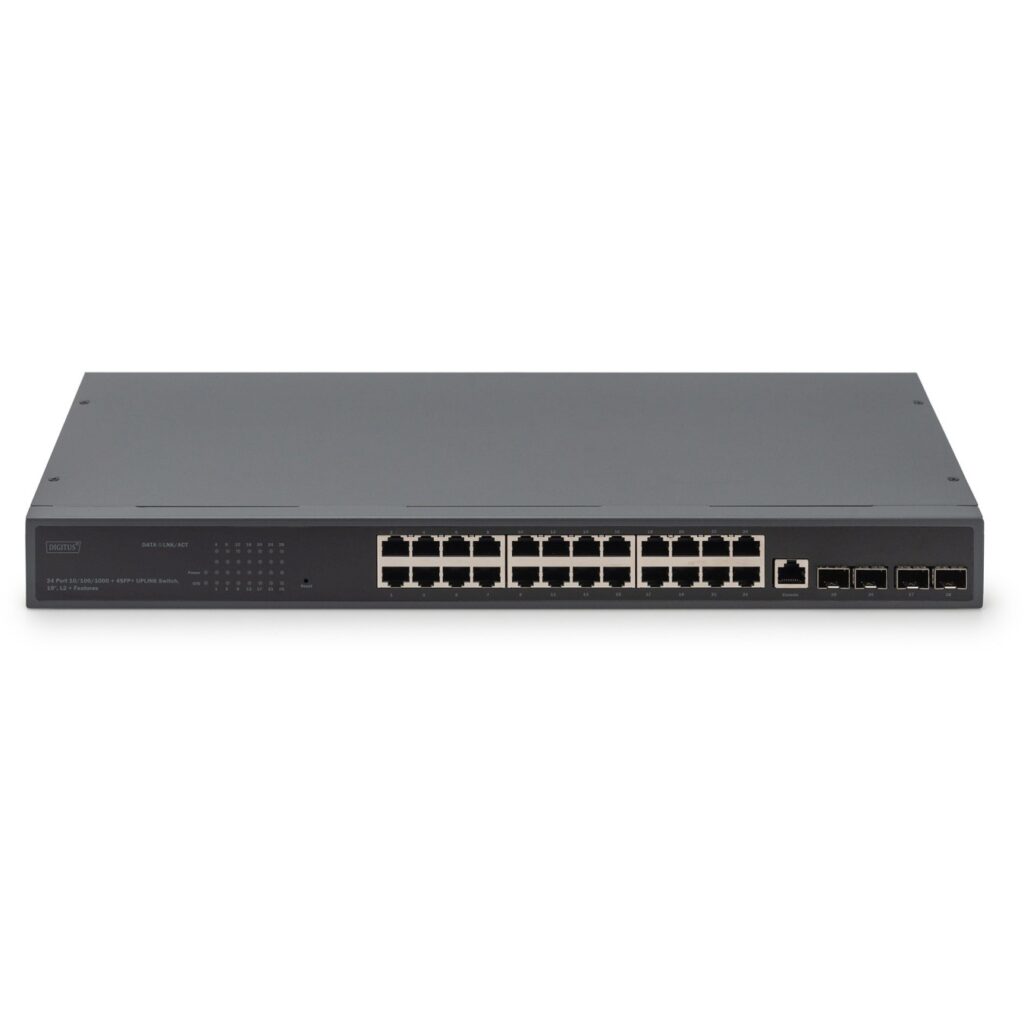

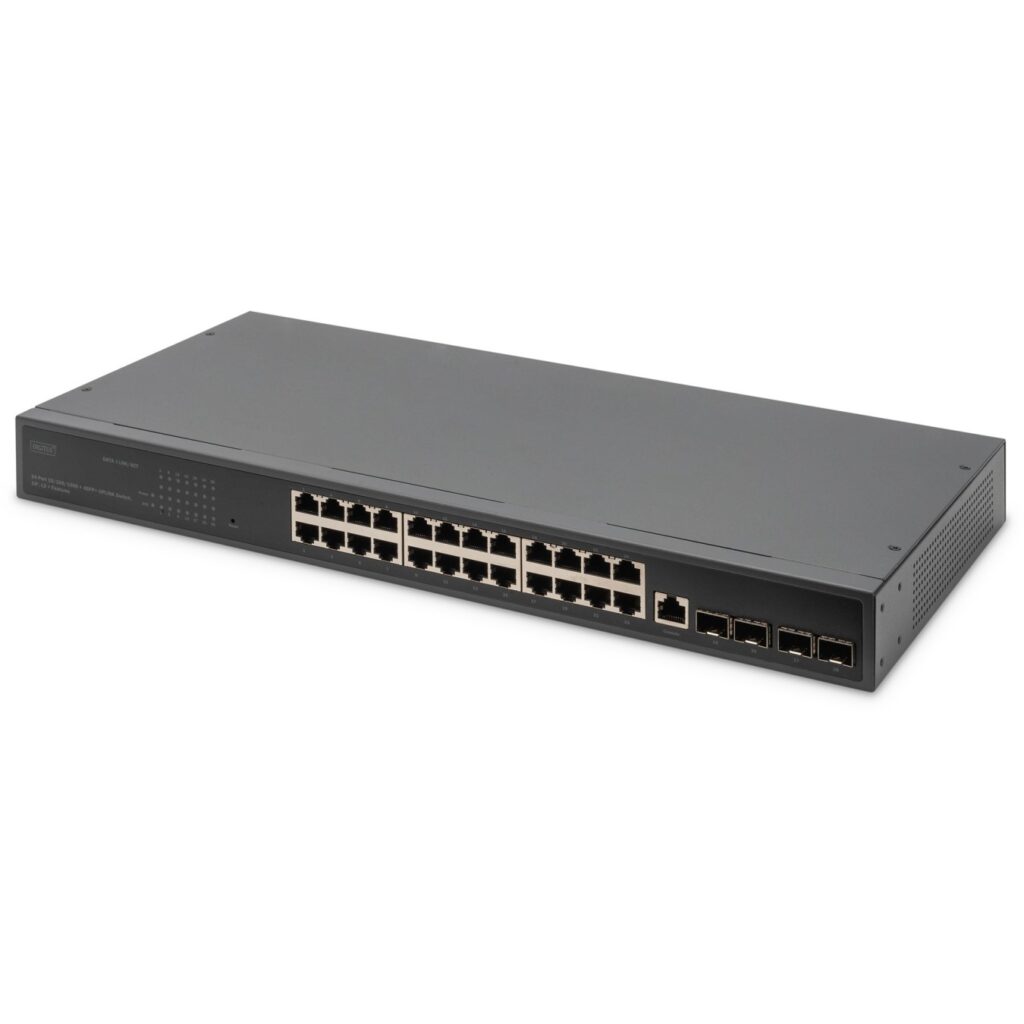

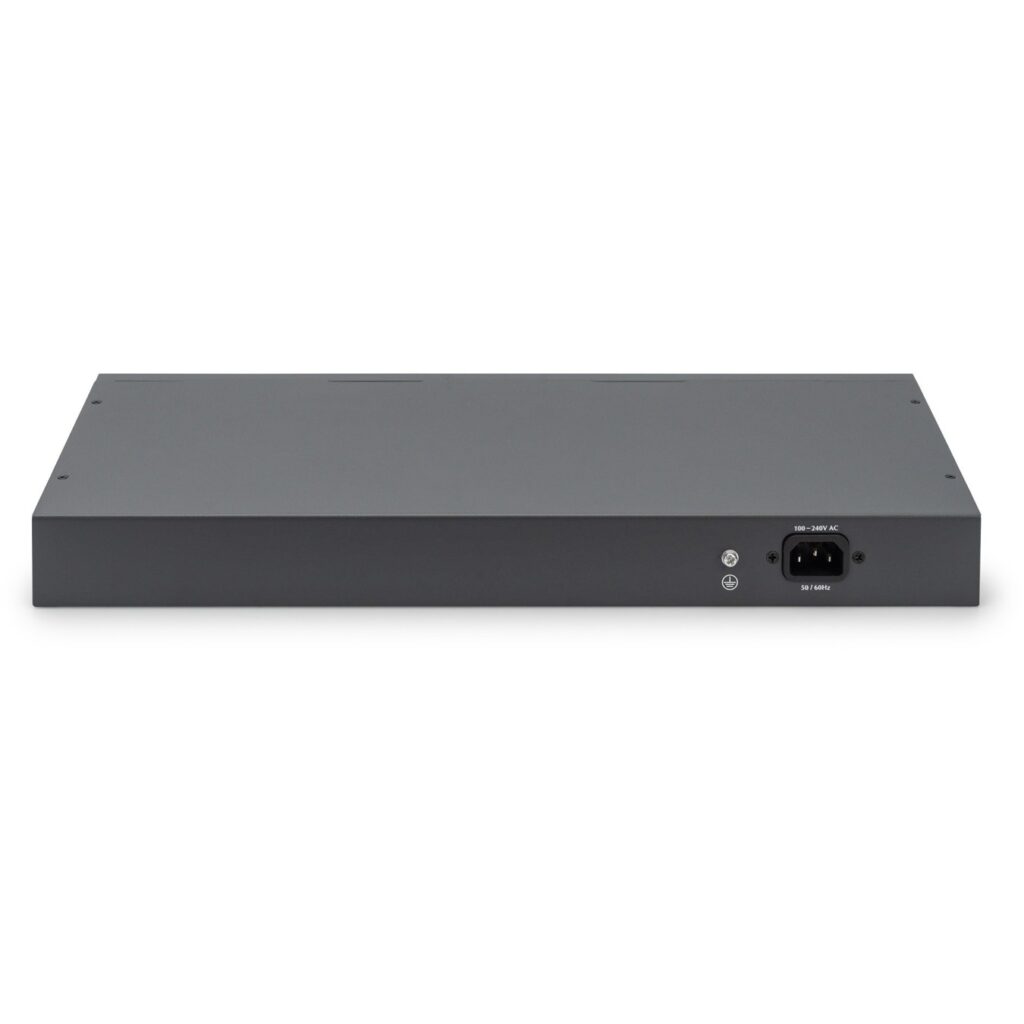

Digitus 24-Port Gigabit Managed Switch with 4 SFP+ Uplinks - 19-inch Rack Mount - Black, L3 Capable
Managed 24x Gigabit ports with 4x SFP+ uplinks, L2/L3 capable, 1U rack-mount, black metal chassis.
Available in 6–10 business days : 5 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Digitus 24 Port 10/100/1000 + 4SFP+ UPLINK Switch. 19″. L2+ Features. Switch type: Managed. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 24. Console port: RJ-45. MAC address table: 16000 entries. Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1w. IEEE 802.1x. IEEE 802.3. IEEE 802.3ab. IEEE…. Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L3 |
| Feature | Manual |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| Networking standards | IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1w. IEEE 802.1x. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ad. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Cable types supported | Cat3. Cat4. Cat5. Cat5e |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Fiber ethernet cabling technology | 10GBASE-X. 1000BASE-X |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.23 Mpps |
| MAC address table | 16000 entries |
| Jumbo frames | 12000 |
| Packet buffer memory | 12 MB |
| DHCP features | DHCP relay. DHCP server. DHCP snooping |
| Security algorithms | SNMP. SNMPv2. SNMPv3 |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity. Link. Power. System |
| Power source | AC |
| Input current | 2 A |
| Input voltage | 12 V |
| Power consumption (typical) | 24 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 260 mm |
| Depth | 440 mm |
| Height | 44 mm |
| Cables included | AC |
| Package width | 318 mm |
| Package depth | 495 mm |
| Package height | 77 mm |
| Package volume | 12120.6 cm³ |
| Package weight | 3.61 kg |
| UK Trade Tariff code | 85176200 |
| Country of origin | China |
