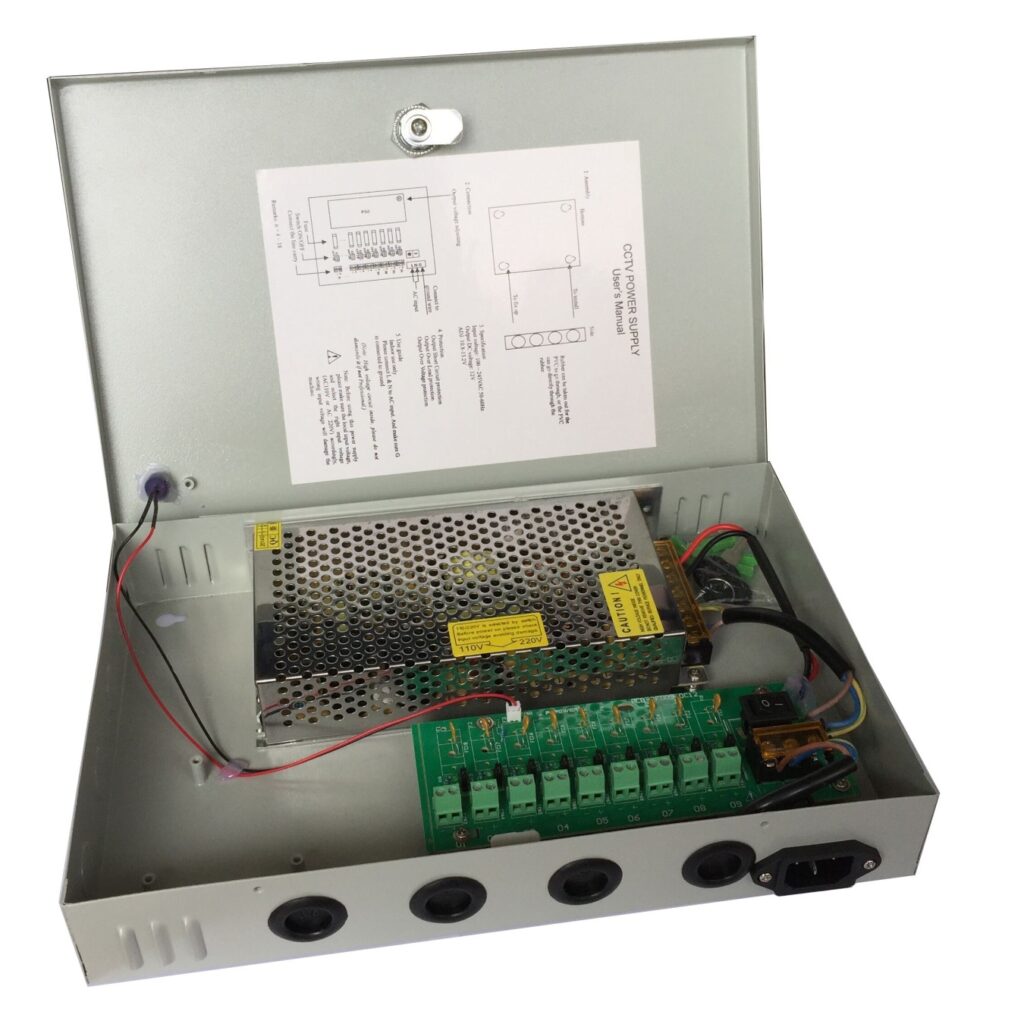

DigitMX Power Supply - DMX-PSU1210M - 12V 10A metal
43.00 €
Efficient, eco-friendly switching power supply with a robust metal frame, optimized for easy system integration.
Available in 2–3 business days : 5 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
- Use of efficient, environment-protection switching power supply circuit frame
- Optimization of the shape and structure to facilitate the construction systems
- Small ripple-video output signal more stable, clear images
- Splitter output bypass failure to protect other equipment to work
- Power protection output over-voltage protection, over-current protection and short circuit protection
- Input:110/220VAC 50-60Hz
- Output:12V-10A-120W
- DC adjustment range: ±10%
- Input voltages range: 110/220V AC/50-60Hz
- Inrush current: 30-75A
- Leakage current: <0.7mA/230VAC
- Output voltage: 12V
- Output current: 10A
- DC adjustment range: ±10%
- Overload protection: 105%-135% rated output power
- Overvoltage protection: 105%-135% hiccup mode, auto-recovery
- Withstand voltage:
- I/P-O/P: 3kV AC
- I/P-FG: 1.5kV AC
- O/P-F/G: 0.5kV AC
- Working temperature: -20 to +70?
- Certifications: CE, RoHS Directive-compliant, FCC
| Type | Metal |
| Voltage | 12V |
| Ampers | 10A |
| Current | 10A |
