Delock 62495 Converter IDE 44-pin to mSATA with 2.5in Frame
Delock 62495 IDE 44-pin to mSATA converter with 2.5-inch 7mm frame allows installing half or full-size 3.3V mSATA SSD as 2.5in HDD replacement via internal IDE interface. Bootable, OS independent, includes screws and manual.
Available in 6–10 business days : 300 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

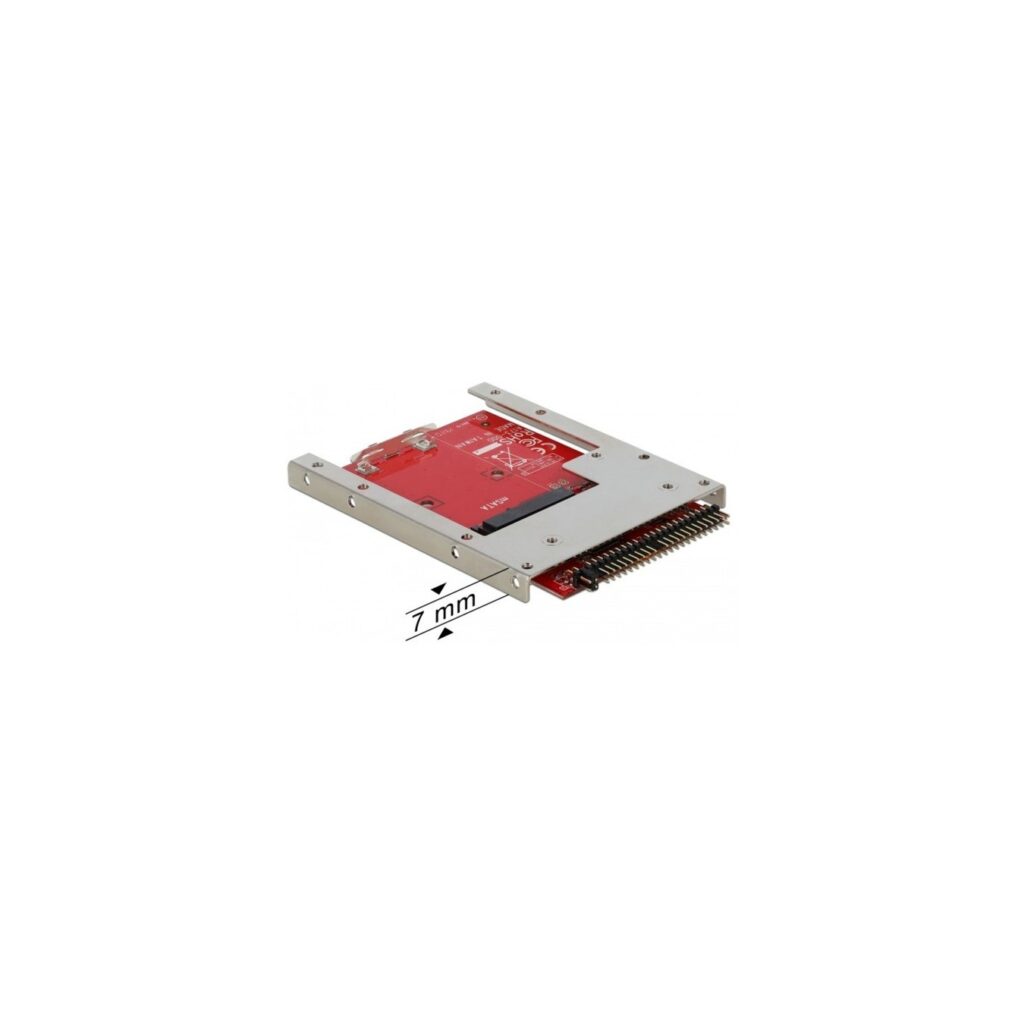

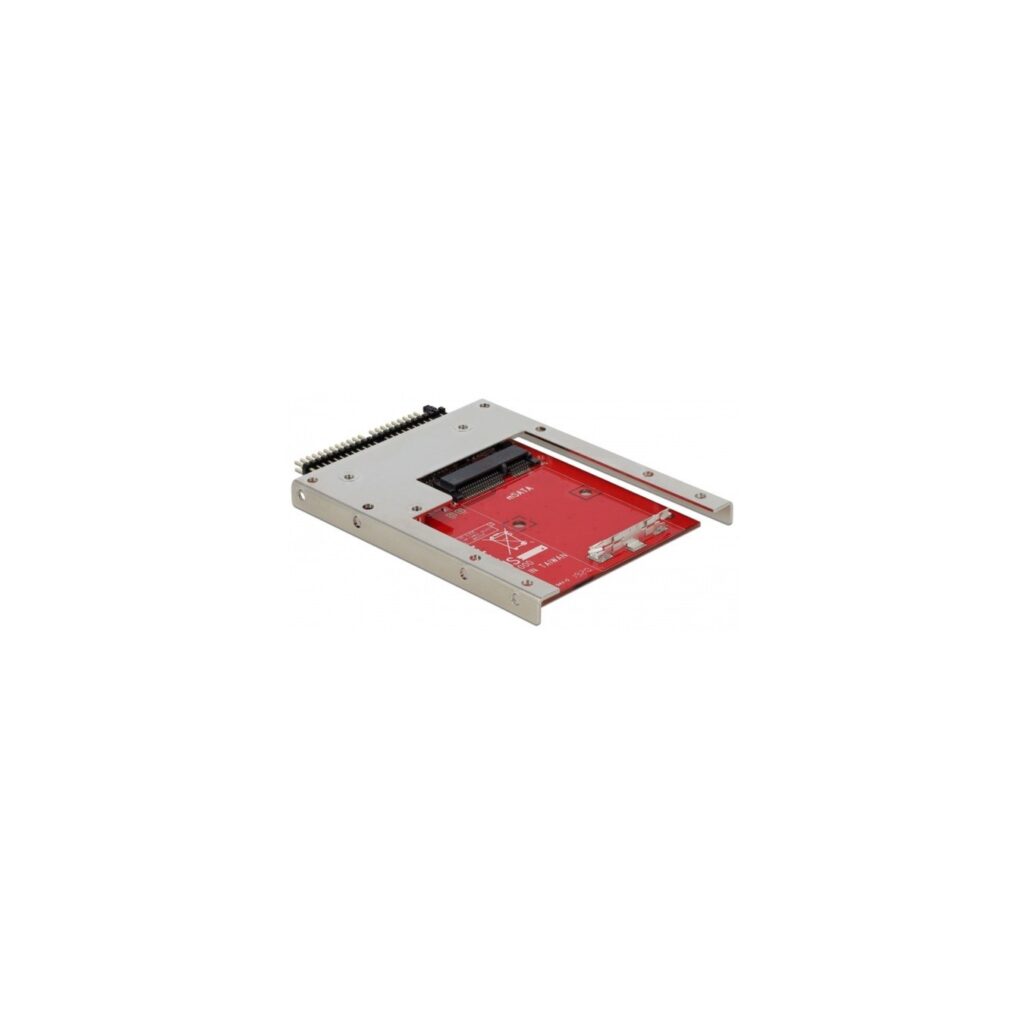

This Delock converter (item 62495) enables connection of a half-size or full-size mSATA SSD to a 44-pin IDE interface, using it as a 2.5-inch HDD replacement. The included 7mm installation frame fits standard 2.5in drive bays for internal system integration.
Supports ATA/ATAPI-7, Ultra DMA, PIO modes, and jumper settings for Master/Slave/Cable Select. Latch secures mSATA module; no drivers needed, bootable operation. Made in Taiwan.

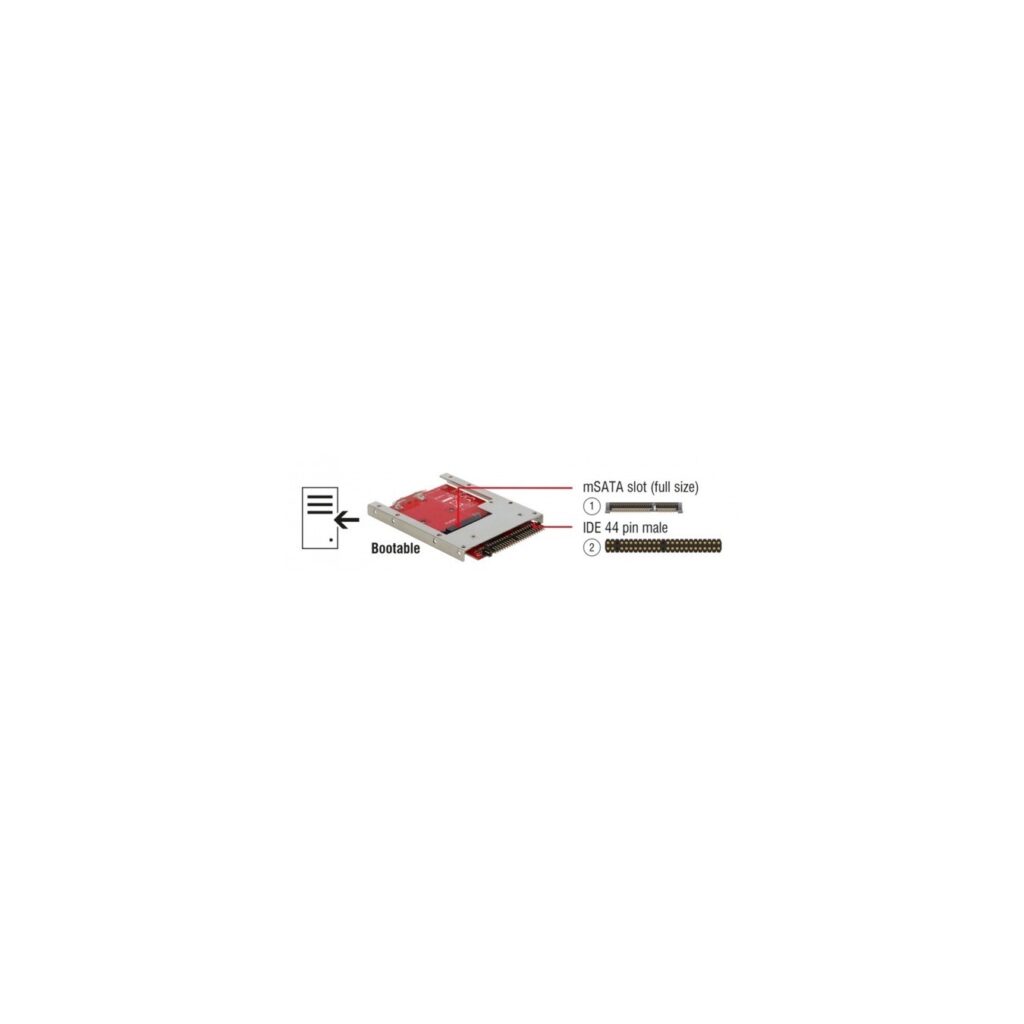

- Connector: 1x IDE 44-pin male, 1x mSATA slot (half/full size)
- Form factor: 2.5in, 7mm height
- Dimensions: 98 x 70 x 7 mm

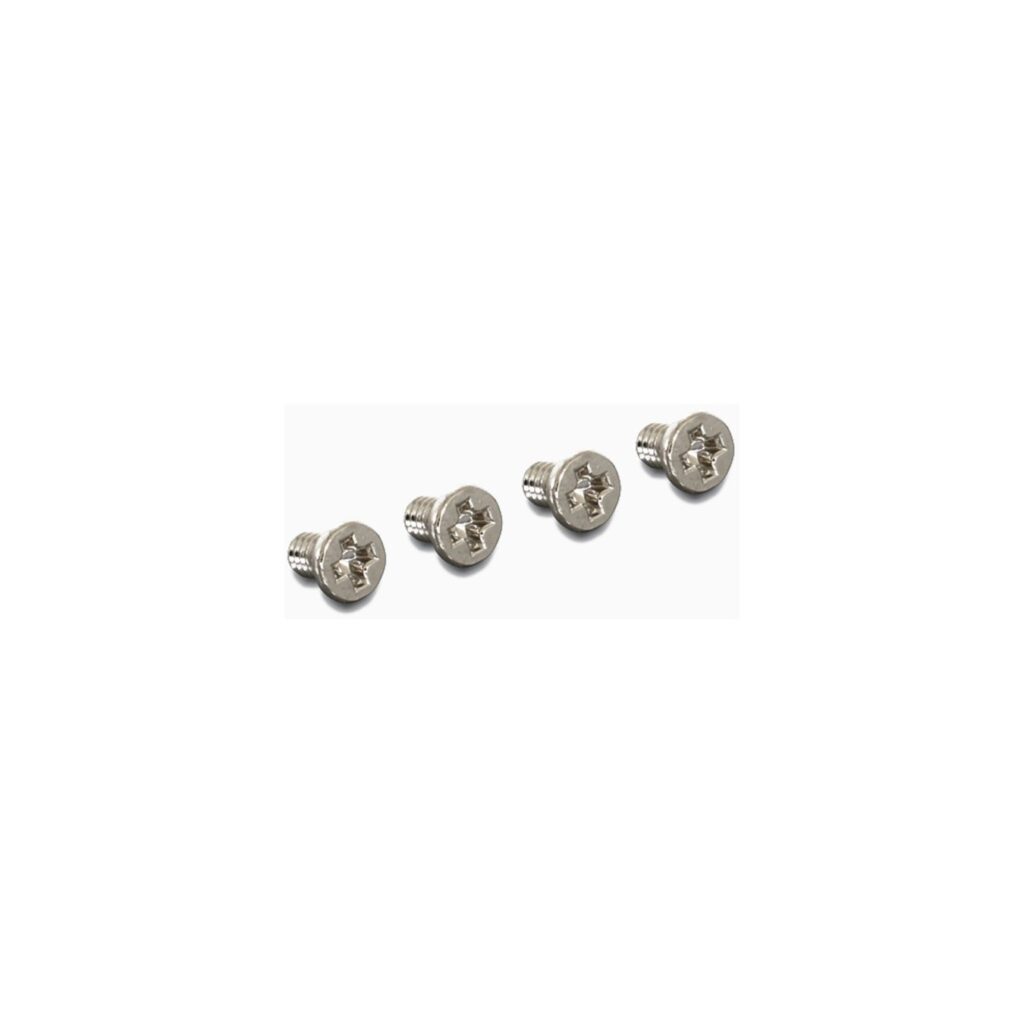

- Package: Converter, frame, 4x screws, manual
| Type | Installation frame |
| EAN | 4043619624959 |
| Manufacturer no. | 62495 |
| Purpose | Installation in 2.5in bay |
| Suitable for | 3.3V mSATA module (half/full size) |
| Required installation shafts | 1x 2.5 inch internal |
| Connections - internal | 1x IDE 44-pin male, 1x mSATA slot |
| More information | Supports ATA/ATAPI-7, Ultra DMA/PIO, Master/Slave/CS jumpers, bootable, OS independent |
| Accessories - included | 2.5in frame, 4x screws, user manual |
| Dimensions | 98 x 70 x 7 mm (LxWxH) |
| Weight | 95 g |
| Country of origin | Taiwan |
| Form factor | 2.5in, 7mm height |
