DeepCool PN750-M 750W Fully Modular ATX 3.1 PSU - 80 PLUS Gold - R-PN750M-FC0B-UK
DeepCool PN750-M 750W Fully Modular ATX 3.1 PSU. 80 PLUS Gold certified, Cybenetics Gold efficiency. Includes 1x PCIe 12+4pin (450W), 3x 6+2pin, 2x EPS. 12cm FDB fan, 10-year warranty, black.
Available in 4–6 business days : 32 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

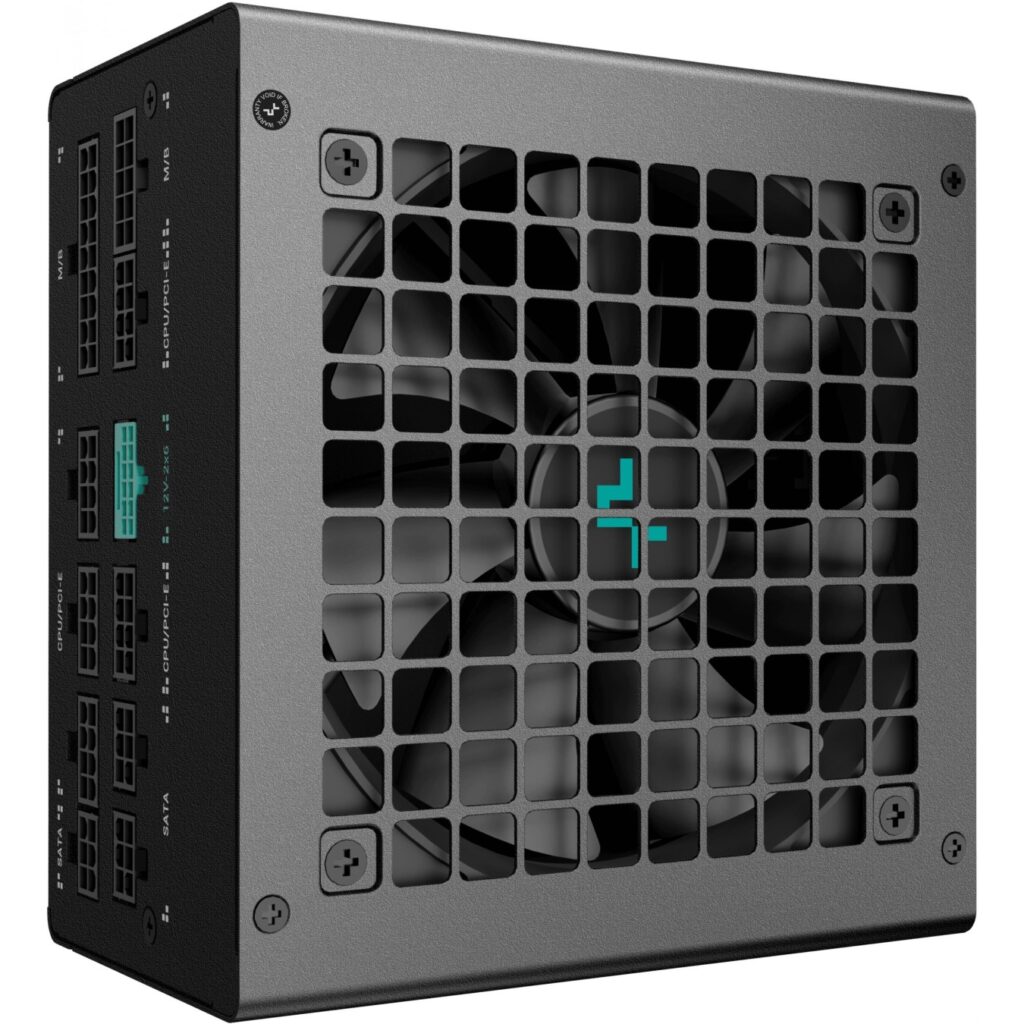

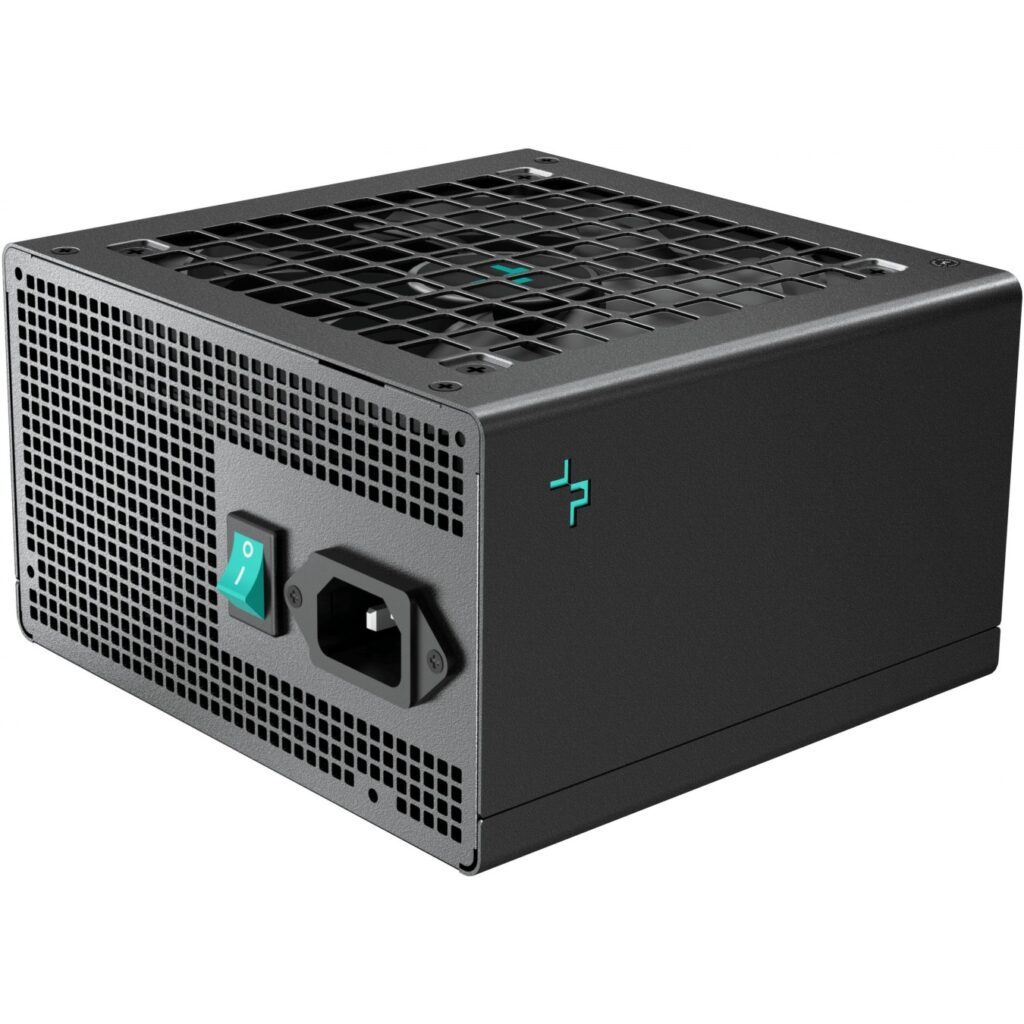

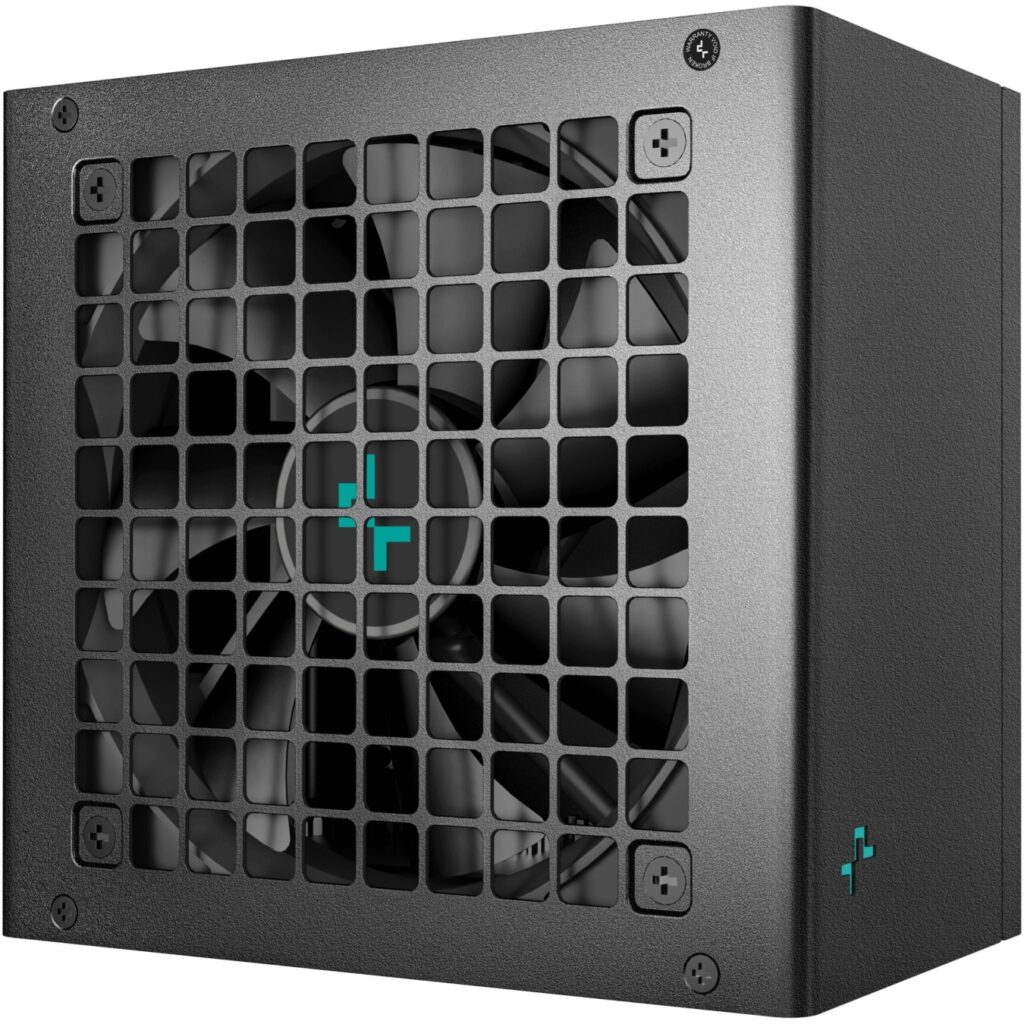

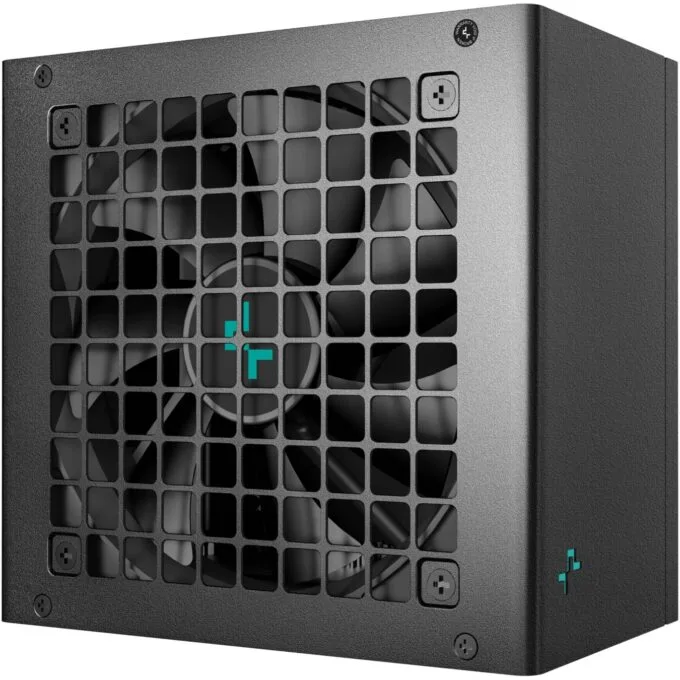

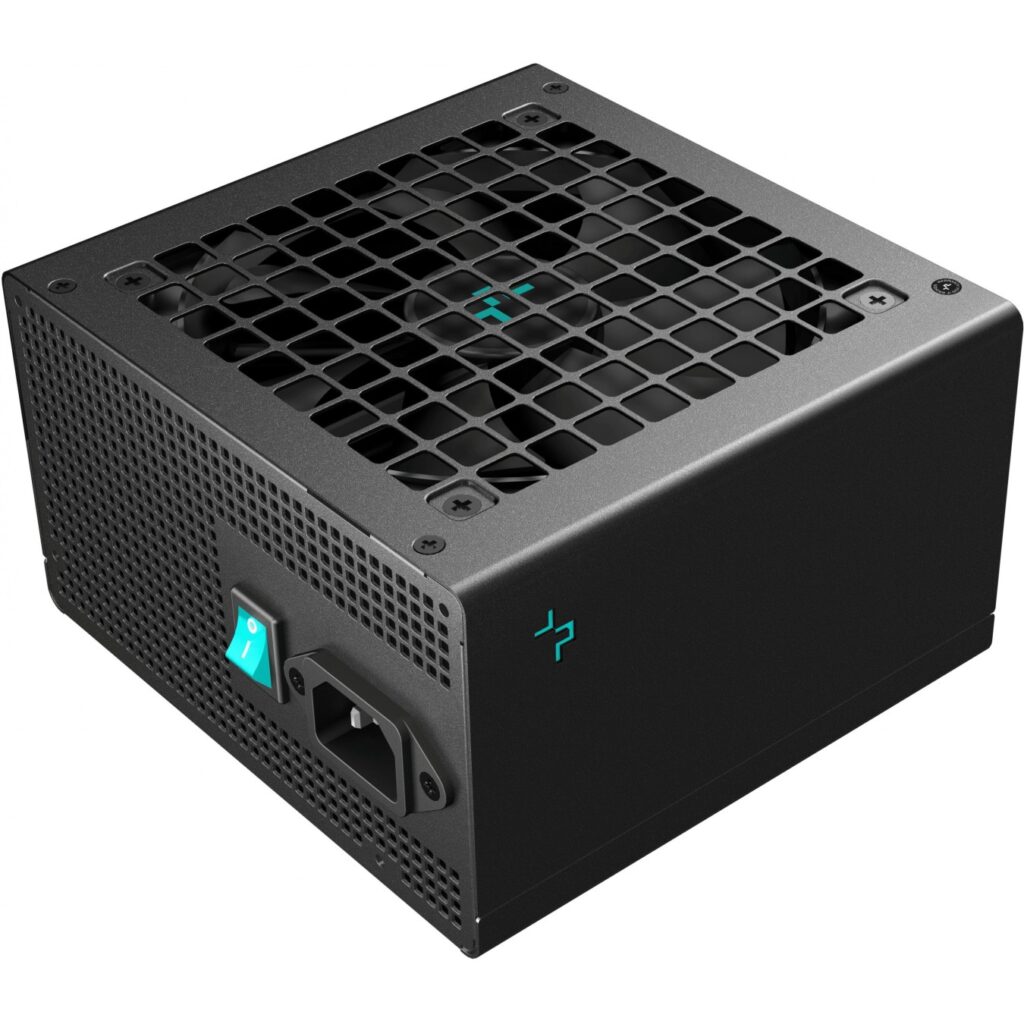

The DeepCool PN750-M is a high-performance 750W fully modular power supply compliant with the latest ATX 3.1 and PCIe 5.1 standards, making it ideal for modern gaming PCs and high-end builds with power-hungry GPUs.

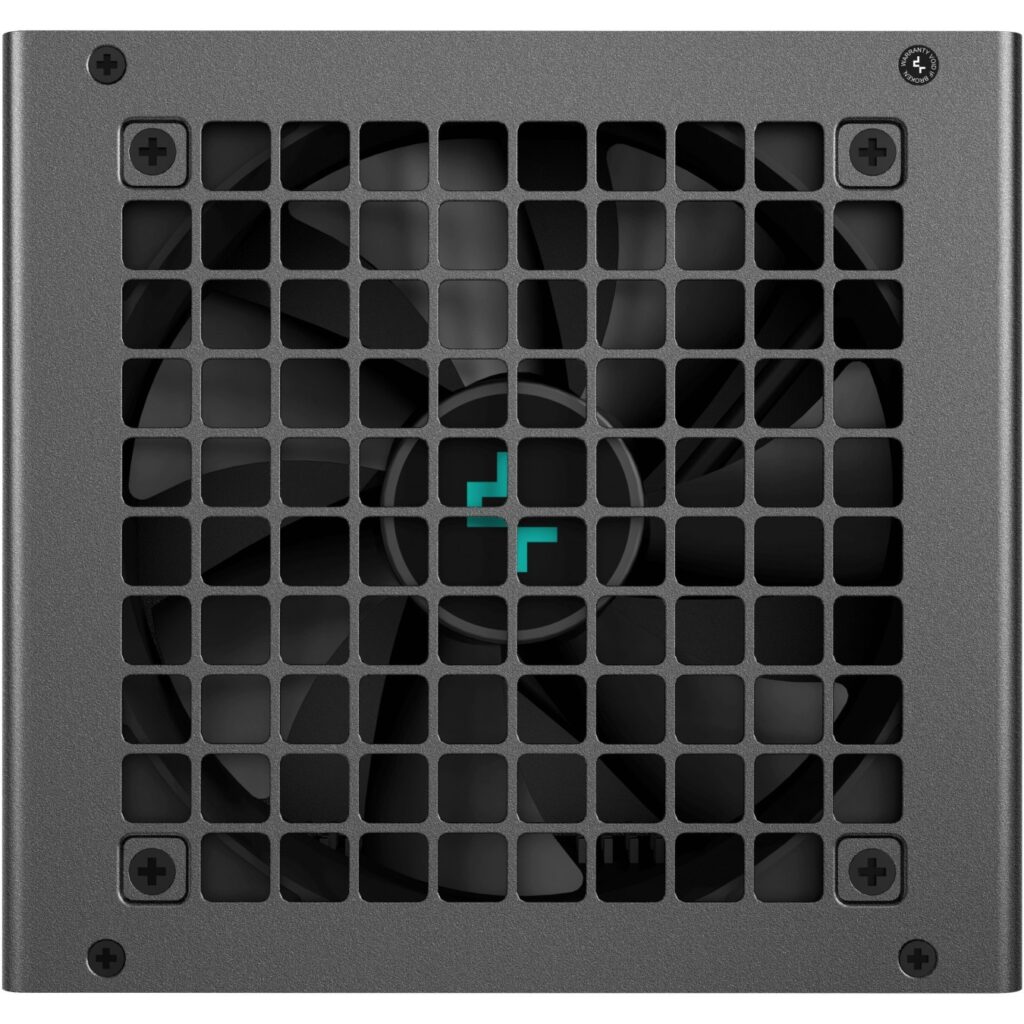

It delivers stable power across single +12V rail (62.5A/750W) with 80 PLUS Gold efficiency (up to 90%+) and Cybenetics Gold rating. Features active cooling via a quiet 120mm Fluid Dynamic Bearing (FDB) fan, full suite of protections (OPP/OVP/OTP/SCP/UVP), and 10-year warranty for long-term reliability.

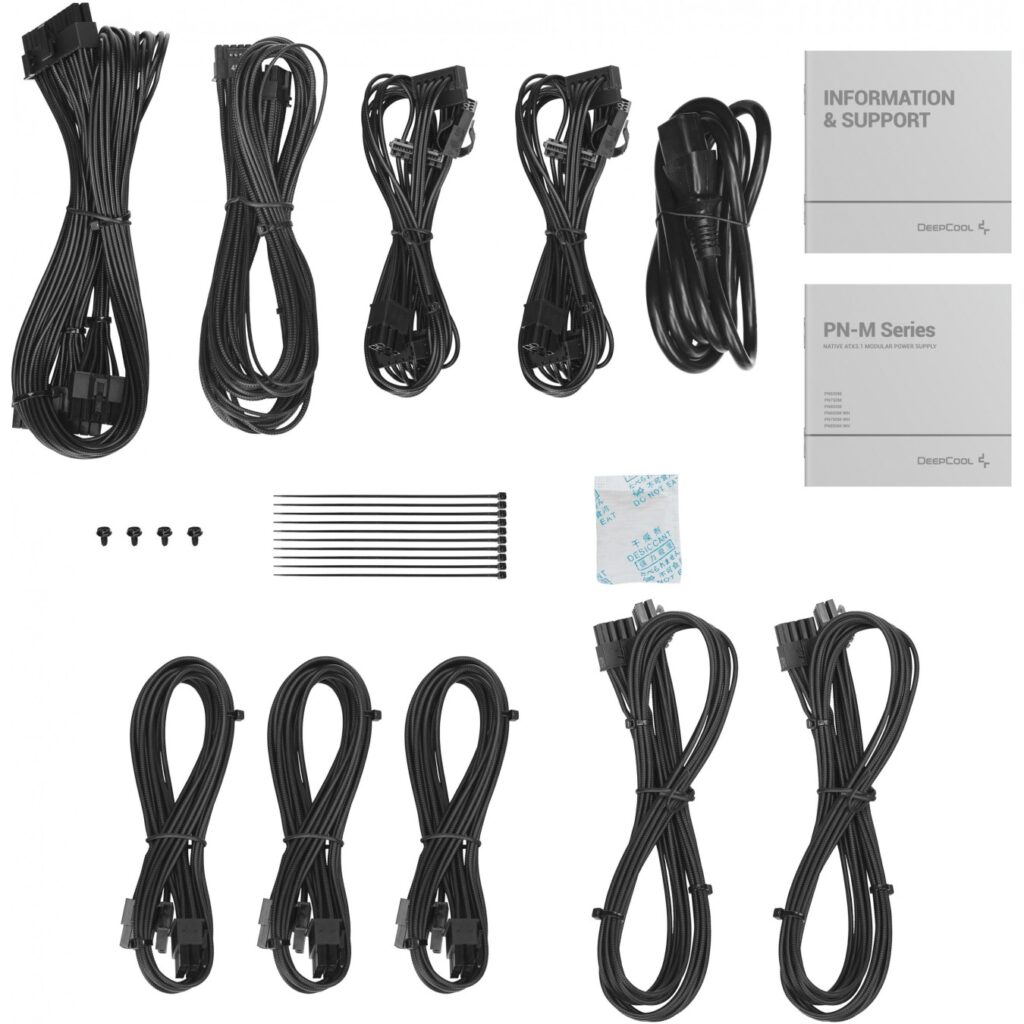

- Fully modular black cables for clean builds

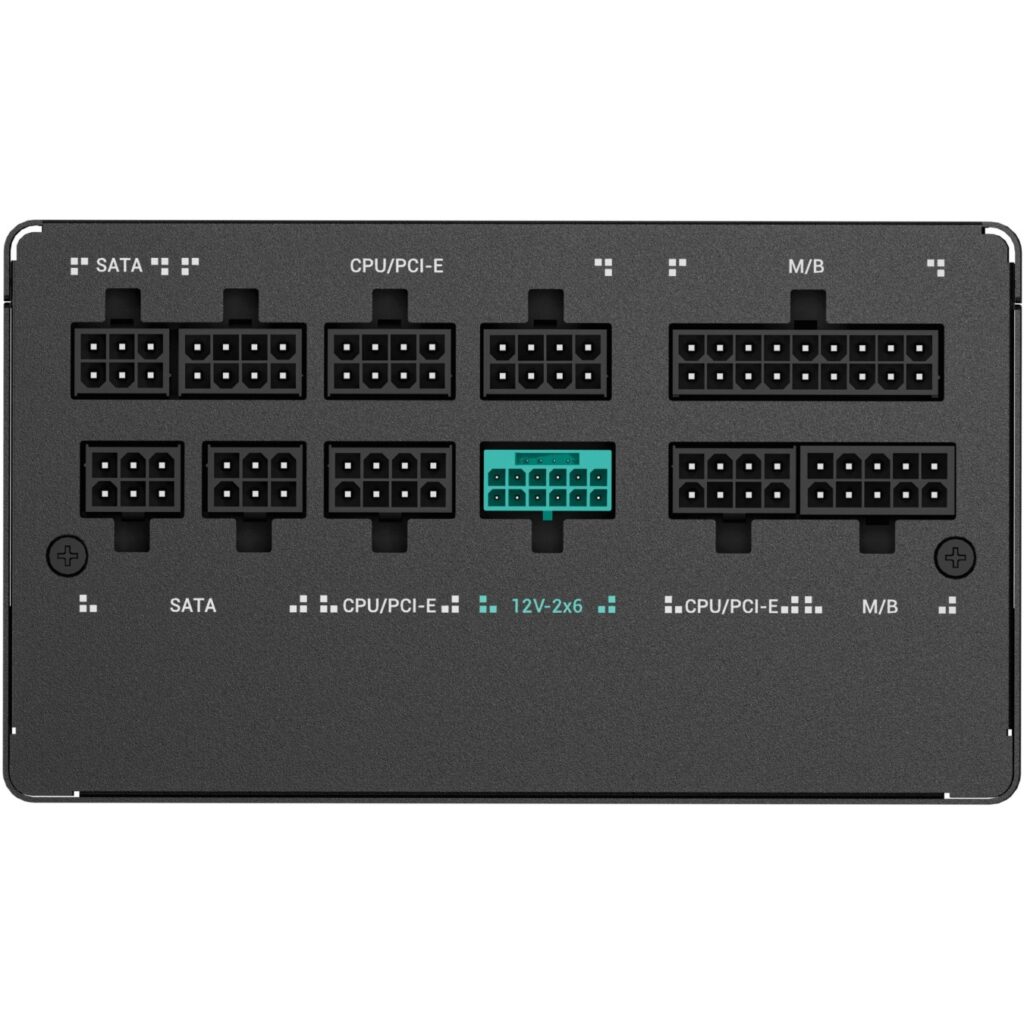

- PCIe connectors: 1x 12+4 pin (450W native for RTX 40 series), 3x 6+2 pin
- CPU: 2x 4+4 pin EPS
- 8x SATA, 2x Molex peripheral
- ATX 24-pin, compact 150x140x86mm size
- Operating temp 0-40°C, MTBF 100,000 hours
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 - 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 18.2 ms |
| Efficiency | 90% |
| 80 PLUS certification | 80 PLUS Gold |
| Cybenetics Efficiency | Gold |
| ATX version | 3.1 |
| Cabling type | Fully-Modular |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (16-pin) | 1 (12+4 pin, 450W) |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS/ATX12V connectors | 2x (4+4 pin) |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Operating temperature (T-T) | 0 - 40 °C |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Warranty period | 10 year(s) |
