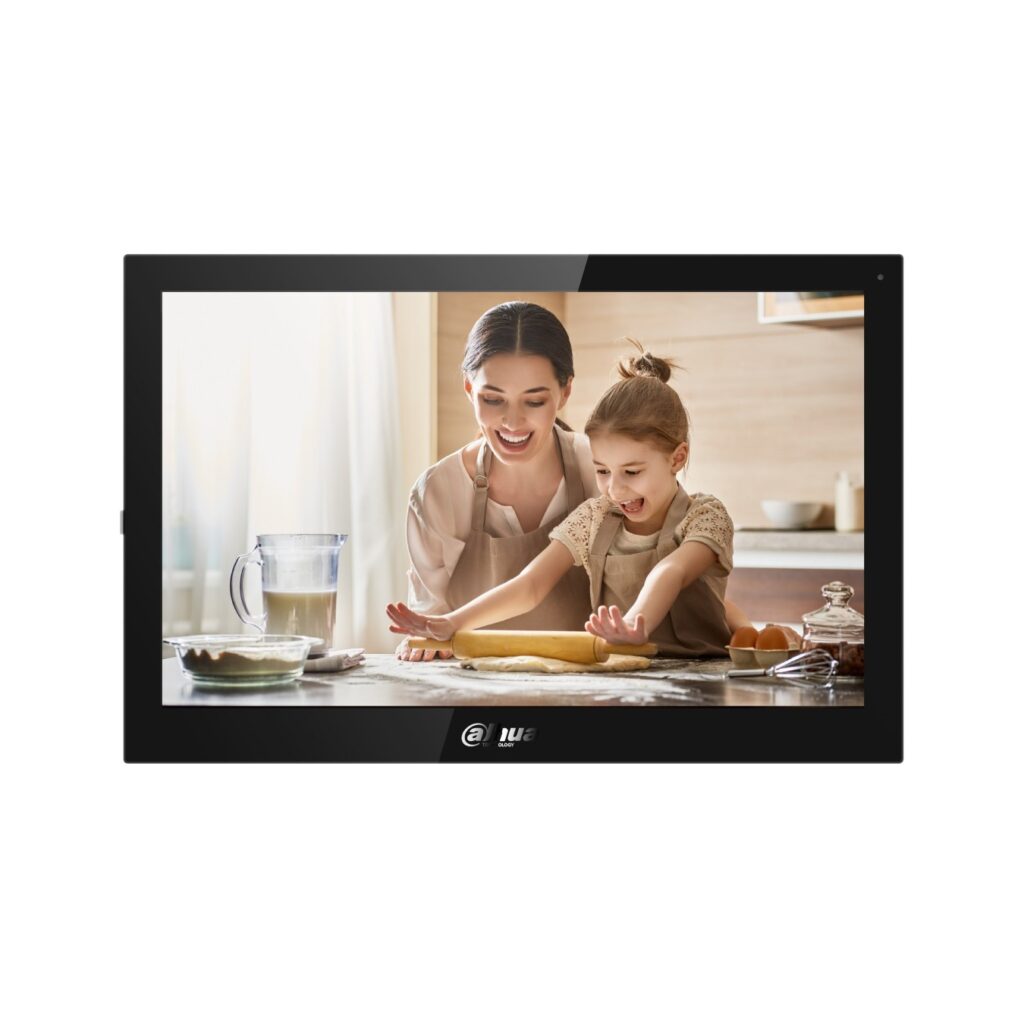

Dahua VD IP Wireless 10inch Android Doorphone Monitor - VTH5341G-W - VD IP Wireless 10inch Android Doorphone Monitor — image 1

Dahua VD IP Wireless 10inch Android Doorphone Monitor - VTH5341G-W - VD IP Wireless 10inch Android Doorphone Monitor

SKU:
Brand: Dahua
Barcode:
231.00 €

Dahua IP wireless 10-inch Android doorphone monitor with Android 8.1, user-friendly UI, Ethernet and Wi‑Fi, 1024×600 capacitive touch display, microSD up to 256GB.

Item out of stock

This item is currently out of stock. We can suggest alternatives or try to source it for you. Call us at 22 270068 or email offer@armenius.cy.

  • Android 8.1
  • More User-Friendly UI
  • Ethernet and Wi-Fi
  • 10” TFT Capacitive touch Screen, 1024×600
  • Micro-SD Card optional, max 256GB

System

  • Main Processor : Embedded processor
  • Operating System : Android 8.1
  • Network Protocol : IPv4, TCP, SIP, UDP, RTSP

Basic

  • Screen Type : Capacitive screen
  • Display : 10-inch TFT screen
  • Resolution : 1024 × 600
  • Video Compression : H.264
  • Audio Compression : PCM
  • Audio Input : 1 omnidirection microphone
  • Audio Output : Built-in 1.5W loudspeaker
  • Audio Mode : Two-way Voice Call
  • Audio Enhancement : Support echo cancellation/DNR
  • Audio Bit Rate : 16KHz, 16Bit

Function

  • Communication Mode : Full digital
  • Information Release : Text announcements released by the management center can be viewed
  • Elevator Control : You can control the elevator through the indoor monitor
  • Leave Videos or Text Messages : Yes (SD card is needed)
  • DND Mode : Support to set DND period
  • Extension Number : Villa: 4 / Apartment: 9
  • Wi-Fi : Yes
  • Wireless Standard : IEEE802.11b/802.11g/802.11n
  • Wireless Frequency Range : 2.4GHz
  • Wireless Security-Encryption : 64/128bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
  • Storage : Micro SD storage, the maximum space is 256GB

Performance

  • Casing : PC+ABS

Port

  • RS-485 : 1
  • Alarm Input : 8
  • Alarm Output : 1
  • Power Output : 1 12V/100mA
  • Door Bell : Yes, use alarm input port
  • Network : 1 10M/100M Ethernet

General

  • Color : Black
  • Power Supply : 12V DC 1A / POE(802.3AF)
  • Installation : Surface mount
  • Certifications : CE / FCC
  • Accessory : Surface mount bracket, alarm ribbon cable, RS-485 cable, and power-supply pins are provided
  • Product Dimensions : 189.6 mm × 134.6 mm × 26 mm
  • Operating Temperature : –10°C to +55°C
  • Operating Humidity : 10%RH–95%RH (Non-condensing)
  • Operating Altitude : Less than 3,000 meters (9842.52 ft)
  • Power Consumption : ≤1.5W (standby), ≤7W (working)
  • Net Weight : 770 g
  • Gross Weight : 1.1Kg
