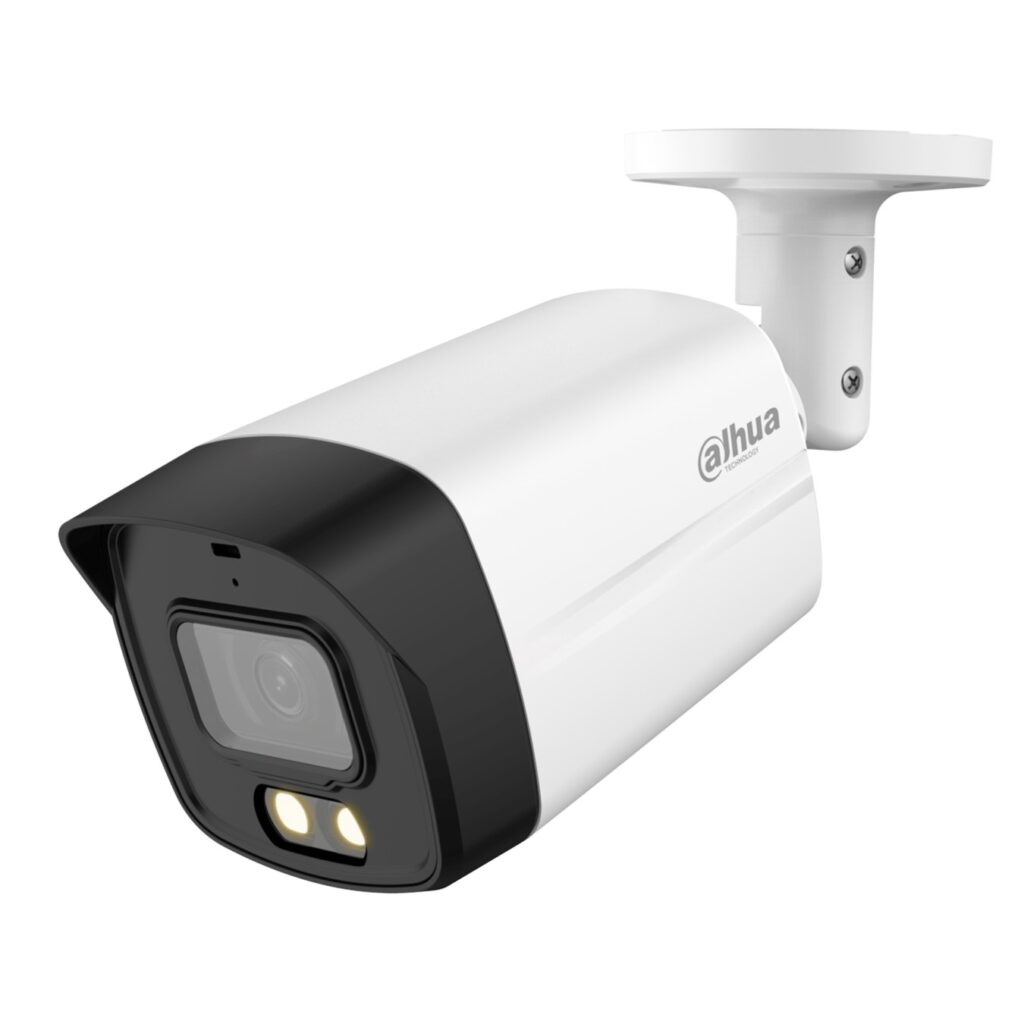

Dahua HDCVI - HFW1239TLM-A-LED-S2 - 2.0MP Bullet 3.6mm Full Color
38.50 €
Dahua HDCVI bullet camera, 2.0MP, 3.6mm lens, full color.
Item out of stock
This item is currently out of stock. We can suggest alternatives or try to source it for you. Call us at 22 270068 or email offer@armenius.cy.
- 24/7 color imaging, Max. 30 fps@1080p
- 40 m illumination distance
- Super Adapt, 130 dB true WDR, 3D NR
- Built-in mic (-A)
- 3.6 mm fixed lens (2.8 mm optional)
- CVI/CVBS/AHD/TVI switchable
- IP67, DC 12 V
Camera
- Image Sensor : 1/2.8″ CMOS
- Max. Resolution : 1920 (H) × 1080 (V)
- Pixel : 2MP
- Scanning System : Progressive
- Electronic Shutter Speed : PAL: 1/25 s–1/100,000 s / NTSC: 1/30 s–1/100,000 s
- S/N Ratio : > 65 dB
- Min. Illumination : 0.001 Lux/F1.6, 30IRE, 0 Lux LED on
- Illumination Distance : 40 m (131.2 ft)
- Illuminator On/Off Control : Auto / Manual
- Illuminator Number : 2
Lens
- Lens Type : Fixed lens
- Mount Type : M12
- Focal Length : 3.6 mm
- Max. Aperture : F1.6
- Field of View : 3.6 mm: H: 86°; V: 46°; D: 101°
- Iris Type : Fixed iris
- Close Focus Distance : 3.6 mm: 1.1 m (3.6 ft)
Video
- Frame Rate : CVI : PAL: 1080p@25 fps, NTSC: 1080p@30 fps / AHD:
- PAL: 1080p@25 fps, NTSC: 1080p@30 fps / TVI : PAL : 1080p@25 fps NTSC : 1080p@30 fps / CVBS : PAL: 960 × 576H, NTSC: 960 × 480H
- Resolution : 1080p (1920 × 1080) / 960H (960 × 576/960 × 480)
- BLC : BLC/WDR/HLC
- WDR : 130 dB
- White Balance : Auto, Area WB
- Gain Control : Auto, manual
- Noise Reduction : 3D NR
- Smart Light : Yes
- Mirror : Off/On
- Privacy Masking : Off/On (8 area, rectangle)
Certifications
- Certifications : CE (EN55032, EN55024, EN50130-4) / FCC (CFR 47 FCC Part 15 subpartB / ANSI C63.4-2014) / UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
- Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Audio Input : One channel built-in mic (-A)
Power
- Power Supply : 12 V ±30% DC
- Power Consumption : Max 5.1 W (12 V DC, LED on)
Environment
- Operating Temperature : –40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation)
- Storage Temperature : –40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation)
- Protection Grade : IP67
Structure
- Casing : Metal front cover / plastic main body / metal bracket
- Camera Dimensions : 198.4 mm × 80.2 mm × 76.2 mm
- Net Weight : 0.28 kg
- Gross Weight : 0.43 kg
| Housing Type | Bullet |
| Camera Protocols | AHD/HDCVI/TVI/CVBS |
| Full-Color | Yes |
| Camera Resolution | 2.0MP |
| Illumination Distance | Up to 40m |
| Lens | Fixed |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| WDR | 130dB true WDR |
| Audio | Built-in Mic |
