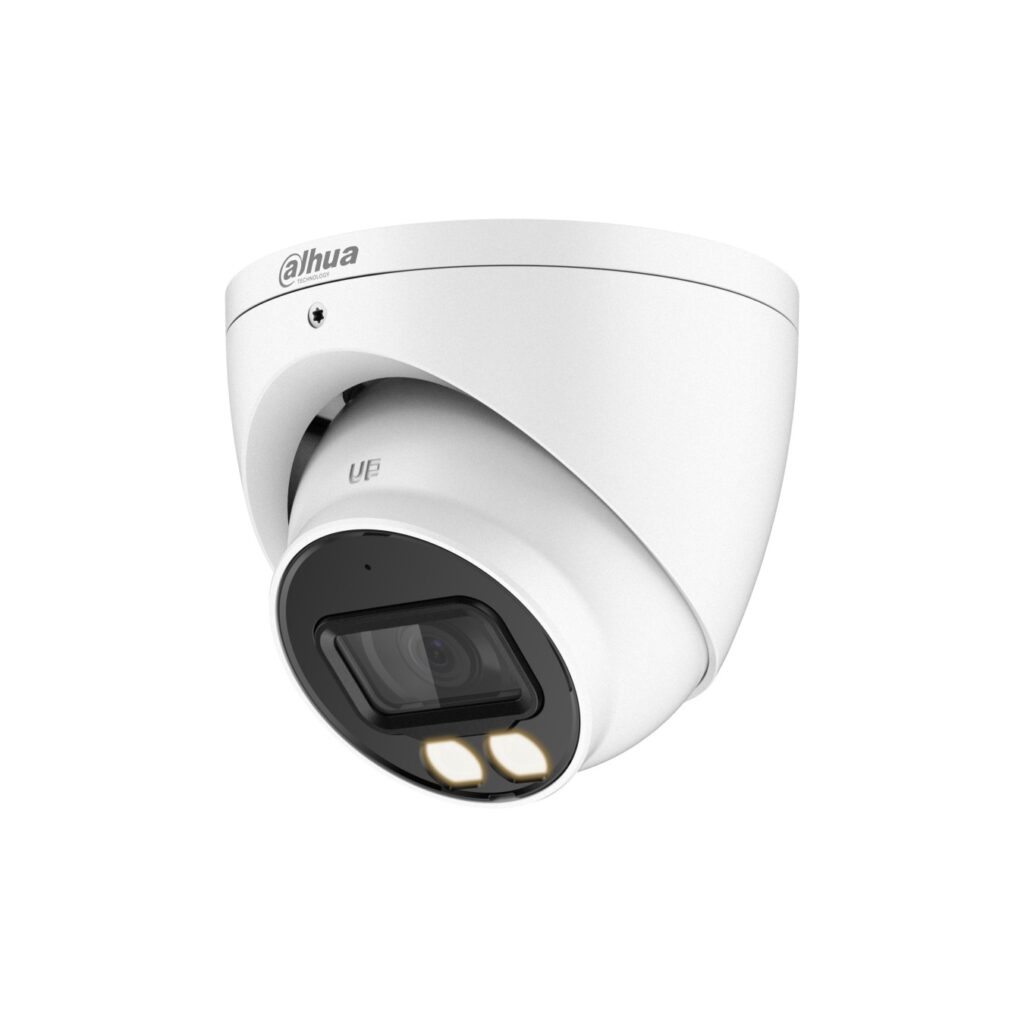

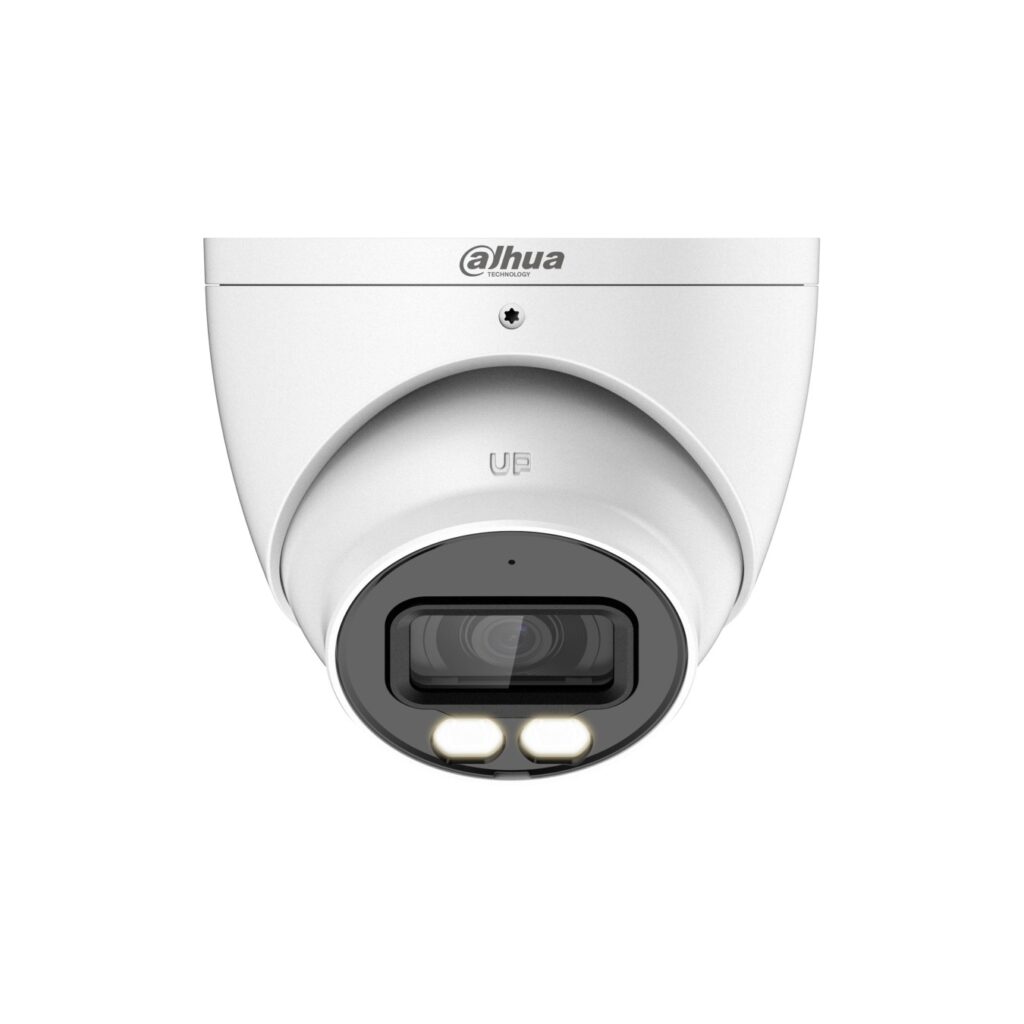

Dahua HDCVI 5.0MP Dome 2.8mm Dual Illuminator - HDW1509T-IL-A-0280B-S2 - Dome 5.0MP 2.8mm Dual Illuminator

* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.

• Max 25 fps@5MP (16:9 video output)
• 120 dB true WDR, 3D NR
• Smart Dual Illuminators
• 40 m illumination distance
• Super Adapt
• Built-in MIC
• 2.8 mm fixed lens
• CVI/CVBS/AHD/TVI switchable
• IP67, 12 VDC

Camera

• Pixel : 5MP
• Image Sensor : 5MP CMOS
• Max. Resolution : 2880 (H) × 1620 (V)
• Scanning System : Progressive
• Electronic Shutter Speed : PAL: 1/3 s–1/100000 s / NTSC: 1/4 s–1/100000 s
• Min. Illumination : 0.001 lux@F1.0 (Color, 30 IRE) / 0.0001 lux@F1.0 (B/W, 30 IRE) / 0 lux (Illuminator on)
• S/N Ratio : >65 dB
• Illumination Distance : IR: 40 m / Warm light: 40 m
• Illuminator On/Off Control : Auto; manual
• Illuminator Number : 2 (IR light) / 2 (Warm light)

Lens

• Lens Type : Fixed-focal
• Mount Type : M12
• Focal Length :  2.8 mm
• Max. Aperture : F1.0
• Field of View : 2.8 mm: H: 111°; V: 57°; D: 131°
• Iris Control : Fixed
• Close Focus Distance : 2.8 mm: 1.5 m

Video

• Video Frame Rate : CVI : PAL : 5M@25 fps; 4M@25 fps; 1080p@25 fps / NTSC : 5M@25 fps; 4M@30 fps; 1080p@30 fps; / AHD : PAL: 4M@25 fps; / NTSC : 4M@30 fps; / TVI : PAL: 4M@25 fps; / NTSC: 4M@30 fps; / CVBS: PAL: 960H; / NTSC: 960H
• Resolution : 5M (2880 × 1620); / 4M (2560 × 1440); / 1080p (1920 × 1080); / 960H (960 × 576/960 × 480)
• Day/Night : Auto (ICR)/Color/B/W
• BLC : BLC; HLC; WDR; HLC-Pro
• WDR : 120 dB
• White Balance : Auto; Area white balance
• Gain Control : Auto; manual
• Noise Reduction : 3D NR
• Defog : Electronic defog
• Digital Zoom : 4×
• Mirror : Yes
• Privacy Masking : Off/On (8 areas, rectangle)
• Illumination Mode : Smart IR&WL; WL Mode; IR Mode

Certifications

• Certifications : CE (EN55032: 2015, EN61000-3-2: 2014, EN61000-3-3: 2013, EN55024: 2010+A1: 2015, EN55035: 2017, EN50130-4: 2011+A1: 2014, EN62368-1: 2014+A11: 2017) / FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) / UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14)

Port

• Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
• Audio Input : One channel built-in MIC

Power

• Power Supply : 12 VDC ± 30%
• Power Consumption : Max 5.7 W (12 VDC, LED on)

Environment

• Operating Temperature : –40 °C to +60 °C
• Operating Humidity : <95% (RH), non-condensing
• Storage Temperature : –40 °C to +60 °C
• Protection : IP67

Structure

• Casing Material : Metal
• Product Dimensions : Φ106.0 mm × 93.6 mm
• Packaging Dimensions : 148 mm × 139 mm × 137 mm
• Net Weight : 0.49 kg
• Gross Weight : 0.66 kg
• Installation : Wall mount; ceiling mount; vertical pole mount
