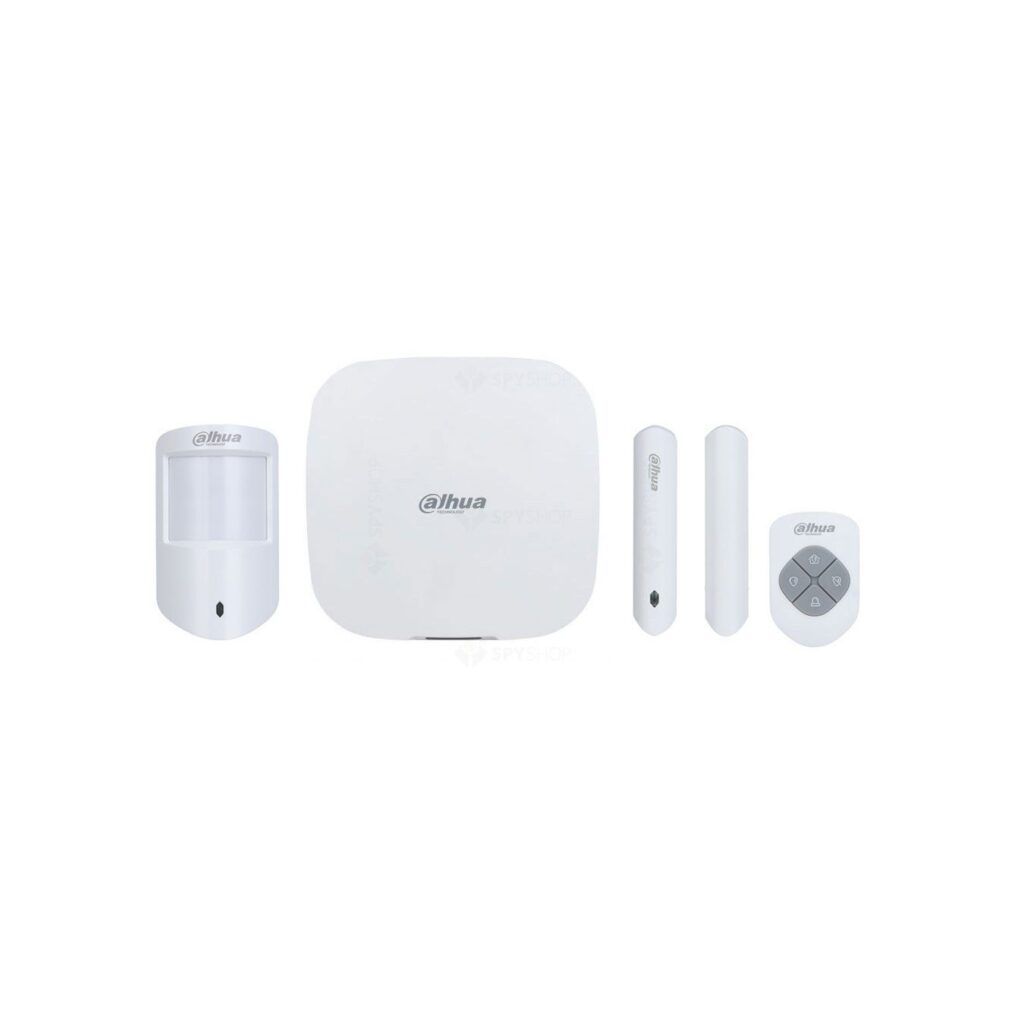

Dahua Alarm Hub 1 Kit WiFi - ARC3000H-03-W2(868Mhz) - Hub+PIR+Keyfob+Door

• Supports 150 wireless peripherals (6 sirens, 64 wireless keyfobs).
• Peripherals status display (signal strength, battery level, temperature, program version)
• Automatic network replenishment (ANR)
• Video linkage on App
• SOS emergency alarm
• Frequency hopping function and two-way communication technology ensure communication stability
• Cloud update and automatic recovery from update failure

Input and Output

• Wireless Protection Zone : Hub: 150-channel wireless peripherals (6 sirens, 64 wireless keyfobs)

Port

• Buzzer : Hub: Built-in
• Button : Hub: 1 × reset, 1 × power, 1 × AP / Keyfob: 4 (Home, Away, Disarm, and SOS) / Door Detector: 1 × power button / PIR Detector: 1 × power button
• Indicator Light : Hub: 1 for multiple statuses (alarm, arming, disarming, networking, and malfunction) / Keyfob: 1 × two-color status indicator (green: normal, red: abnormal) / Door Detector: 1 × green alarm indicator / PIR Detector: 1 × green alarm indicator
• Storage battery : Hub: Built-in lithium battery
• Network Port : Hub: 1 × RJ-45 10 M/100 M Ethernet port

Function

• Network Protocol : Hub: TCP/IP, including PPTP, L2TP, DHCP, UPNP, and NTP
• Offline Cache : Hub: Max. 50 entries (ANR)
• Power Failure Protection for Configured Parameters : Hub: Yes
• Remote Update : All: Cloud update
• Video Linkage : Hub: Yes
• SMS : Hub: Yes (up to 5 phone numbers)
• Phone Call : Hub: Yes (up to 5 phone numbers)
• Low Battery Alarm : All: Yes
• Tamper Alarm : Hub: Yes / Door Detector: Yes / PIR Detector: Yes
• User Management : Hub: Share function for App users
• Search : Hub: Searching push messages, device status, and program version. Detecting signal strength / Keyfob: Signal strength detection / Door Detector: Signal strength detection / PIR Detector: Signal strength detection
• Arm and Disarm : Hub: App; keyfob; schedule

Wireless

• Carrier Frequency : All: 868.0 MHz–868.6 MHz
• Communication Distance : Hub: Up to 2,000 m in an open space / Keyfob: Up to 900 m in an open space / Door Detector: Up to 1,200 m in an open space / PIR Detector: Up to 1,600 m in an open space
• Communication Mechanism : All: Two-way
• Encryption Mode : All: AES128
• Frequency Hopping : All: Yes
• Wi-Fi : Hub: 2.4G

Peripherals

• External Zone : Door Detector: 1-channel dry contact input
• Temperature
• Measuring Range (Temperature) : Door Detector: –15 °C to +65 °C  (indoor) / PIR Detector: –15 °C to +65 °C (indoor)
• Measuring Precision (Temperature) : Door Detector: ± 1 °C  / PIR Detector: ± 1 °C
• Resolution (Temperature) : Door Detector: 1 °C / PIR Detector: 1 °C
• Specification
• Sensor : Door Detector: Reed switch / PIR Detector: Dual elements low-noise PIR sensor
• Test Mode : Door Detector: Yes / PIR Detector: Yes
• Scenario : Door Detector: Non-metal doors
• Movement Distance : Door Detector: < 40 mm
• Detection Mode : PIR Detector: PIR
• Detection Range : PIR Detector: 12 m (90°) with installtion height of 2.2 m
• Detection Speed : PIR Detector: 0.3 m/s–3 m/s
• Pet Immunity Level : PIR Detector: ≤ 18 kg (39.68 lb)
• White Light Resistance Level : PIR Detector: 6500 lx
• Two-way Digital Temperature Compensation : PIR Detector: Yes, no attenuation of detection distance in high temperature
• Sensitivity : PIR Detector: 3 levels adjustable

General

• Power Supply : Hub: 12 V DC, 1.5 A (Europe, UK and USA power adapters are optional) / Keyfob: CR2032 battery / Door Detector: CR123A battery / PIR Detector: CR123A battery
• Battery Life : Hub: Storage battery standby for 12 Hours / Keyfob: 5 years / Door Detector: 5 years / PIR Detector: 4 years
• Power Consumption : Keyfob: Max. 85 mW / Door Detector: Max. 70 mW / PIR Detector: Max. 75 mW
• Operating environment : Hub: –10 °C to +50 °C (indoor) / Keyfob: –10 °C to +55 °C (indoor) / Door Detector: –10 °C to +55 °C (indoor) / PIR Detector: –10 °C to +55 °C (indoor)
• Operating Humidity : All: 10%–90% (RH)
• Product Dimensions : Hub: 163.0 mm × 163.0 mm × 32.0 mm (L × W × H) / Keyfob: 60.0 mm × 39.5 mm × 15.0 mm (L × W × H) / Door Detector: 100.2 mm × 20.8 mm × 20.3 mm (L × W × H) / PIR Detector: 104.0 mm × 60.0 mm × 50.0 mm (L × W × H)

Installation

• Hub: Wall mount; Desktop
• Door Detector: Bracket mount
• PIR Detector: Wall mount

Net Weight

• Hub: 0.38 Kg
• Keyfob: 20 g
• Door Detector: 70 g
• PIR Detector: 100 g

Gross Weight

• Hub: 0.8 Kg
• Keyfob: 65 g
• Door Detector: 115 g
• PIR Detector: 170 g

Casing

• All: PC + ABS

Certifications

• All: CE
