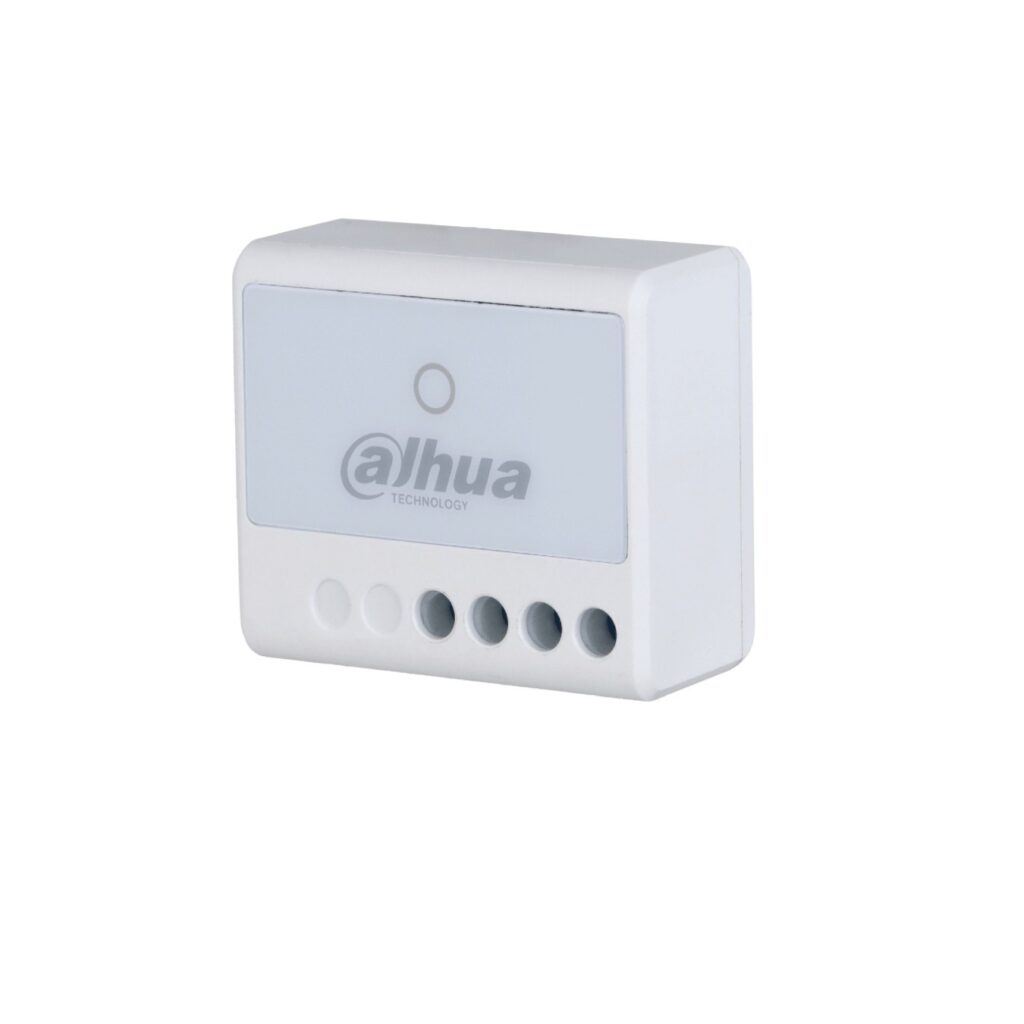

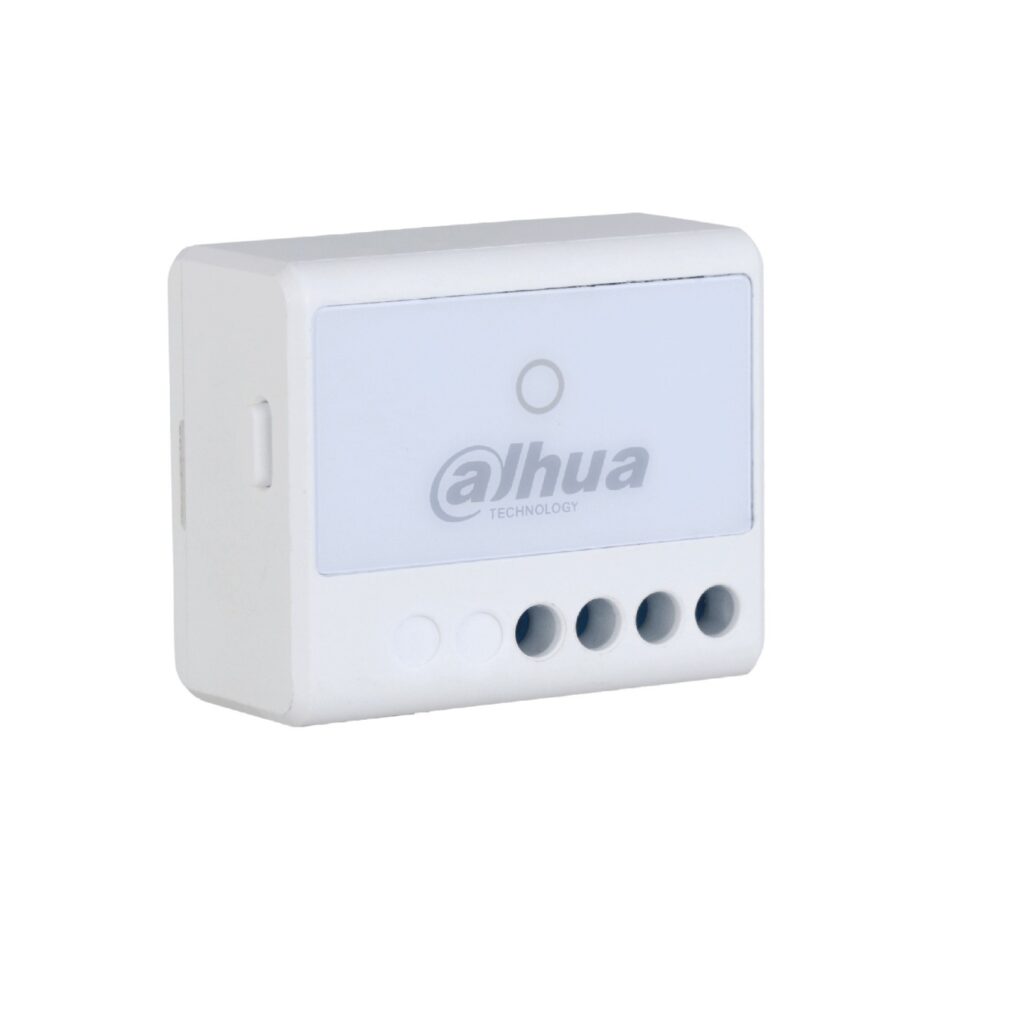

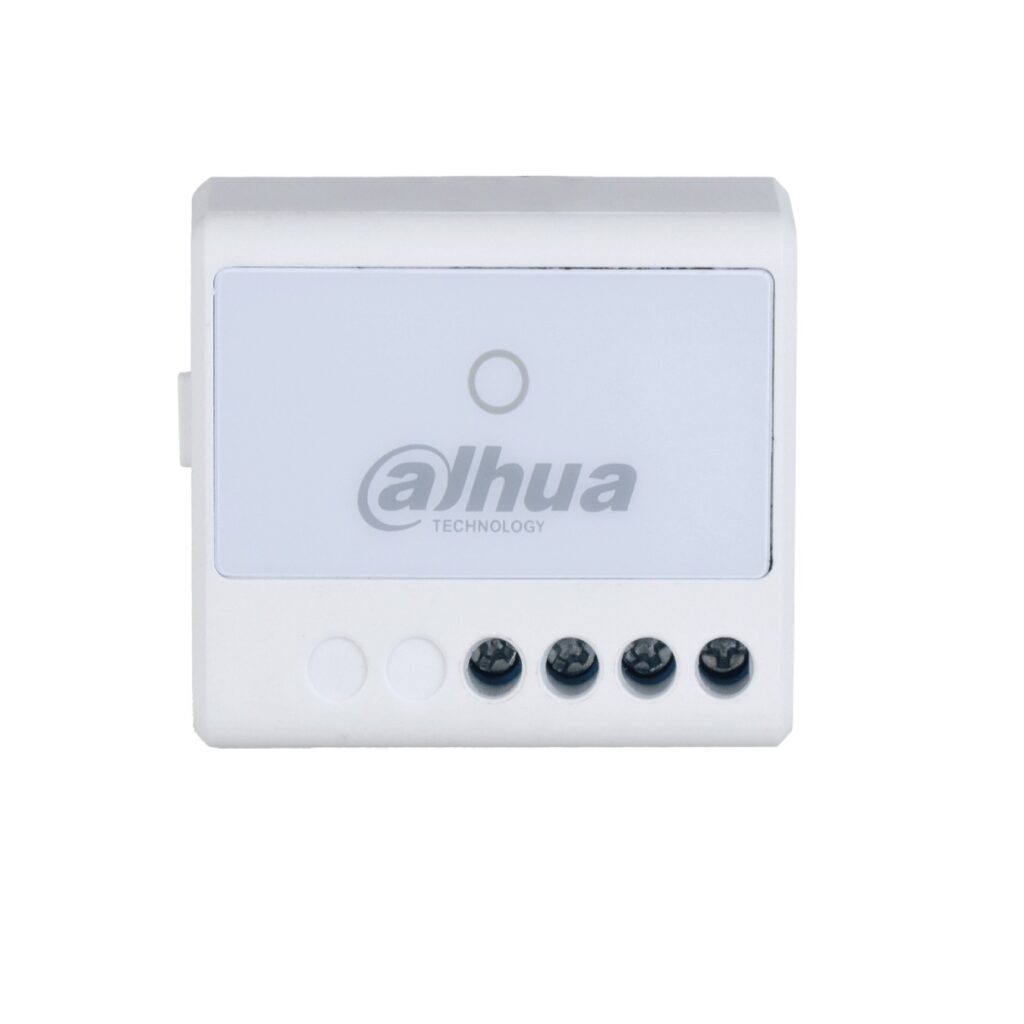

Dahua Alarm Automation WallSwitch - ARM7012-W2(868) - Alarm Automation WallSwitch

SKU:
Brand: Dahua
Barcode:
41.00 €

Frequency-hopping, two-way communication for stable links; jamming detection and AES128 encryption; cloud updates with auto-restore; overheat/overload protection; monitors voltage, current, and energy.

Available in 2–3 business days : 5 pieces

For any questions about this item, availability, or delivery times, please contact us at 22 270068

  • Frequency hopping and two-way communication technology ensure that communication is stable
  • Supports jamming detection and communication encryption
  • Supports cloud update and automatically restores when cloud update fails
  • Overheat and overload protection
  • Monitors voltage, current and energy consumption

Port

  • Relay Output : 1, NO/NC (100–240 VAC, Max 13A)

Function

  • Indicator Light : 1 for multiple statuses (pairing, communication)
  • Button : 1
  • Remote Update : Cloud update

Technical

  • Test Mode : Yes

Wireless

  • Carrier Frequency : 868.0 MHz–868.6 MHz
  • Communication Mechanism : Two-way
  • Communication Distance : 1200 m in open areas
  • Encryption Mode : AES128
  • Frequency Hopping : Yes

General

  • Power Supply : 100–240 VAC, 50/60 HZ
  • Operating Temperature : –10 °C to +55 °C (indoor)
  • Operating Humidity : 10%–90% (RH)
  • Storage Temperature : –10 °C to +55 °C
  • Storage Humidity : 10%–90% (RH)
  • Product Dimensions : 39 mm × 33 mm × 19 mm
  • Packaging Dimensions : 95 mm × 59.5 mm × 30.5 mm
  • Net Weight : 45 g
  • Gross Weight : 60 g
  • Installation : Wall mount
  • Casing Material : Plastic
  • Certifications : CE
