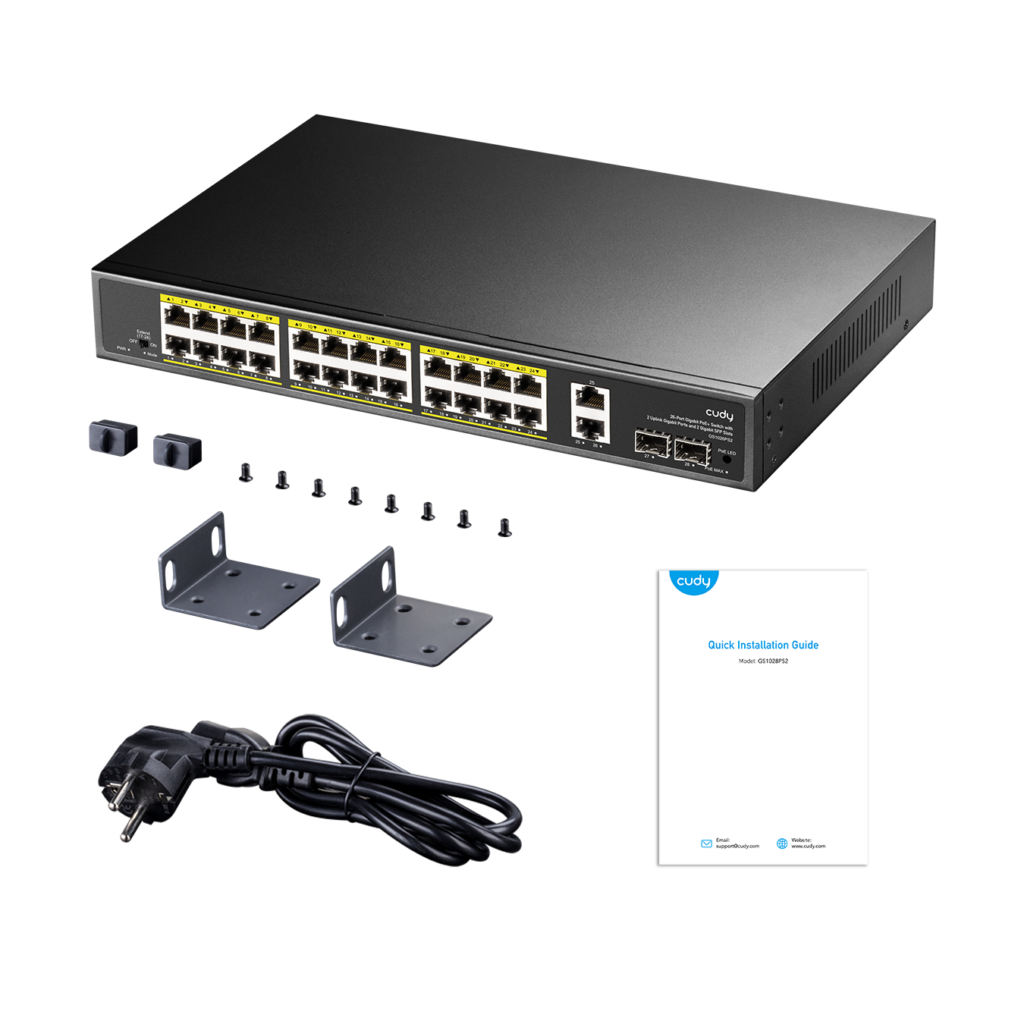

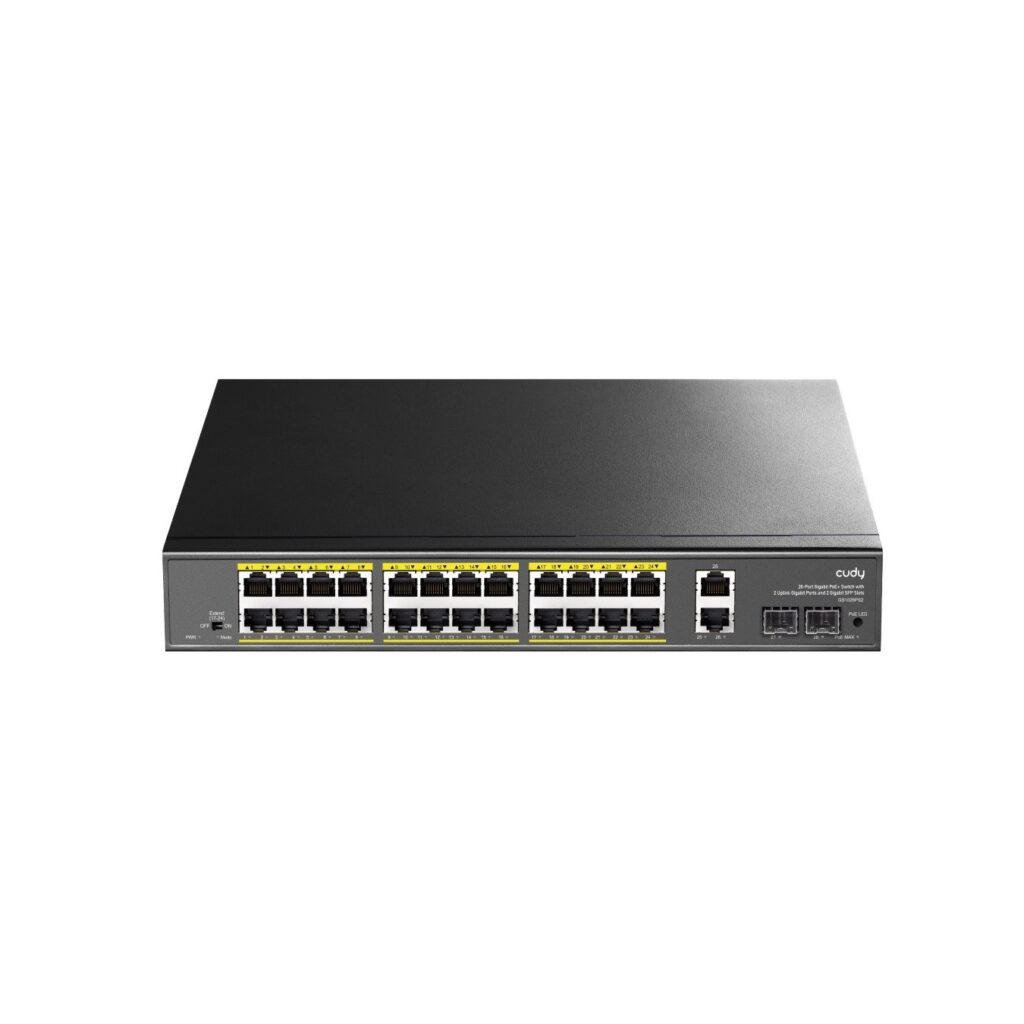

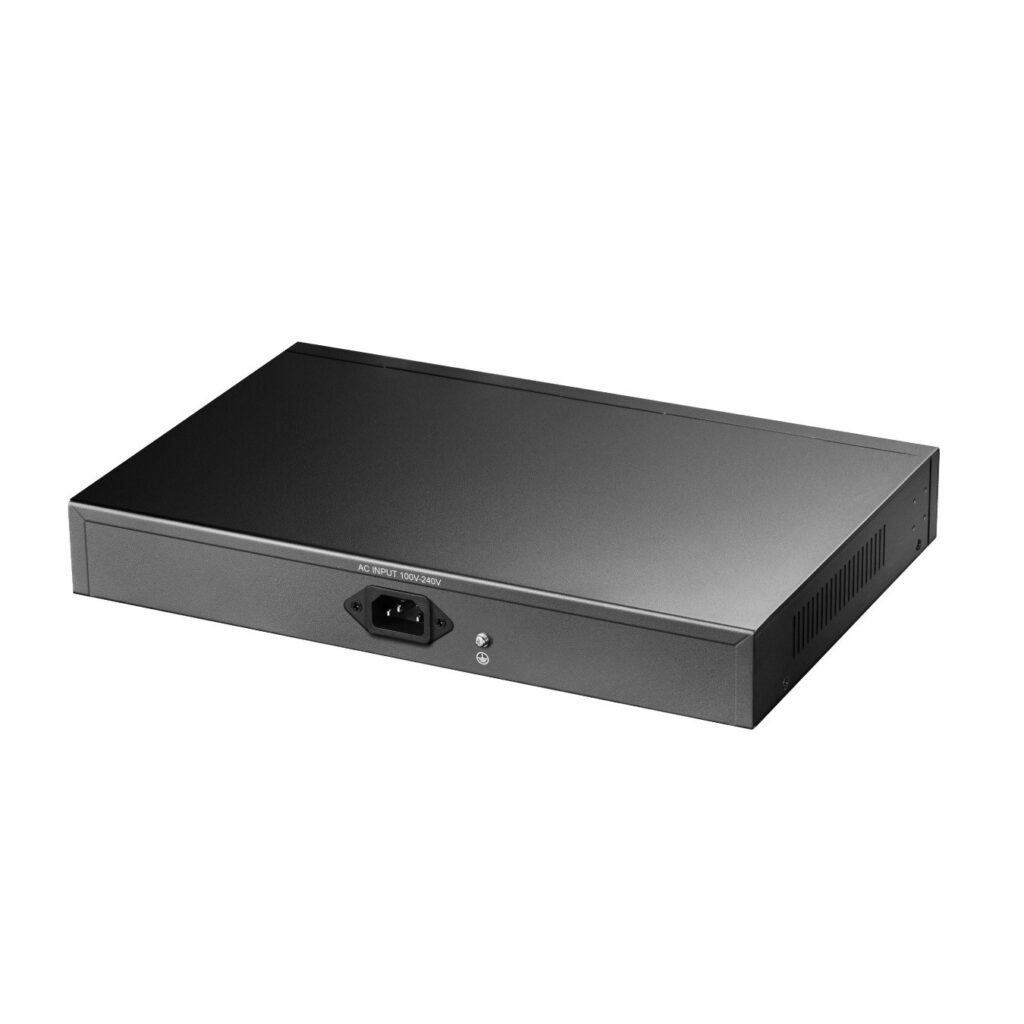

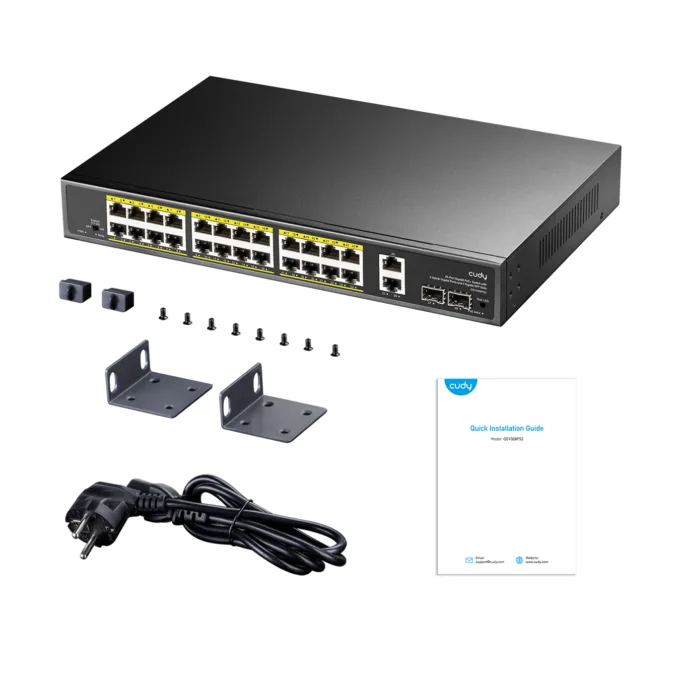

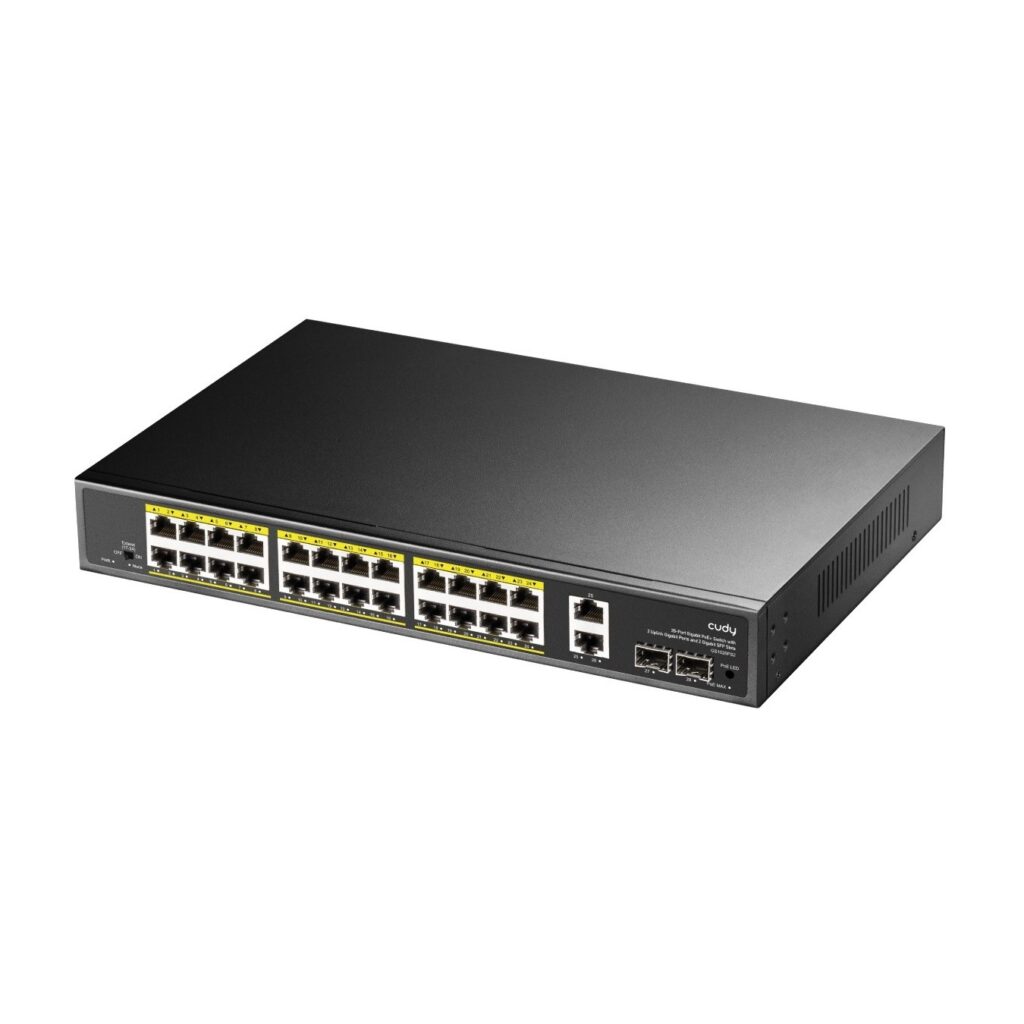

Cudy Switch PoE Gigabit 24PoE + 2GbE + 2SFP Uplink 300W RM - GS1026PS2 - RM

SKU:
Brand: Cudy
Barcode:
231.50 €

24 PoE ports with 2 GbE + 2 SFP uplinks, 300W total PoE, RM

Available in 2–3 business days : 5 pieces

For any questions about this item, availability, or delivery times, please contact us at 22 270068

  • Dual uplink GbE and dual SFP slots allow network expansion and long-distance surveillance
  • 24× GbE PoE Ports, 802.3at / 802.3af (30W per port)
  • Port 17-24 Supports CCTV Mode for max 250 meters transmission
  • 300-watt total power supply
  • Watchdog detects unresponsive PoE clients under VLAN mode
  • PoE Port Priority streamlines device power management

Model: GS1026PS2

Connector Type: 24× 10/100/1000 Mbps PoE Ports + 2× Uplink Gigabit Ports+ 2× Uplink SFP Slots

Network Protocol:

  • IEEE 802.3 (Ethernet)
  • IEEE 802.3u (Fast Ethernet)
  • IEEE 802.3ab (Gigabit Ethernet)
  • IEEE 802.3x (Flow Control)
  • IEEE 802.3z (Gigabit Ethernet Fiber Standard)
PoE Parameters
  • PoE Standard: IEEE802.3af /IEEE802.3at
  • Max each port: 15.4W ( IEEE 802.3af )
  •
  • Max each port：30W ( IEEE 802.3at )
  • PoE compatibility: IEEE 802.3af/at adaptive
  • PoE port output: DC48-55V
  • Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)
Network Media
  • 10BASE-T: Cat 5E UTP(≤250 meter)
  • 100BASE-TX: Cat5 or more UTP (≤100 meter)
  • 1000BASE-TX: Cat5 or more UTP (≤100 meter)
Optical
  • MultiMode Fiber: 850nm, 1310nm,  Transmission Distance: 550m/2Km
  • Single-Mode Fiber: 1310nm, 1550nm,  Transmission Distance: 20/40/60/80/100/120km
Performance Specification
  • Bandwidth: 56Gbps
  • MAC: 8K
  • Packet Buffer Memory: 3 Mbit
  • Packet Forwarding Rate: 41.644 Mpps

Power Supply

  • Power input: AC100-240V 50/60Hz,  Power Budget: 300 W

LED Indicator

  • PWR :Power supply indicator (Red)
  • Lighting: Powered
  • Un-Light: No Power
1-24
  • PoE/RJ-45 Status indicator (Yellow)
  • On: POE power supply is normal
  • Off: POE not powered
1-28
  • PoE/RJ-45 StatUs indicator (Green)
  • On: Link normal
  • Off: Link blocked
  • Flashing: Data transmitting
Note Press the PoE Status Button to switch between PoE and RJ-45 displaying modes

Working Environment
  • Operating Temperature: -20℃ ~ 50℃;
  • Storage Temperature: -40℃ ~ 80℃;
  • Operating Humidity: Max 90%, non-condensing
  • Storage Humidity: Max 95%, non-condensing
  • Working Height: Max to 10,000 feet (3,000 meters)
  • Storage Height: Max to 10,000 feet (3,000 meters)
