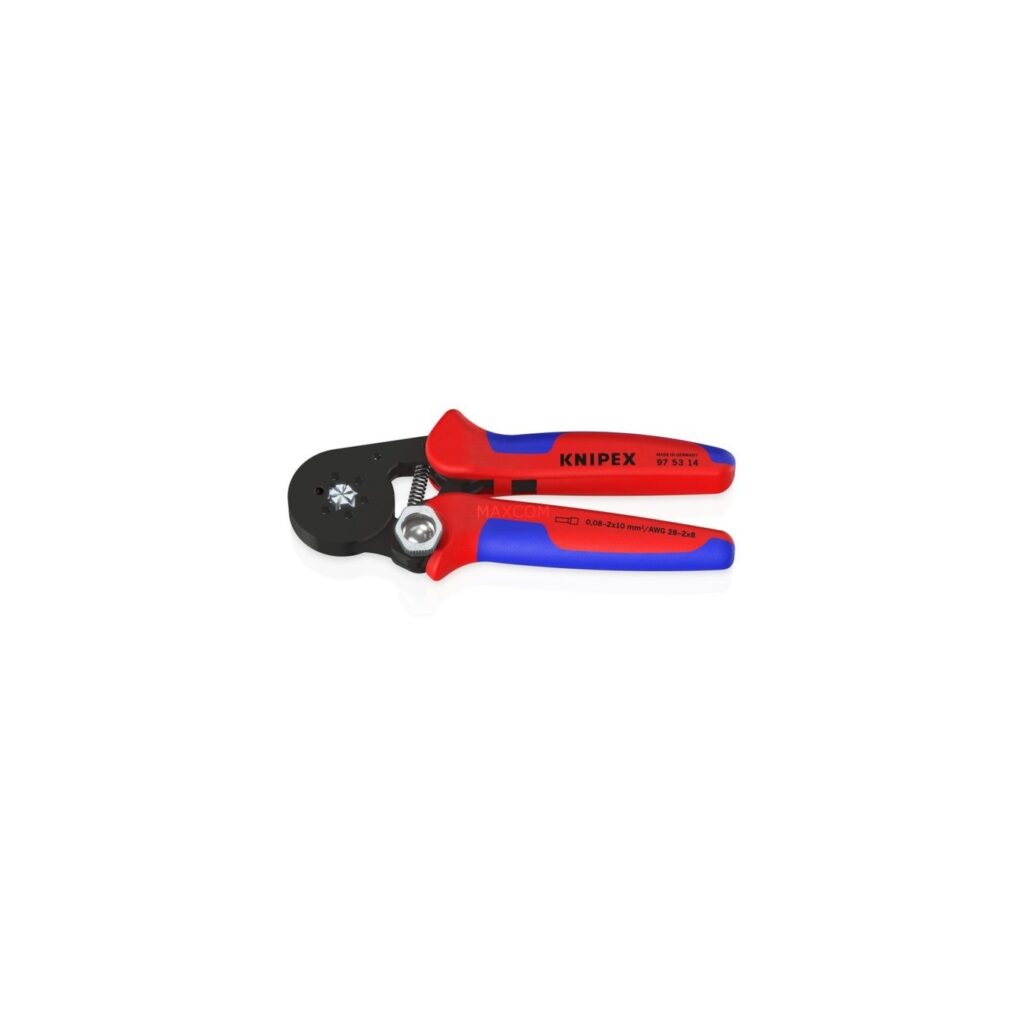

Crimping Pliers - 97 53 14 SB
Compact KNIPEX crimping pliers 97 53 14 SB for wire end ferrules; auto-adjusts to ferrule size for easy, precise crimps.
Available in 6–10 business days : 6 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The small KNIPEX crimping pliers 97 53 14 SB for wire end ferrules offers two major advantages for the user. The automatic self-adjustment to the ferrule used relieves the specialist and offers safe, reliable and quick crimping. The smaller grip width protects the wrists. The crimping pliers 97 53 14 SB are suitable for crimping wire end sleeves in accordance with DIN 46228 parts 1 + 4, adjusting themselves to the desired wire sleeve size. The consistently high crimping quality is achieved by the positive lock (unlockable). The crimping pressure is already precisely set (calibrated) at the factory. The crimping pliers 97 53 14 SB also offer force amplification using knee levers for low-fatigue work.
| Typ | Crimp-Zange |
| Color | red/blue |
| EAN | 4003773048497 |
| Manufacturer no. | 97 53 14 SB |
| Manufactured in | Deutschland |
| Purpose of use | For pressing wire end sleeves from 0.8mm² to 10mm² |
| Material | Chrom-Vanadium |
| Griff | Multi-component handle |
| Service | return spring |
| Blade/tip material | Chrom-Vanadium |
| Crimp nests for wire end sleeves - number | 1 piece |
| Total length | 180 mm |
| Area of application | House, workshop, plumbing/heating |
| Feature | High ease of use thanks to the handy design and low weight |
| More information | Hexagonal crimping with a capacity expansion of up to 10 mm², hexagonal crimping for tight connection dimensions, particularly suitable for all twin ferrules up to 2x 4 mm² or 2x AWG 10 |
| Notice | In sales packaging |
| Weight | 404 Gramm |
