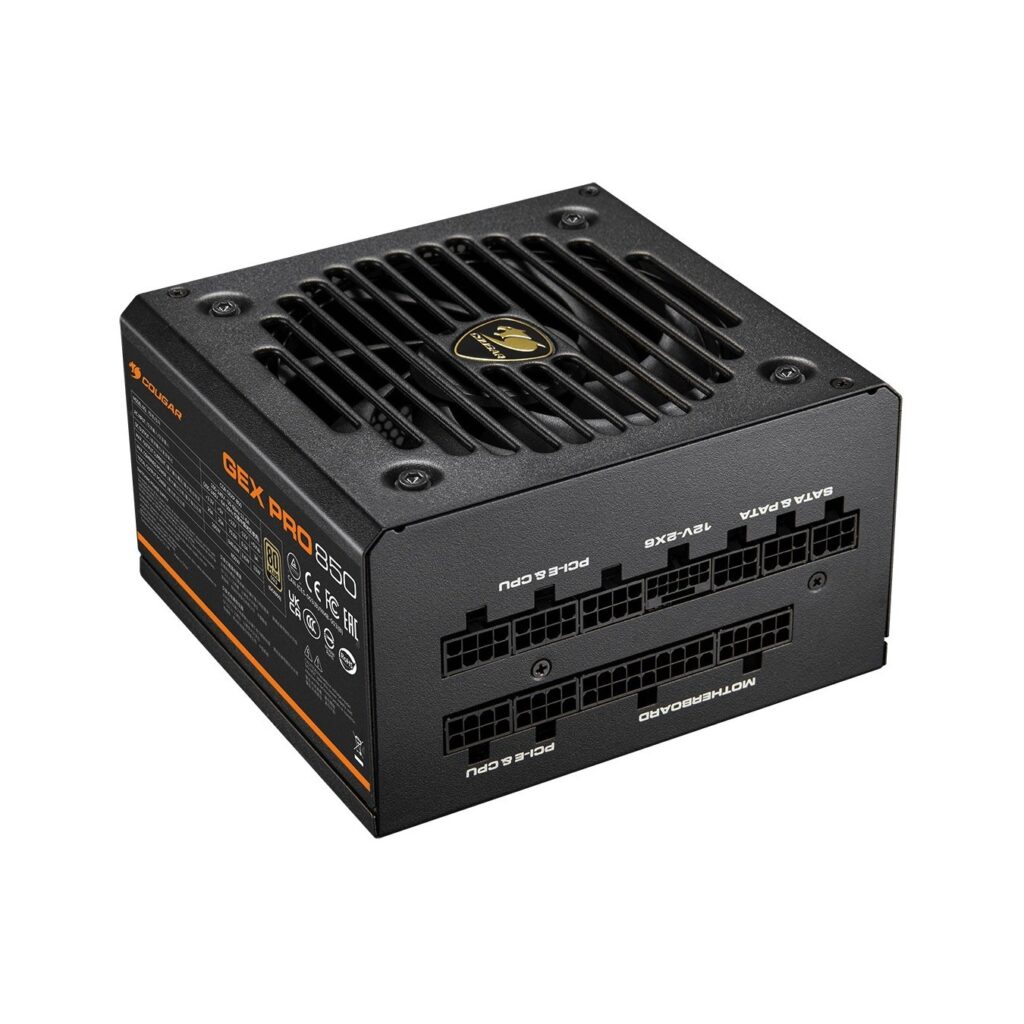

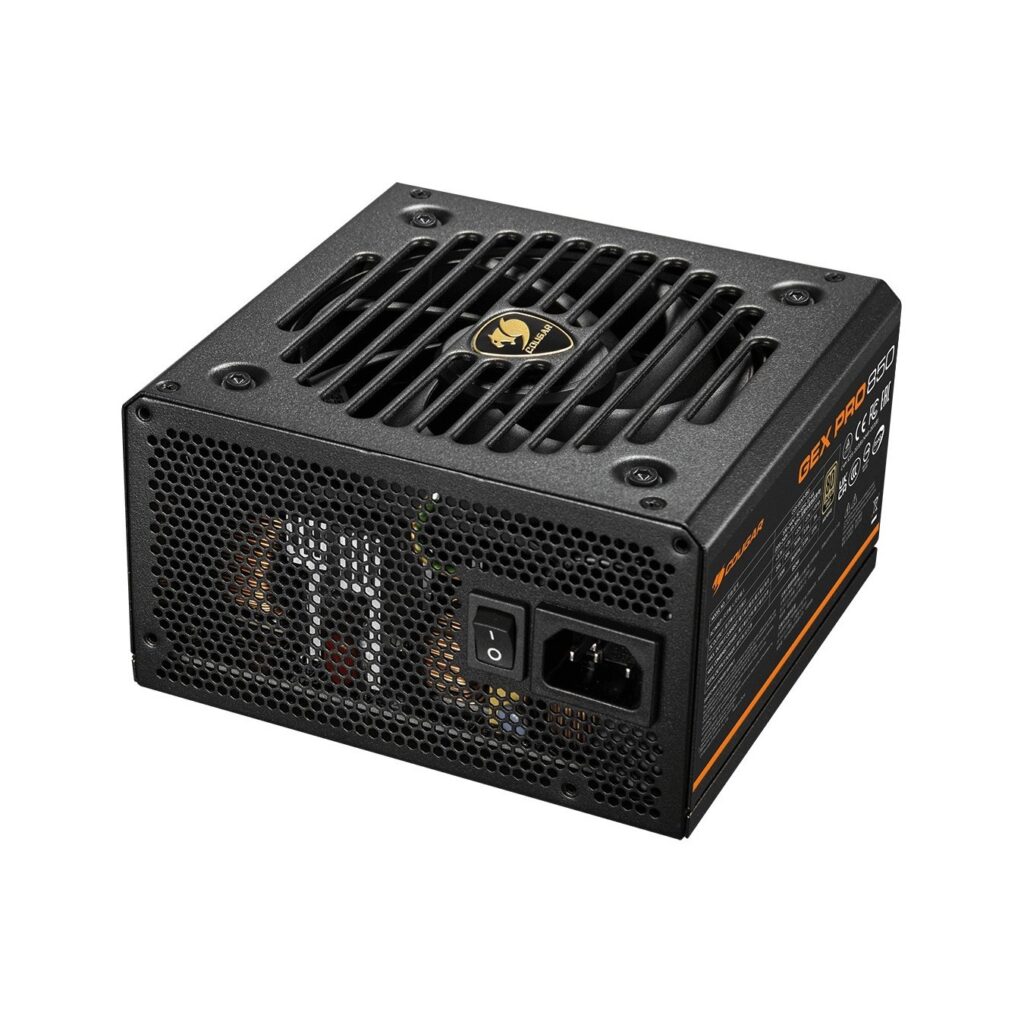

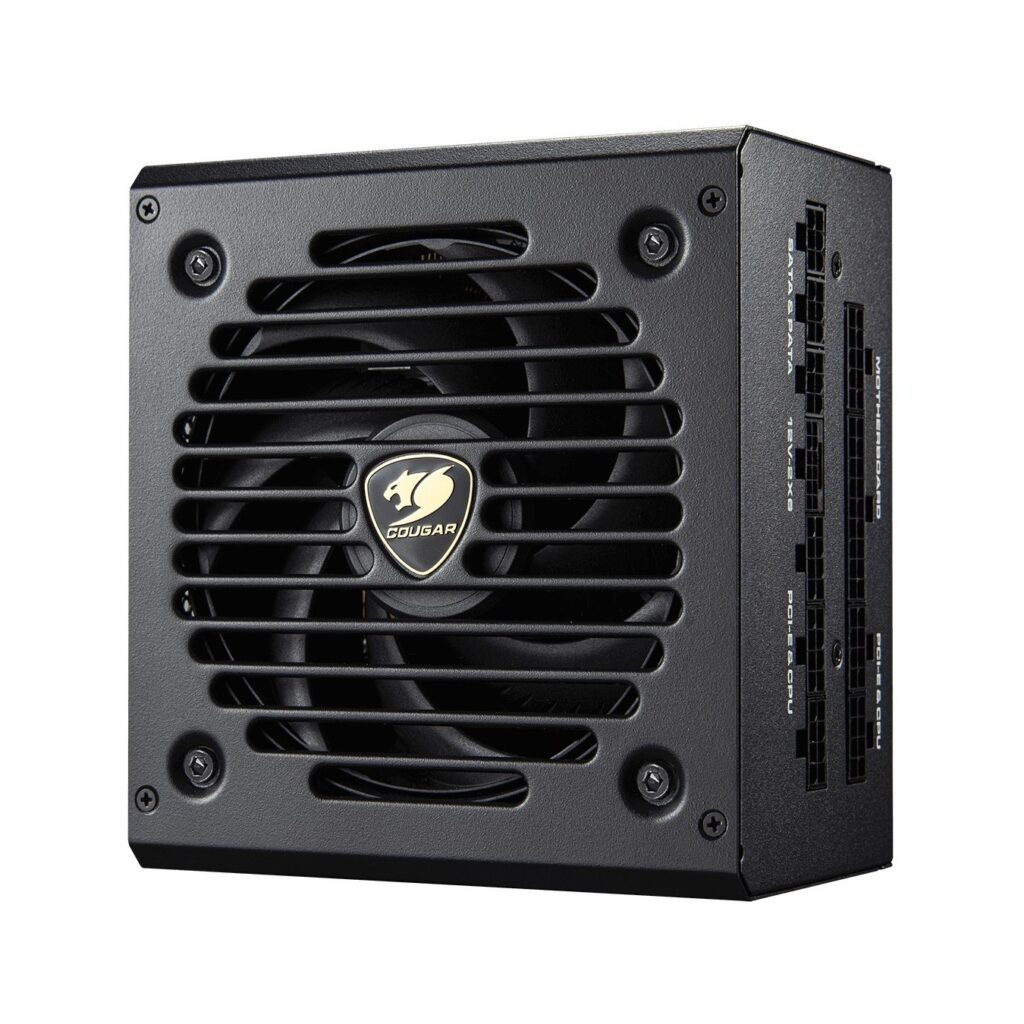

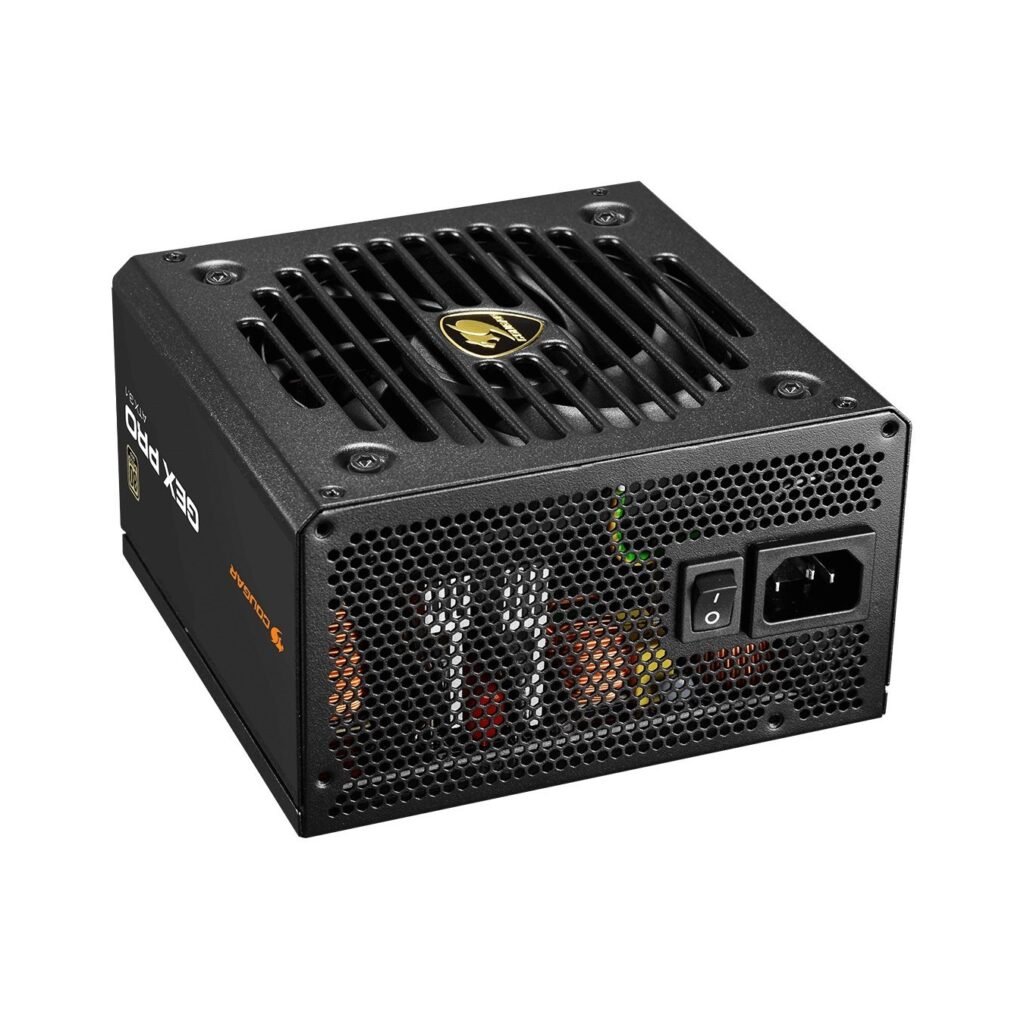

COUGAR Power Supply - GEX PRO - 850W ATX3.1 80 Plus Gold Modular
COUGAR GEX PRO 850W power supply with ATX3.1 and 80 Plus Gold efficiency, fully modular.
Available in 6–10 business days : 79 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
COUGAR Gaming CGR GEXP-850. Total power: 850 W. AC input voltage: 100 – 240 V. AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX. Motherboard power cable length: 61 cm. SATA power cable length: 400.520.640.760 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Gold. Product colour: Black. Cooling type: Active. Fan diameter: 12 cm. Compliance certificates: CE. EAC. Federal Communications Commission (FCC). RoHS. UKCA
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 12-6 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 849.6 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 91% |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit. Under voltage |

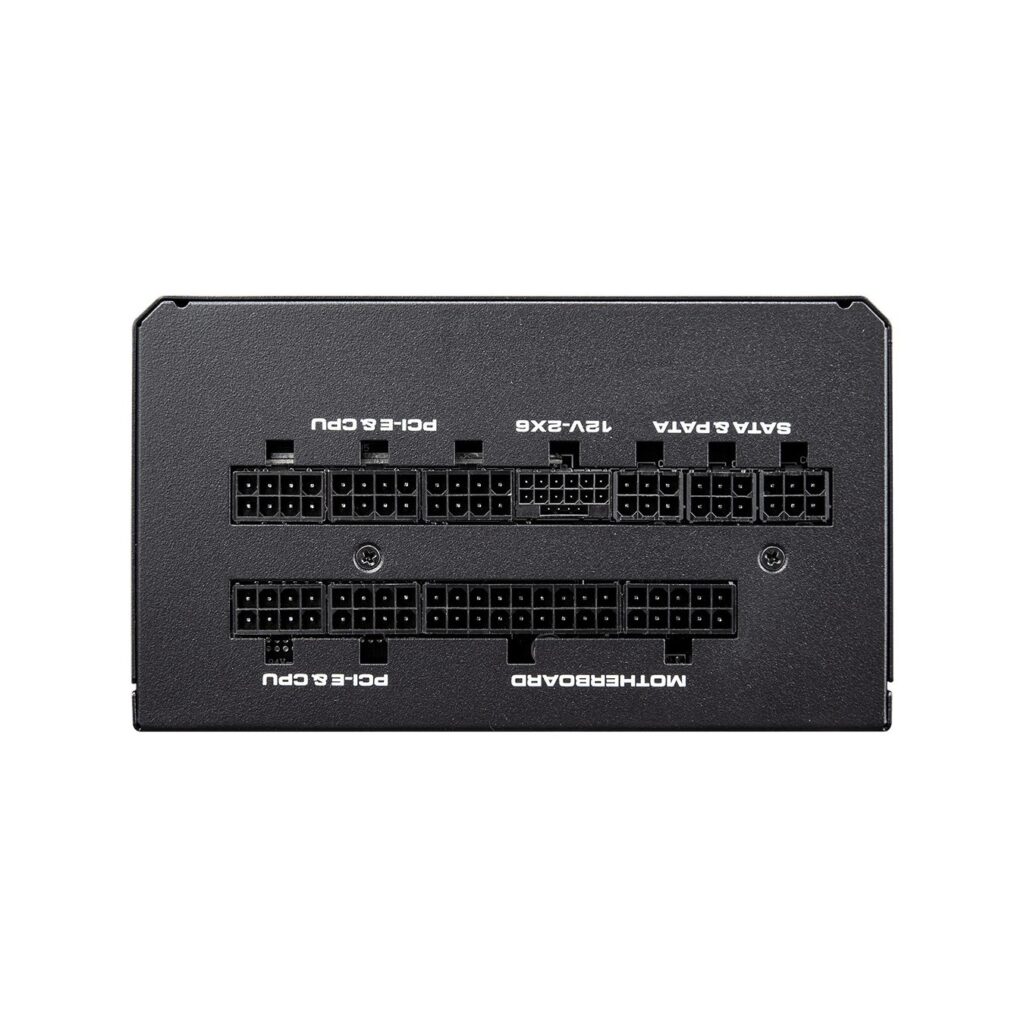

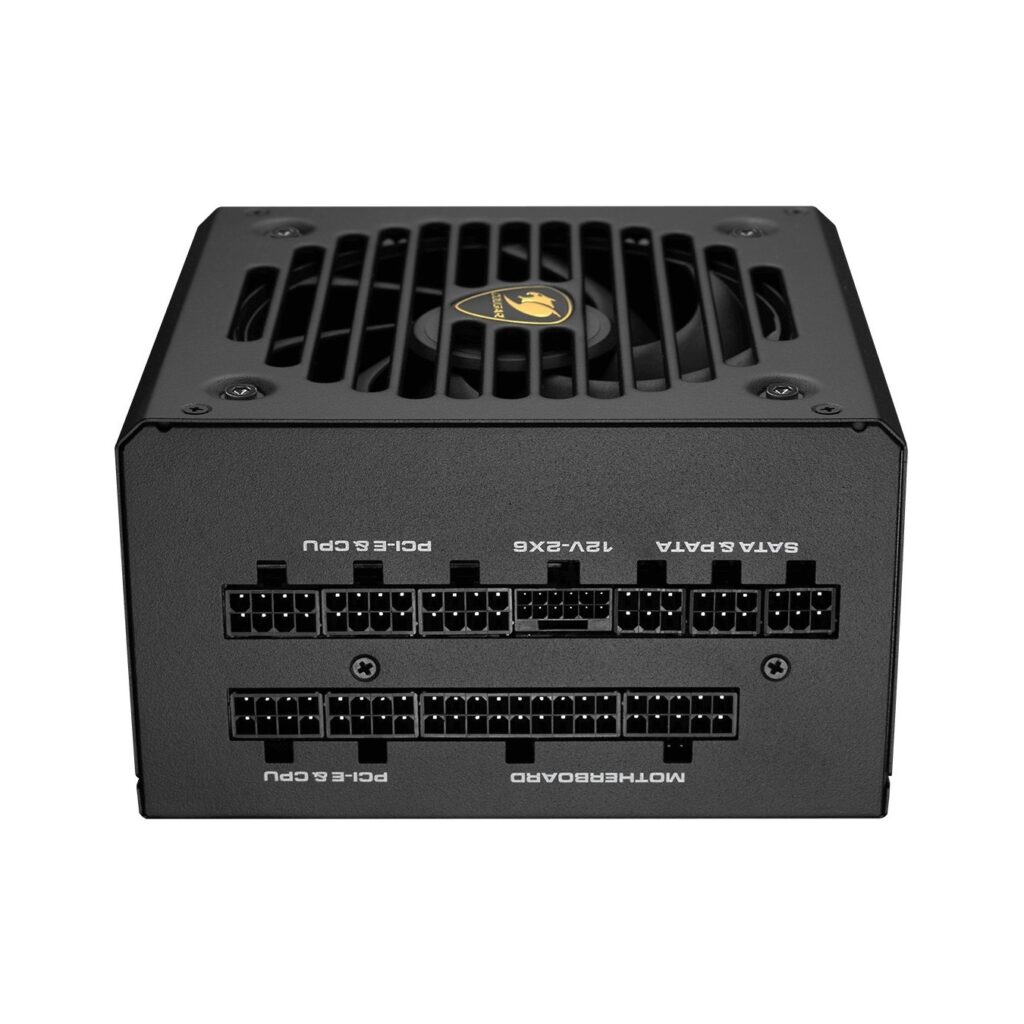

| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 8 |
| Number of PATA power connectors | 3 |
| SATA power cable length | 400.520.640.760 mm |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 650 mm |

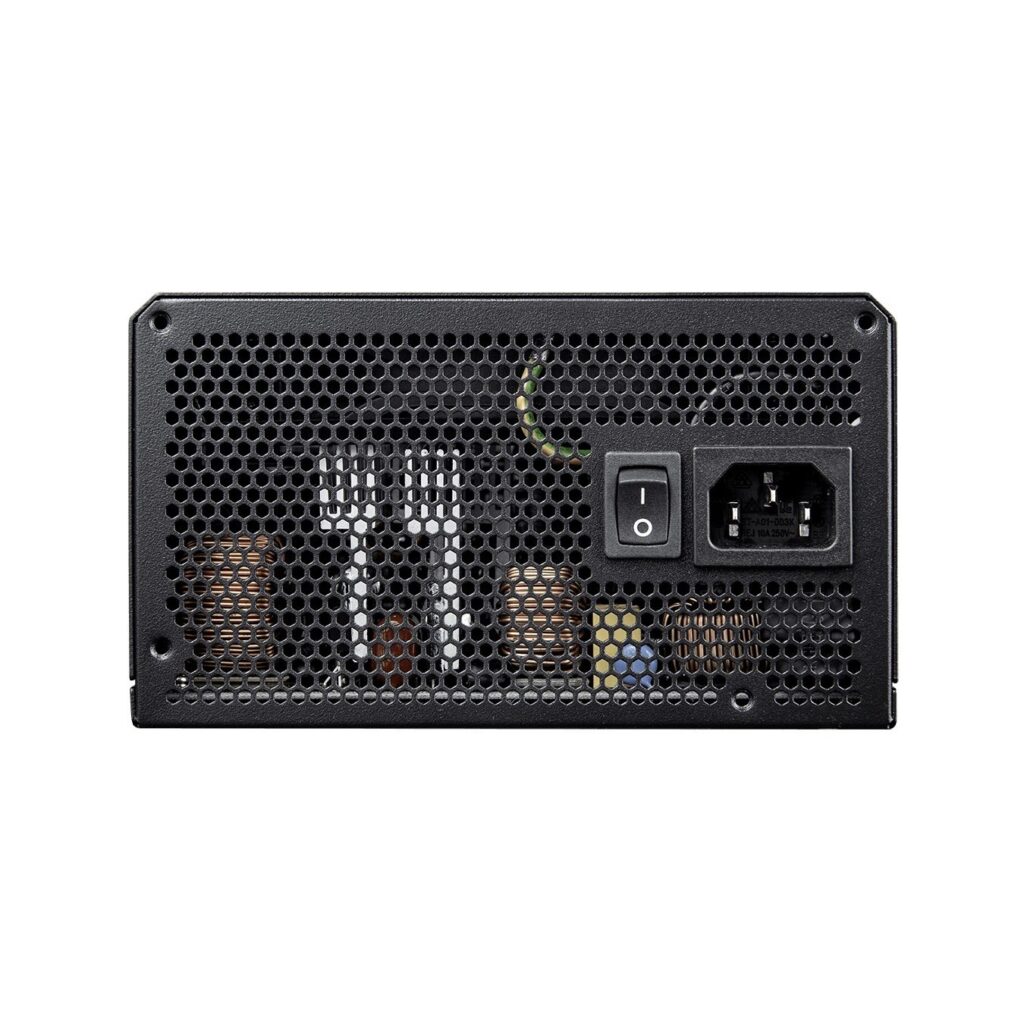

| Feature | On/off switch |
| CPU power cable length | 70 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | HDB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |

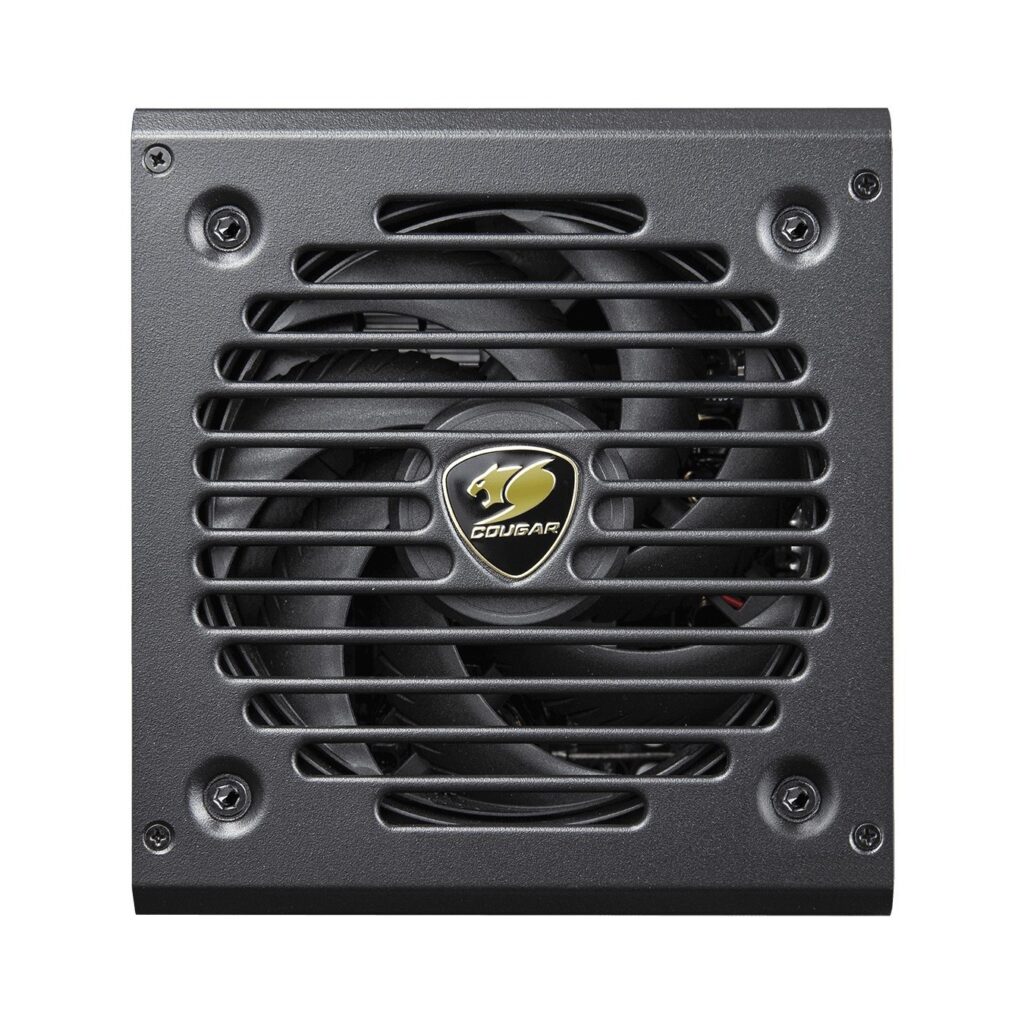

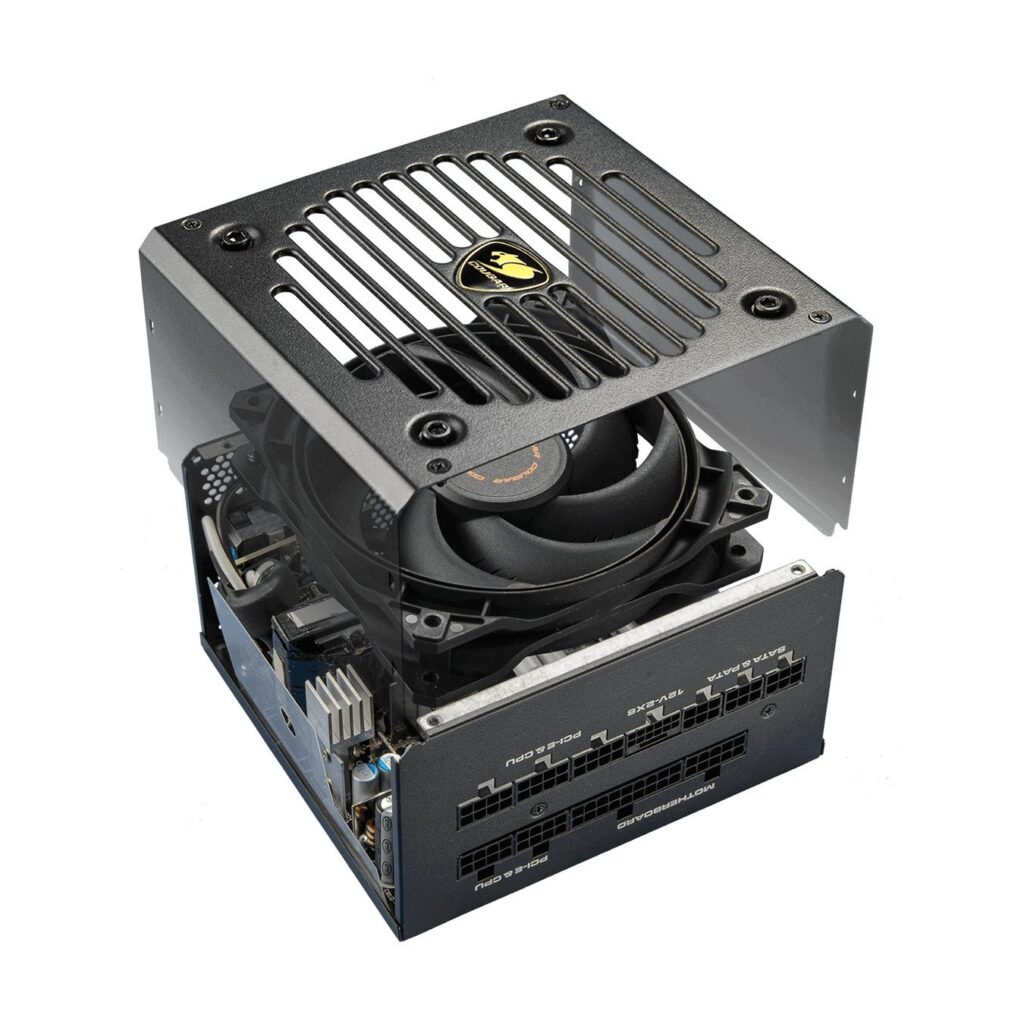

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Operating temperature (T-T) | 10 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Compliance certificates | CE. EAC. Federal Communications Commission (FCC). RoHS. UKCA |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 56 mm |
| Weight | 2.18 kg |
| Package width | 215 mm |
| Package depth | 330 mm |
| Package height | 107 mm |
| Package weight | 2.19 kg |
| Package type | Box |
