Citronic Quad Power Amplifier - QP2320 - 4x580W@2ohms 172.243UK
548.00 €
Quad power amplifier with 4 independent channels, individual volume controls, balanced inputs, and parallel outputs for daisy-chaining to additional amplifiers.
Item out of stock
This item is currently out of stock. We can suggest alternatives or try to source it for you. Call us at 22 270068 or email offer@armenius.cy.
Quad power amplifier with 4 fully independent channels and individual volume controls. Fully balanced line inputs and parallel outputs allow signal daisy-chaining to further amplifiers. Designed as a cost effective and efficient solution for multi speaker installations where sound quality is paramount.
- Fully balanced signal path
- Stable down to 2 Ohms

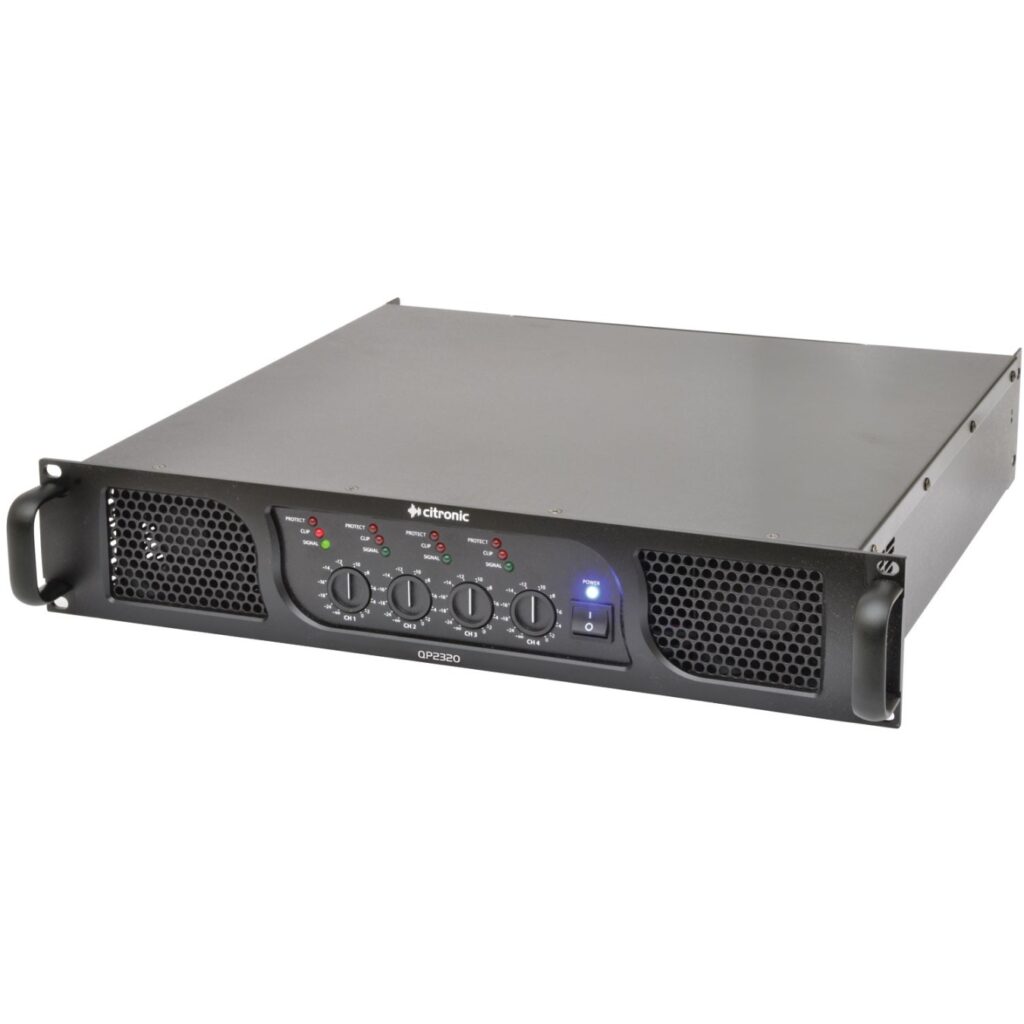

- 2U rack-mountable
- Power rms @ 8 Ohms: 4 x 300W
- Power rms @ 4 Ohms: 4 x 450W
- Power rms @ 2 Ohms: 4 x 580W
- Fuse rating: F12A

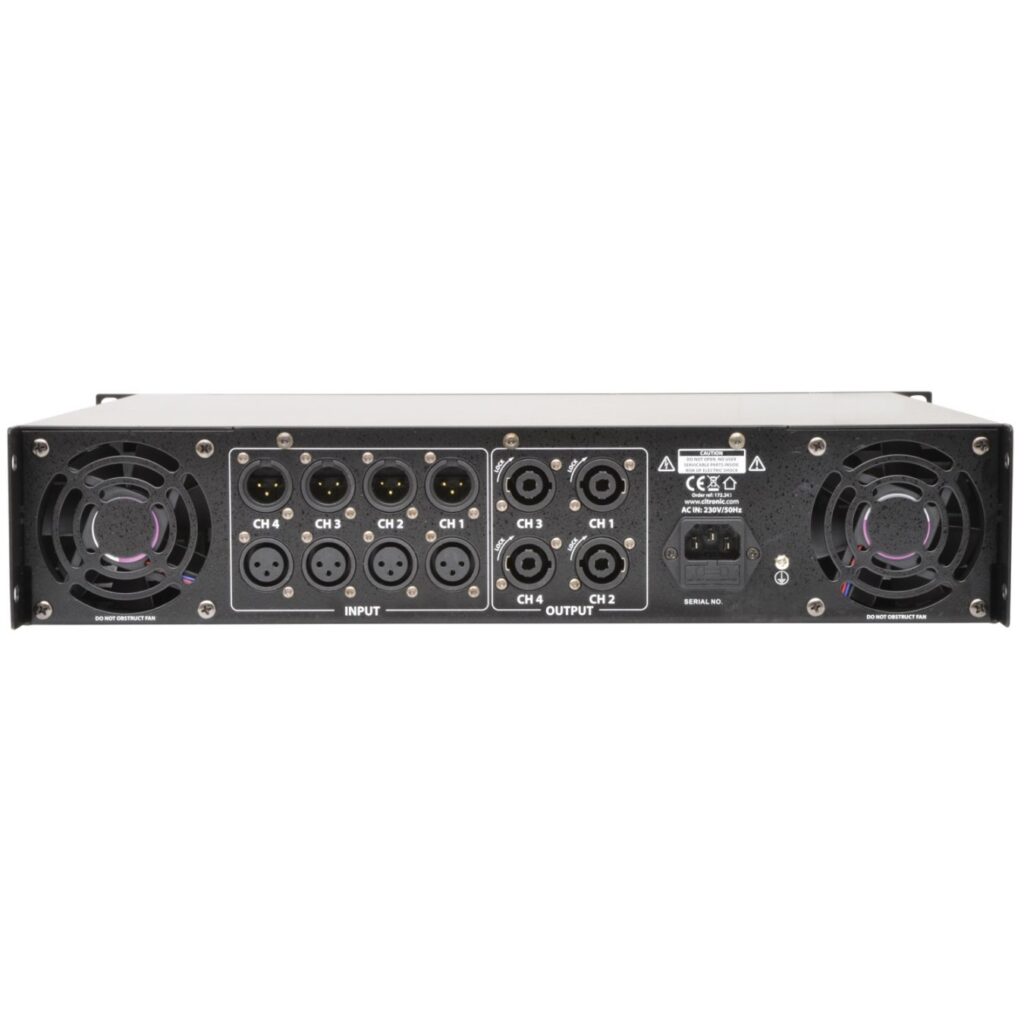

- Speaker : outputs: 4 x SPK connectors
- Power supply: 230Vac, 50Hz (IEC)
- Input : line: 4 x XLRF balanced
- Output : line: 4 x XLRM (parallel from inputs)
- Input impedance: 20k Ohms
- Frequency response: 5Hz – 50kHz
- THD: 0.05%
- Slew rate: 40V/usec
- S/N ratio: 103dB
- Controls: 4 x channel gain
- Circuit protection: Short-circuit, DC, overload, soft-start
- Dimensions: 483 x 439 x 88mm
- Weight: 23.5kg
| Channels | Quad |
| Power (8ohm) | 4 x 300 |
| Power (4ohm) | 4 x 450 |
| Power (2ohm) | 4 x 580 |
| Amplifier Class | Class A |
| 2ohm Stable | Yes |
| Warranty | 3 Years |
