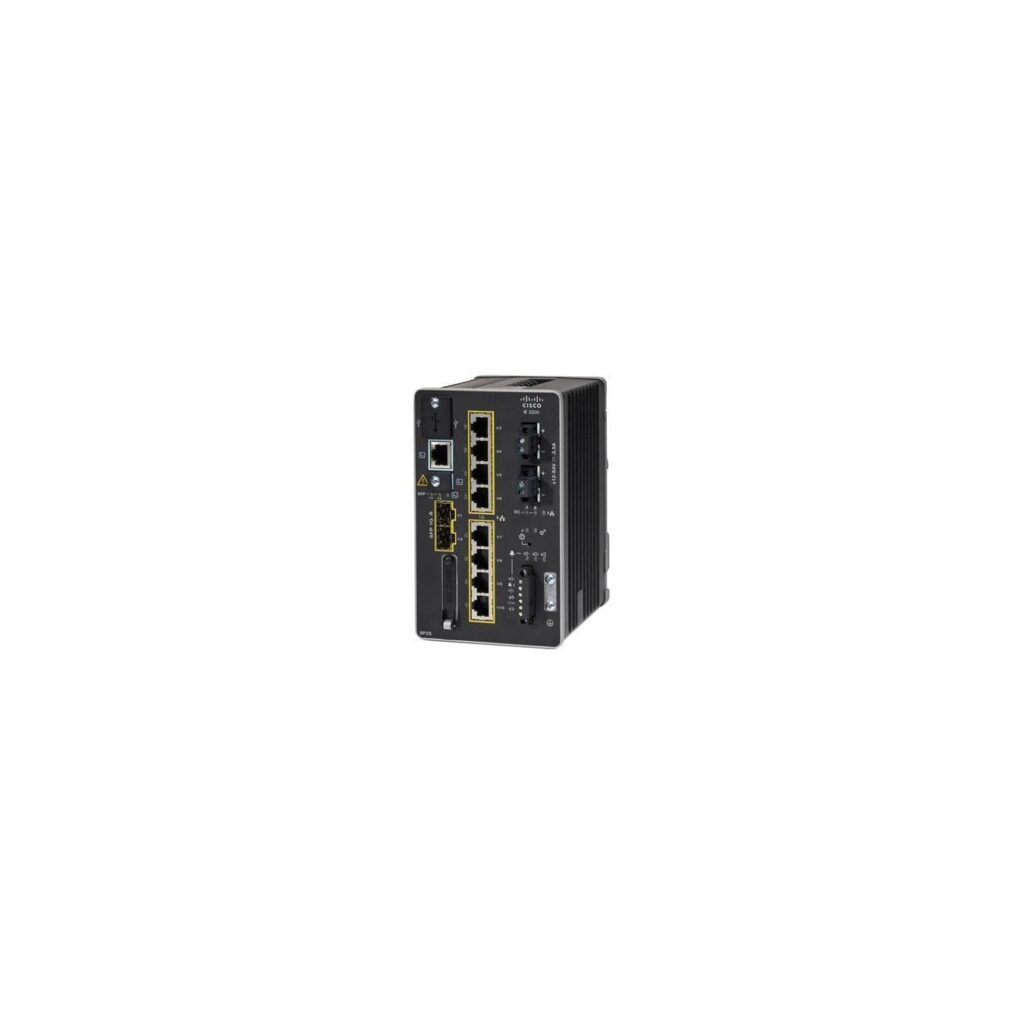

Cisco Catalyst IE3200 Rugged Series
7 686.50 €
IE-3200-8P2S-E, managed L2 switch with 10/100 Fast Ethernet ports and PoE.
Available in 6–10 business days : 42 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Cisco IE-3200-8P2S-E. Switch type: Managed. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100). Basic switching RJ-45 Ethernet ports quantity: 10. Console port: RJ-45. MAC address table: 8000 entries. Networking standards: IEEE 802.1x. IEEE 802.3. DC input voltage: 9.6 – 60 V. Power over Ethernet (PoE)
| Switch type | Managed |
| Switch layer | L2 |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| SFP module slots quantity | 2 |
| Console port | RJ-45 |
| Compatible memory cards | SD |
| Networking standards | IEEE 802.1x. IEEE 802.3 |
| Virtual LAN features | VLAN Identifier ( VLAN ID) |
| Number of VLANs | 256 |
| MAC address table | 8000 entries |
| Number of queues | 8 |
| DHCP features | DHCP server. DHCP snooping |
| Access Control List (ACL) rules | 1500 |
| IGMP entries | 1000 |
| Security algorithms | SNMP. SNMPv3. SSH |
| Authentication | Guest VLAN. MAC-based authentication |
| Product colour | Black |
| International Protection (IP) code | IP30 |
| Electromagnetic compatibility | FCC 47 CFR 15 B A. EN 55032/CISPR 32 A. VCCI A. AS/NZS CISPR 32 A. CISPR 11 A. ICES 003 A. CNS 13438 A. KN 32 A. EN 300 386 |
| Memory type | DRAM |
| Internal memory | 2048 MB |
| Flash memory | 1500 MB |
| Mean time between failures (MTBF) | 613125 h |
| DC input voltage | 9.6 - 60 V |
| Input current | 5.5 A |
| Power consumption (typical) | 35 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 91.4 mm |
| Depth | 134.6 mm |
| Height | 152.4 mm |
| Weight | 1.7 kg |
| Harmonized System (HS) code | 85176990 |
