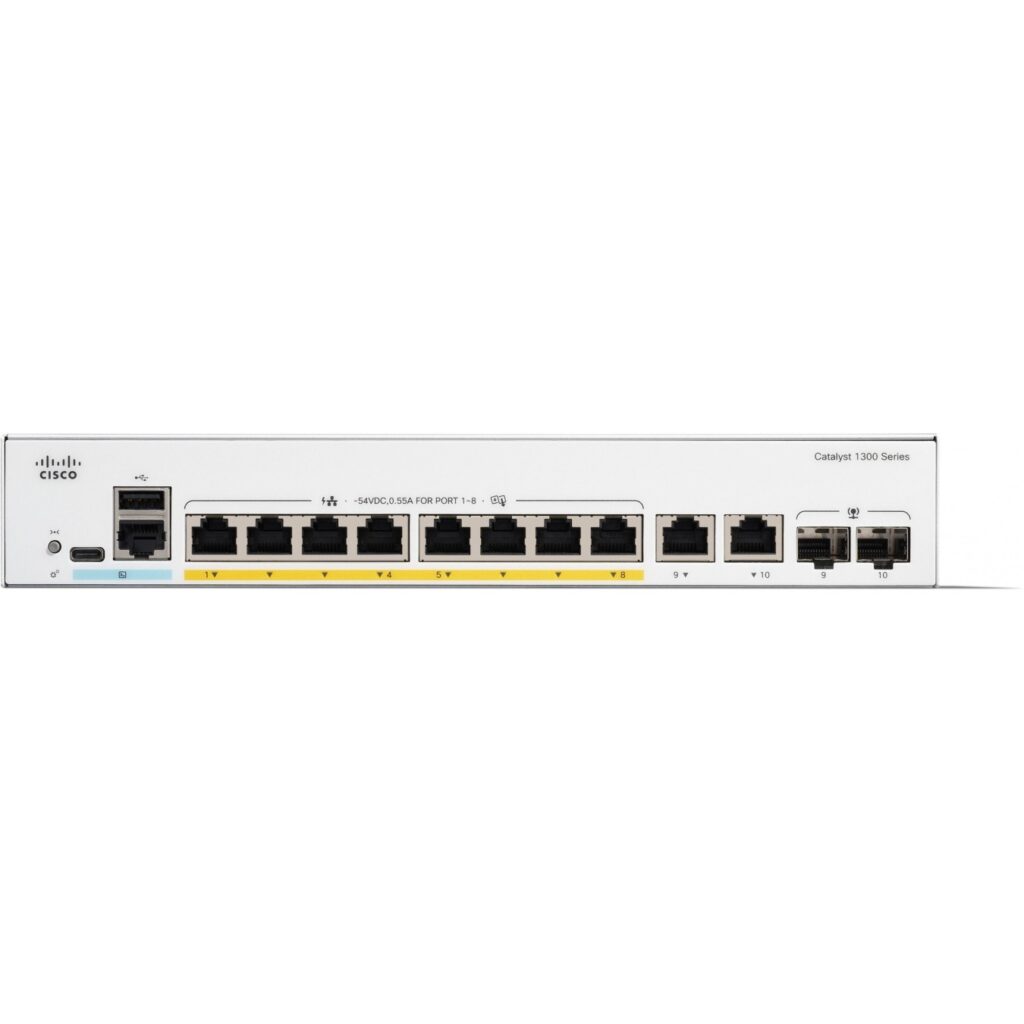

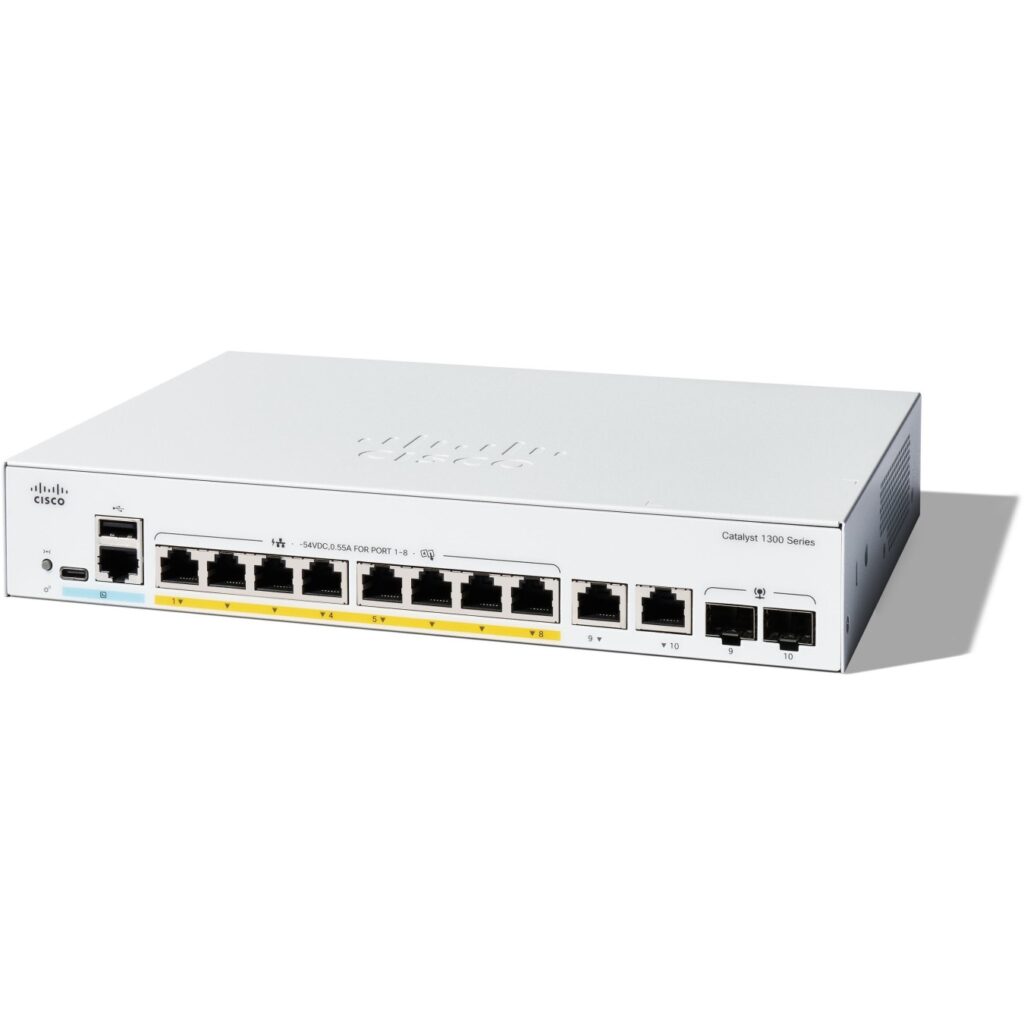

Cisco Catalyst - CATALYST 1300 - 8-Port GE POE EXT
Cisco Catalyst 1300-8P-E-2G Managed Switch. 8x GE PoE ports, Ext PS, 2x1GE Combo, L2, rack-mount.
Available in 6–10 business days : 78 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Cisco Catalyst 1300-8P-E-2G Managed Switch. 8 Port GE. PoE. Ext PS. 2x1GE Combo. Limited Lifetime Protection (C1300-8P-E-2G). Switch type: Managed. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 8. Console port: RJ-45/USB Type-C. MAC address table: 16000 entries. Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3ab. IEEE…. Power over Ethernet (PoE). Rack mounting
| Switch type | Managed |
| Switch layer | L2 |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Console port | RJ-45/USB Type-C |
| Networking standards | IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3ab. IEEE 802.3ad. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Number of VLANs | 4093 |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| MAC address table | 16000 entries |
| Number of static routes | 990 |
| Jumbo frames | 9000 |
| Packet buffer memory | 1.5 MB |
| DHCP features | DHCP Option 82. DHCP client. DHCP server |
| IGMP entries | 2000 |
| Authentication | MAC-based authentication. Web-based authentication |
| Authentication type | RADIUS |
| Product colour | Grey |
| Mean time between failures (MTBF) | 1706649 h |
| Power source | AC |
| AC input voltage | 110 - 220 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 80.86 W |
| Power plug type | Type C |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 60 W |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 275.91 BTU/h |
| Width | 184.9 mm |
| Depth | 268.2 mm |
| Height | 43.9 mm |
| Weight | 1.53 kg |
| Package width | 299 mm |
| Package depth | 544.8 mm |
| Package height | 103.9 mm |
| Package weight | 3.07 kg |
| Country of origin | China |
