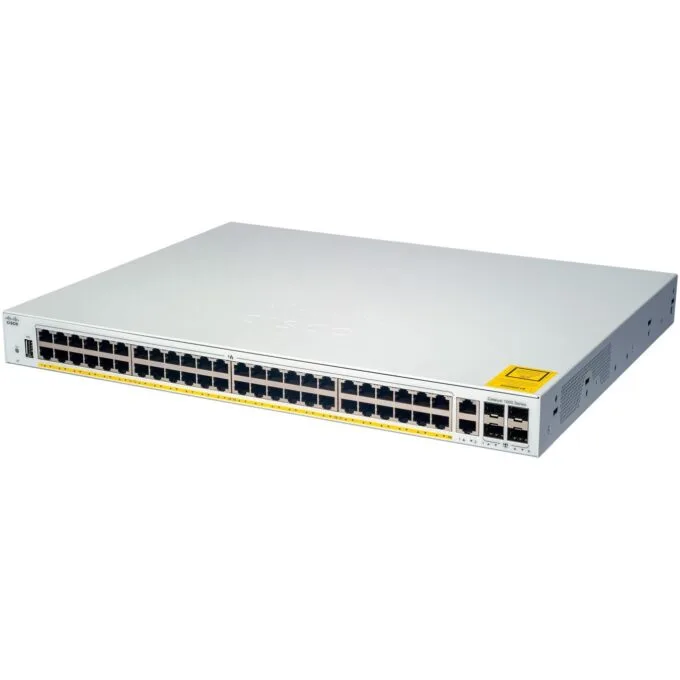

Cisco Catalyst - CATALYST 1000 - 48PORT GE POE
Cisco Catalyst 1000-48P-4G-L Network Switch: 48 GbE PoE+ ports, 370 W PoE budget, four 1 G SFP uplinks; managed L2 switch.
Item out of stock
This item is currently out of stock. We can suggest alternatives or try to source it for you. Call us at 22 270068 or email [email protected].
Cisco Catalyst 1000-48P-4G-L Network Switch. 48 Gigabit Ethernet (GbE) PoE+ Ports. 370W PoE Budget. four 1 G SFP Uplink Ports. Enhanced Limited Lifetime Warranty (C1000-48P-4G-L). Switch type: Managed. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 48. USB 2.0 ports quantity: 1. Console port: RJ-45/Mini-USB. Full duplex. MAC address table: 16000 entries. Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1AX. IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE…. Power over Ethernet (PoE)
| Switch type | Managed |
| Switch layer | L2 |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Console port | RJ-45/Mini-USB |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Number of VLANs | 256 |
| Switching capacity | 104 Gbit/s |
| Forwarding rate | 77.38 Mpps |
| MAC address table | 16000 entries |
| Number of static routes | 16 |
| Jumbo frames | 10240 |
| DHCP features | DHCP snooping |
| IGMP entries | 1024 |
| Authentication | Web-based authentication |
| Authentication type | RADIUS |
| IPv4 multicast entries | 1024 |
| IPv6 multicast entries | 1024 |
| Management protocols | SNMP |
| Product colour | Grey |
| Market segment | Business |
| Processor model | ARM7 |
| Processor frequency | 800 MHz |
| Memory type | DRAM |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Mean time between failures (MTBF) | 1452667 h |
| AC input voltage | 110 - 220 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 35.6 W |
| Power consumption (max) | 40.32 W |
| Power plug type | Type C |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet (PoE) power per port | 15 W |
| Total Power over Ethernet (PoE) budget | 370 W |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4500 m |
| Width | 444.5 mm |
| Depth | 350 mm |
| Height | 43.9 mm |
| Weight | 5.43 kg |
| Package width | 444.5 mm |
| Package depth | 549.4 mm |
| Package height | 147.6 mm |
| Package weight | 7.28 kg |
| Products per shipping (inner) case | 1 pc(s) |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Products per master (outer) case | 1 pc(s) |
