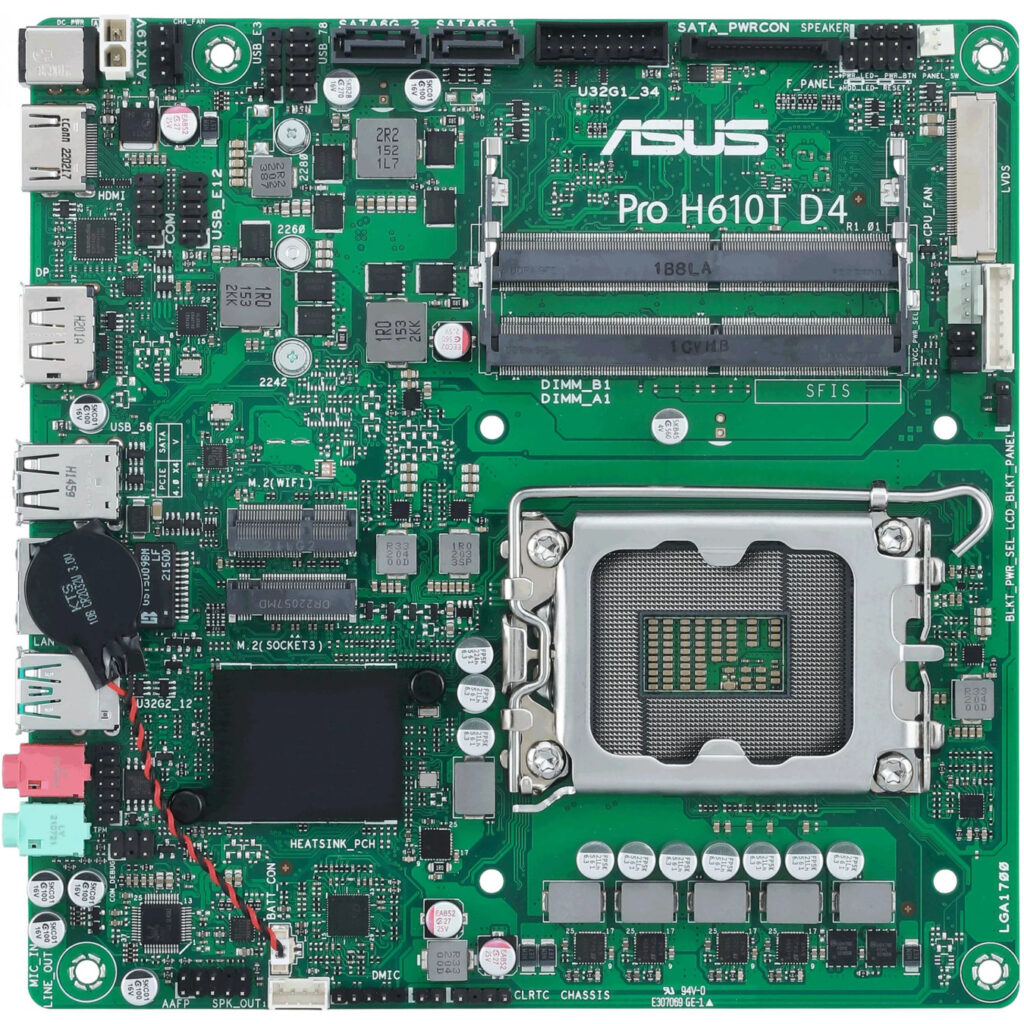

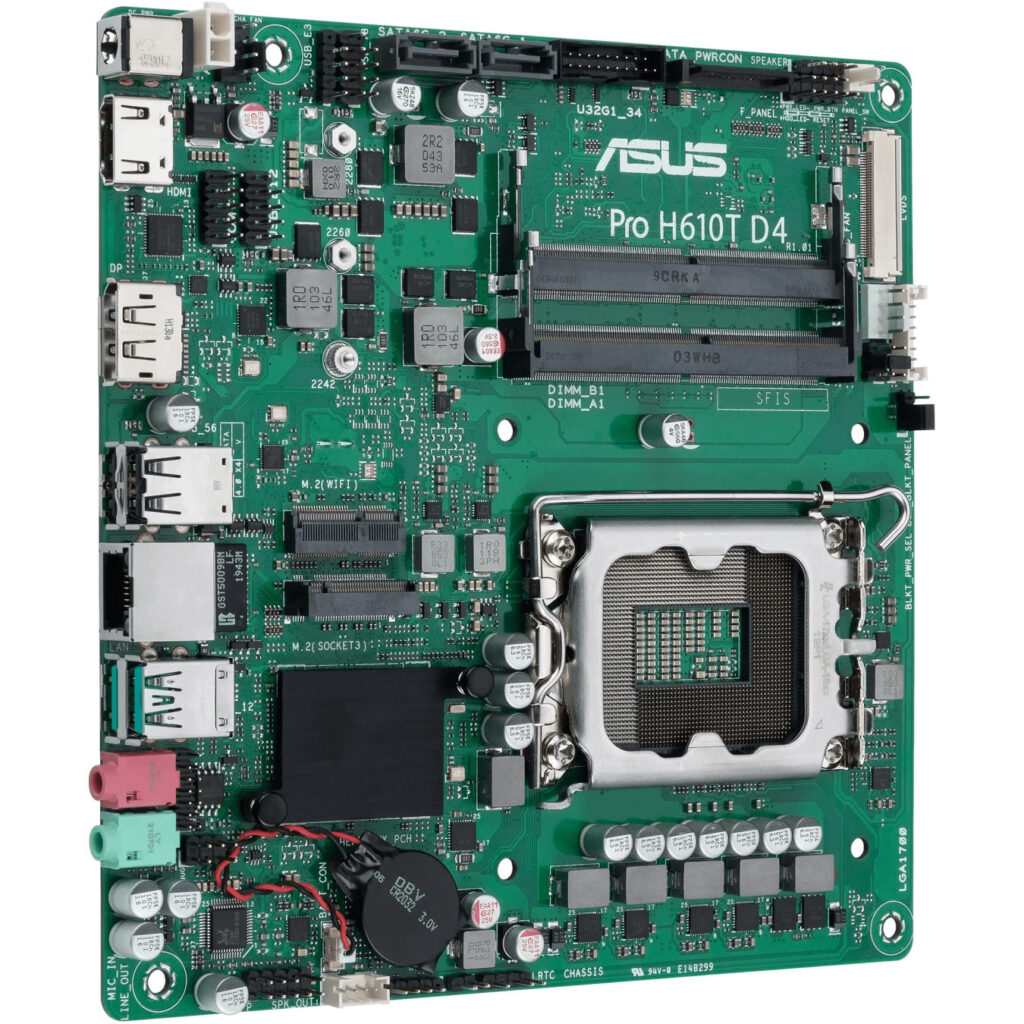

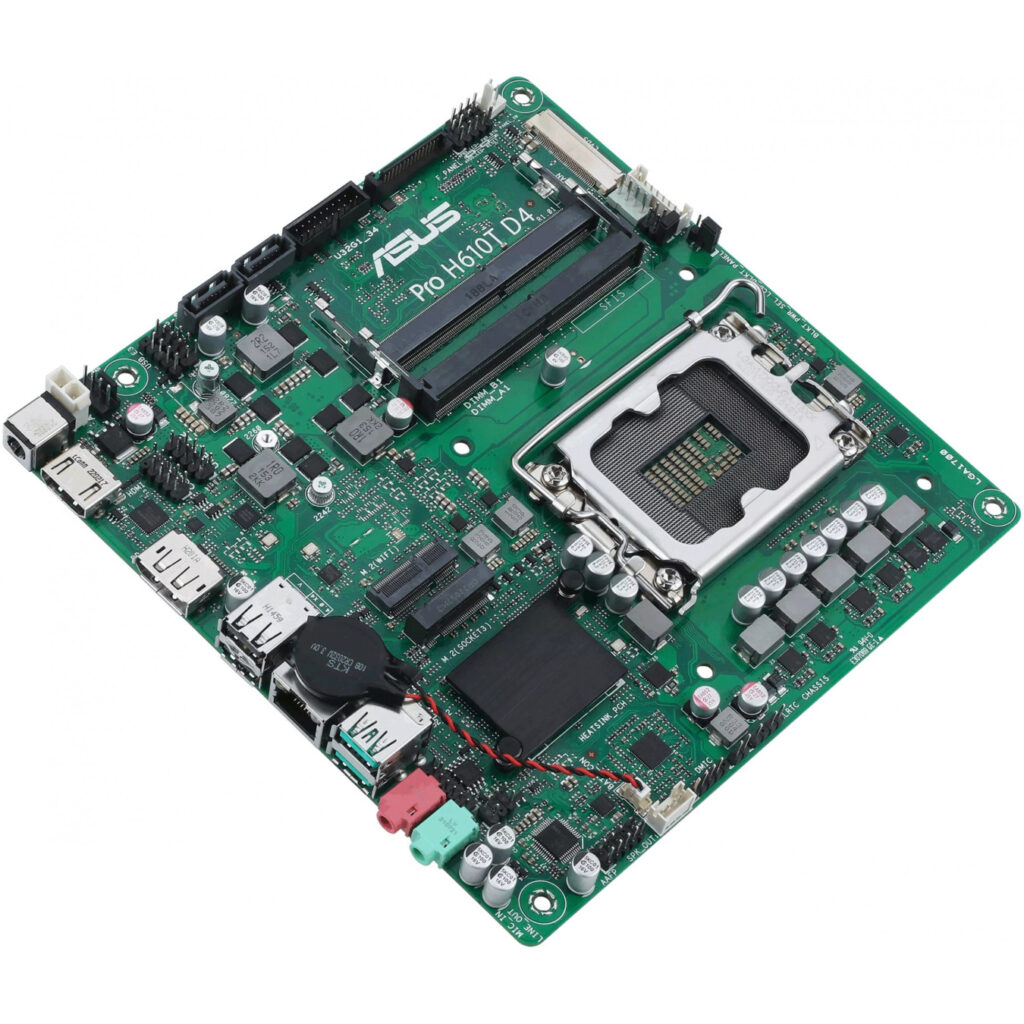

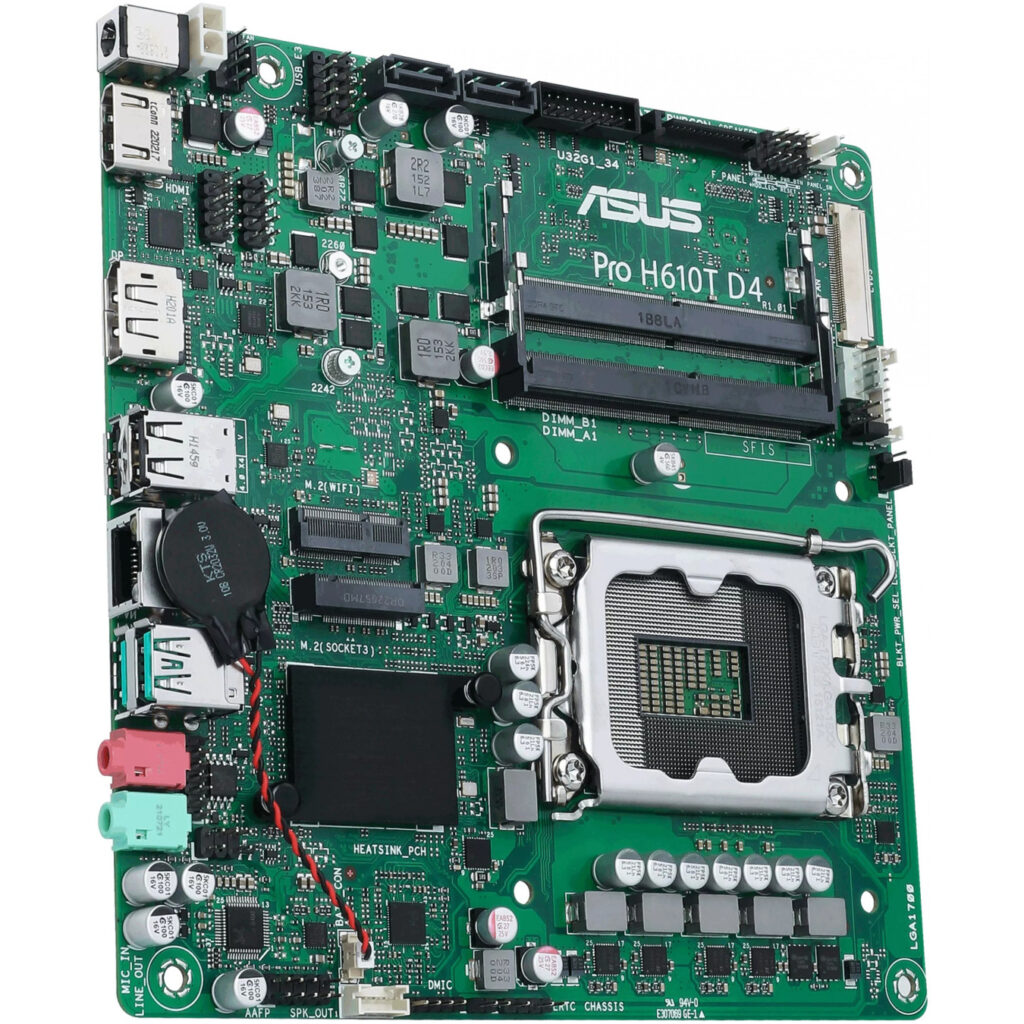

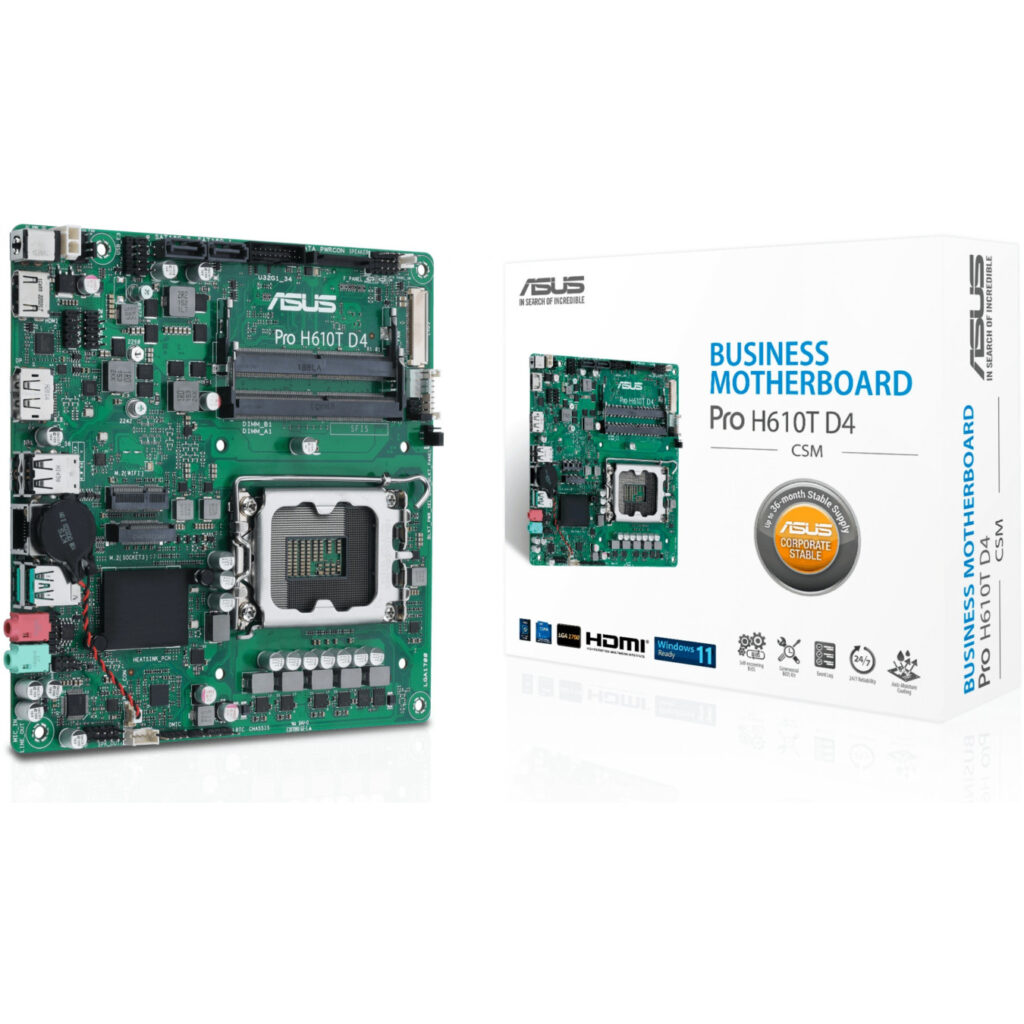

ASUS Pro H610T D4-CSM Mini-ITX Motherboard - LGA1700 H610, DDR4 SO-DIMM up to 64GB, HDMI 2.1, DP1.4
Mini-ITX LGA1700 motherboard (ASUS Pro H610T D4-CSM) with Intel H610 chipset, DDR4 SO-DIMM up to 64GB, 1x M.2, 2x SATA III, HDMI 2.1, DisplayPort 1.4, Gigabit LAN
Available in 6–10 business days : 83 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
ASUS Pro H610T D4-CSM. Processor manufacturer: Intel. Processor socket: LGA 1700. Compatible processor series: Intel® Celeron®. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9. Intel® Pentium®. Supported memory types: DDR4-SDRAM. Maximum internal memory: 64 GB. Memory slots type: SO-DIMM. Supported storage drive interfaces: M.2. SATA III. Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet. Component for: PC. Motherboard form factor: mini ITX. Motherboard chipset family: Intel
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9. Intel® Pentium® |
| Maximum number of SMP processors | 1 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133.2400.2666.2800.2933.3200 MHz |
| Maximum internal memory | 64 GB |
| Feature | Drivers included |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. SATA III |
| Parallel processing technology support | Not supported |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 2 |
| Number of COM connectors | 1 |

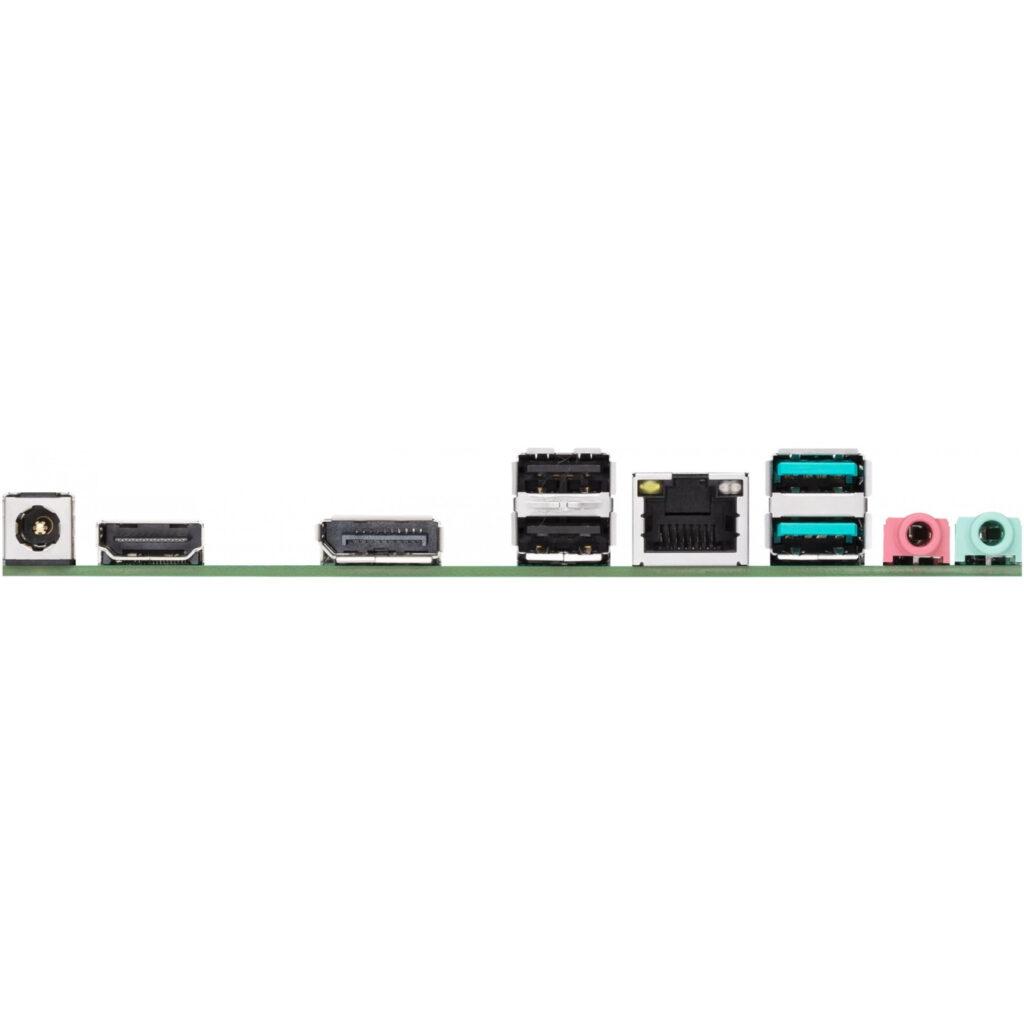

| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Ethernet interface type | Gigabit Ethernet |
| Motherboard chipset | Intel H610 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64. Windows 11 x64 |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Harmonized System (HS) code | 84733020 |
| Width | 170 mm |
| Depth | 170 mm |
| Height | 221 mm |

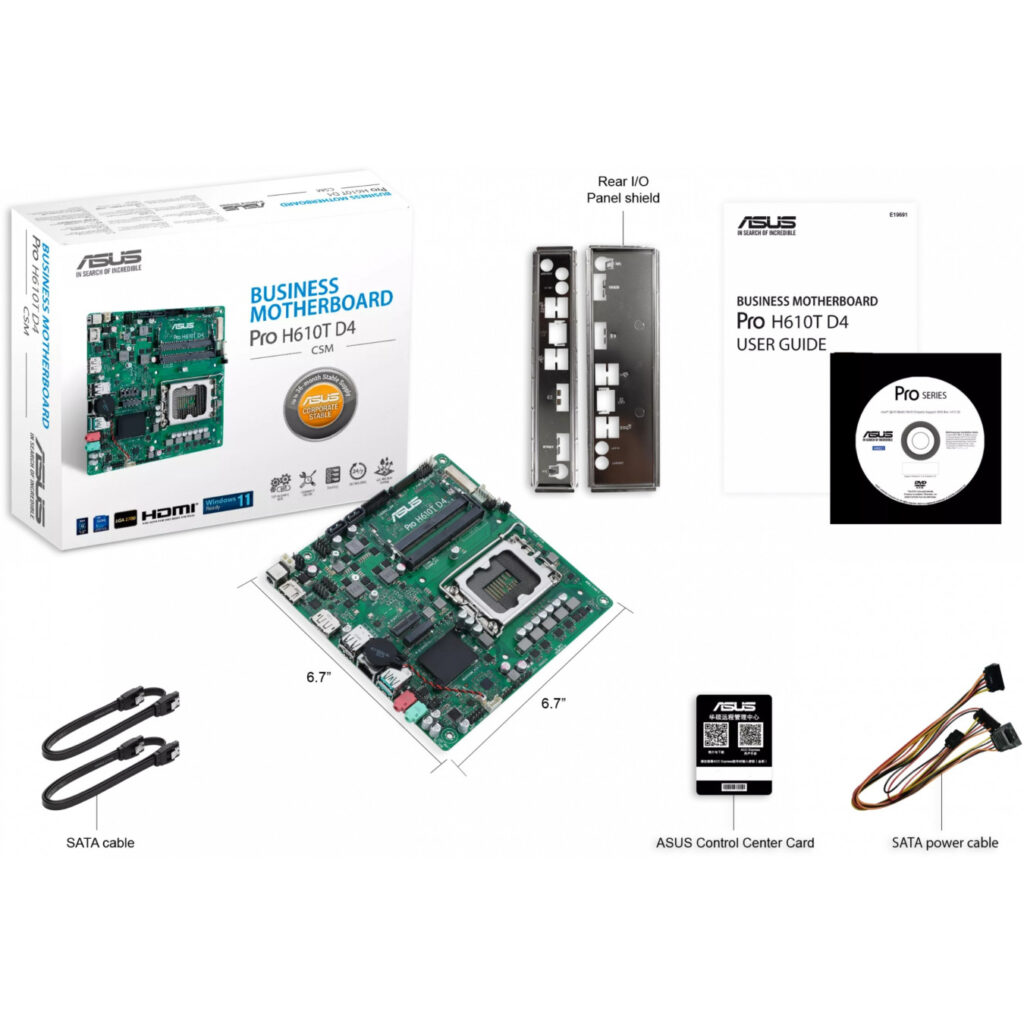

| Cables included | SATA |
| Weight | 382 g |
