ASUS PRIME H810M-A CSM - H810M-A (LGA1851) Micro-ATX Motherboard, Intel H810, Up to 128GB, AI-Ready
Micro-ATX ASUS PRIME H810M-A CSM motherboard for Intel Core Ultra Series 2 (LGA1851), H810 chipset, 128GB DDR5, 2x PCIe4.0 M.2, CSM support, AI-ready, no WiFi.
Available in 6–10 business days : 53 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

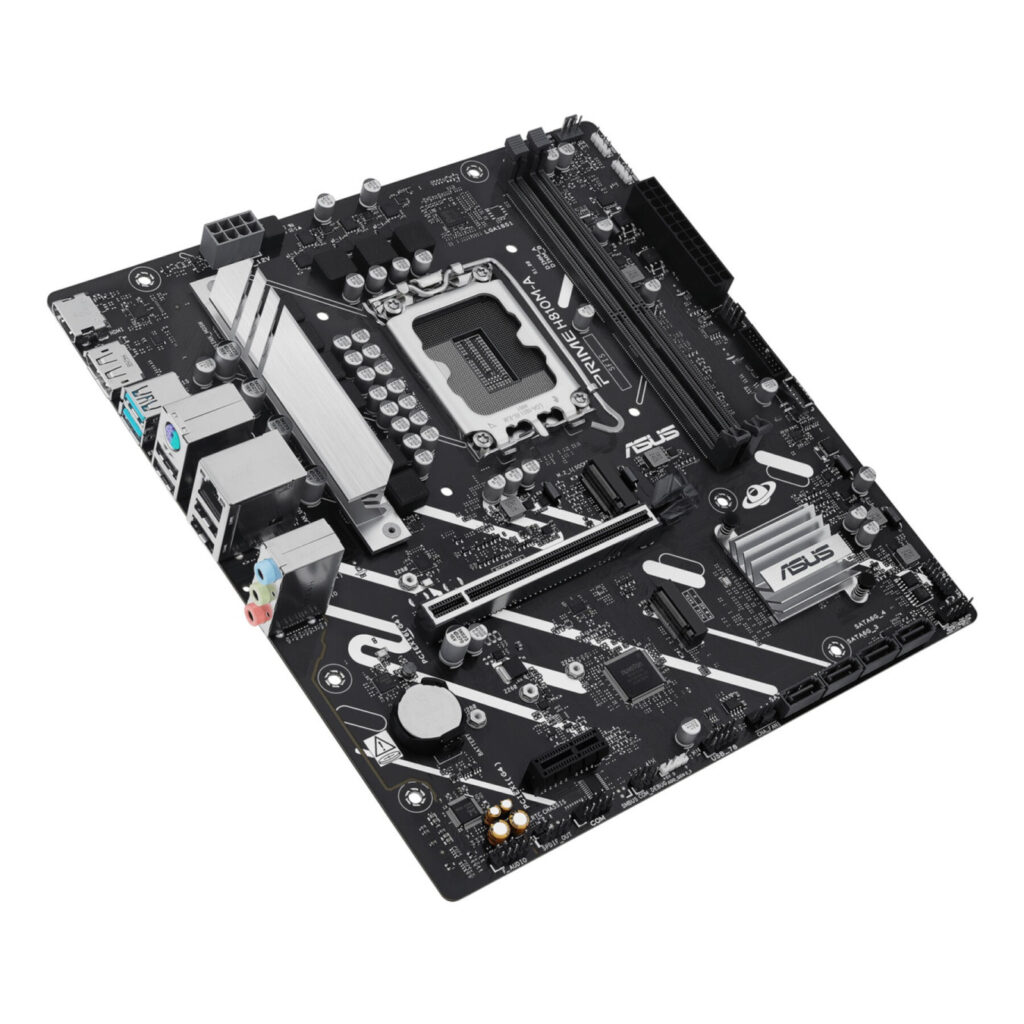

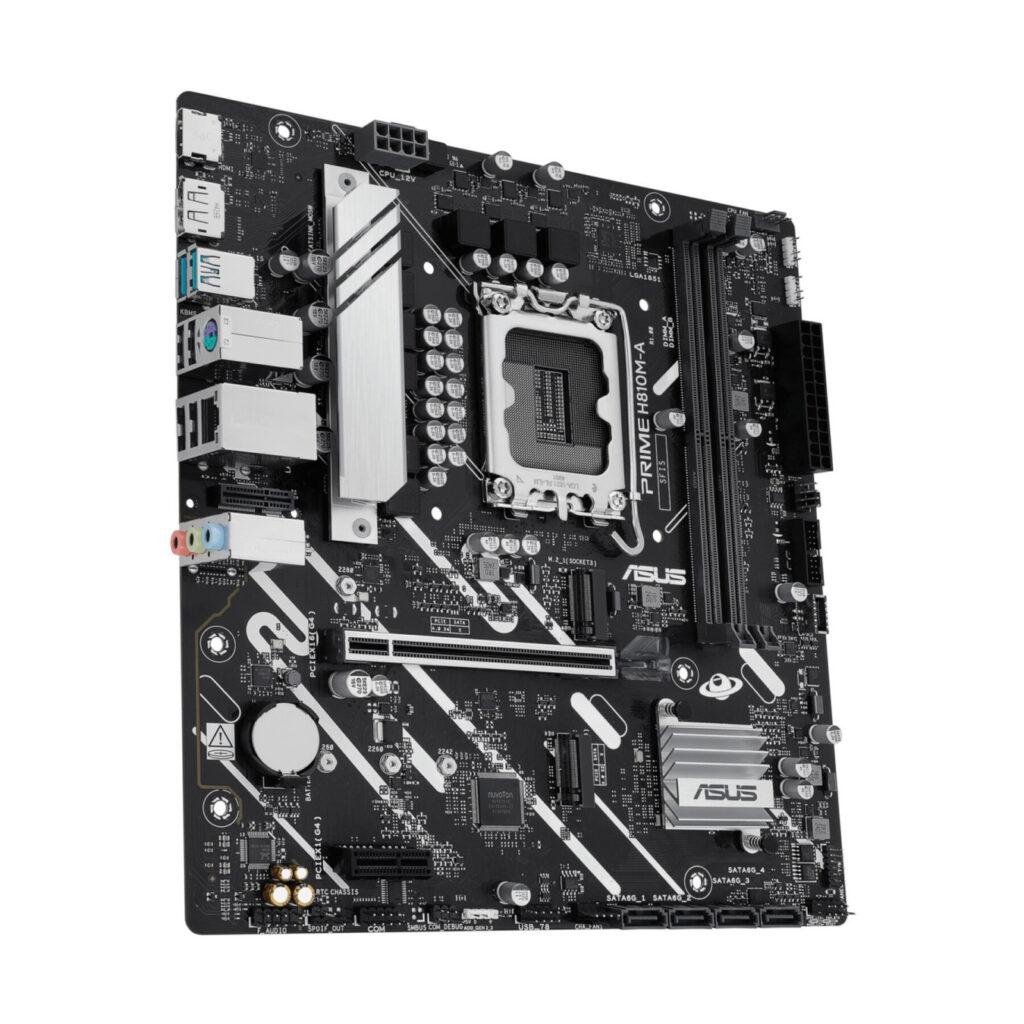

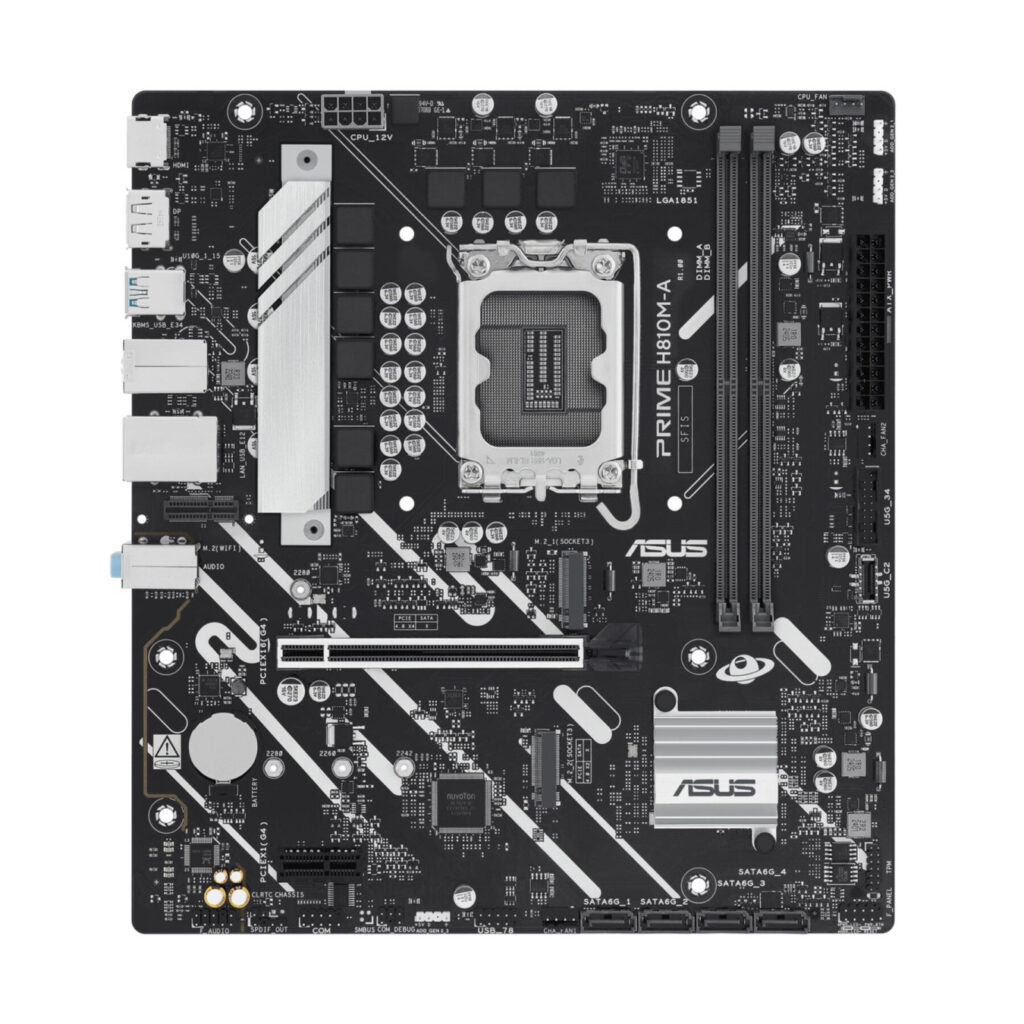

The ASUS PRIME H810M-A CSM is a Micro-ATX motherboard designed for Intel Core Ultra Processors (Series 2) with LGA1851 socket and H810 chipset. It features robust 6+1+1+1 phase power delivery, comprehensive cooling with hybrid fan headers, and ASUS Corporate Stable Model (CSM) program offering 36-month lifecycle and Control Center Express software for IT management.

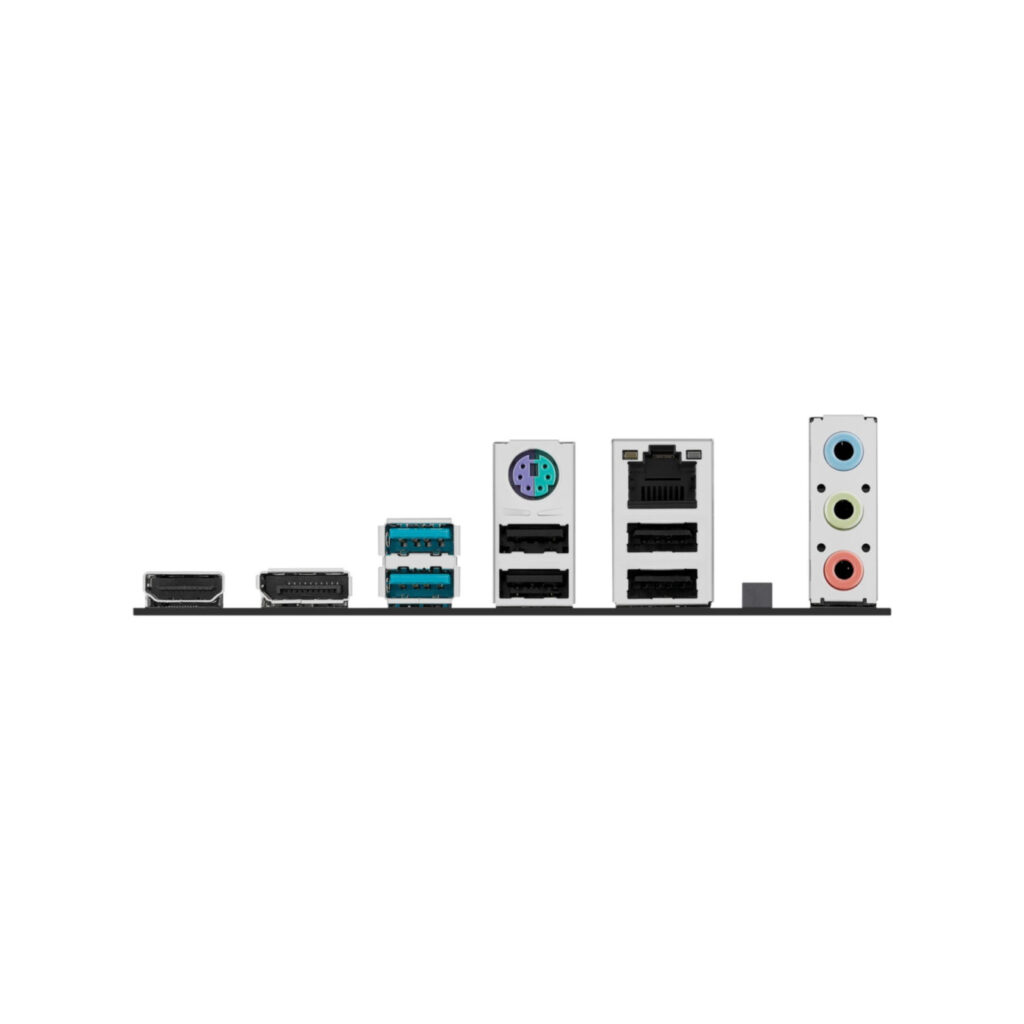

Equipped with 2x DDR5 DIMM slots supporting up to 128GB at 6400MT/s (XMP), DIMM Fit optimization, dual PCIe 4.0 M.2 slots (64Gbps + 32Gbps), 4x SATA III, Intel I219-V 1Gb Ethernet, Realtek 7.1 audio, HDMI 2.1, DisplayPort 1.4, rear 2x USB 10Gbps Type-A + front USB 5Gbps Type-C header. Includes 3x Addressable Gen2 RGB headers, SafeSlot Core+, Q-LED diagnostics.
- CSM Features: 36-month support, ASUS Control Center Express for monitoring, updates, endpoint management
- Connectivity: PCIe 4.0 x16 + x1 slots, no WiFi/Bluetooth
- Customization: UEFI BIOS, Armoury Crate, Aura Sync RGB
- DIY Friendly: Q-LED Core, front panel connectors, 1x COM
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Motherboard chipset | Intel H810 |
| Motherboard form factor | micro ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Maximum internal memory | 128 GB |
| Supported memory clock speed (max) | 6400 MHz |
| Number of M.2 (M) slots | 2 |
| Number of SATA III connectors | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN | Yes |
| LAN controller | Intel I219V |
| Wi-Fi | No |
| Audio output channels | 7.1 channels |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| Power source type | ATX |
