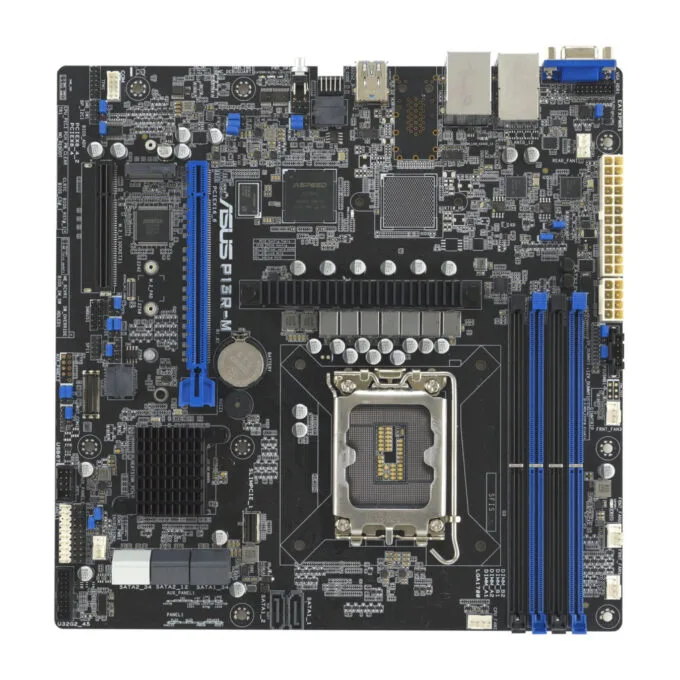

ASUS P13R-M (1700) - Micro-ATX Server Motherboard, LGA1700, DDR5 ECC up to 128GB, PCIe 5.0, 8x SATA
527.50 €
Micro-ATX server board for Intel Xeon E-2400 (LGA1700). Supports 4x DDR5 ECC UDIMMs up to 128GB, 1x M.2, PCIe 5.0/4.0, dual LAN, 8x SATA and ASMB11-iKVM.
Available in 6–10 business days : 11 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
PCIe 5.0 Ready
Faster storage, graphics and networking capabilities PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Pentium®, Intel Xeon E |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 3600, 4000, 4400 MHz |
| Maximum internal memory | 128 GB |
| Supported memory module capacities | 8GB, 16GB, 32GB |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 8 |
| Graphics card family | ASPEED |
| Graphics card | AST2600 |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 3 |
| Number of SATA III connectors | 8 |
| ATX Power connector (24-pin) | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| Serial port headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| LAN controller | Intel® I210-AT |
| Motherboard chipset | Intel C262 |
| Component for | Server |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| PCI Express x8 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| 1st M.2 largest key size | 2280 |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Package width | 341 mm |
| Package depth | 281 mm |
| Package height | 78 mm |
| Package weight | 1.3 kg |
| Width | 244 mm |
| Depth | 244 mm |
| Cables included | SATA |
| Weight | 760 g |
