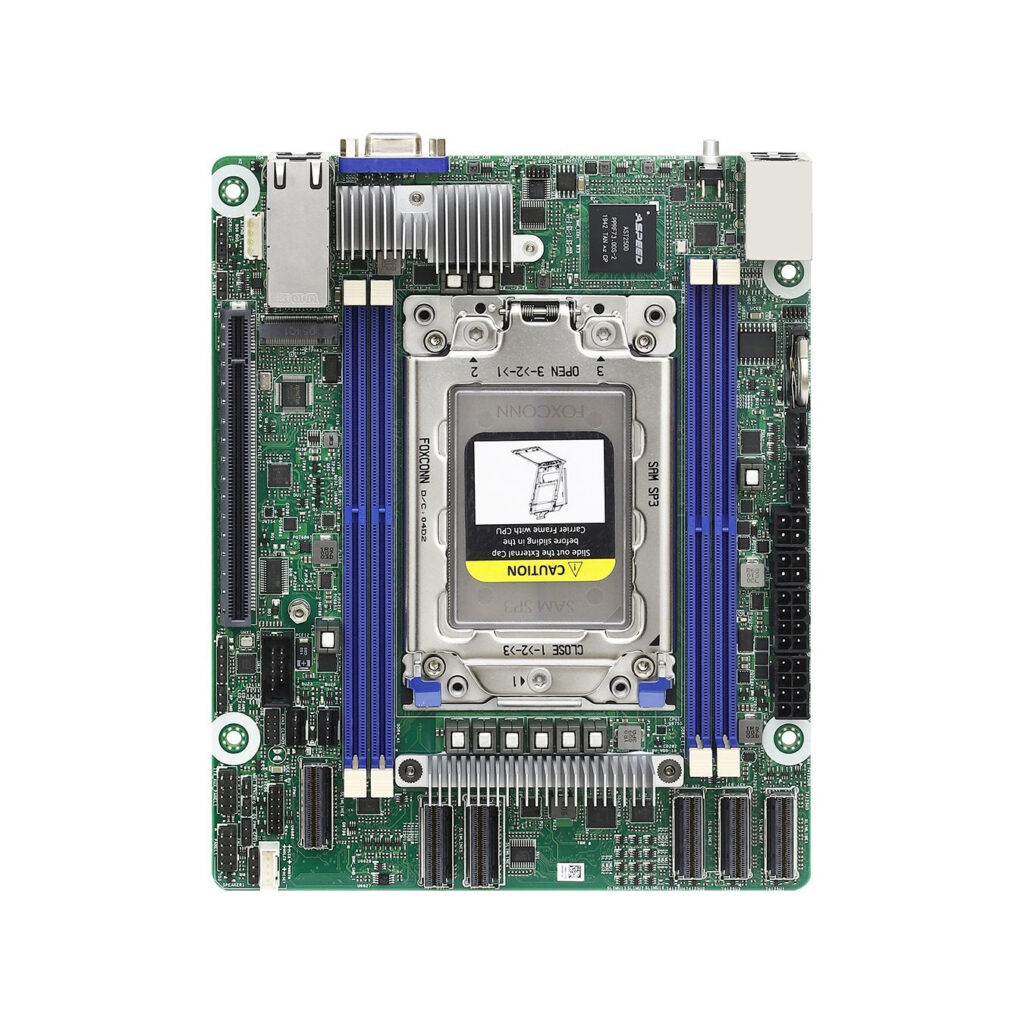

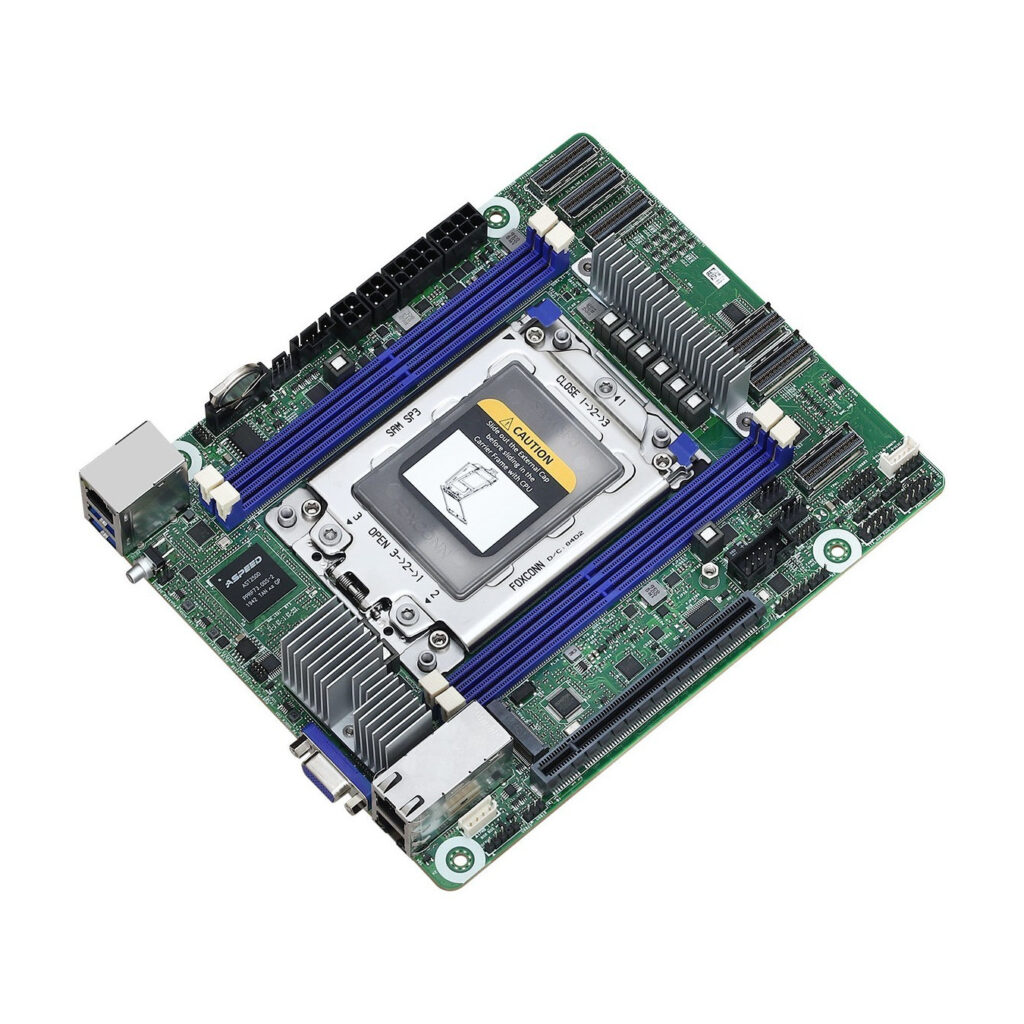

ASRock ROMED4ID-2T - mini-ITX Server Motherboard, Socket SP3 for AMD EPYC, 4x DDR4 up to 256GB, PCIe 4.0, Dual 10GbE
Mini-ITX server board for AMD EPYC (Socket SP3). 4× DIMM DDR4 (up to 256GB), PCIe 4.0 x16, 8× SATA, Dual 10GbE (Intel X550), ASPEED AST2500 BMC.
Item out of stock
This item is currently out of stock. We can suggest alternatives or try to source it for you. Call us at 22 270068 or email offer@armenius.cy.
Asrock ROMED4ID-2T. Processor manufacturer: AMD. Processor socket: Socket SP3. Compatible processor series: AMD EPYC. Supported memory types: DDR4-SDRAM. Maximum internal memory: 256 GB. Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 4.0. SATA. Graphics card family: ASPEED. Graphics card: AST2500. On-board graphics card model: Aspeed AST2500. LAN controller: Intel® X550-AT2. Realtek RTL8211E
| Processor manufacturer | AMD |
| Processor socket | Socket SP3 |
| Compatible processor series | AMD EPYC |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2400.2666.2933.3200 MHz |
| Maximum internal memory | 256 GB |
| Supported memory module capacities | 8GB. 16GB. 32GB. 64GB. 128GB |
| Supported storage drive interfaces | PCI Express 4.0. SATA |
| Feature | Clear CMOS button |
| Graphics card family | ASPEED |
| Graphics card | AST2500 |
| On-board graphics card model | Aspeed AST2500 |
| USB 2.0 connectors | 1 |
| Number of SATA connectors | 8 |
| Number of chassis fan connectors | 3 |
| Number of COM connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| LAN controller | Intel® X550-AT2. Realtek RTL8211E |
| Component for | Mini PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | AMD |
| PCI Express x4 slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS memory size | 256 Mbit |
| Storage temperature (T-T) | 10 - 35 °C |
| Operating temperature (T-T) | -40 - 70 °C |
| Harmonized System (HS) code | 84733020 |
| Width | 170.2 mm |
| Depth | 208.3 mm |
| Height | 70 mm |
| Weight | 1.13 kg |
