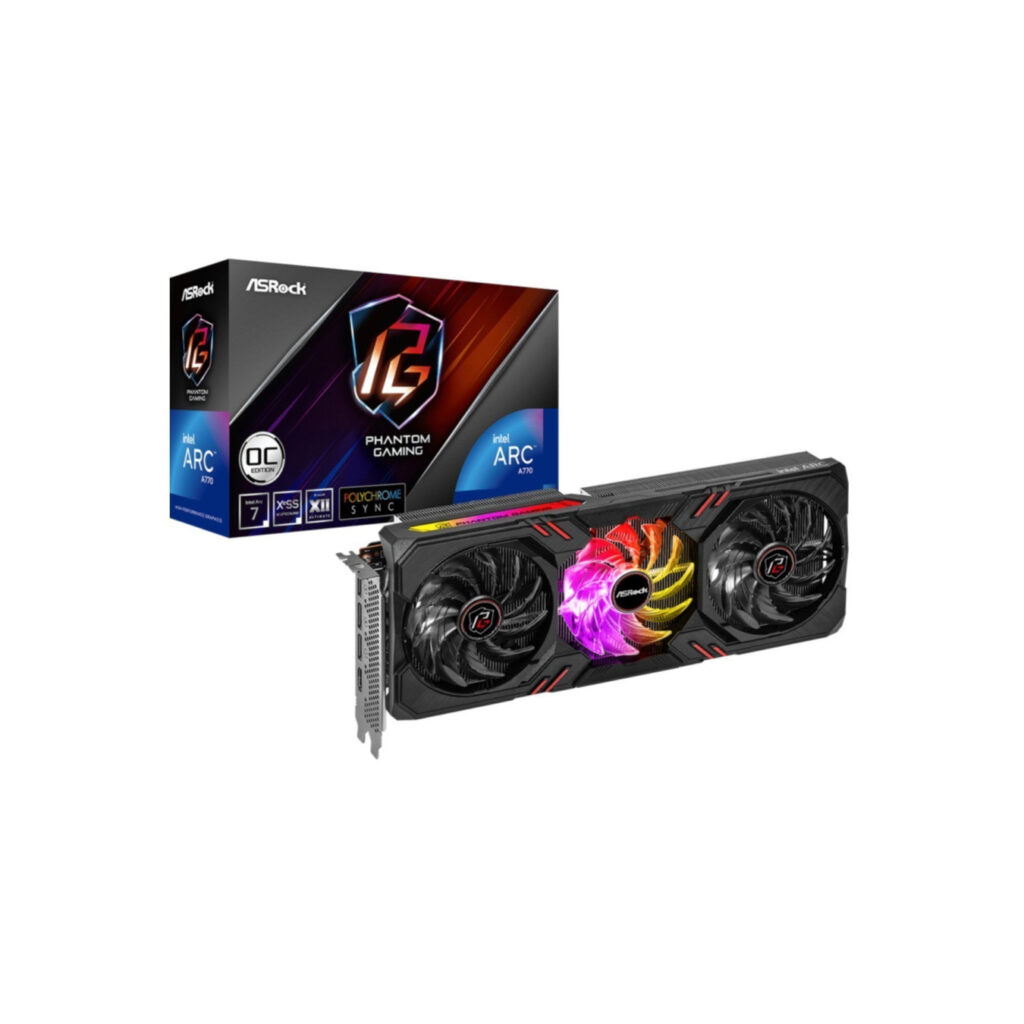

ASRock Phantom Gaming OC Intel Arc A770 16GB GDDR6 - Triple Fan
ASRock Intel Arc A770 Phantom Gaming OC 16GB GDDR6 GPU. 2200 MHz clock, triple-fan cooling, 2×8-pin power. Supports 8K@60Hz via 3xDP2.0/HDMI2.1. PCIe 4.0×16, metal backplate, 0dB silent mode.
Available in 2–5 business days : 2 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

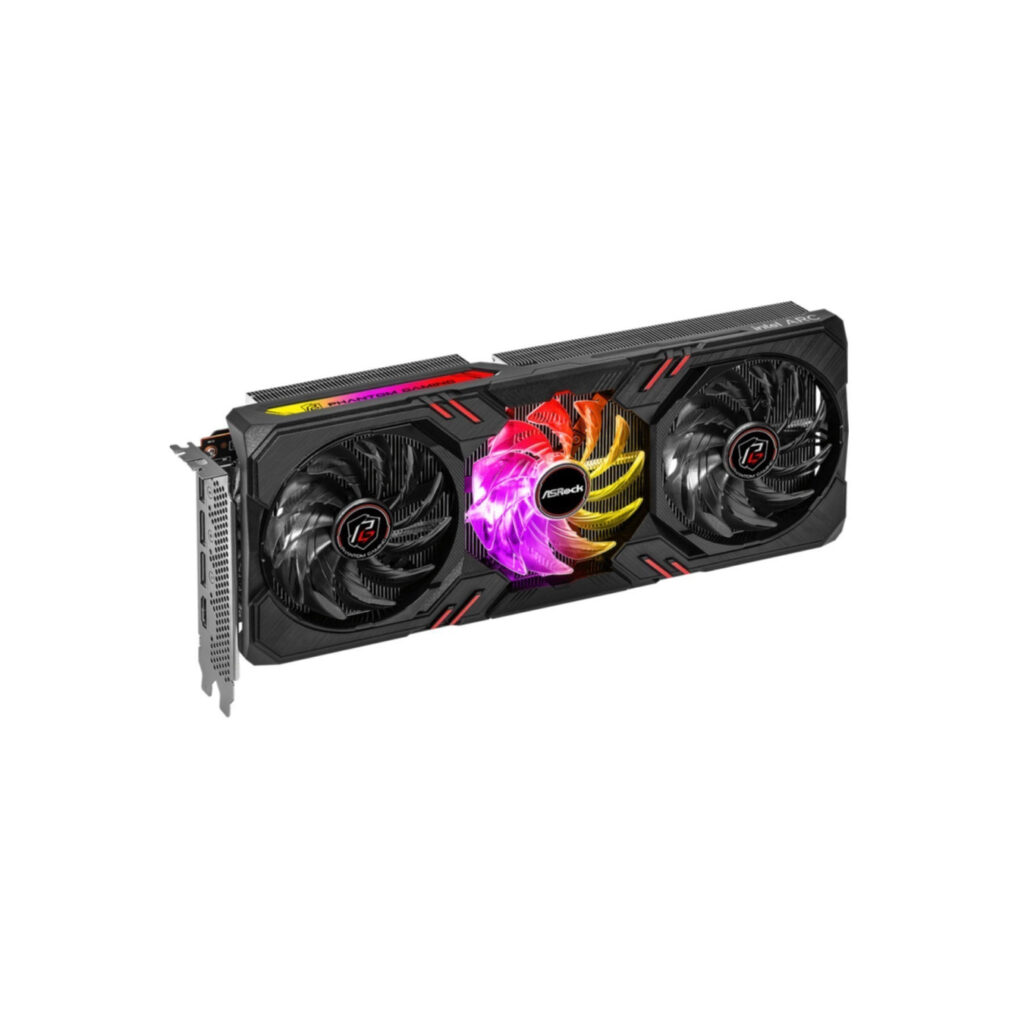

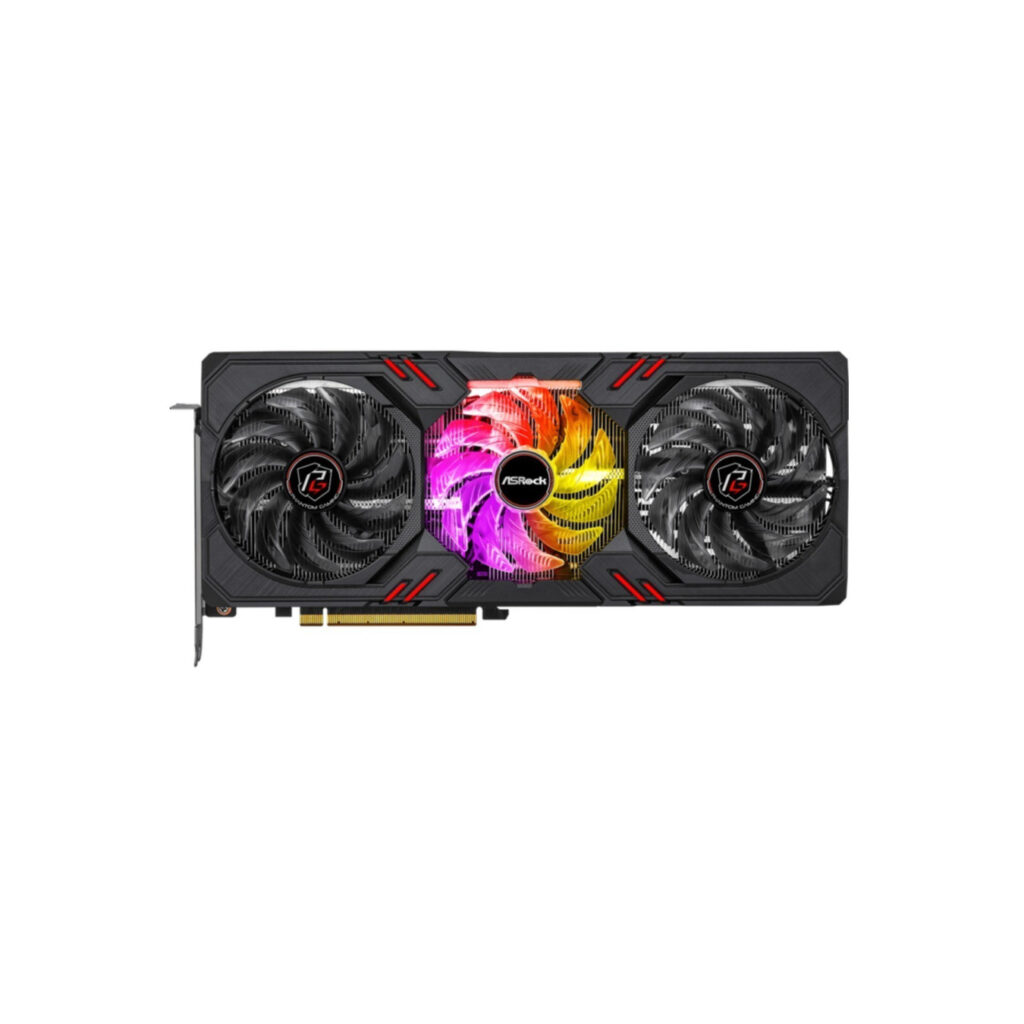

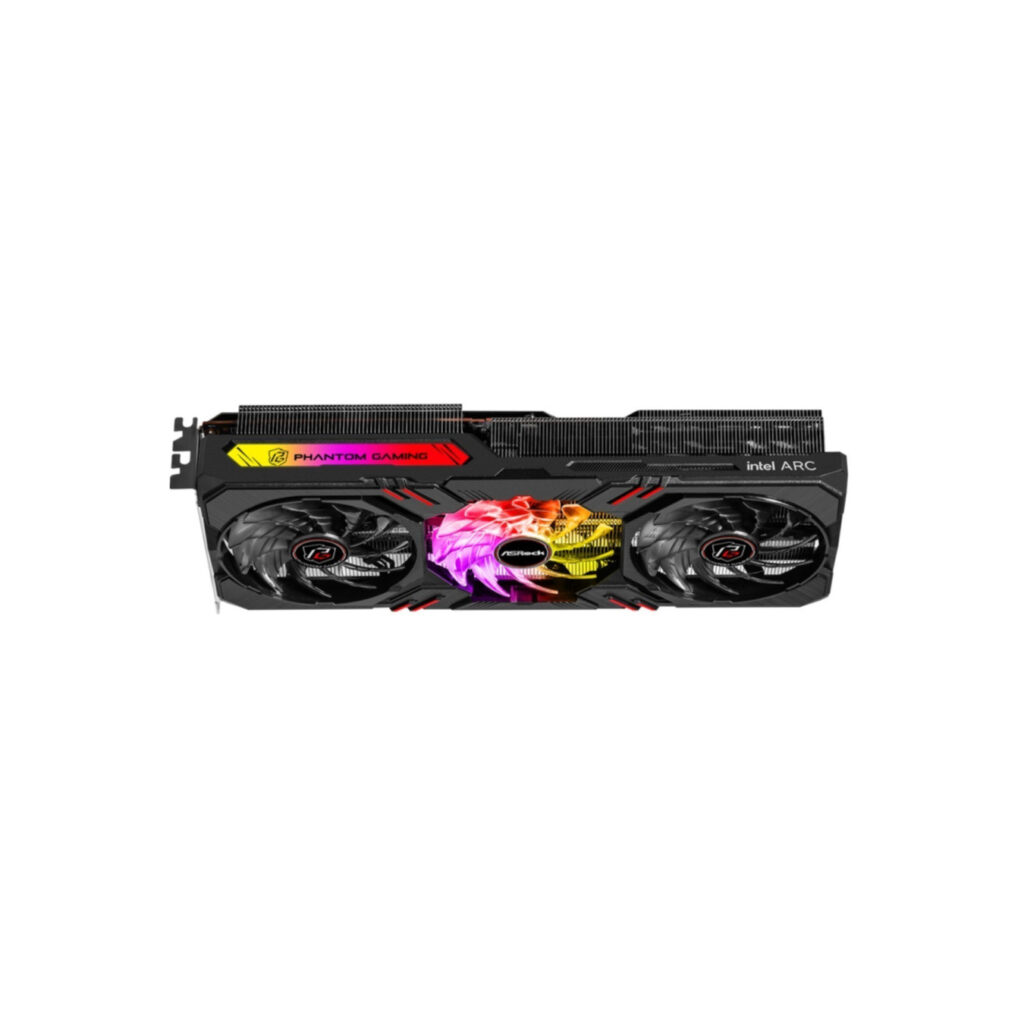

The ASRock Phantom Gaming OC Intel Arc A770 16GB GDDR6 delivers high-performance gaming with Intel’s latest Arc architecture. Featuring a 2200 MHz GPU clock and 17.5 Gbps memory speed on a 256-bit bus, this OC edition handles 8K resolution and DirectX 12 Ultimate with ray tracing support. The Phantom Gaming 3X cooling system with triple striped axial fans, ultra-fit heatpipes, and 0dB silent operation keeps temperatures low even under heavy loads.

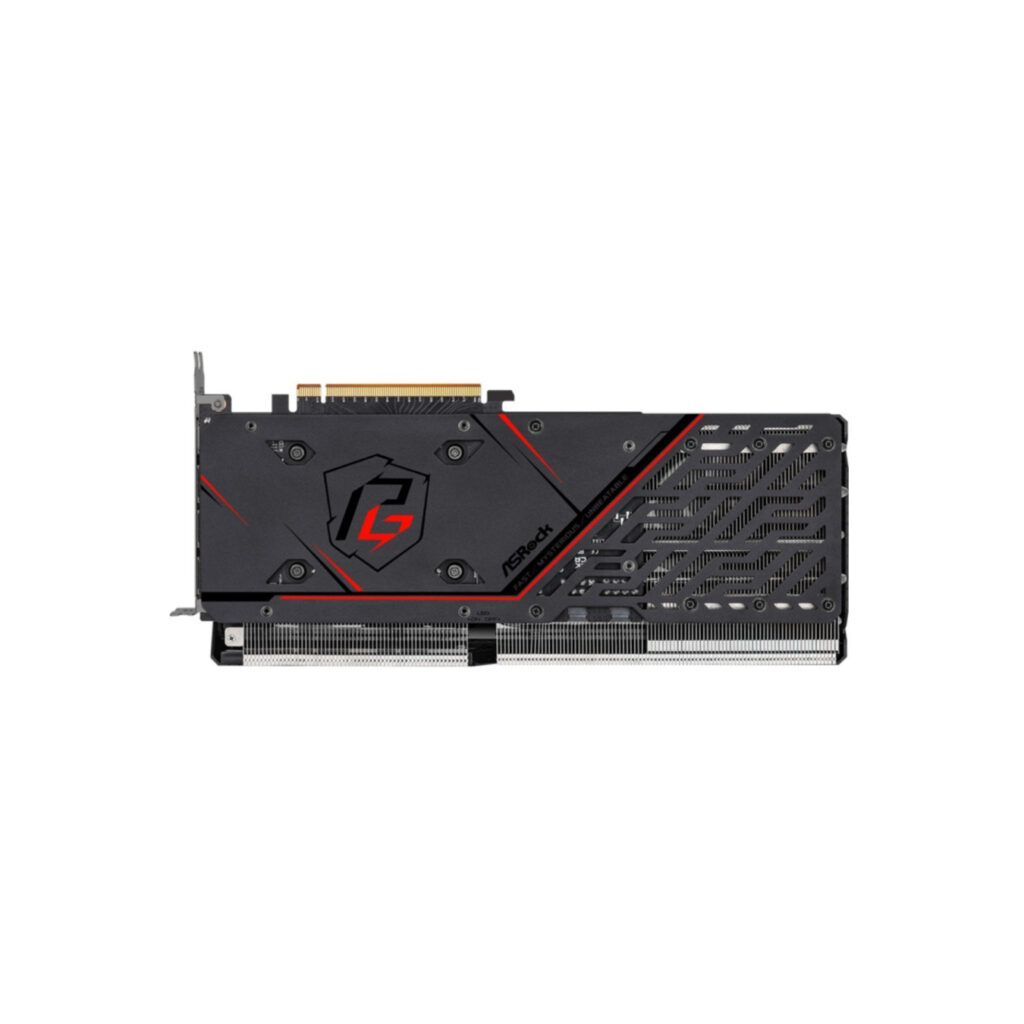

Equipped with a stylish metal backplate, premium 100A power chokes, and Polychrome SYNC RGB, it combines durability with aesthetics. Connectivity includes 3x DisplayPort 2.0 (UHBR10) and 1x HDMI 2.1 for multi-monitor setups up to 4 displays. Requires 700W PSU and 2x 8-pin connectors. Dimensions: 305 x 131 x 56 mm (2.8-slot), net weight 1146g.
- ✅ 16GB GDDR6 VRAM | 2200 MHz GPU / 17.5 Gbps Memory
- ✅ Triple-fan cooling | Metal backplate | PCIe 4.0 x16
- ✅ 8K support | XeSS AI upscaling | 512 XMX engines
- ✅ 2x 8-pin power | Recommended 700W PSU
| Graphics Engine | Intel Arc A770 Graphics |
| Bus Standard | PCI Express 4.0 x16 |
| GPU Clock | 2200 MHz |
| Memory Clock | 17.5 Gbps |
| Memory Size | 16GB GDDR6 |
| Memory Interface | 256-bit |
| Memory Type | GDDR6 |
| Intel XMX Engines | 512 |
| Resolution | Digital Max Resolution: 7680x4320 |

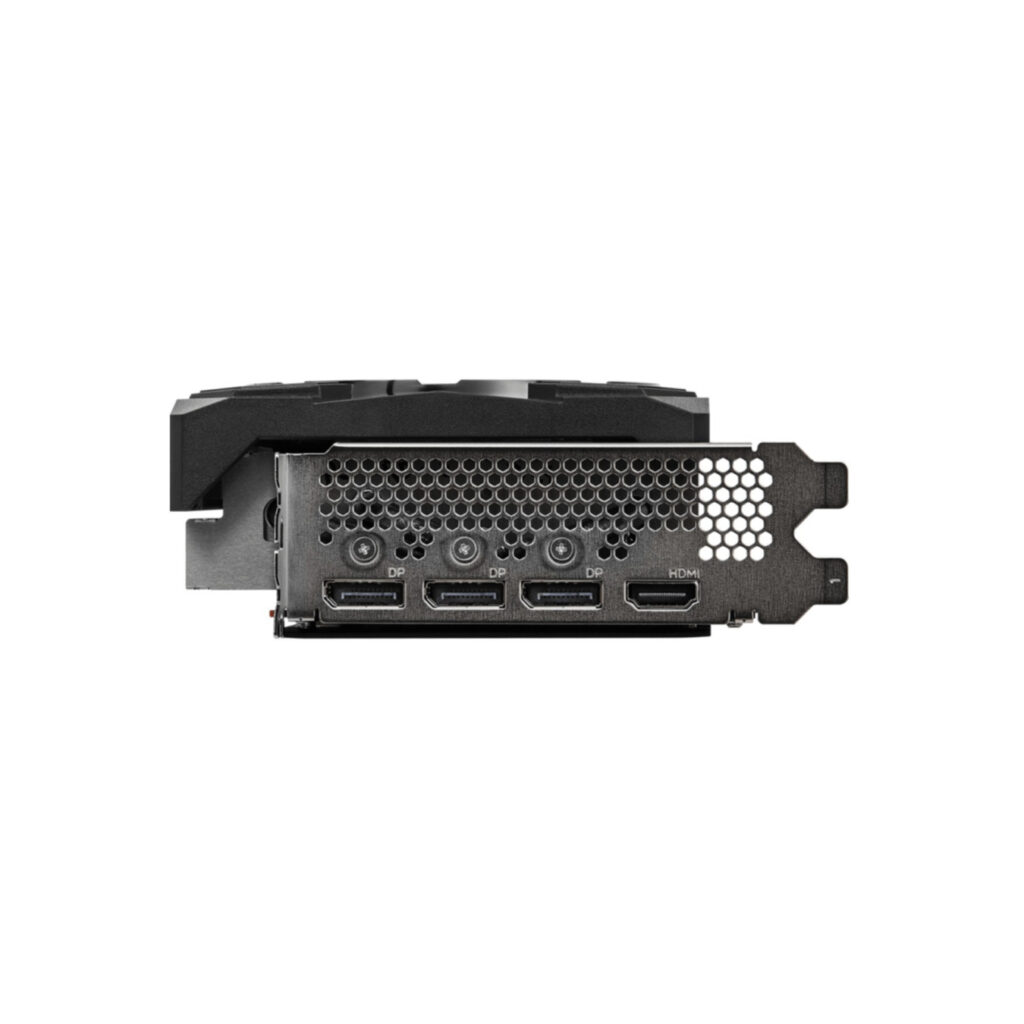

| Interface | 3 x DisplayPort 2.0 up to UHBR10, 1 x HDMI 2.1 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Power Connector | 2 x 8-pin |
| Recommended PSU | 700W |
| Dimensions | 305 x 131 x 56 mm, 2.8-slot |
| Net Weight | 1146 g |
| Cooler Type | Phantom Gaming 3X Triple Fan |
| Backplate | Yes, Stylish Metal |
