ASRock Intel Arc B580 Steel Legend OC 12GB GDDR6 2800 MHz - B580 SL 12GO
ASRock Intel Arc B580 Steel Legend OC GPU: 12GB GDDR6 on 192-bit bus, 2800 MHz boost, triple-fan cooling with RGB, 2×8-pin power, 1xHDMI 2.1, 3xDP 2.1. 298mm length, 190W TDP, PCIe 4.0 x8 for 1440p gaming.
Available in 2–5 business days : 1 piece
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The ASRock Intel Arc B580 Steel Legend OC is a high-performance graphics card powered by Intel’s Xe2-HPG architecture, delivering excellent 1440p gaming with 12GB GDDR6 memory on a 192-bit bus at 19 Gbps effective speed. Featuring a factory-overclocked GPU clock of 2800 MHz, it supports DirectX 12 Ultimate, XeSS 2 upscaling, and XMX AI acceleration for smooth frame rates and ray tracing.

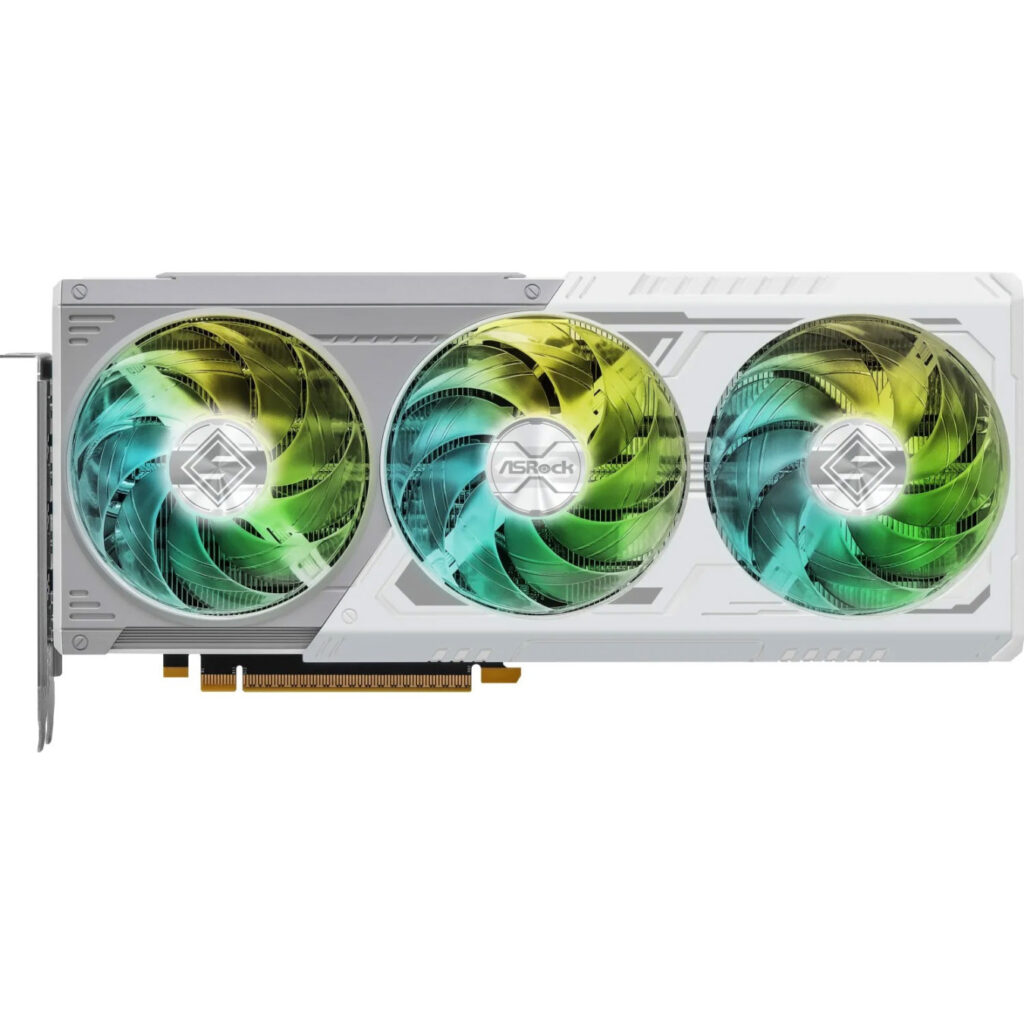

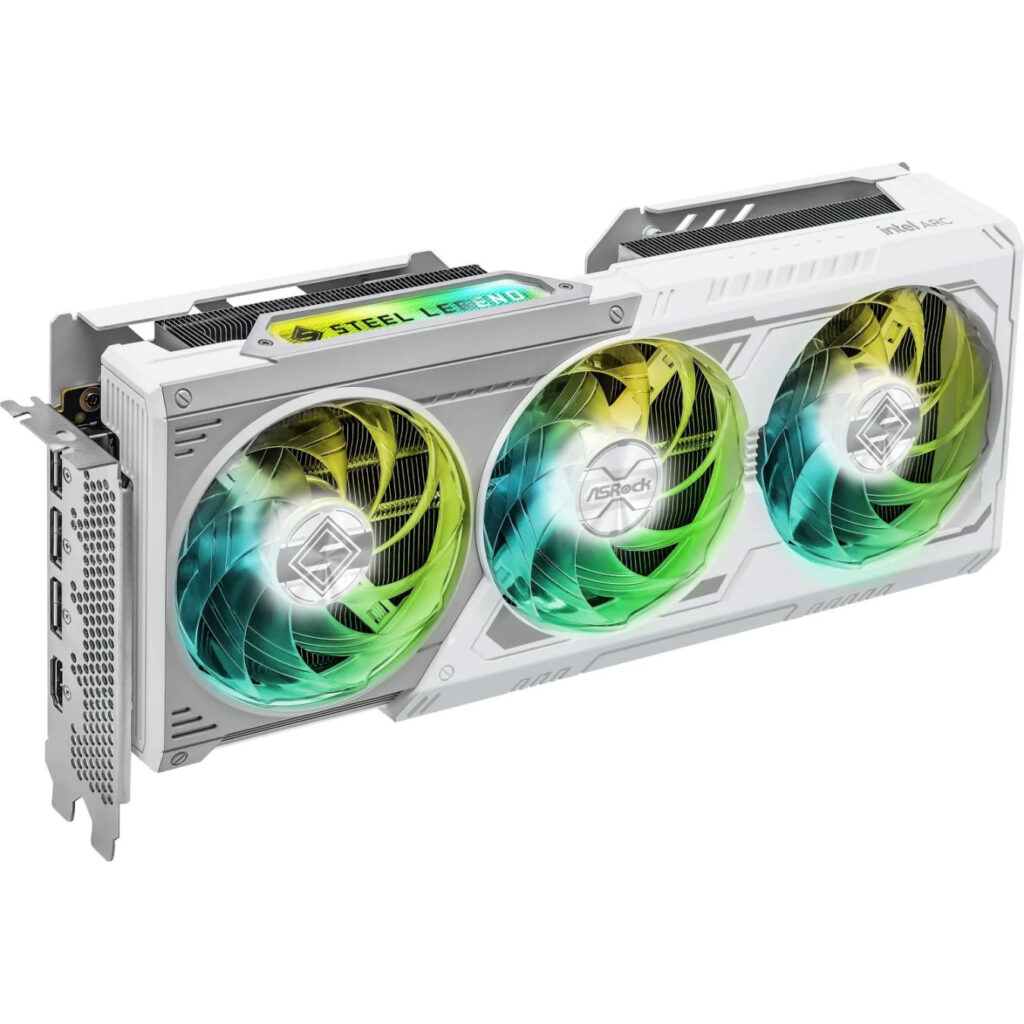

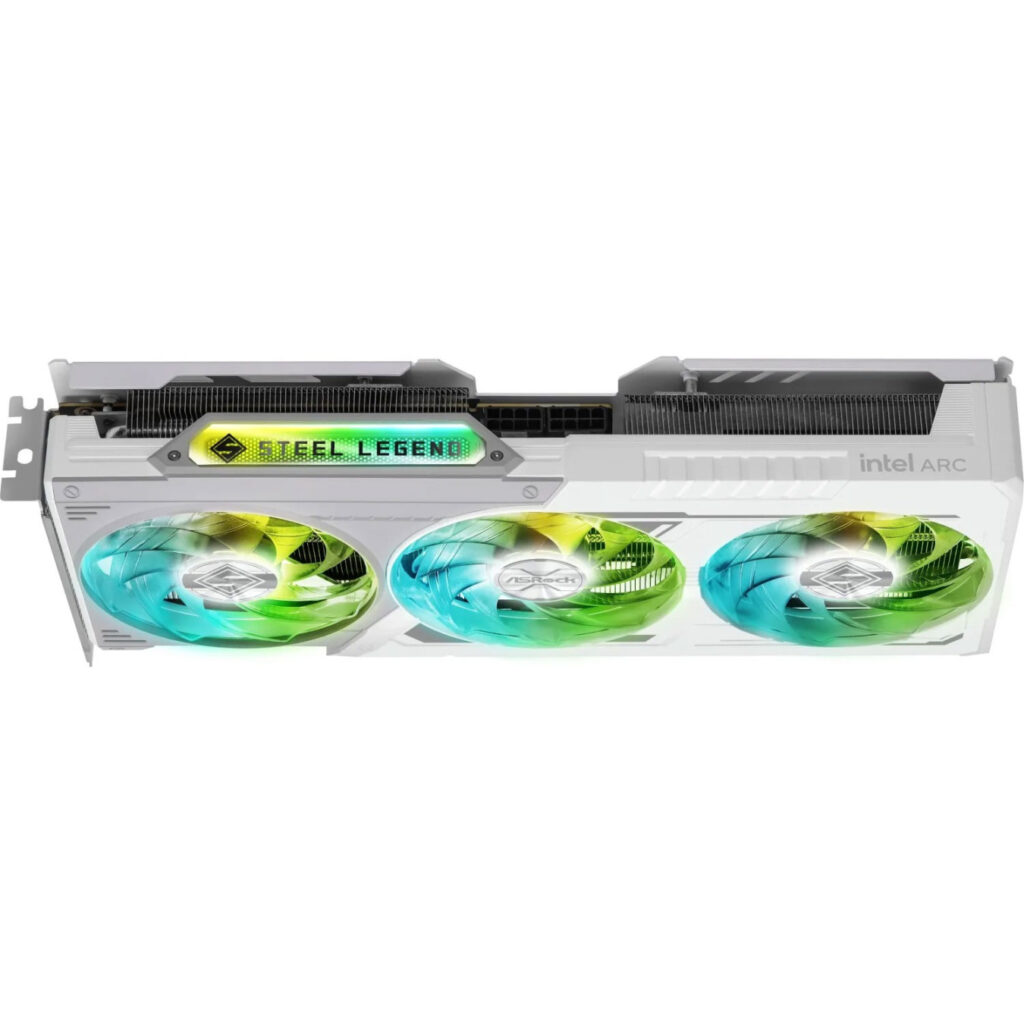

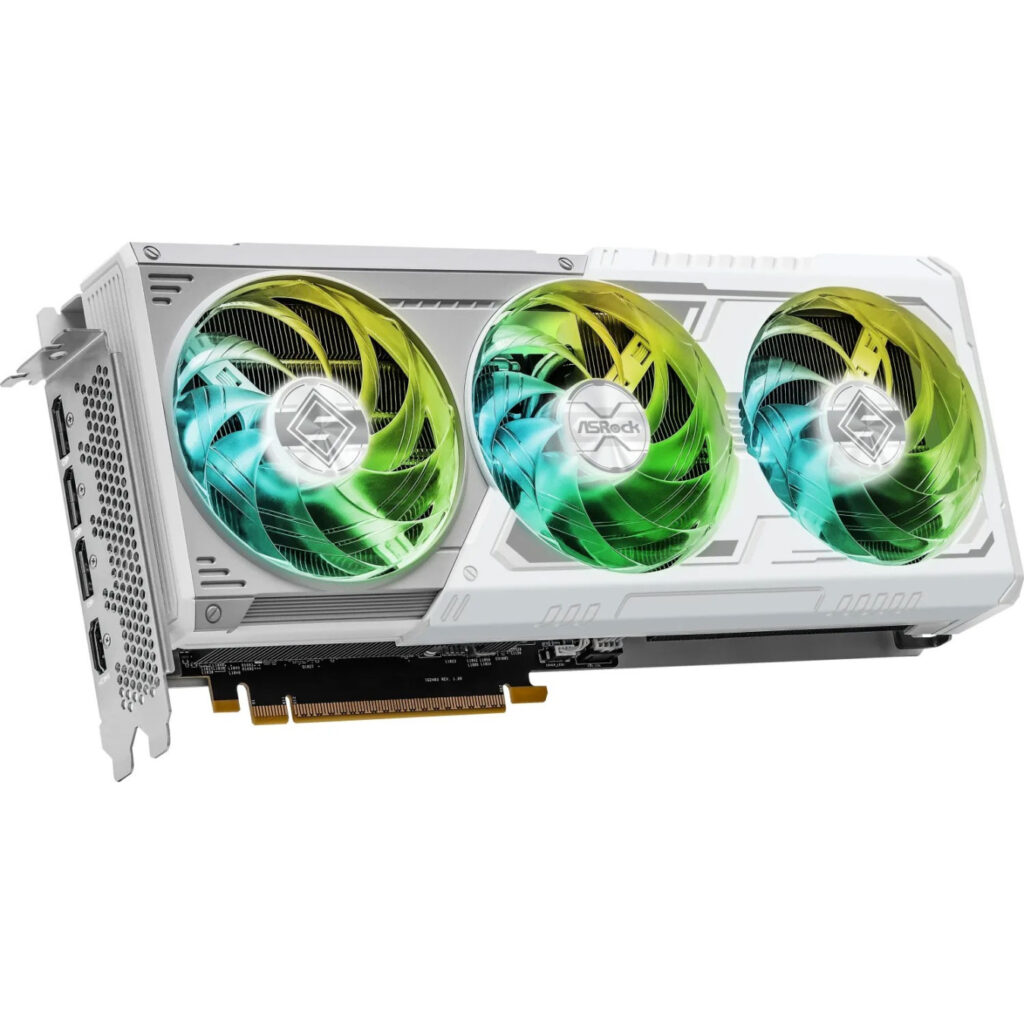

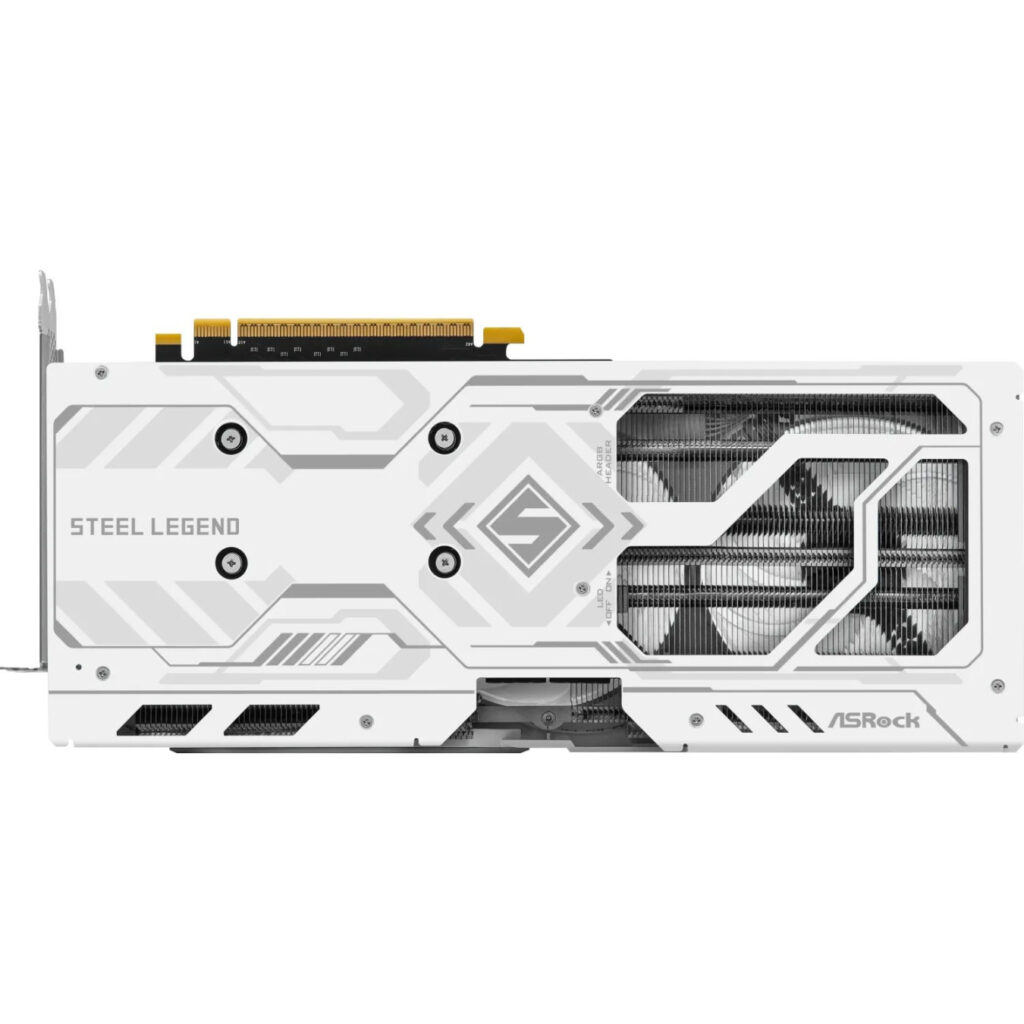

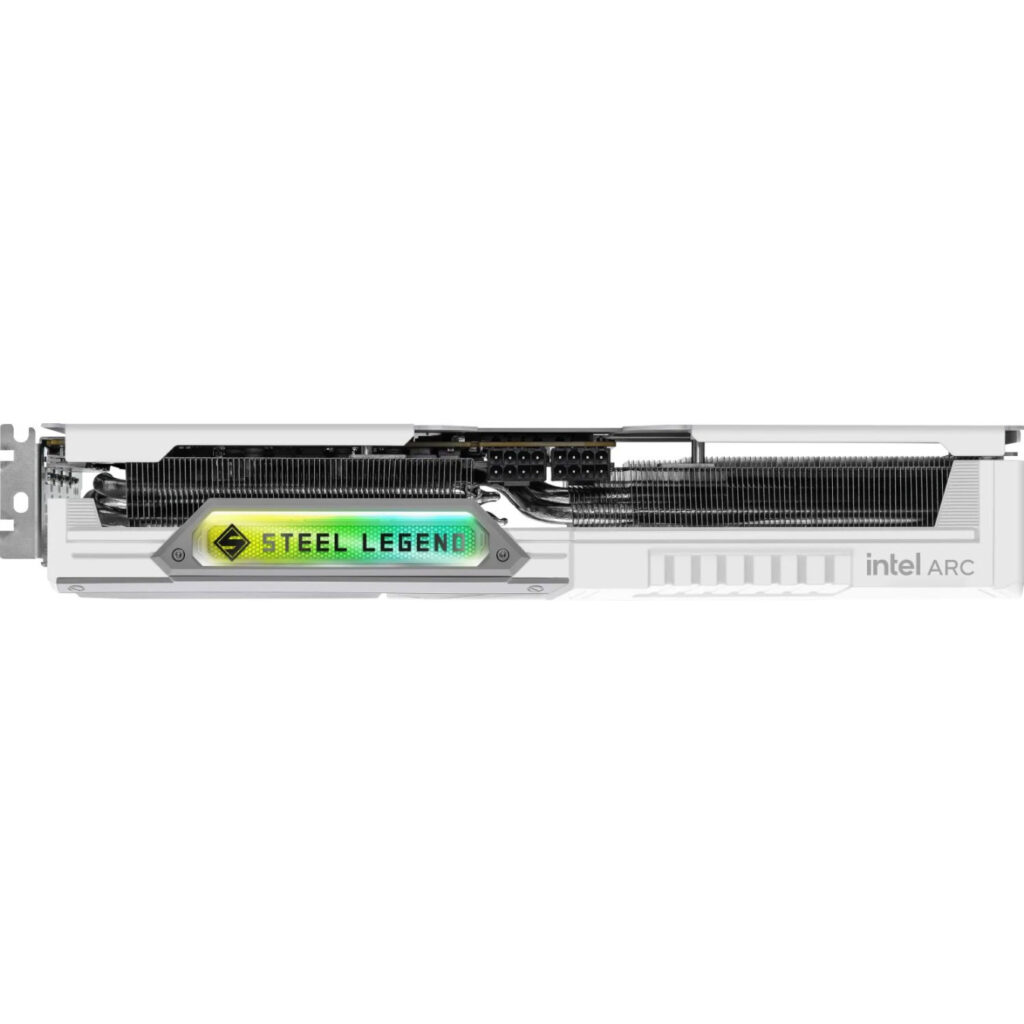

Equipped with a premium triple-fan cooling solution including Striped Ring Fans, 0dB silent mode, ultra-fit heatpipes, and a stylish metal backplate with Polychrome SYNC RGB lighting. It requires 2x 8-pin power connectors and a 650W PSU recommendation, fitting in cases with 298mm GPU clearance as a 2.6-slot card.

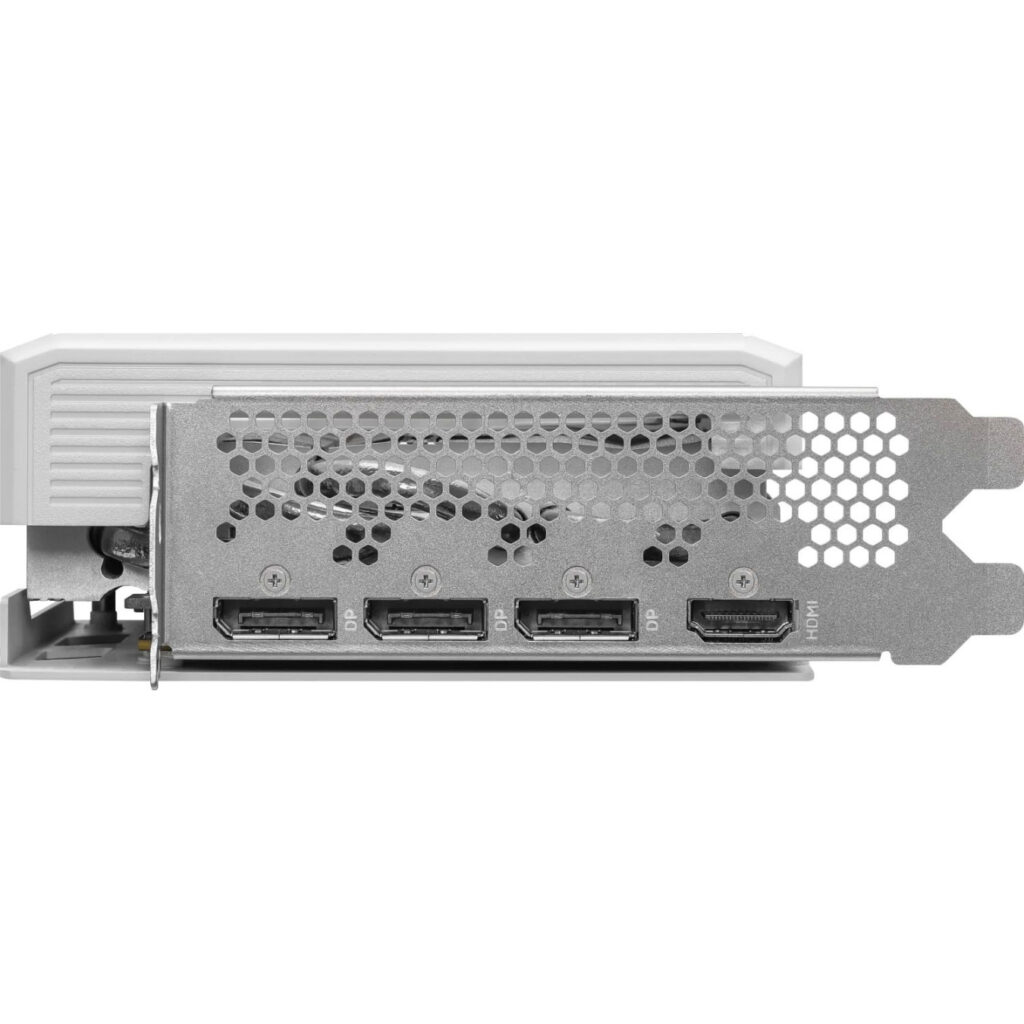

- Outputs: 1x HDMI 2.1a, 3x DisplayPort 2.1 (DSC support, up to 8K)
- Interface: PCI Express 4.0 x8
- TDP: 190W
- Dimensions: 298 mm length
- Key Features: Metal backplate, Air Deflecting Fin, Super Alloy components
| Model | B580 SL 12GO / 90-GA5CZZ-00UANF |
| GPU | Intel Arc B580 |
| GPU Clock (Boost) | 2800 MHz |
| Memory Size | 12 GB |
| Memory Type | GDDR6 |
| Memory Bus | 192-bit |
| Memory Clock | 19 Gbps |
| Interface | PCIe 4.0 x8 |
| TDP | 190 W |
| Power Connectors | 2 x 8-pin |
| Outputs | 1 x HDMI 2.1a, 3 x DisplayPort 2.1 |
| Cooling | Triple Fan |
| Length | 298 mm |
| Slot Width | 2.6 slots |
| Architecture | Intel Xe2-HPG |
| Recommended PSU | 650 W |
