ARCTIC P14 Pro Reverse Blade PWM Fan 140mm 3-Pack
ARCTIC P14 Pro Reverse – 3 Pack: 140mm PWM fans with reverse airflow for aesthetic intake. 400-2650 RPM, 166.5 m³/h airflow, 5.1 mmH2O pressure, FDB bearing. Daisy-chain splitter included. Black, quiet, high static pressure for cases/radiators.
Available in 10–14 business days : 15 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

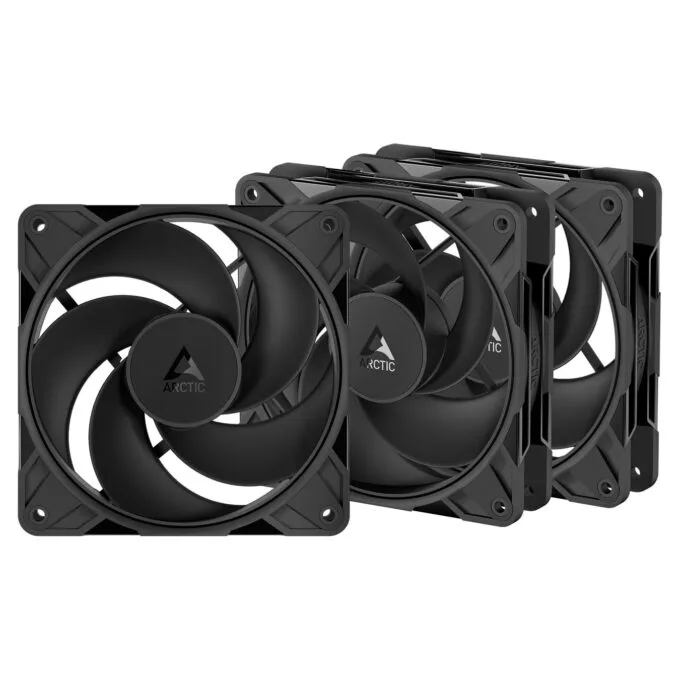

The ARCTIC P14 Pro Reverse 3-Pack features premium 140 mm PWM case fans engineered with reverse blade design for clean air intake from the back side. Ideal for glass-panel PC builds where front intake fans would disrupt aesthetics. Delivers high static pressure of 5.1 mmH₂O to penetrate dense meshes, radiators, and filters effectively.
Key highlights include fluid dynamic bearing (FDB) for durability and low noise, PWM control (400-2650 RPM, 0 RPM <5% PWM), and 166.5 m³/h (98 CFM) airflow. The included daisy-chain cable splitter (400 mm + 80 mm) simplifies connecting multiple fans to one header. SOTA microcontroller reduces motor noise and protects against voltage issues. 6-year warranty.
- Reverse airflow: Perfect for visible intake without blade visibility
- High precision balancing: Minimal vibration and turbulence
- Trumpet intake & optimized spokes: Maximized efficiency
- Dimensions per fan: 140 x 140 x 30 mm, weight 248 g
- Connector: 4-pin PWM with splitter
| Type | Fan |
| Recommended Placement | Computer case |
| Fan Diameter | 14 cm |
| Max Airflow | 98 CFM |
| Airflow | 166.5 m³/h |
| Static Pressure | 5.1 mmH2O |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Quantity per Pack | 3 pcs |
| Fan Speed (min) | 400 RPM |
| Fan Speed (max) | 2650 RPM |
| Operating Temperature | 0 - 40 °C |
| Product Color | Black |
| Number of Fan Blades | 5 |
| Fan Connector | 4-pin PWM + splitter |
| Rated Voltage | 12 V |
| Startup Voltage | 4 V |
| Rated Current | 0.4 A |
| Fan Dimensions (W x D x H) | 140 x 140 x 30 mm |
| Fan Weight | 248 g |
| Cable Length | 0.4 m + 0.08 m daisy-chain |
| Package Width | 144 mm |
| Package Depth | 148 mm |
| Package Height | 100 mm |
| Package Weight | 810 g |
| Screws Included | 12 |
| Warranty | 6 Years |
