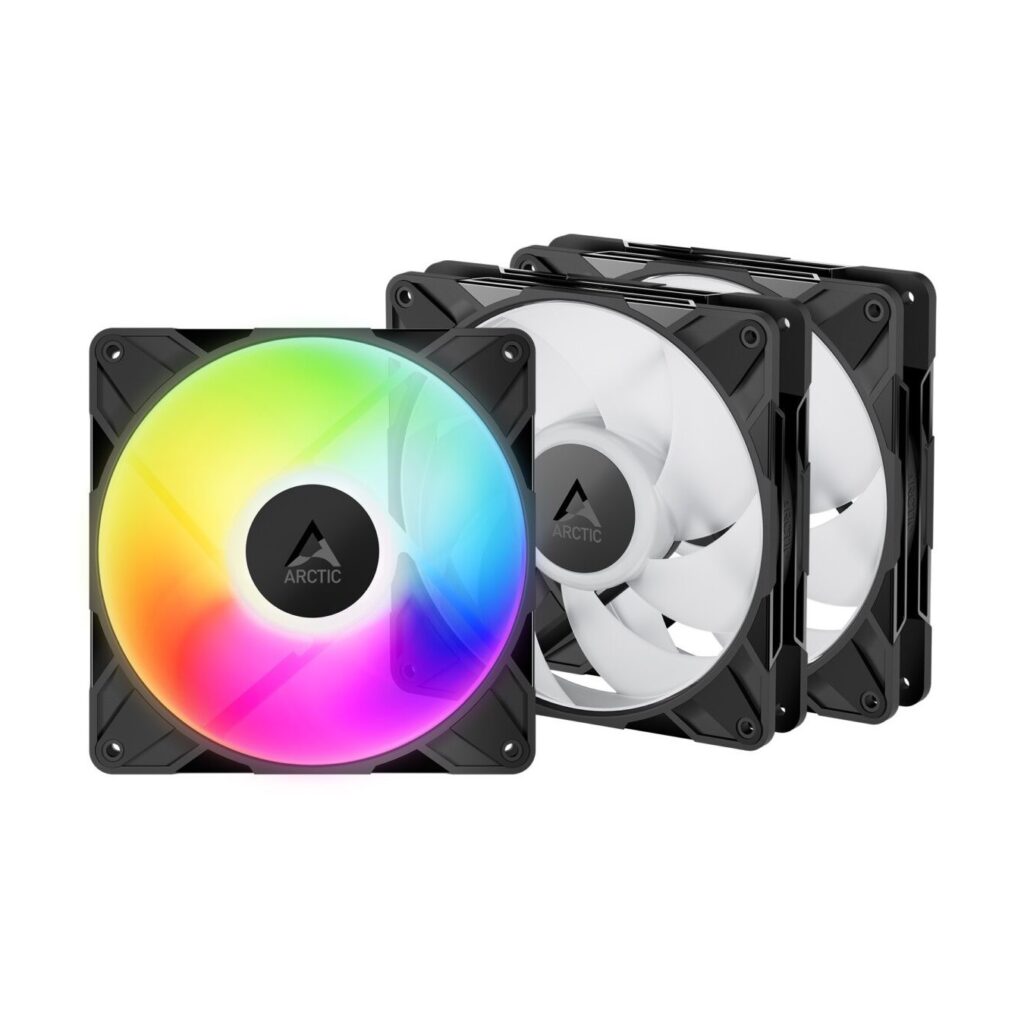

Arctic P14 Pro A-RGB 140mm PWM Case Fan 3-Pack with Splitter
Three 140mm A-RGB PWM case fans with high static pressure (5.2 mmH2O) for radiators and restricted airflow. Features 12x RGB LEDs, Fluid Dynamic Bearing, PWM control (400-2500 RPM), and daisy-chain splitter cables. Quiet operation at 25 dB(A).
Available in 10–14 business days : 21 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

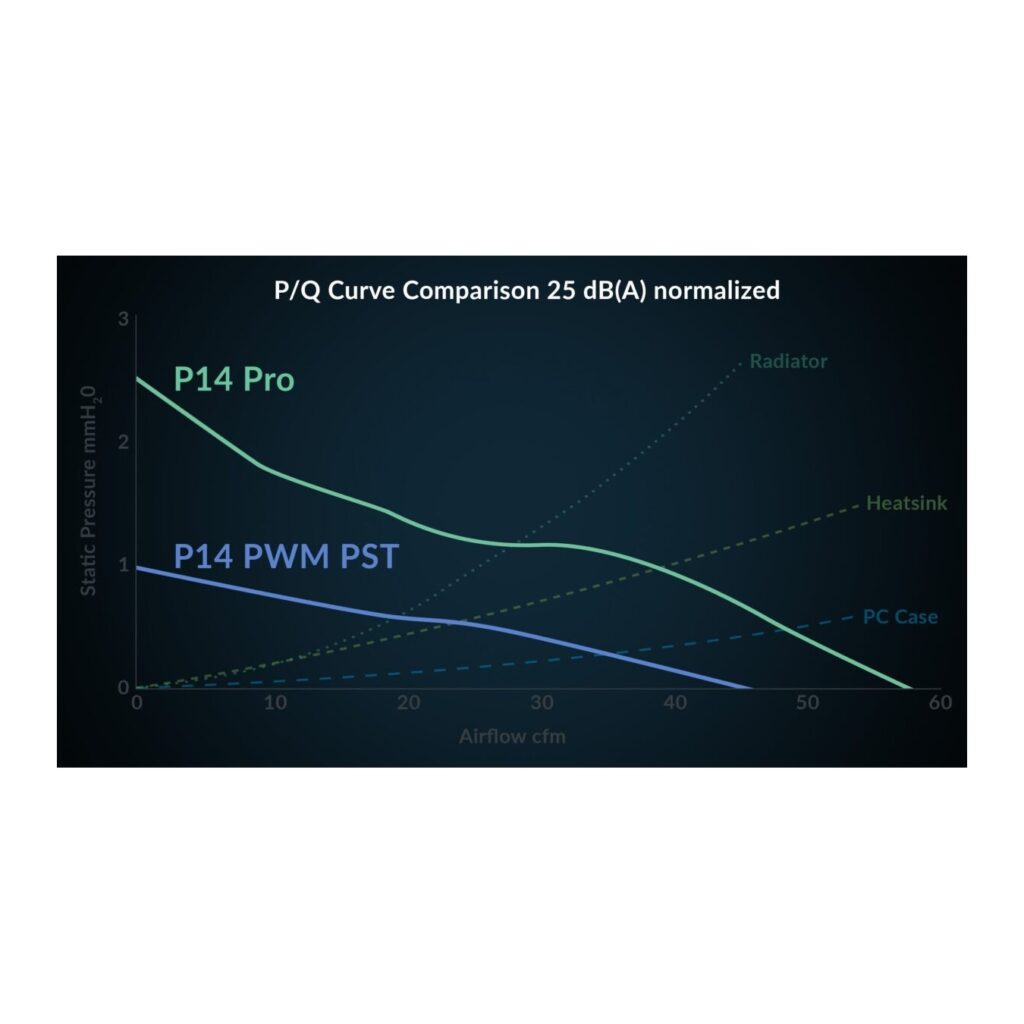

Arctic P14 Pro A-RGB 140mm PWM Case Fan 3-Pack delivers high-performance cooling with three individually addressable RGB fans designed for demanding cooling applications. Each fan features a revised seven-blade aerodynamic design that balances performance with smooth, quiet operation. With a maximum static pressure of 5.2 mmH₂O and airflow of 110 CFM (186 m³/h), these fans excel at pushing air through tight spaces such as radiators, perforated panels, and mesh filters—making them ideal for high-restriction cooling setups.

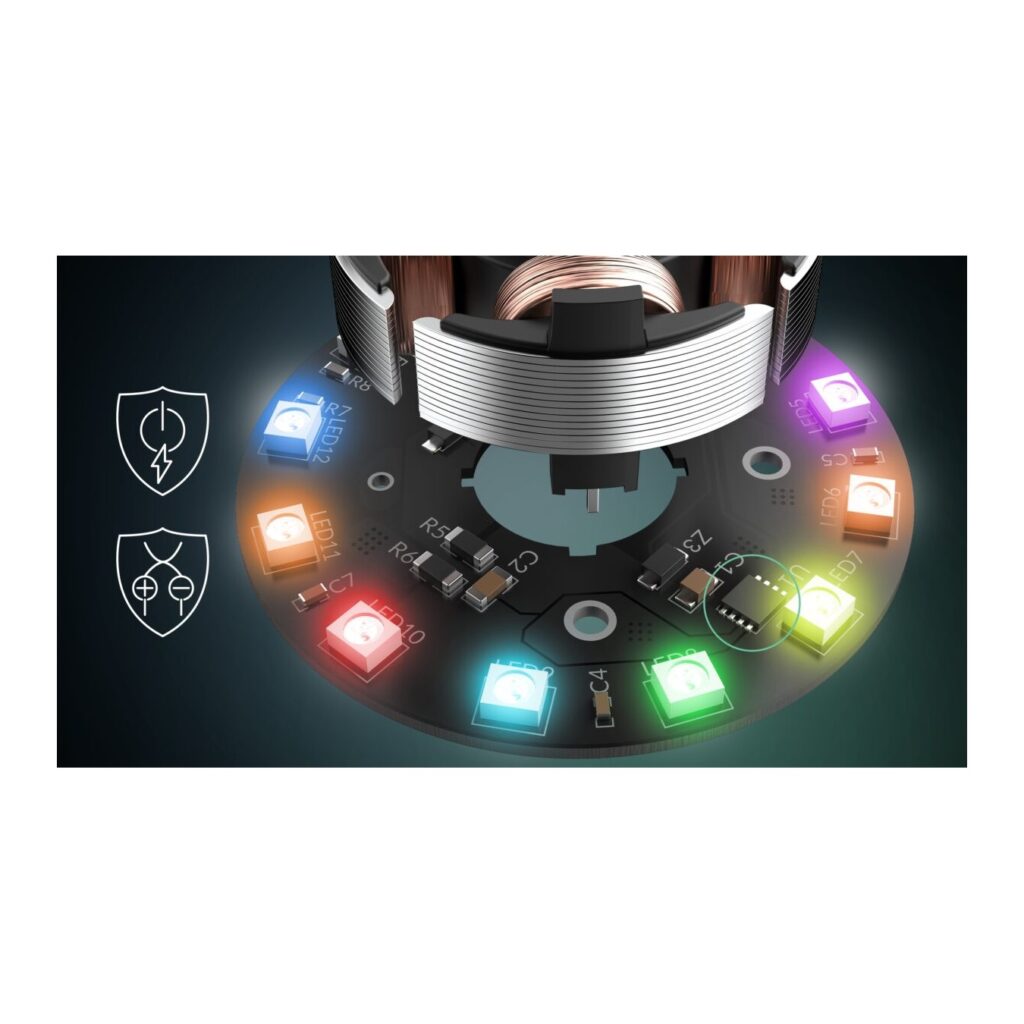

Each fan is equipped with 12x A-RGB Gen2 LEDs for customizable lighting effects, a Fluid Dynamic Bearing for durability and low noise, and PWM speed control ranging from 400 to 2500 RPM. The included Y-cable splitter enables daisy-chaining multiple fans to a single motherboard header, simplifying installation. Automated two-plane balancing ensures exceptional precision and smooth operation, while rubber vibration-dampening corners minimize noise transfer to your case or radiator. Operating at just 25 dB(A) at low speeds, these fans provide powerful cooling without excessive noise.
Key Features:
- Three 140mm fans with 4-pin PWM connectors and 3-pin A-RGB connectors
- High static pressure design (5.2 mmH₂O) optimized for radiators and restricted airflow

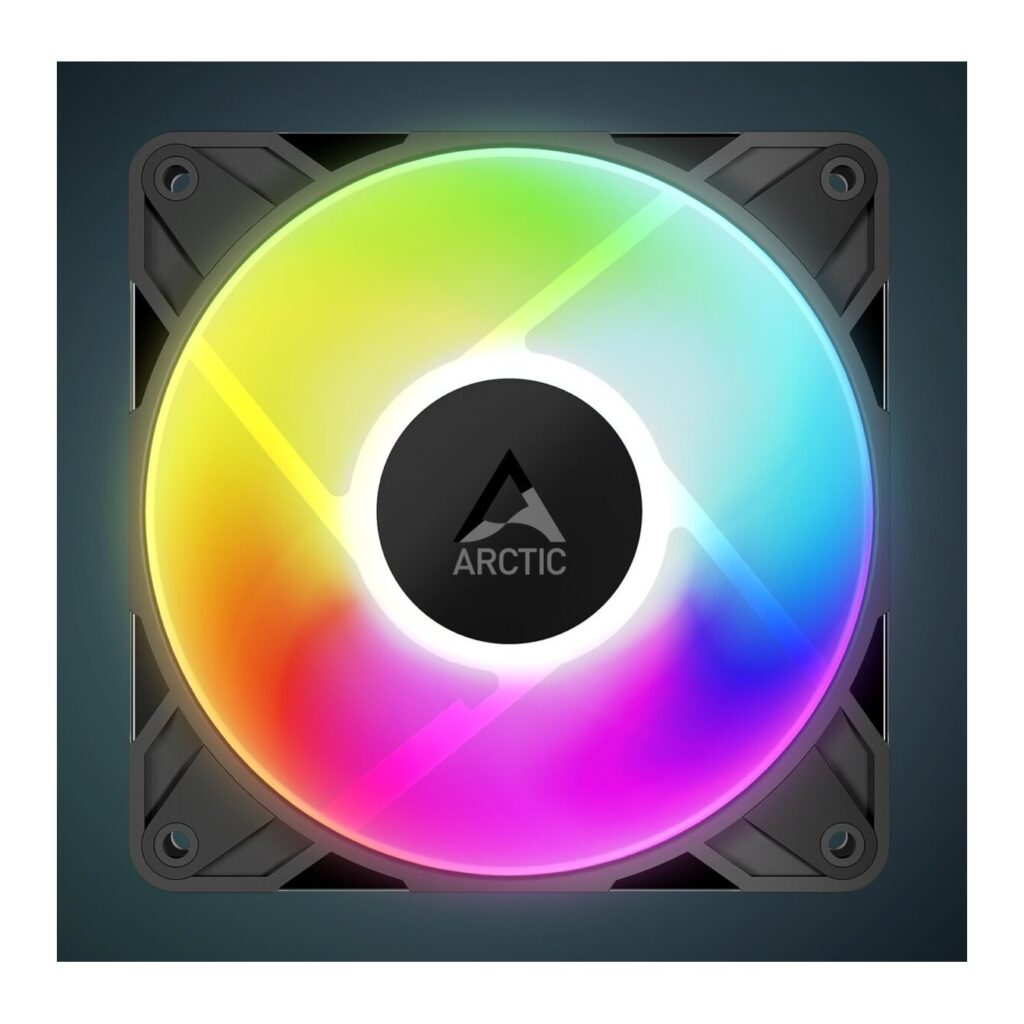

- 12x A-RGB Gen2 LEDs per fan for synchronized lighting

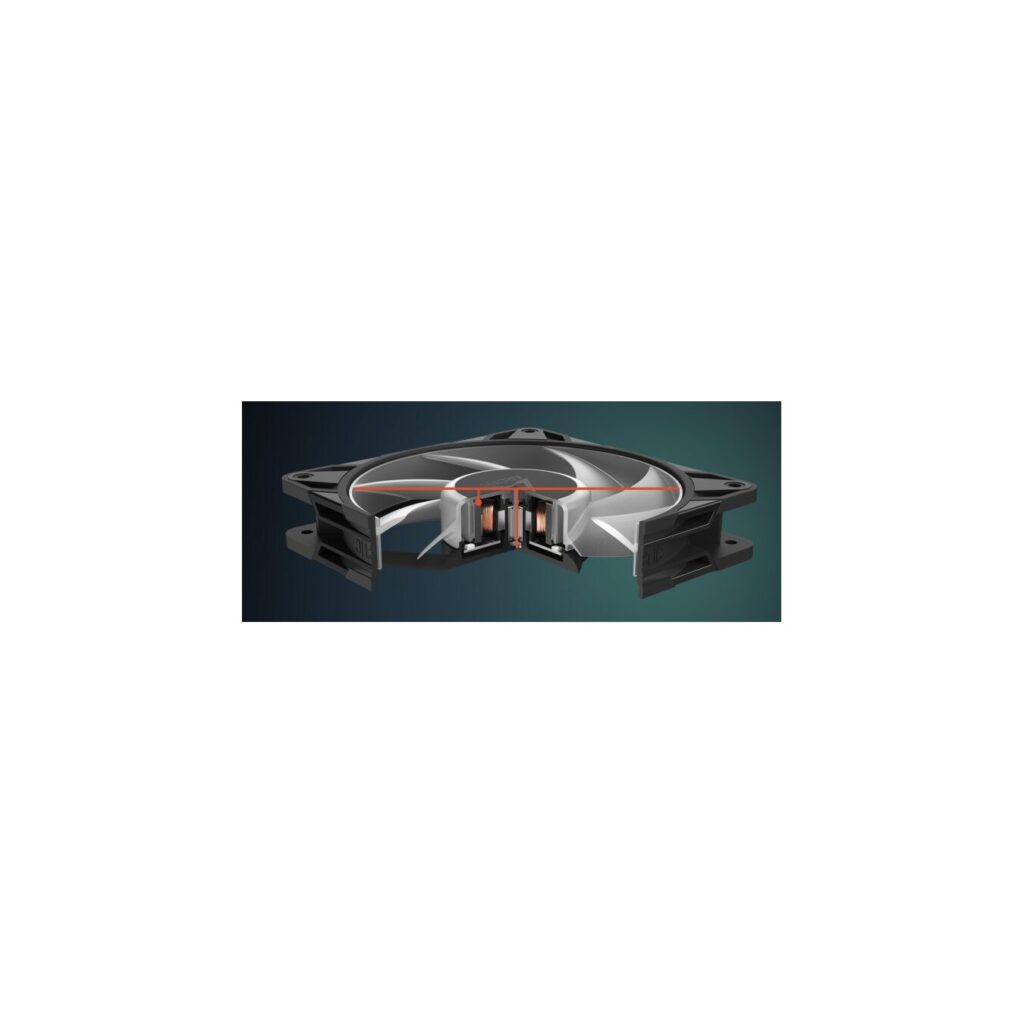

- Fluid Dynamic Bearing for quiet, durable operation
- PWM speed control: 400–2500 RPM with zero RPM mode below 5% PWM

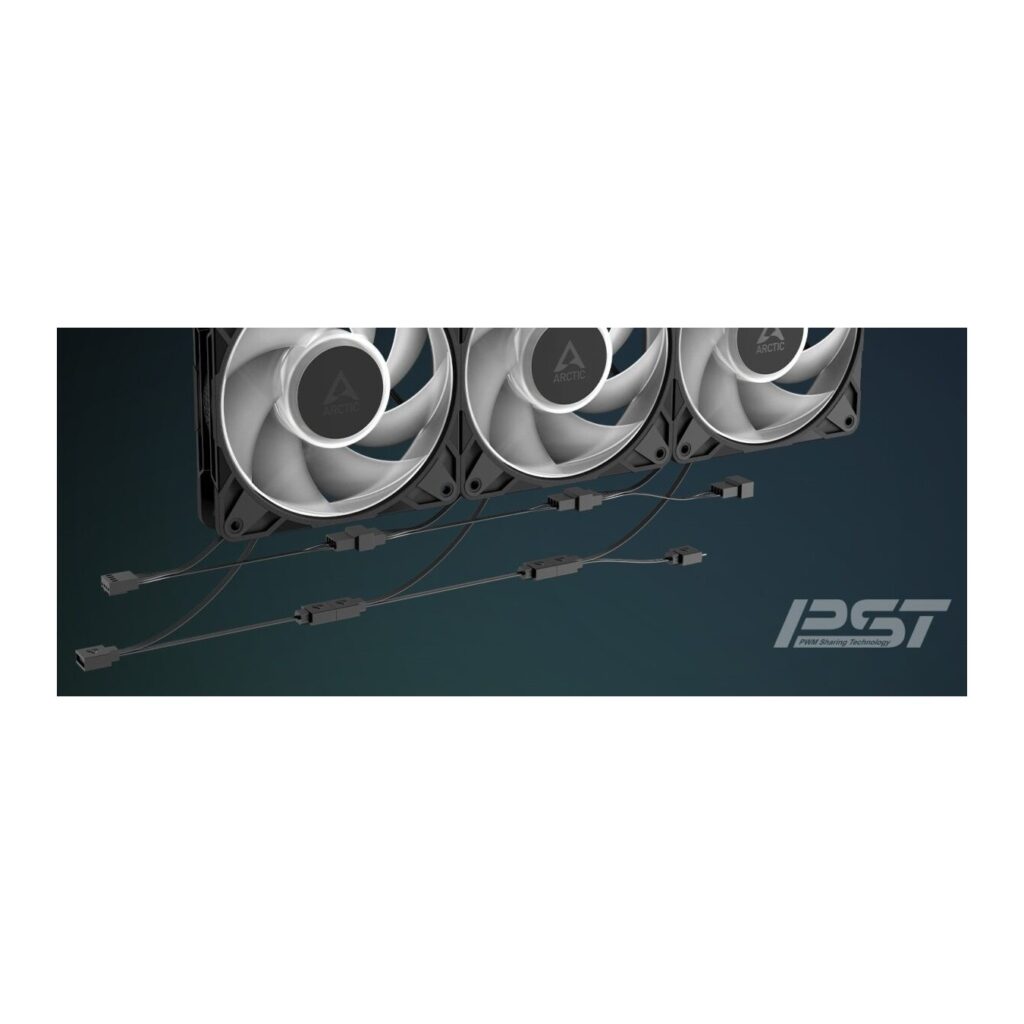

- Daisy-chain capable with included Y-cable splitter
- Automated two-plane balancing for precision and smooth performance
- 6-year manufacturer warranty
- Operating temperature: 0–40°C
| Fan Speed | 400–2500 RPM (PWM controlled); 0 RPM below 5% PWM |
| Airflow | 110 CFM / 186 m³/h |
| Static Pressure | 5.2 mmH₂O |

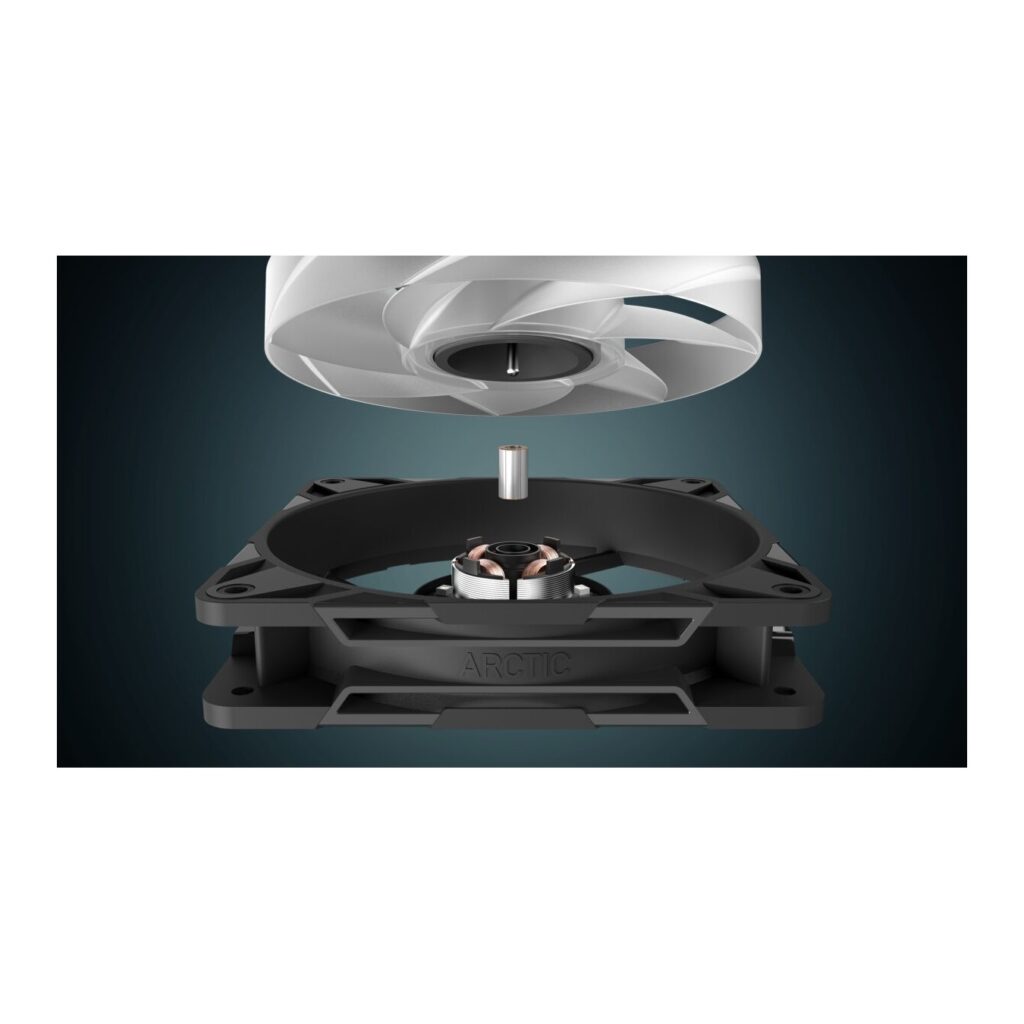

| Fan Bearing Type | Fluid Dynamic Bearing (FDB) |
| Blade Design | Seven-blade aerodynamic design with optimized spacing |
| Noise Level | 25 dB(A) at low speeds; up to 39.20 dB(A) at maximum speed |
| Typical Voltage | 12 V DC |
| Start-Up Voltage | 5 V DC |
| Current (Motor) | 0.35 A |
| Power Consumption (Motor) | ~3.7 W typical; ~4.53 W maximum |
| RGB LEDs | 12x A-RGB Gen2 LEDs per fan |
| RGB Current / Voltage | 0.40 A / 5 V DC |
| RGB Power Consumption | ~2.24 W at maximum brightness (white) |
| Fan Connector | 4-pin PWM plug + 4-pin socket |
| RGB Connector | 3-pin A-RGB plug + 3-pin socket |
| Cable Length | 400 mm fan cable + 80 mm daisy-chain cable |
| Daisy-Chain Capable | Yes (PST - PWM-based synchronized fan control) |
| Dimensions (Per Fan) | 140 (L) × 140 (W) × 27 (H) mm |
| Weight (Per Fan) | 237 g |
| Vibration Dampening | Rubber corners for vibration isolation |
| Balancing | Automated two-plane balancing for precision and smooth operation |
| Operating Temperature | 0–40°C |
| Warranty | 6 years |
| Package Contents | 3x P14 Pro A-RGB fans, 1x Y-cable splitter |
