Arctic P12 Slim PWM PST 120mm Case Fan - 15mm Low Profile
Ultra-slim 15mm 120mm PWM case fan with high static pressure, Fluid Dynamic Bearing, PST daisy-chain support, 200-2100 RPM range, ideal for SFF builds and radiators.
Available in 10–14 business days : 194 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

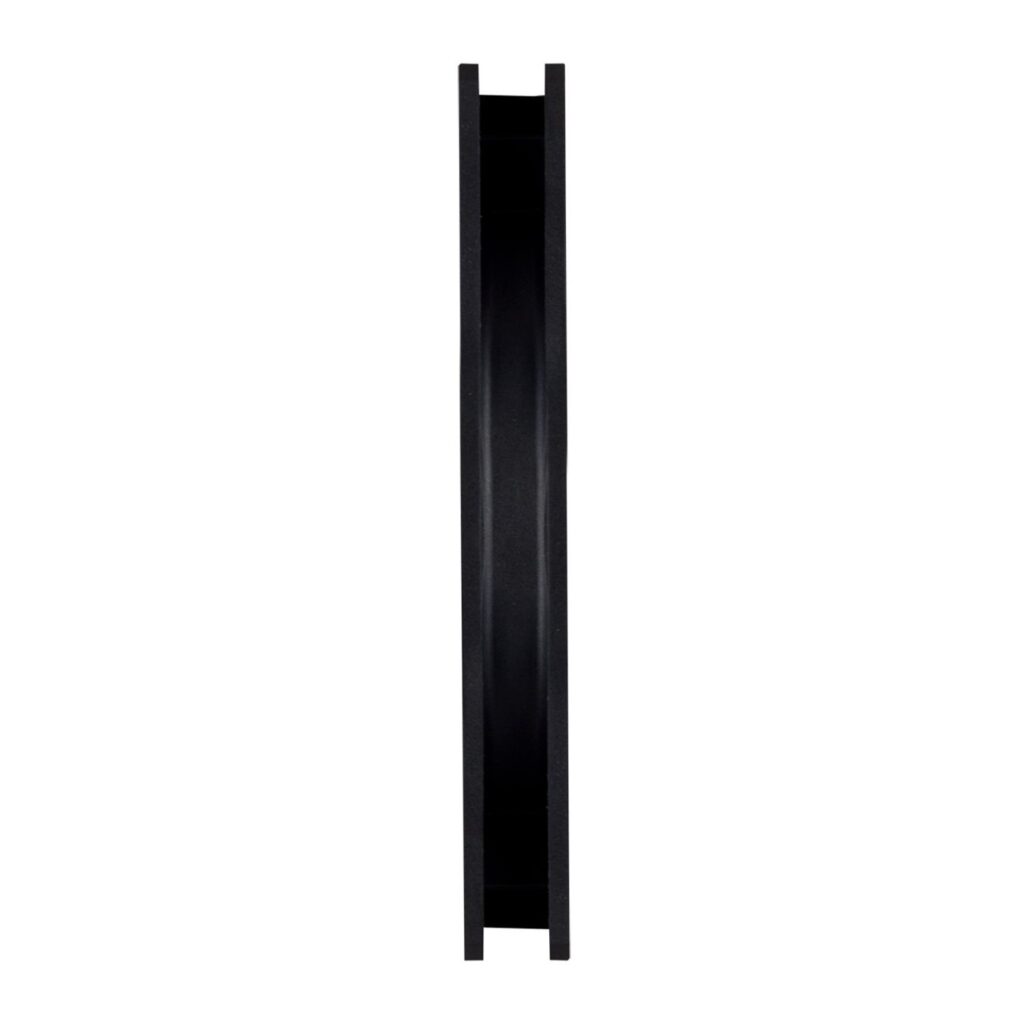

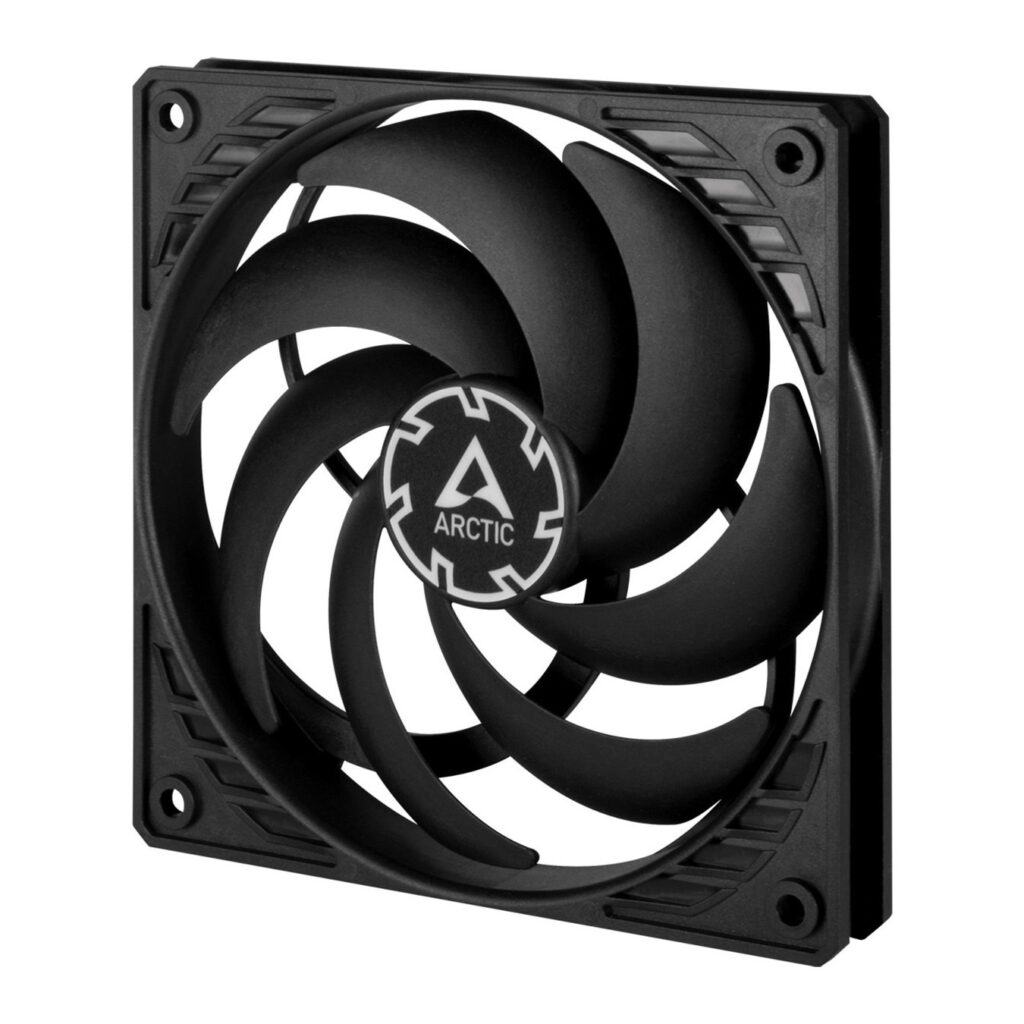

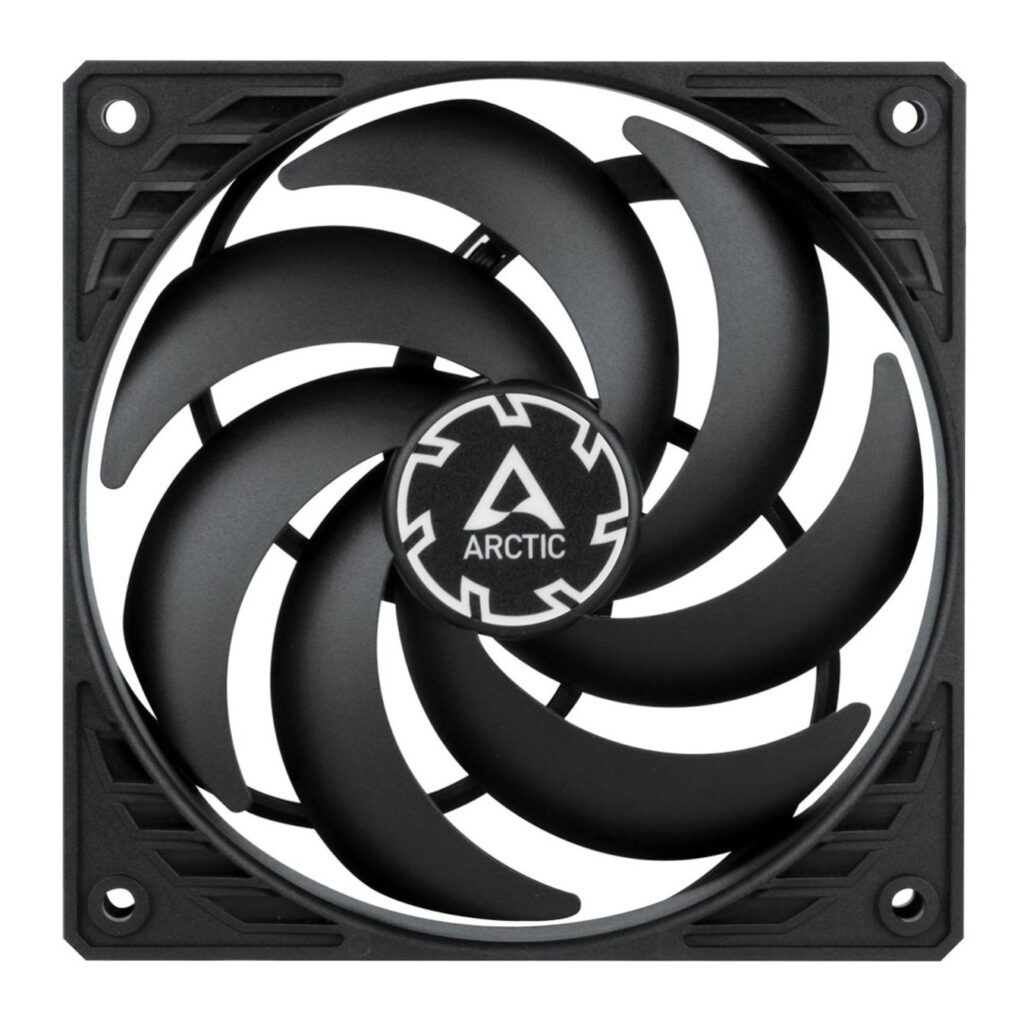

Arctic P12 Slim PWM PST is a specialized 120mm case fan engineered for space-constrained builds. With a mere 15mm mounting depth compared to standard 25mm fans, it delivers exceptional performance in Small Form Factor (SFF) PC builds, heatsinks, and radiators. The fan features a Fluid Dynamic Bearing (FDB) with oil capsule technology, ensuring quiet operation and extended service life with minimal maintenance.
Optimized for high static pressure applications, the P12 Slim PWM PST produces 34.51 CFM airflow at 1.33 mmH₂O static pressure, making it ideal for restrictive cooling solutions. The innovative PWM Sharing Technology (PST) allows multiple fans to be daisy-chained together, synchronizing their speeds through a single motherboard header for simplified cable management and consistent cooling performance. Operating at 200-2100 RPM with PWM control, the fan delivers a noise level of just 0.3 Sone at maximum speed, providing an excellent balance between cooling capacity and acoustic performance.
Key Features:
- Ultra-slim 15mm profile for tight spaces
- 120x120mm standard mounting footprint
- 4-Pin PWM connector with PST daisy-chain socket
- Fluid Dynamic Bearing for durability and silence
- 200-2100 RPM speed range with zero dB mode
- High static pressure design for radiators and heatsinks
- 6-year manufacturer warranty
- Low power consumption (0.12A at 12V DC)
| Device Type | Case Fan |
| Fan Size | 120 mm |
| Fan Thickness | 15 mm |
| Dimensions (Fan) | 120 (L) x 120 (W) x 15 (H) mm |
| Weight (Fan) | 85 g |
| Fan Speed Range | 200–2100 RPM (PWM controlled) |
| Minimum Operating Speed | 200 RPM |
| Maximum Speed | 2100 RPM |
| Zero dB Mode | 0 RPM below 9% PWM |
| Airflow | 34.51 CFM / 58.62 m³/h |
| Static Pressure | 1.33 mmH₂O |
| Noise Level | 0.3 Sone @ 2100 RPM |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Connector Type | 4-Pin PWM |
| PST (PWM Sharing Technology) | Yes - Daisy-chain capable (up to 4 additional fans) |
| Cable Length | 400 mm |
| Voltage | 12 V DC |
| Start-up Voltage | 5 V DC |
| Current | 0.12 A |
| Power Consumption | 1.44 W (max) |
| Number of Blades | 7 |
| Operating Ambient Temperature | 0–40 °C |
| Warranty | 6 Years |
| Special Features | Low-profile design, high static pressure optimization, minimal vibration motor, oil-capsule FDB bearing |
| Mounting Holes | 105 mm apart (standard 120mm fan spacing) |
| Included Accessories | 4x self-tapping mounting screws |
