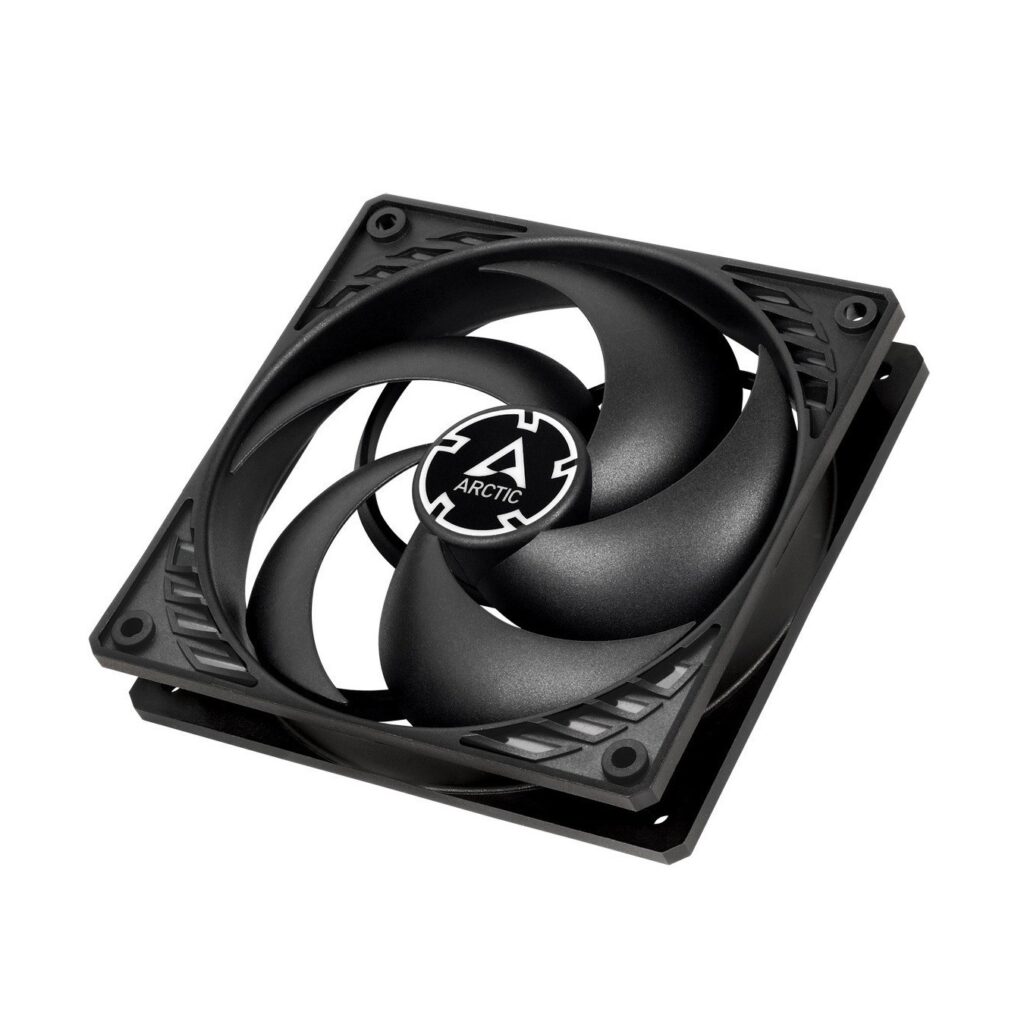

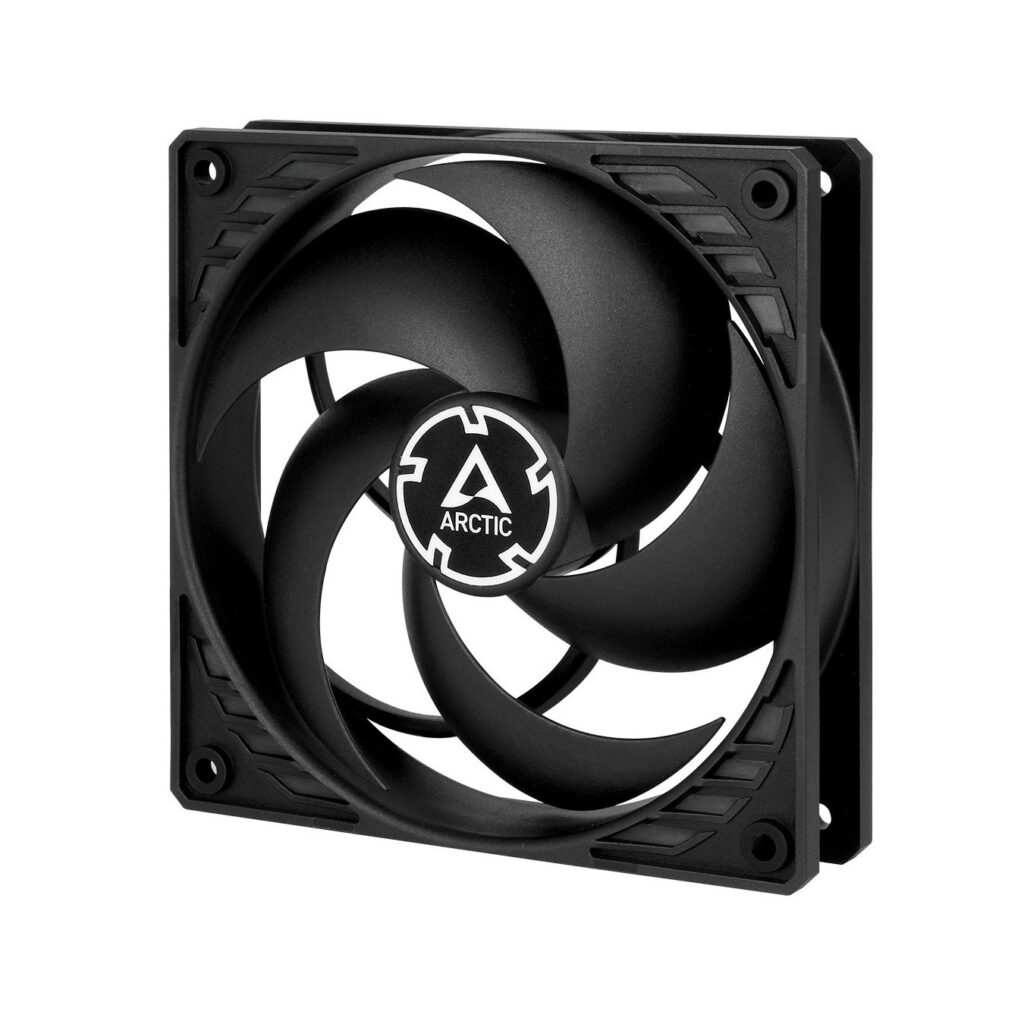

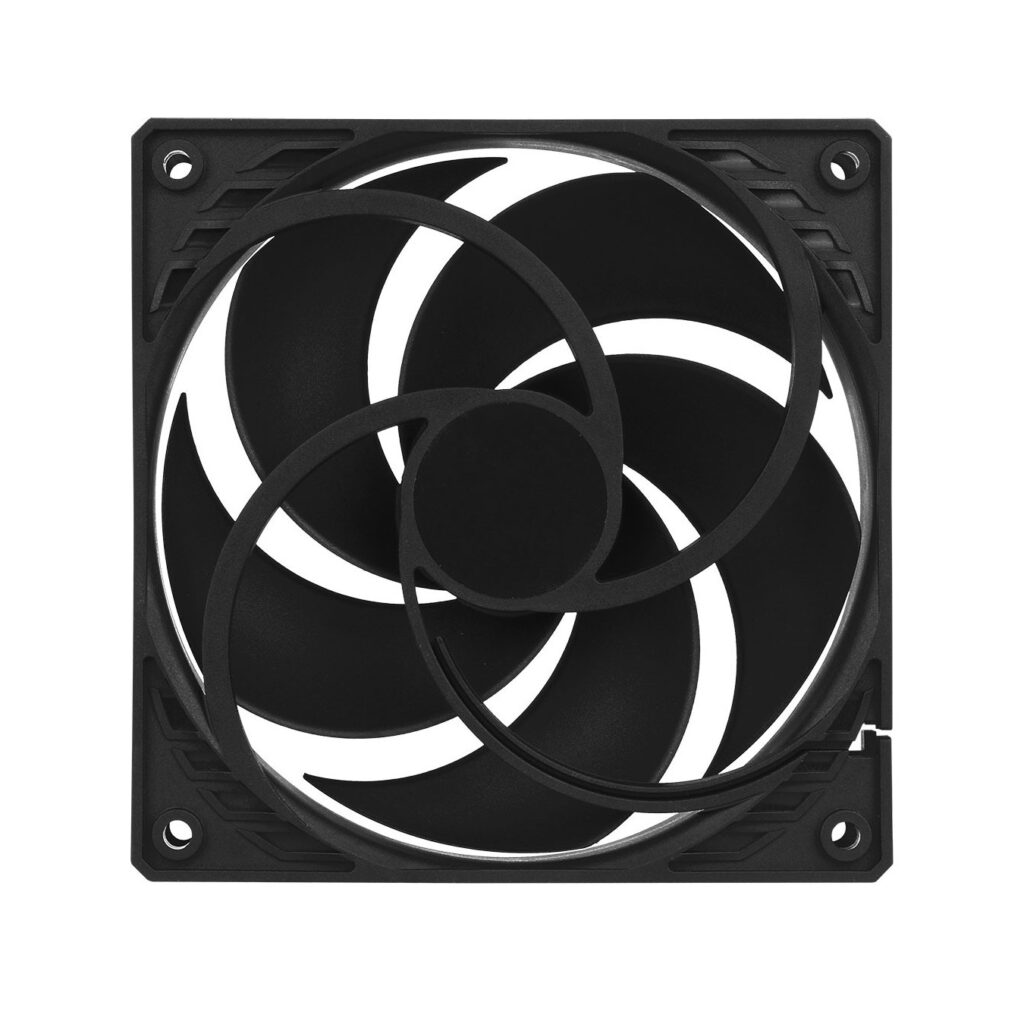

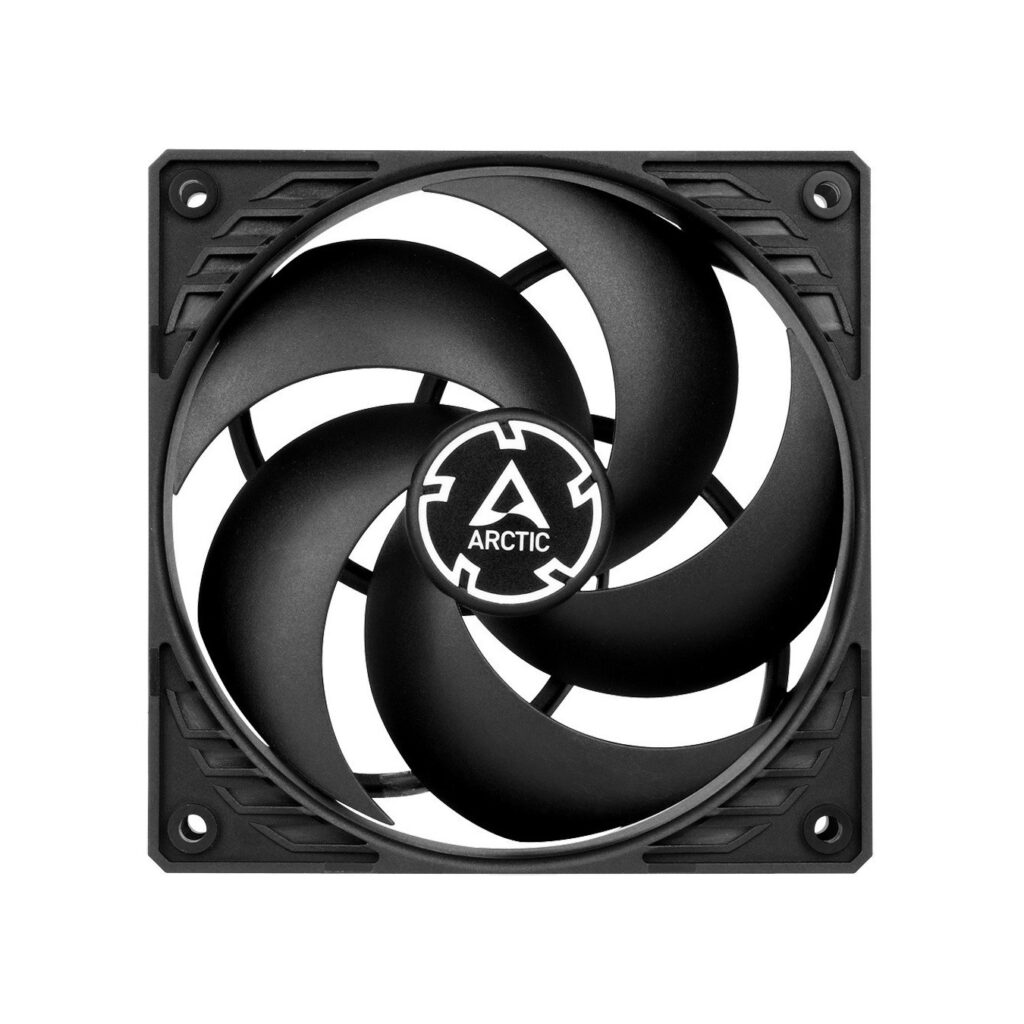

Arctic P12 PWM 120x120x25mm 1800 RPM Black
Pressure-optimised 120mm PWM fan for heatsinks/radiators. 200-1800 RPM, 56.3 CFM, 2.2 mmH2O static pressure, 0.3 Sone noise. Fluid Dynamic Bearing, black frame, 4-pin connector.
Available in 10–14 business days : 68 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
OPTIMISED FOR STATIC PRESSURE
The ARCTIC P12 PWM is a 120mm fan designed for high static pressure, ideal for heatsinks and radiators. It delivers focused airflow for efficient cooling even under high air resistance. Speed is PWM-controlled from 200-1800 RPM for quiet operation and optimal performance.
Featuring a Fluid Dynamic Bearing with oil capsule for longevity and low noise (0.3 Sone max), it ensures reliable 24/7 operation. The motor runs efficiently at 12VDC / 0.08A. Black frame with 25mm thickness fits standard mounts.
- Airflow: 56.3 CFM
- Static Pressure: 2.2 mmH2O
- Noise: 0.3 Sone / ~22-37 dB(A)
- Bearing: FDB (6+ years warranty)
- Connector: 4-pin PWM
| MPN | ACFAN00121A |
| Fan Speed | 200 - 1800 RPM (PWM) |
| Airflow | 56.3 CFM |
| Static Pressure | 2.2 mmH2O |
| Noise Level | 0.3 Sone |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Dimensions | 120 x 120 x 25 mm |
| Weight | 147 g (fan only) |
| Rated Voltage | 12 VDC |
| Rated Current | 0.08 A |
| Power Consumption | 0.96 W |
| Connector | 4-pin PWM |
| Cable Length | 400 mm |
| Warranty | 6 years |
