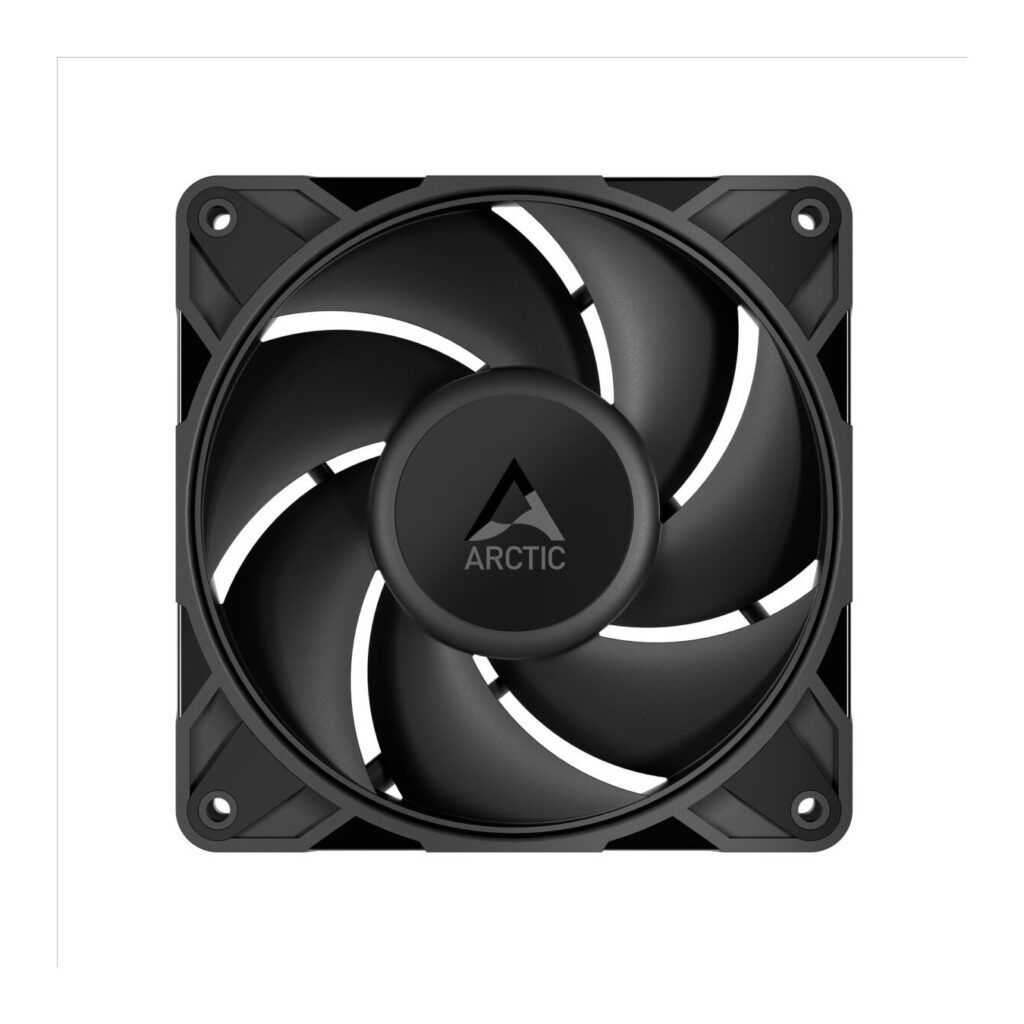

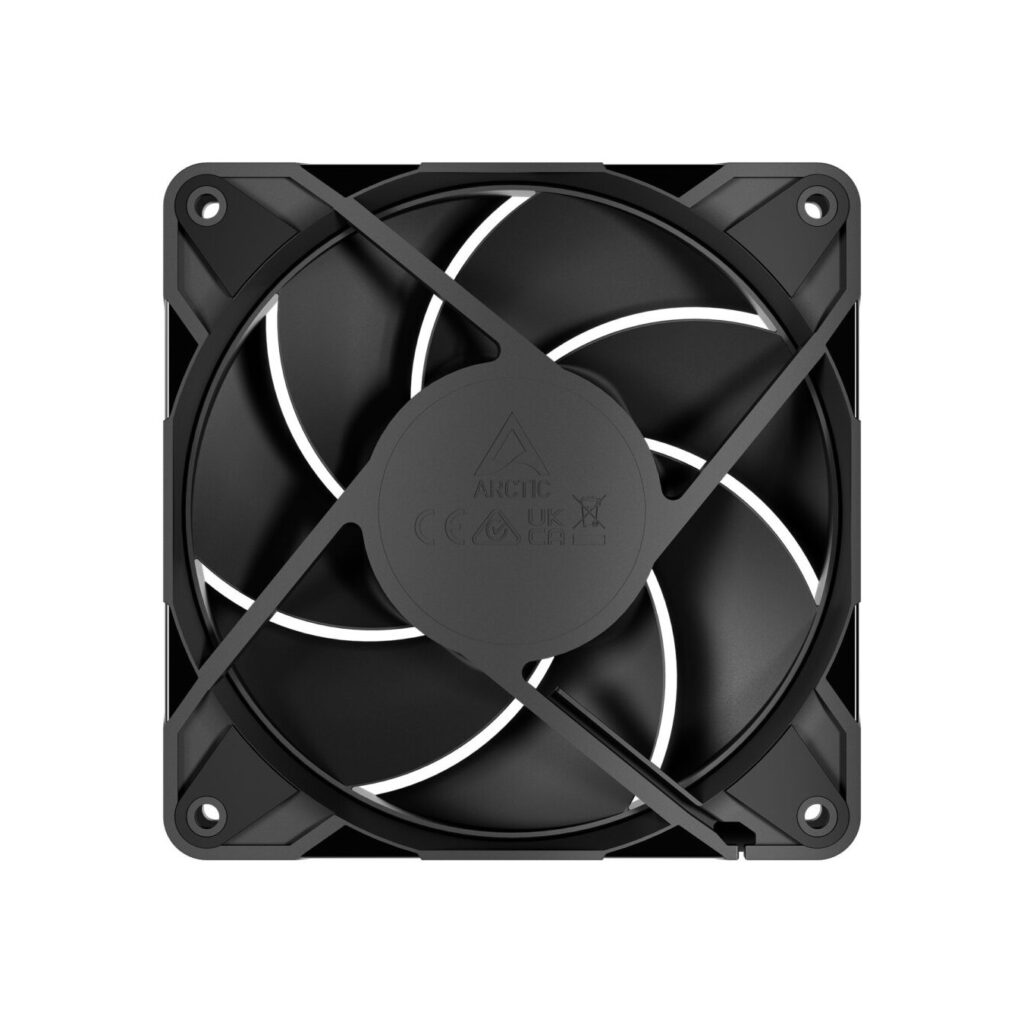

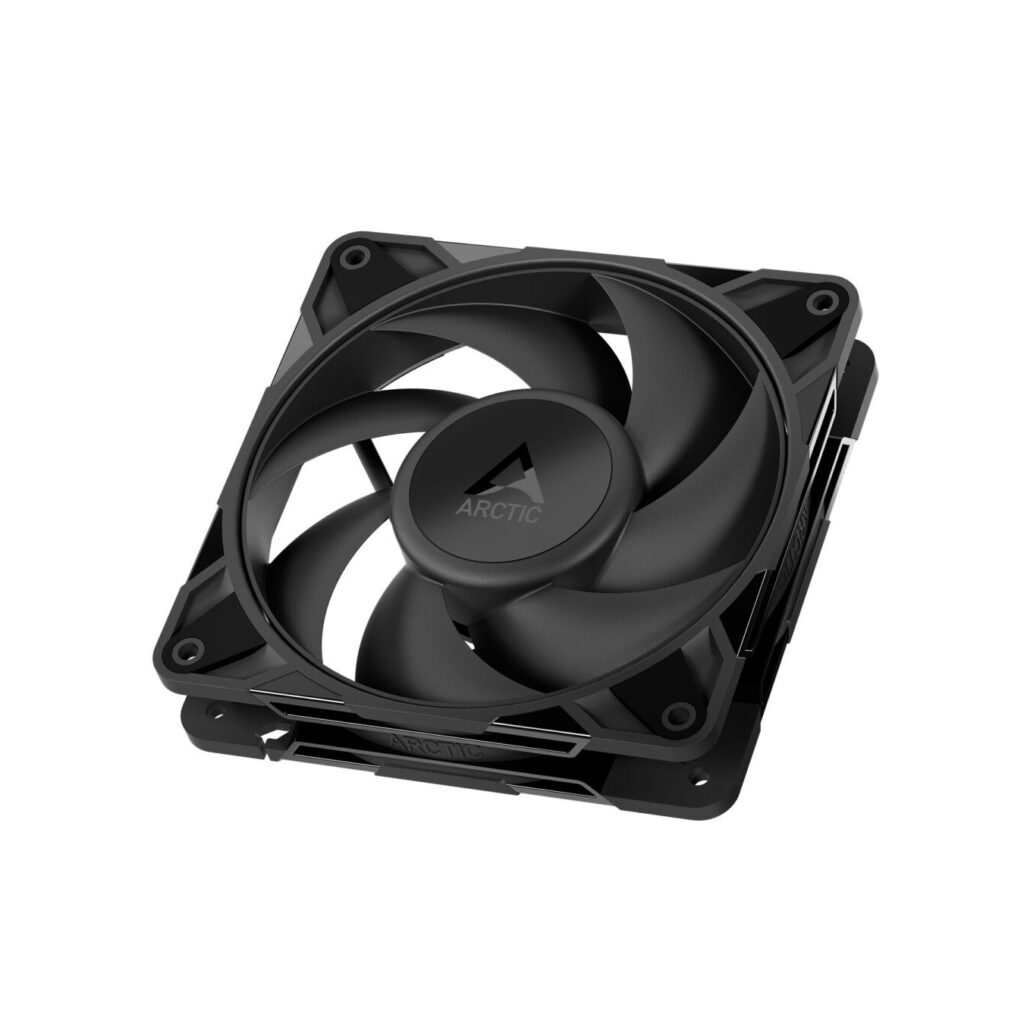

Arctic P12 Pro Black 120mm Case Fan - ACFAN00305A
High static pressure 120mm PWM fan (600-3000 RPM) with Fluid Dynamic Bearing. Delivers 77 CFM airflow, 6.9 mmH2O pressure at 25dB(A). Ideal for radiators & filters. 6-year warranty.
Available in 10–14 business days : 250 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Arctic P12 Pro is a premium 120mm PWM case fan optimized for high static pressure, making it perfect for radiators, mesh filters, and tight spaces. With speeds from 600-3000 RPM (0 RPM below 5% PWM), it provides 77 CFM airflow and 6.9 mmH2O static pressure while maintaining low noise at just 25 dB(A).
Featuring a revised 7-blade design, Fluid Dynamic Bearing (FDB), and SOTA microcontroller for smooth, quiet operation. Includes cable splitter for daisy-chaining multiple fans via a single PWM header. Black frame and blades ensure a sleek look in any build.
- High static pressure for restricted airflow environments
- 600–3000 RPM PWM controlled speed
- 77 CFM | 131 m³/h airflow
- 6.9 mmH2O static pressure
- Fluid Dynamic Bearing for longevity
- 6-Year warranty
| Warranty | 6 Years |
| Operating Ambient Temperature | 0–40 °C |
| Dimensions (Fan) | 120 (L) x 120 (W) x 25 (H) mm |
| Net Weight | 183 g |
| Fan Speed | 600–3000 rpm, PWM controlled; 0 rpm below 5 % PWM |
| Airflow | 77 cfm | 131 m³/h |
| Static Pressure | 6.9 mmH₂O |
| Fan Bearing | Fluid Dynamic Bearing |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 3.3 V DC |
| Current | 0.33 A |
| Cable Length | 400 mm |
| Connector | 4-Pin Fan Plug |
| Noise Level | 25 dB(A) |
| MPN | ACFAN00305A |
