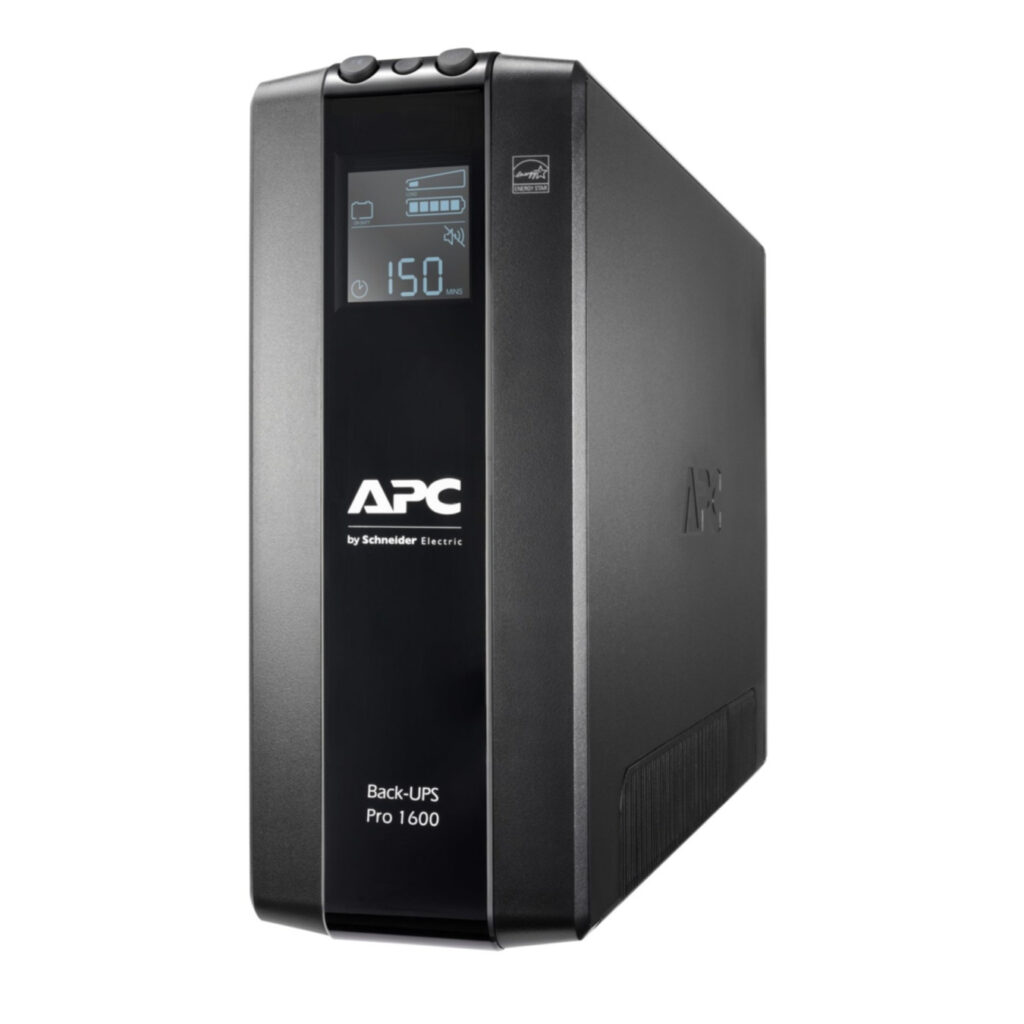

APC Back-UPS Pro BR1600MI 1600VA/960W Line-Interactive UPS 230V 8 Outlets
1600VA Line-Interactive UPS with 8 outlets (6 battery-backed), 960W output, 509J surge protection, 68-minute runtime at 100W, user-replaceable battery, LCD display, AVR.
Available in 4–6 business days : 4 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The APC Back-UPS Pro BR1600MI is a premium 1600VA line-interactive uninterruptible power supply designed to protect high-performance computer systems, routers, modems, external storage devices, game consoles, and other critical electronics in home and business environments. This tower-format UPS delivers 960W of continuous output power with automatic voltage regulation (AVR) to maintain stable power delivery across a wide input voltage range (176–294V). The unit features a multifunction LCD status and control console with audible alarms for battery mode, low battery, and overload conditions.

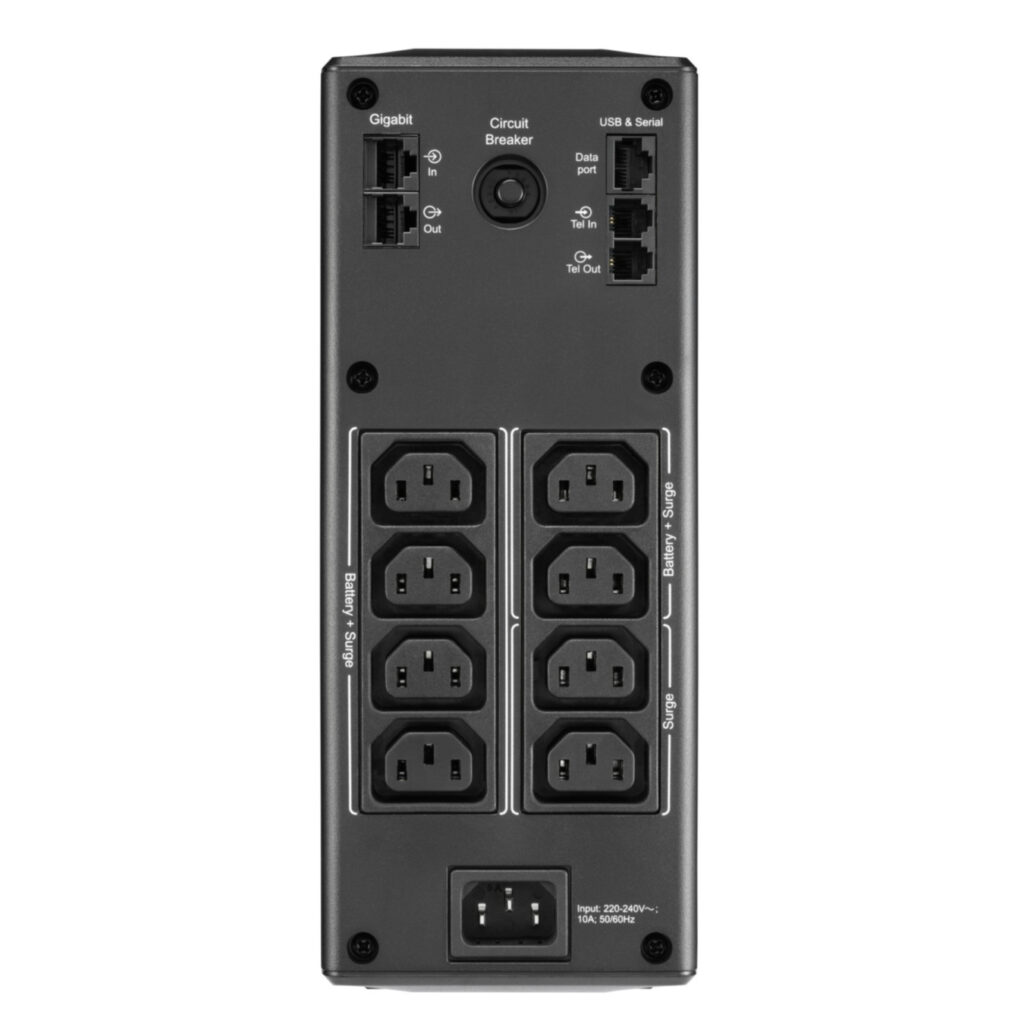

The BR1600MI provides comprehensive outlet configuration with 8 total IEC C13 outlets: 6 outlets deliver both UPS battery backup and surge protection, while 2 outlets provide surge protection only. The unit offers 509 Joules of surge energy protection and includes network line protection (10/100/1000 Base-T). At a 100W load, the UPS delivers approximately 68 minutes of runtime, allowing sufficient time for graceful system shutdown or data backup. The sealed lead-acid battery (24V, 9.0Ah) is user-replaceable and features a typical recharge time of 16 hours with an expected service life of 3–5 years. The compact tower design measures 25 × 10 × 38.2 cm and weighs 10.9 kg, making it suitable for desktop and small office deployments.
Key features include passive cooling (45 dB acoustic level), cold start capability, automatic battery testing, and multiple international certifications (CE, A-Tick, C-Tick, EAC, GS Mark, RCM, TISI). The unit operates across 50/60 Hz input frequencies with automatic sensing and maintains output frequency synchronization to mains. A 1.83m power cable and USB connectivity support are included for integration with monitoring software and systems.
- 1600VA / 960W output capacity with line-interactive topology
- 8 IEC C13 outlets (6 battery-backed, 2 surge-only) with 509J protection
- Automatic Voltage Regulation (AVR) for stable power delivery
- User-replaceable sealed lead-acid battery (24V, 9.0Ah)

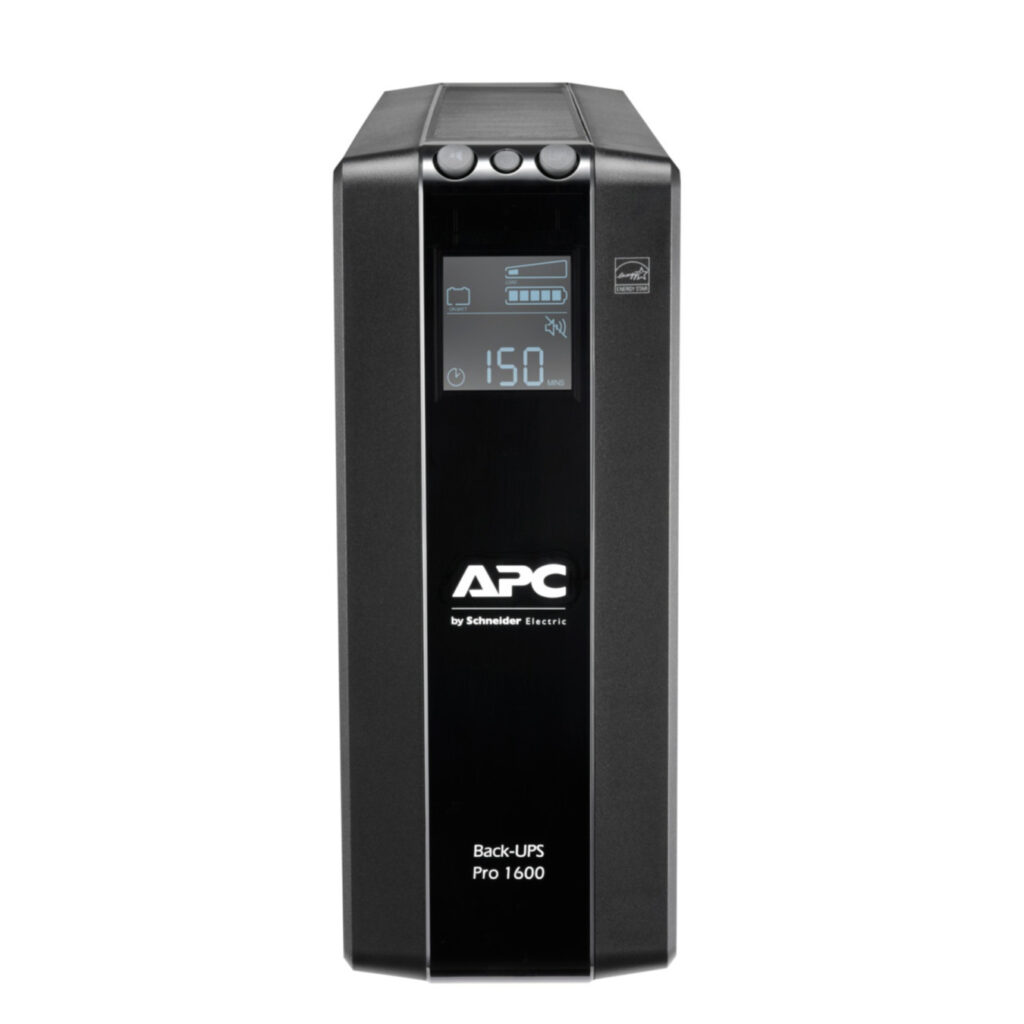

- LCD display with multifunction status and control console
- Approximately 68 minutes runtime at 100W load
- Network line protection and data line surge suppression
- Cold start, automatic battery test, and passive cooling (45 dB)
- Multiple international certifications and 2-year warranty
| UPS Topology | Line-Interactive |
| Output Power Capacity | 1600 VA |
| Output Power | 960 W |
| Waveform | Sine |
| Input Voltage (Nominal) | 230 V |
| Input Voltage Range | 176 - 294 V |
| Output Voltage (Nominal) | 230 V |
| Input Frequency | 50/60 Hz ±3 Hz (auto-sensing) |
| Output Frequency | 50/60 Hz ±1 Hz (sync to mains) |
| Maximum Input Current | 10.0 A |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge Energy Rating | 509 J |
| Surge Protection | Yes (Network line 10/100/1000 Base-T, Data line) |
| Audible Alarms | Yes (Battery mode, Low battery, Overload) |
| AC Outlet Types | IEC 60320 C13 |
| AC Outlets Quantity | 8 (6 with battery backup and surge protection, 2 with surge protection only) |
| Input Plug Type | IEC 60320 C14 |
| Battery Type | Sealed Lead-Acid (VRLA) |
| Battery Voltage | 24 V |
| Battery Capacity | 9.0 Ah |
| Battery Recharge Time | 16 h |
| Battery Life (Expected) | 3 - 5 years |
| Replacement Battery | APCRBC166 |
| Hot-Swap Battery | Yes (User-replaceable) |
| Automatic Battery Test | Yes |
| Cold Start | Yes |

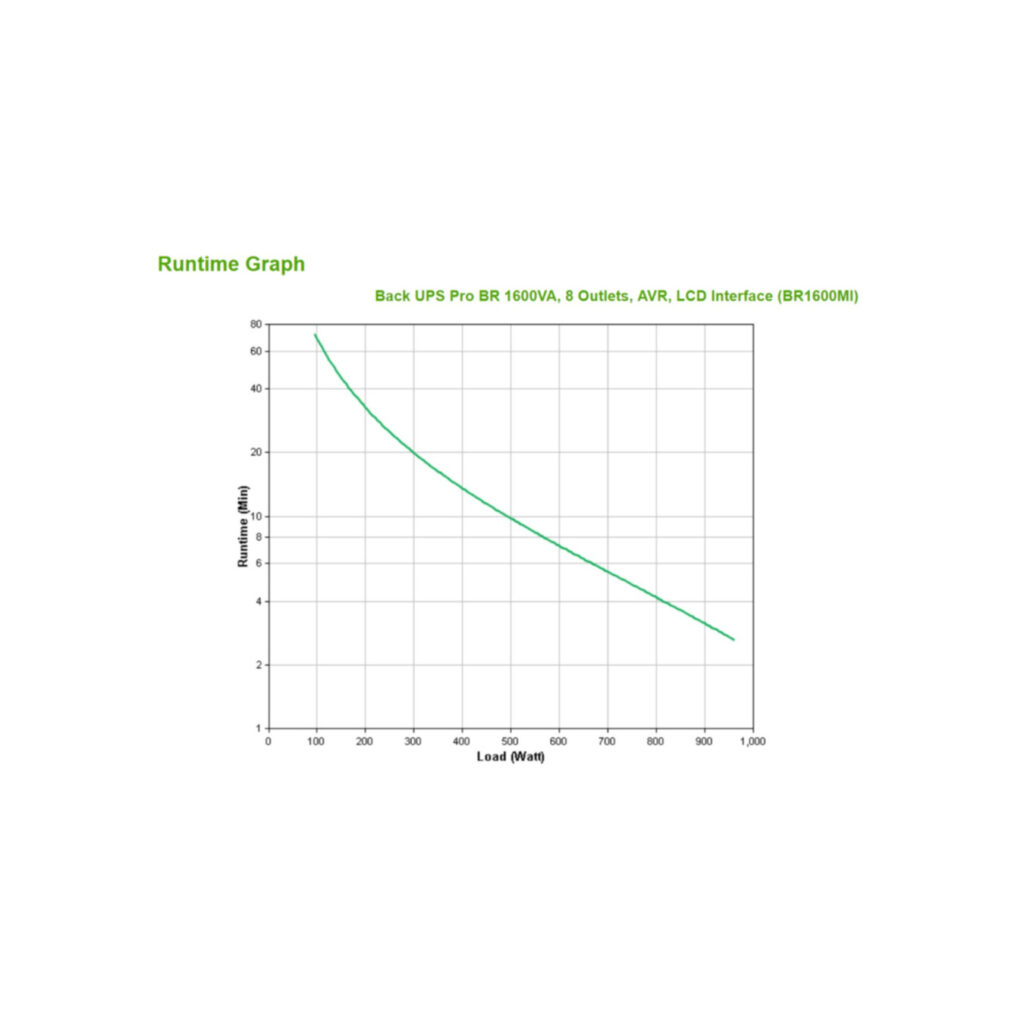

| Runtime at 100W | 1 hour 8 minutes |
| Runtime at 960W | 2 minutes 38 seconds |
| Form Factor | Tower |
| Display Type | LCD (Multifunction status and control console) |
| LED Indicators | Yes |
| Noise Level | 45 dB(A) at 1 meter |
| Heat Dissipation | 22.0 BTU/hr |
| Cooling Type | Passive |
| Operating Temperature | 0 - 40 °C |
| Storage Temperature | -15 - 45 °C |
| Operating Relative Humidity | 0 - 95% (non-condensing) |
| Storage Relative Humidity | 0 - 95% (non-condensing) |
| Operating Altitude | 0 - 3000 m |
| Non-Operating Altitude | 0 - 15240 m |
| Width | 25 cm |
| Height | 10 cm |
| Depth | 38.2 cm |
| Weight (Unit) | 10.9 kg |
| Power Cable Length | 1.83 m |
| Certifications | A-Tick, C-Tick, CE, EAC, GS Mark, RCM, TISI |
| Included Accessories | Power cable (1.83 m), USB cable, User manual |
| Product Color | Black |
| ECO Mode | Yes |
