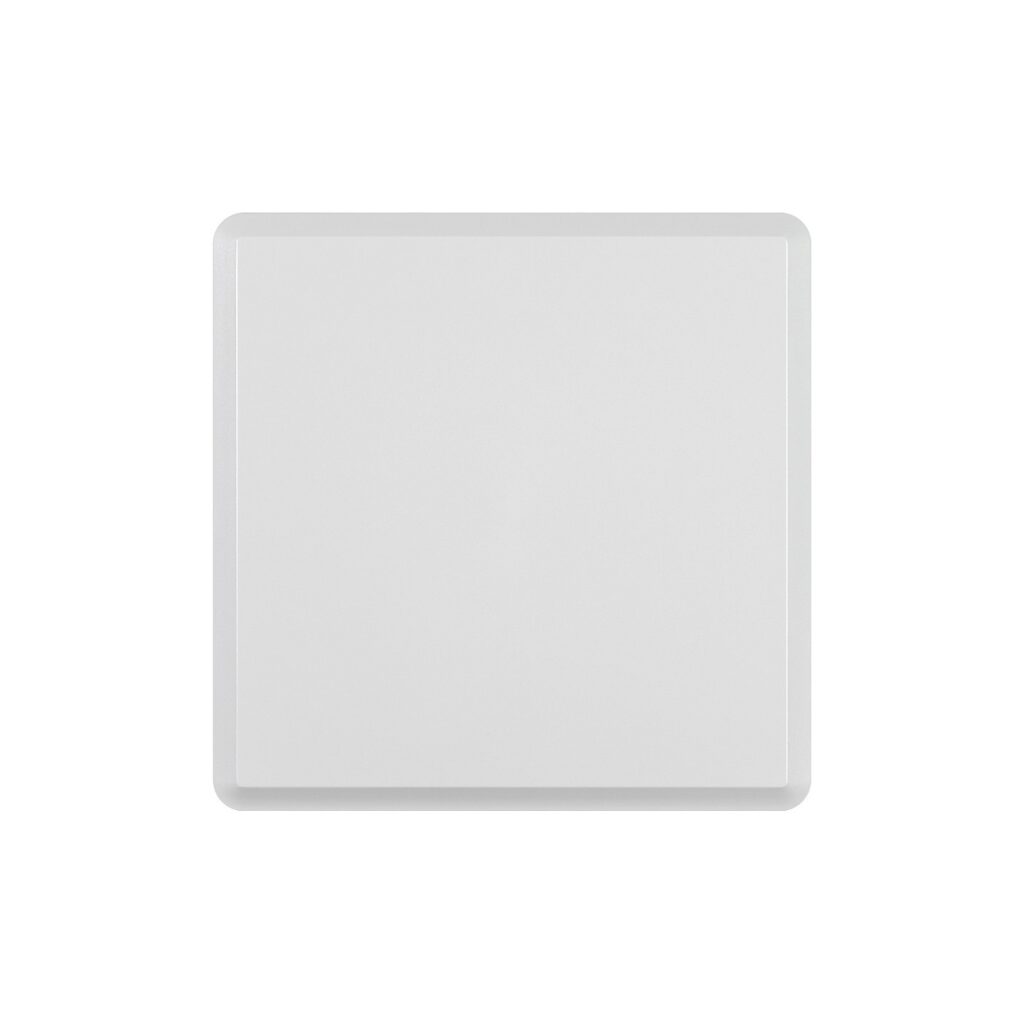

AirLancer ON-Q30
AirLancer ON-Q30. 10 dBi. 2.4 – 5.875 GHz. 10 dBi. 10 dBi. 10 dBi. 50 Ohm
Available to order: 5 piecesOrder today18 NovAt our store26 Nov – 2 DecDelivered to you30 Nov – 7 Dec
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Questions? Call 22 270068
- 5 piecesAvailable to order
- 8–13 business daysdelivered to you
- 6–10 business daysat our store in Nicosia
- Pay your waycards, Apple Pay, Google Pay or in store
Key specs
At a glance
- 2.4 - 5.875 GHzFrequenzband
- 10 dBiVerstärkung dBi (bei Antennenkabel)
- 10 dBiAntenna Zuwachs (2.4 GHz)
- 10 dBiAntenna Zuwachs (5 GHz)
- 50 OhmImpedanz
- 30°Horizontale Lichtstrahlbreite
Product information
Details
AirLancer ON-Q30. Antenne Zunahmeniveau (max): 10 dBi. Frequenzband: 2.4 – 5.875 GHz. Verstärkung dBi (bei Antennenkabel): 10 dBi. Antennentyp: Richtantenne. Antenne Steckertyp: N-Typ. Spannung Stellung-Welle Verhältnis (VSWR): 1.5:1 – 2.0:1. Breite: 370 mm. Tiefe: 30 mm. Höhe: 370 mm. Verpackungsbreite: 385 mm. Verpackungstiefe: 385 mm. Verpackungshöhe: 105 mm. Menge pro Packung: 1 Stück(e)
| Frequenzband | 2.4 - 5.875 GHz |
| Verstärkung dBi (bei Antennenkabel) | 10 dBi |
| Antenna Zuwachs (2.4 GHz) | 10 dBi |
| Antenna Zuwachs (5 GHz) | 10 dBi |
| Impedanz | 50 Ohm |
| Horizontale Lichtstrahlbreite | 30° |
| Vertikale Lichtstrahlbreite | 30° |
| Horizontale beam Weite (2.4 GHz) | 30° |
| Vertikale beam Weite (2.4 GHz) | 30° |
| Horizontale beam Weite (5 GHz) | 30° |
| Vertikale beam Weite (5 GHz) | 30° |
| Antenne Zunahmeniveau (max) | 10 dBi |
| Antennentyp | Richtantenne |
| Antenne Steckertyp | N-Typ |
| Spannung Stellung-Welle Verhältnis (VSWR) | 1.5:1 - 2.0:1 |
| Produktfarbe | Hellgrau |
| Gehäusematerial | Kunststoff |

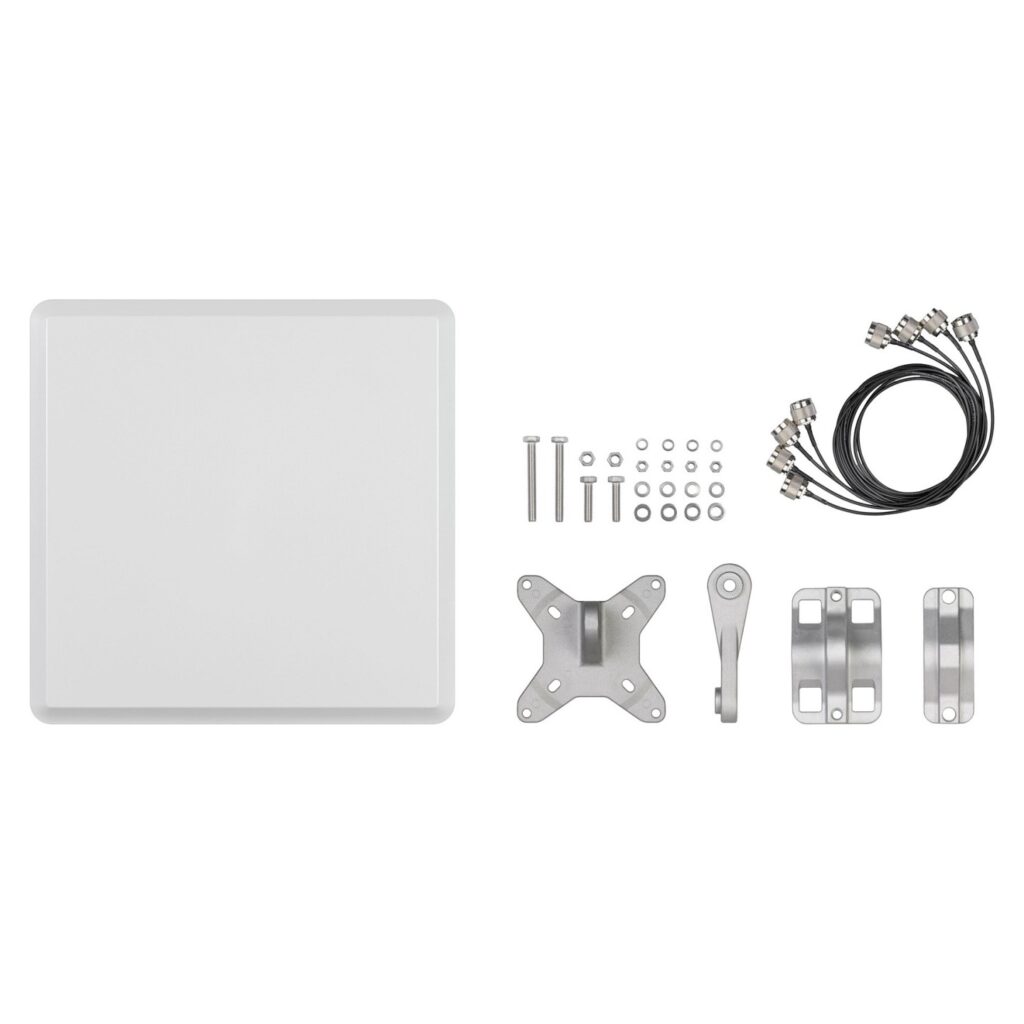

| Feature | Montageset |
| Montage | Wand- / Mast |
| Kompatible Produkte | OX-6402. LX-6402. OW-602 |
| Breite | 370 mm |
| Tiefe | 30 mm |
| Höhe | 370 mm |
| Gewicht | 2.2 kg |
| Verpackungsbreite | 385 mm |
| Verpackungstiefe | 385 mm |
| Verpackungshöhe | 105 mm |
| Menge pro Packung | 1 Stück(e) |
| Zolltarifnummer (TARIC) | 85177000 |
| Ursprungsland | Taiwan |
