Adastra 1U Mic Line Rack Mixer - ML622 - 953.026UK - 1U Mic Line Rack Mixer
144.50 €
Rack-mountable 1U mixer with 6 mic/line inputs and 2 aux inputs; phantom power on mic/line channels; outputs include stereo XLR, mono jack, and REC.
Item out of stock
This item is currently out of stock. We can suggest alternatives or try to source it for you. Call us at 22 270068 or email offer@armenius.cy.

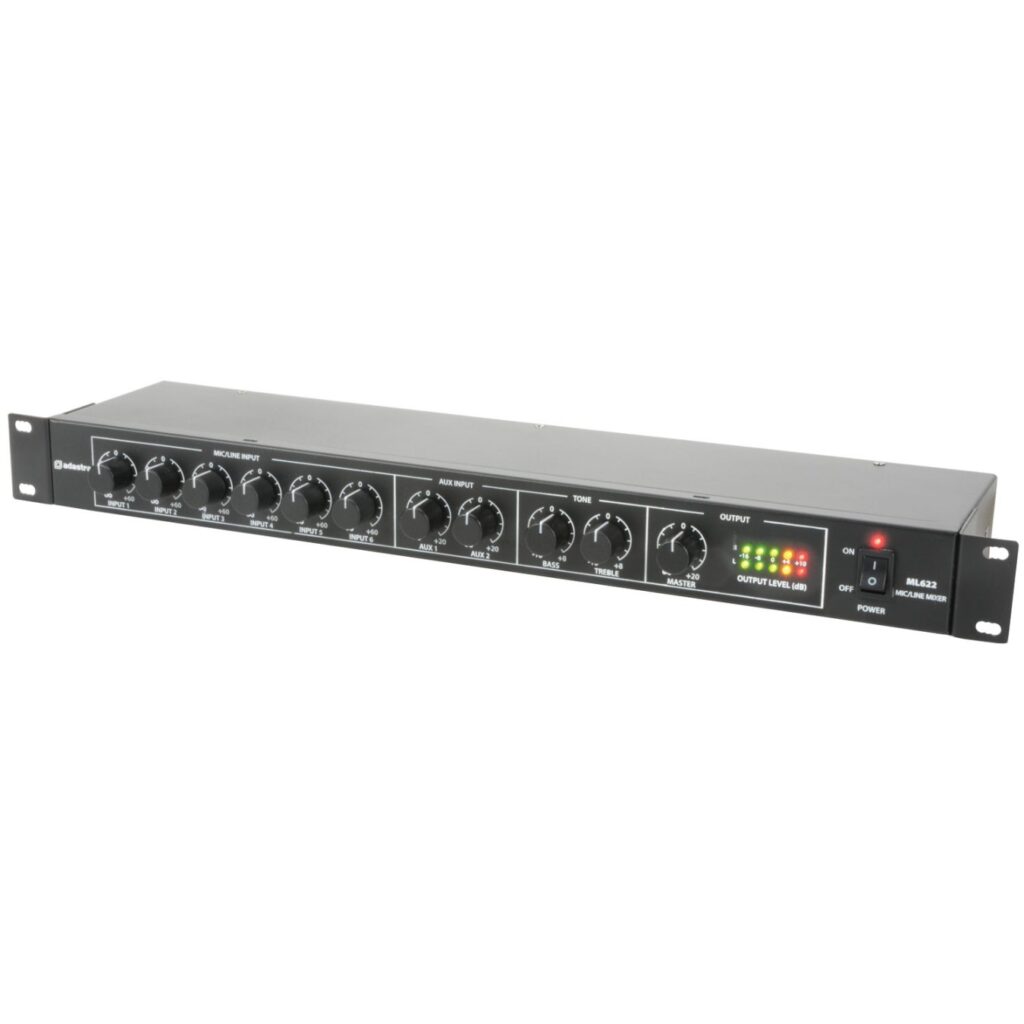

Rack-mountable 1U mixer with 6 mic/line inputs and 2 auxiliary inputs. Each mic/line channel has switchable phantom power and input level. Output connections are stereo XLR, mono jack or REC output on RCA with master bass and treble tone controls. Designed as a master or expansion mixer for installed sound systems and conferences.
- 6 switchable mic or line inputs
- 2 stereo aux inputs
- Individually switchable phantom power
- 24Vdc power option
- Power supply: 100-240Vac, 50/60Hz (IEC) or 24Vdc (terminals)
- Fuse: T1AL 250V (mains) or F500mA (24Vdc)
- Phantom power: +20Vdc (switchable)
- Inputs : mic/line6 x balanced XLR
- Inputs : aux2 x L+R RCA

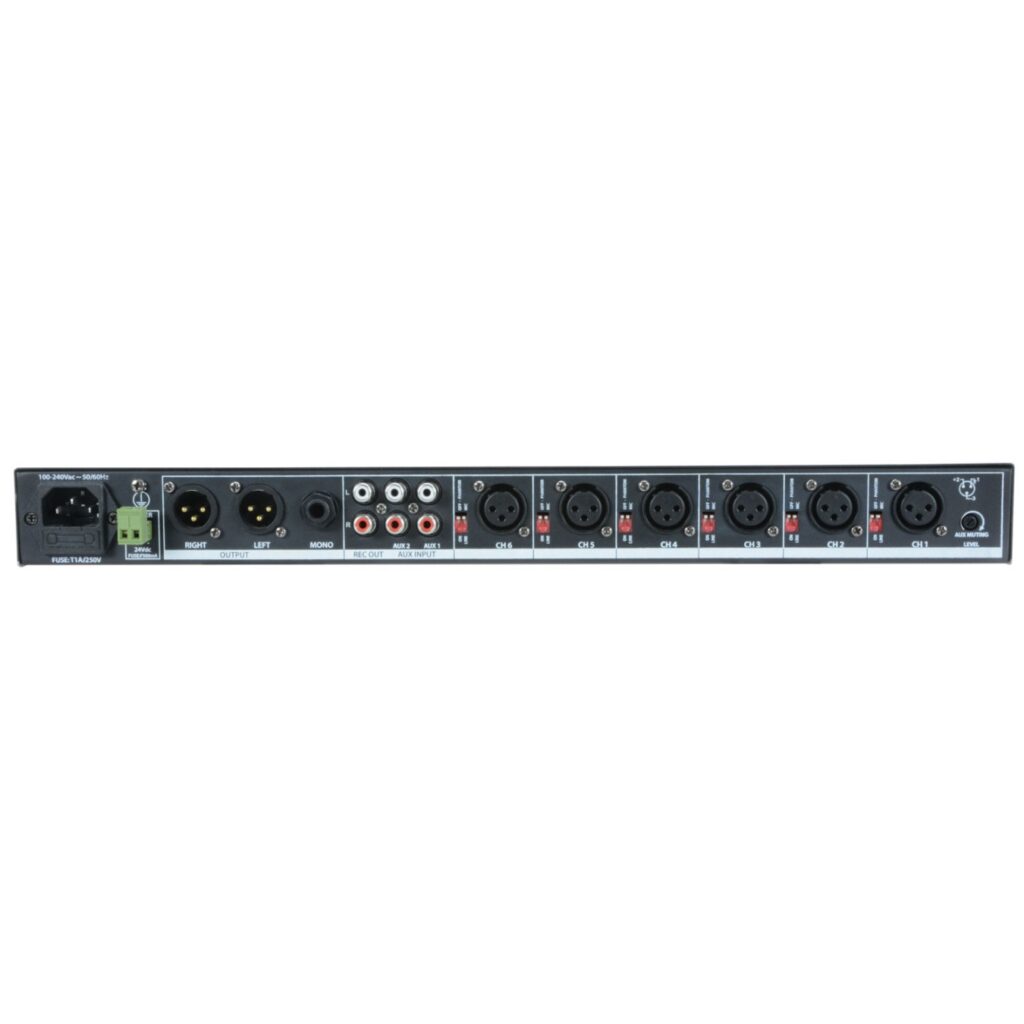

- Outputs: L+R XLR, mono 6.3mm jack, L+R RCA (REC)

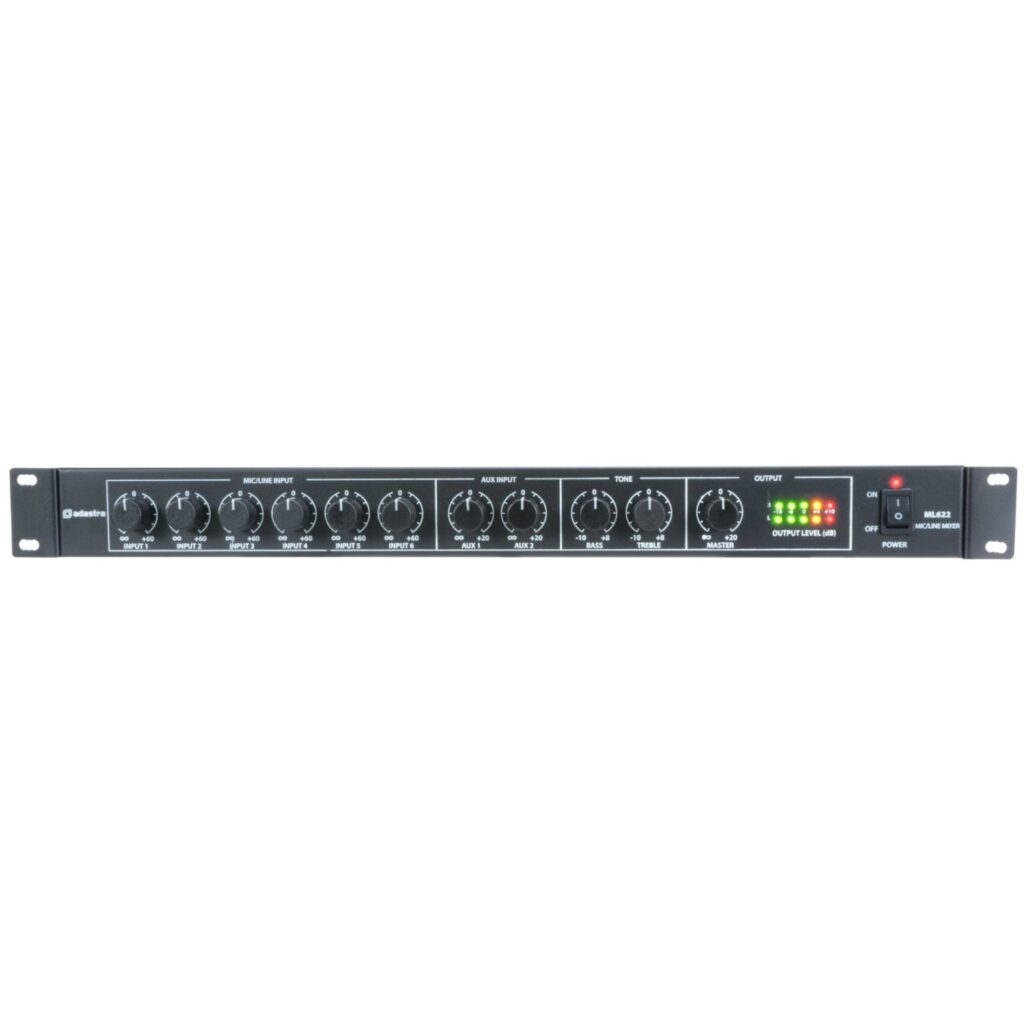

- Controls: 6 x Mic/Line level, 2 x Aux level, Treble, Bass, Master
- Input impedance: 3.3k Ohms (mic/line), 10k Ohms (aux)
- Frequency response : mic 20Hz – 18kHz
- Frequency response : line14Hz – 20kHz
- Frequency response : aux10Hz – 23kHz
- Input sensitivity : mic-45dBV
- Input sensitivity : aux/line-10dBV
- Signal to noise ratio : mic55dB
- Signal to noise ratio : aux/line60dB
- THD: 0.05%
- Dimensions: 482 x 130 x 44mm
- Weight: 1.43kg
| Channels | 2 |
| USB | Yes |
