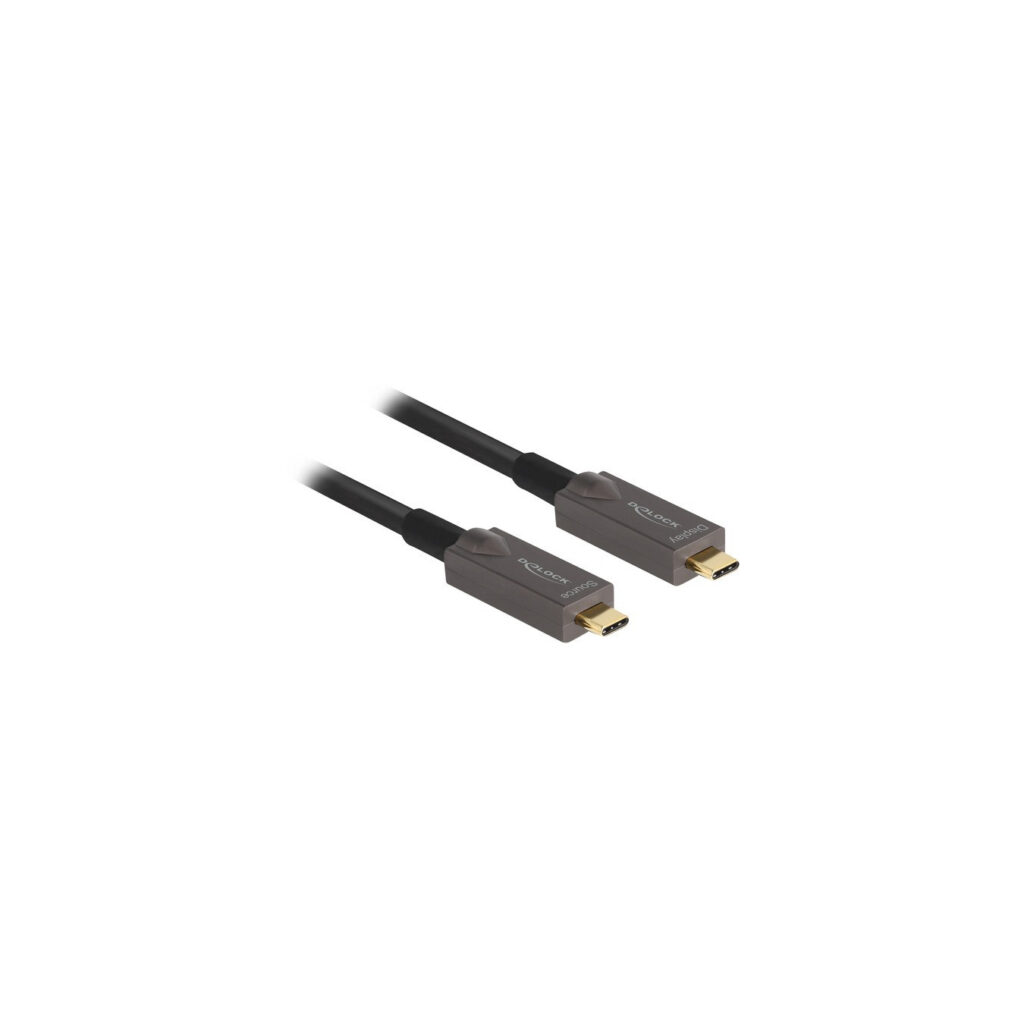

Active Optical USB-C 4K Video + Data + PD Cable
The 5 meter long active USB cable 84146 from DeLock enables the connection between devices with a USB-C port and a PC or notebook with a free USB-C port. The active optical cable u…
Available in 6–10 business days : 22 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The 5 meter long active USB cable 84146 from DeLock enables the connection between devices with a USB-C port and a PC or notebook with a free USB-C port. The active optical cable uses fiber optic cables to transmit high-speed signals. Compared to the traditional copper cable, the fiber optic/copper hybrid cable is softer, thinner, lighter and can transmit signals over longer distances without loss. The cable supports DisplayPort 1.4 with 2 lanes and is suitable for connecting a USB-C monitor with a resolution of up to 4K Ultra HD (3,840 x 2,160 @ 144Hz) to a computer with a USB-C interface and DisplayPort Alternate Mode support. The active optical cable enables data transfer rates up to 10 Gbps when connecting USB 10 Gbps compatible devices. Of course, USB 2.0 devices can also be connected. By supporting the USB Power Delivery standard, connected devices can be supplied with power, up to 60 watts (20V / 3A) are possible.
| Typ | Cable |
| Color | schwarz |
| EAN | 4043619841462 |
| Manufacturer no. | 84146 |
| Manufactured in | China |
| Charging function | USB Power Delivery (PD) 60 Watt |
| Application example | Connects USB-C monitors to a PC |
| Area | Data transfer |
| Connection - from | 1x USB-C (Stecker) |
| Protocol | USB4 Gen 2x1 (10 Gbit/s) |
| Video classification | DisplayPort 1.4 |
| taps | 2 |
| Characteristics | external, USB C connector can be used on both sides |
| Feature | Transmission of audio and video signals, gold-plated contacts, backwards compatible with USB 2.0 |
| More information | Fiber optic / copper hybrid cable, supports 2 lanes with DisplayPort 1.4, Display Stream Compression 1.2 (DSC) and DP Alt Mode, max. resolution (depending on the system and the connected hardware): DisplayPort 1.4 with DSC up to 3,840 x 2,160 @ 144Hz, DisplayPort 1.4 without DSC up to 3,840 x 2,160 @ 60Hz, DisplayPort 1.2 without DSC up to 3,840 x 2,160 @ 30Hz, supports HDR (High Dynamic Range), HDCP 1.4 and 2.2, Cable diameter approx. 6.5mm |
| Notice | Only compatible with DisplayPort (DP Alt-Mode) devices, not with Thunderbolt devices. Fixed signal direction for video (source/display), unspecified signal direction for data. |
| Cable length | 5 Meter |
