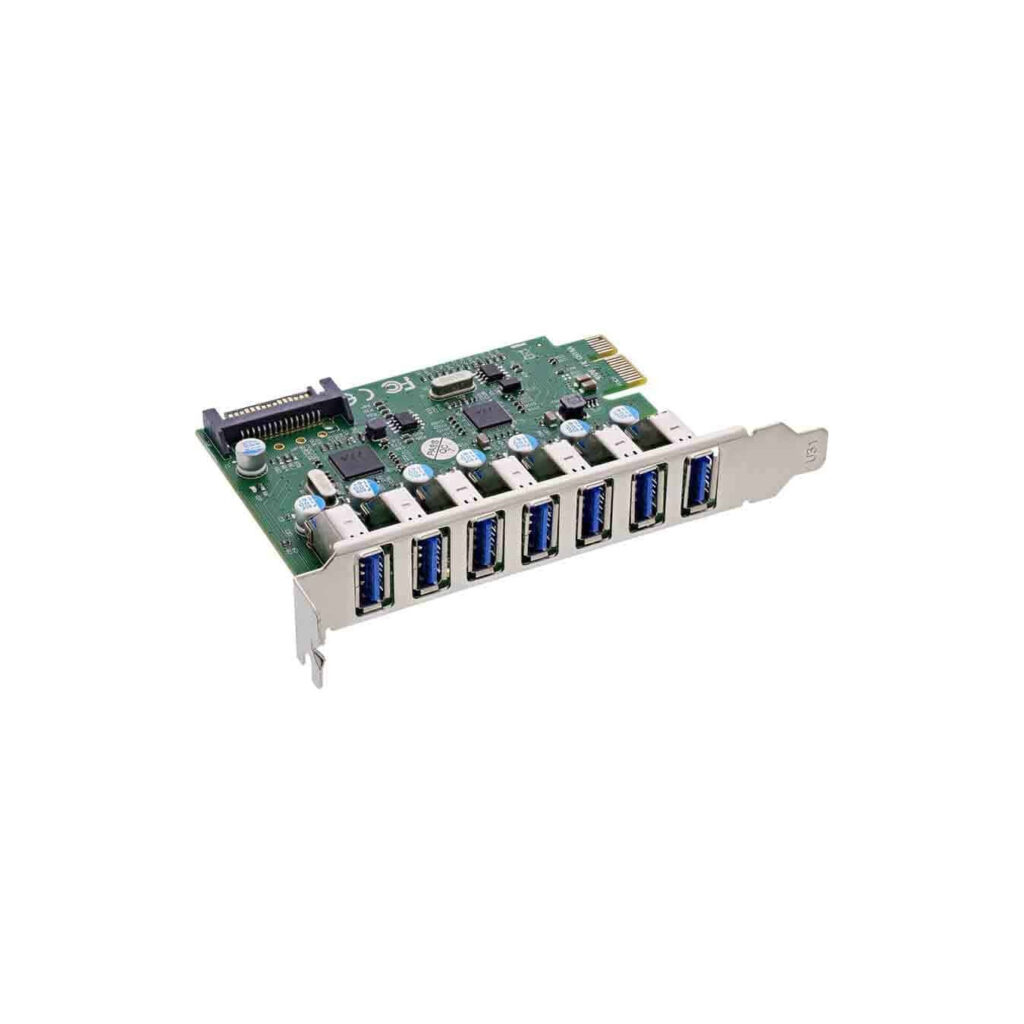

76661L 7-Port PCIe USB-A 3.2 Gen1 Card SATA Power
PCIe 7-port USB 3.2 Gen1 expansion card w/ VIA VL805+VL812 chipset. 7x USB-A external ports up to 5Gbps, 1x SATA power connector. PCIe 2.0, Win/Linux compatible. Backward compatible USB 2.0/1.1.
Available in 2–5 business days : 6 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The 76661L 7-Port Interface Card from inLine is a reliable PCIe expansion solution for adding multiple high-speed USB connections to your PC. Featuring the proven VIA VL805+VL812 chipset combination, it delivers stable performance across a wide range of devices.
It provides 7x external USB-A 3.2 Gen.1 ports supporting data rates up to 5 Gb/s, with full backward compatibility to USB 2.0 (480 Mb/s) and 1.1 (12/1.5 Mb/s). An internal 15-pin SATA power connector ensures adequate power (up to 5V/900mA per port) for demanding peripherals like external drives or hubs, even with multiple devices connected simultaneously.
Compatible with PCI Express 2.0, Windows XP/Server 2008+, and Linux Kernel 2.6+, this card installs easily in standard PCIe slots. Ideal for workstations needing extra USB expansion without compromising speed or reliability.
- Chipset: VIA VL805 + VL812
- Interface: PCIe 2.0 x1
- Power: 1x SATA 15-pin
- OS Support: Win XP+, Linux 2.6+
- No low-profile bracket
| Chipset | VIA VL805 + VL812 |
| Host Interface | PCI Express 2.0 |
| External Ports | 7x USB-A 3.2 Gen.1 |
| Internal Connections | 1x SATA power connector (15-pin) |
| Data Transfer Rates | 5 Gbps / 480 Mbps / 12 Mbps / 1.5 Mbps |
| Power Output per Port | 5V/900mA (with SATA power) |
| OS Support | Windows XP+, Server 2008+, Linux Kernel 2.6+ |
| Low Profile | No |
| RAID | No |
| Slot Type | PCIe x1 |
| Working Temperature | 0-70°C |
