4-Port SATA and 1-Slot M.2 Key B PCIe x4 Card - Low Profile Form Factor Adapter
101.50 €
Delock PCIe x4 card with 4 internal SATA ports and 1x M.2 Key B slot in a low-profile form factor.
Available in 6–10 business days : 21 pieces
For any questions about this item, availability, or delivery times, please contact us at 22 270068

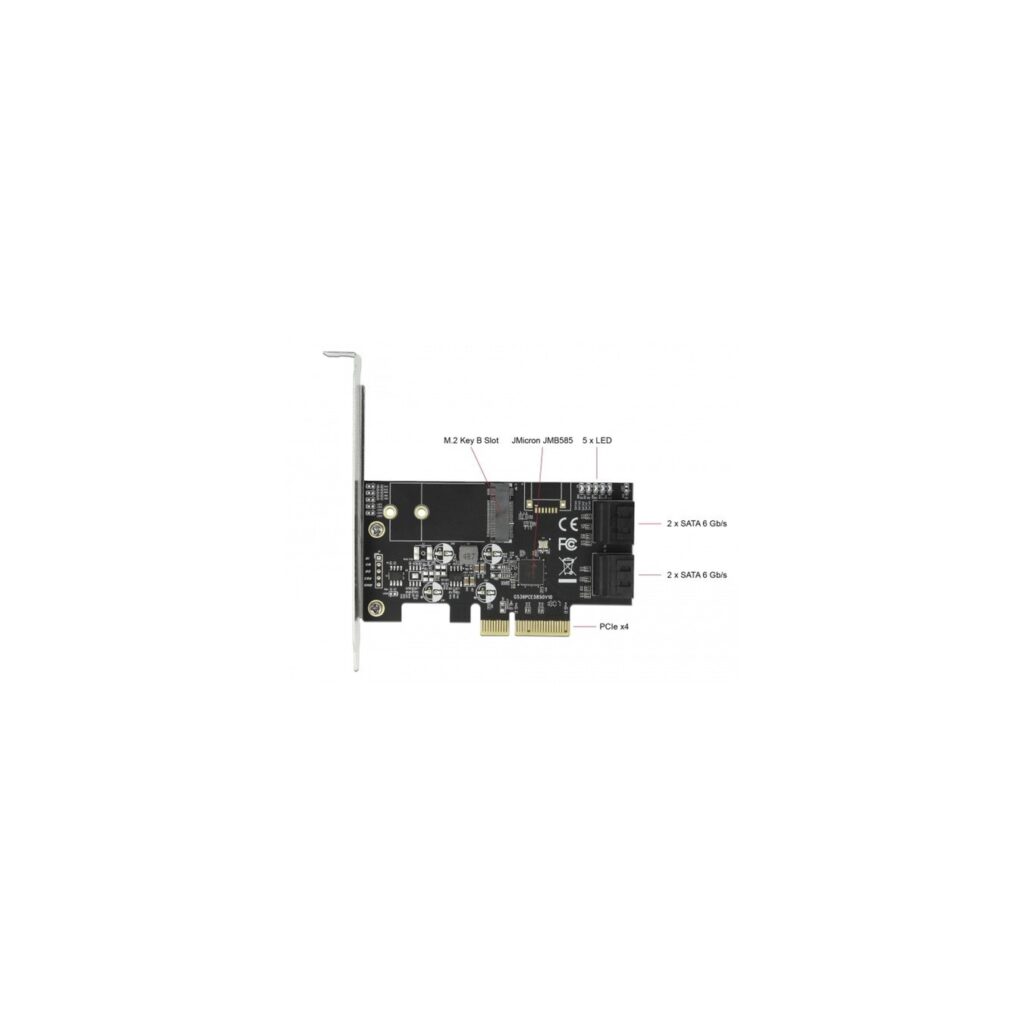

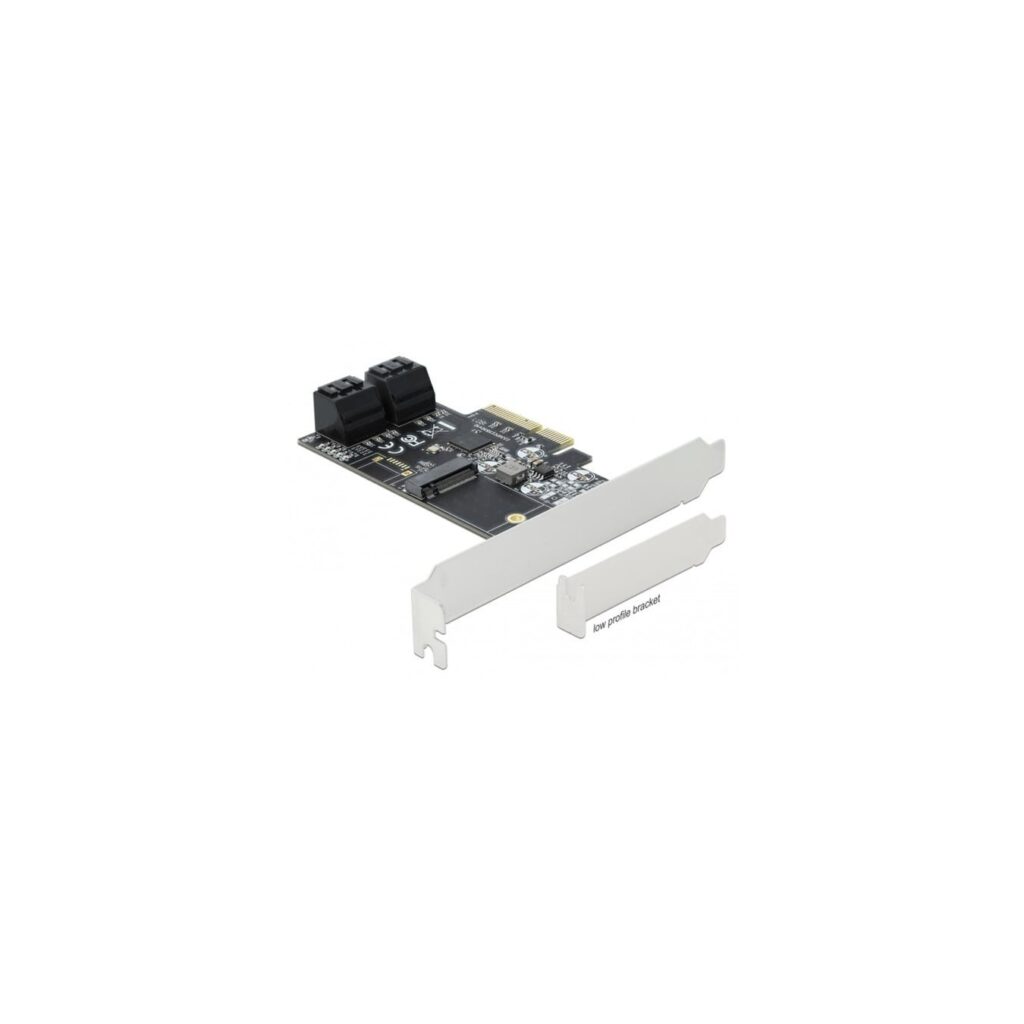

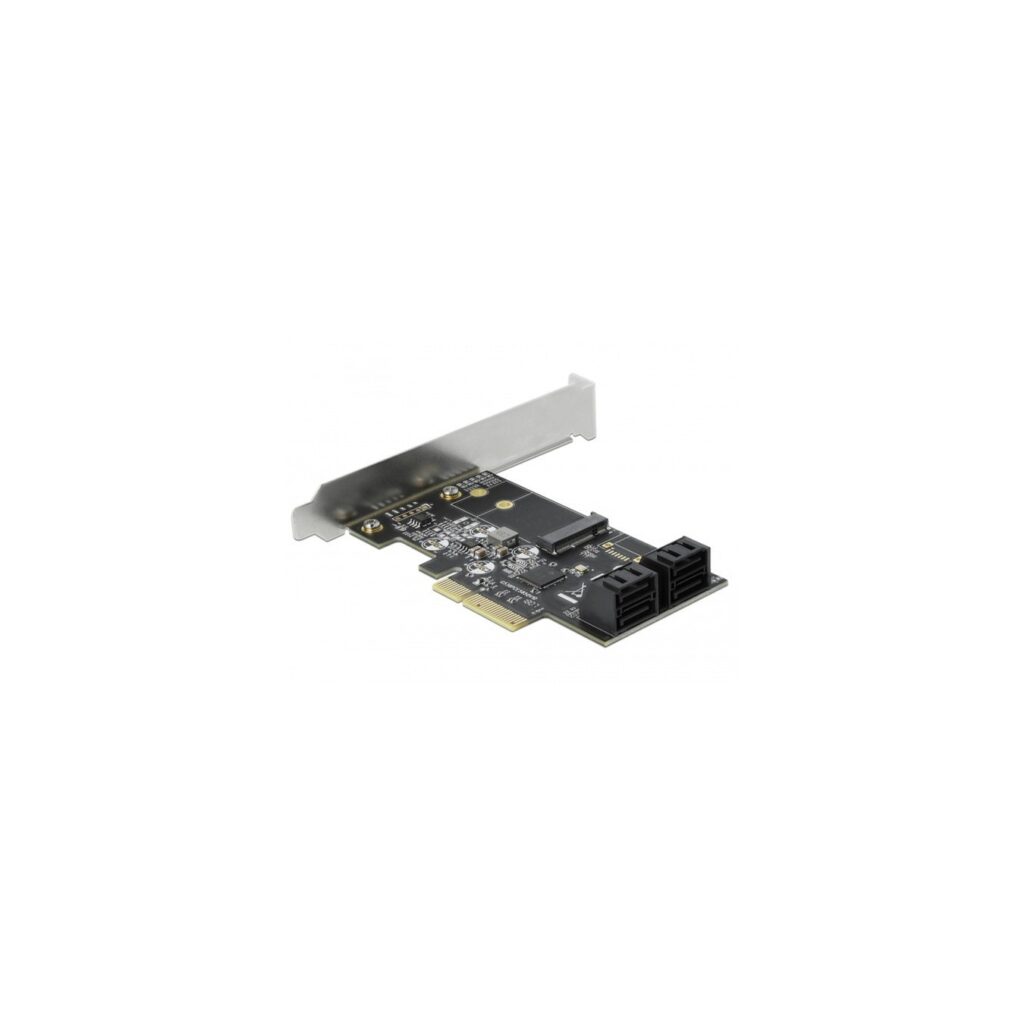

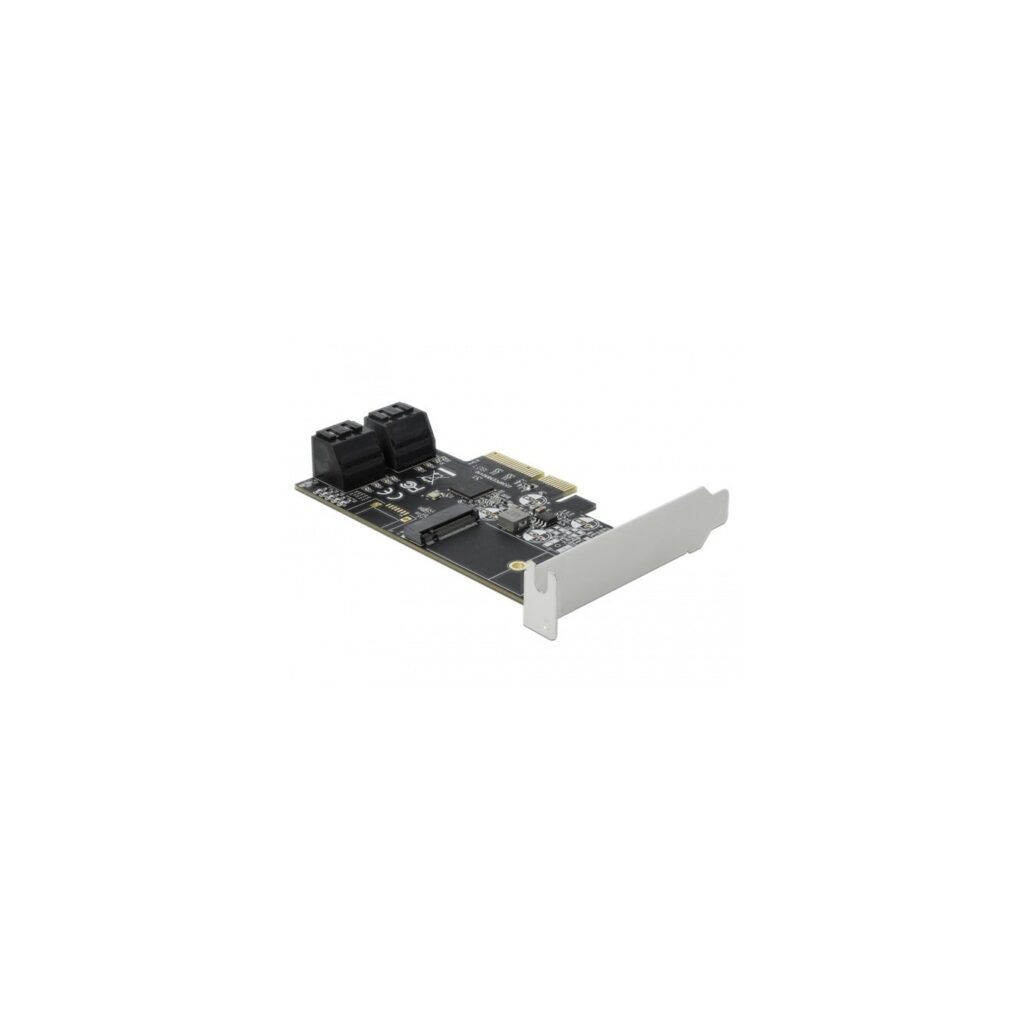

The 4 port SATA and 1 slot M.2 Key B PCI Express x4 card – low profile form factor from Delock expands the PC with four internal SATA ports and an M.2 slot. Various devices such as: B. SSDs, hard drives, DVD drives etc. and an M.2 module in 2242 or 2230 format can be connected.
| Typ | Adapter |
| EAN | 4043619903962 |
| Manufacturer no. | 90396 |
| slot | PCIe x4 |
| Chip | JMicron JMB585 |
| Protocol | Serial-ATA/600, Serial-ATA/150, Serial-ATA/300 |
| Connections - internal | 1x M.2, 4x 7-pin SATA |
| Operating System - Supported | Linux, Windows 7, Windows 8, Windows 10 |
| Low Profile | optional |
| Feature | Interface: SATA, Supports M.2 modules in format 2242 and 2230 with Key B or Key B+M on SATA basis, Maximum height of the components on the module: 1.5 mm, Use of double-sided modules possible | Supports Native Command Queuing (NCQ), Supports S.M.A.R.T., Supports TRIM, Supports DevSleep, Hot Swap, Bootable |

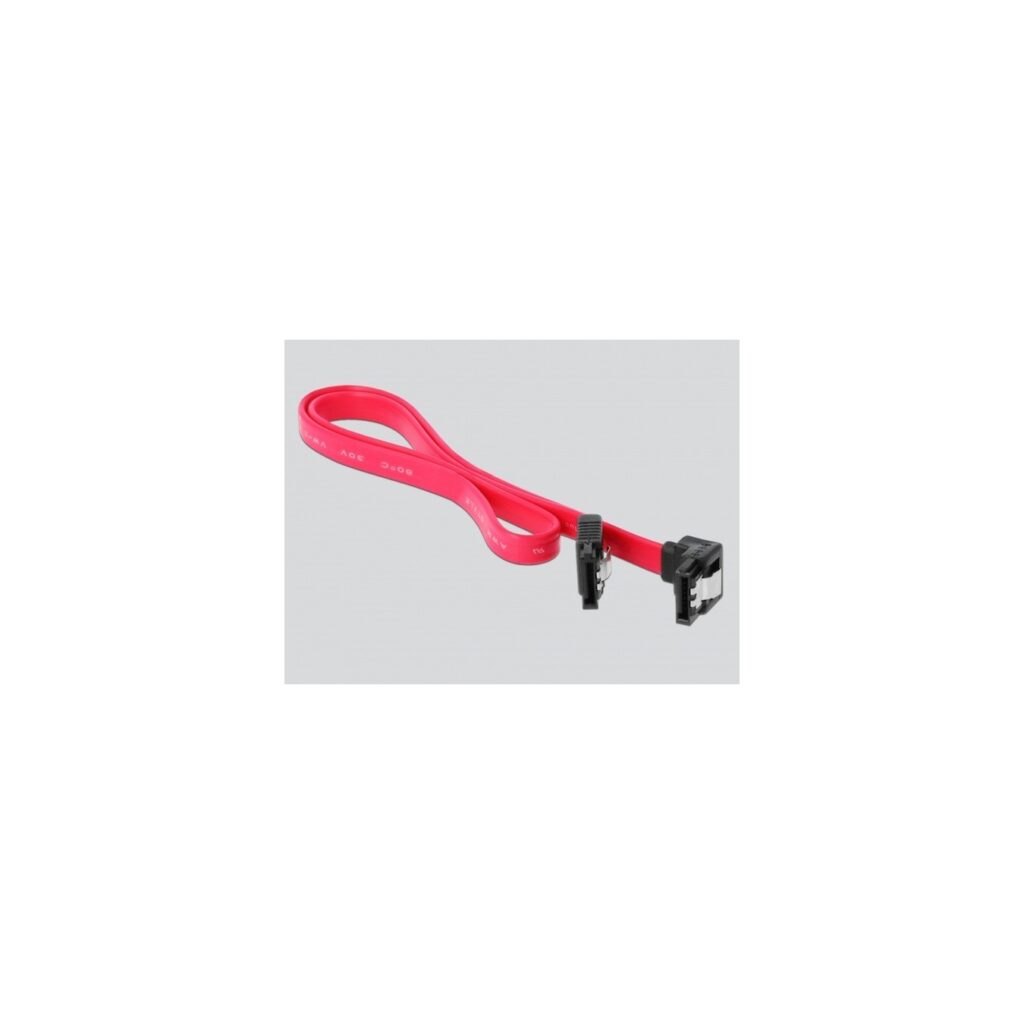

| Accessories - available | Low profile cover, 4 x SATA cables, length approx. 50 cm, M.2 mounting material, operating instructions |
