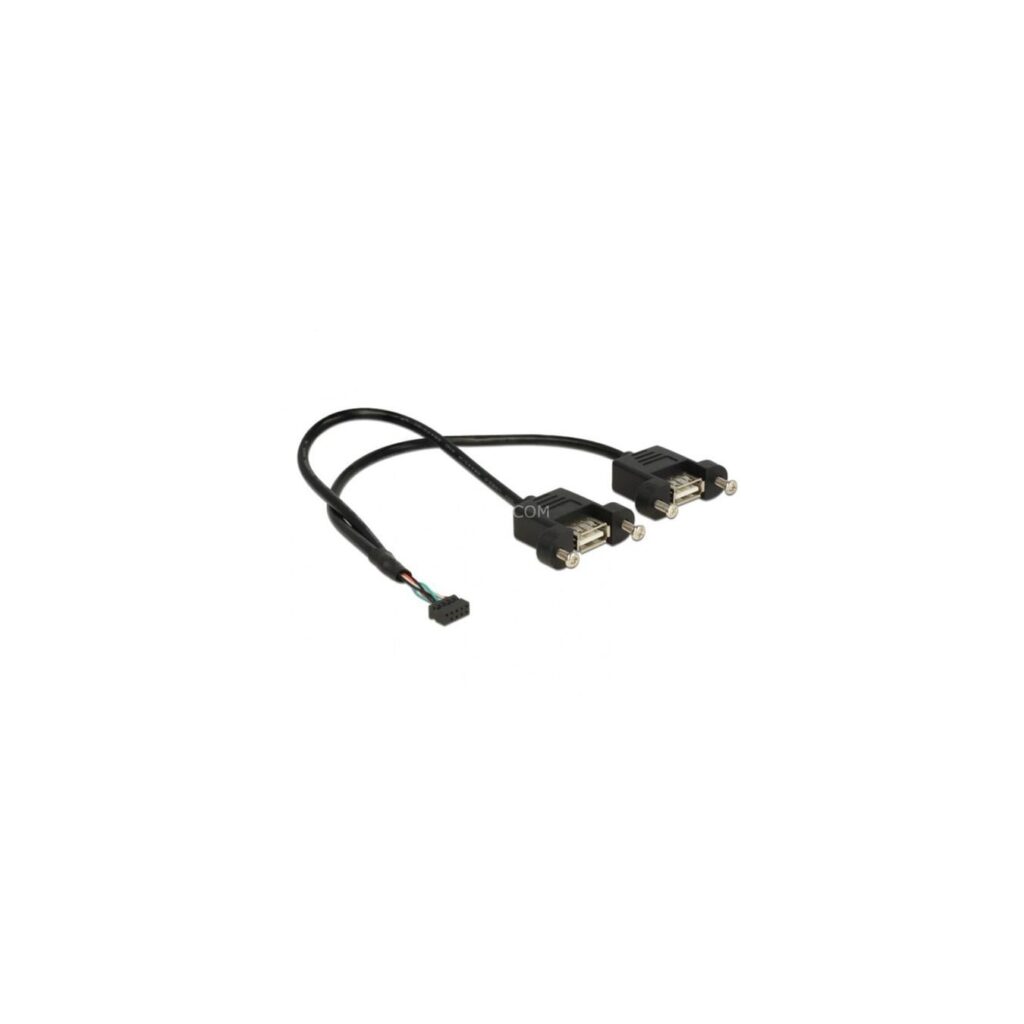

USB 2.0 cable - 2mm 10Pin header to 2x USB-A socket, for installation
10.00 €
USB 2.0 extension cable (model 84832) to connect multiple devices; sockets can be mounted with screws, e.g., on a slot bracket.
Available in 6–10 business days : 500 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The USB cable 84832 is used to extend a USB 2.0 connection and can be used to connect various devices. The sockets can be attached with two screws, for example to a slot bracket, to a cable duct or in a housing with the appropriate recess. This allows you to install a USB socket in an easily accessible position. The cable is particularly suitable for self-constructed computer systems.
| Typ | Cable |
| Color | schwarz |
| EAN | 4043619848324 |
| Manufacturer no. | 84832 |
| Manufactured in | China |
| Application example | For installing 2 USB-A sockets |
| Area | Data transfer |
| Connection - from | 1x 10-Pin USB 2.0 Header |
| Protocol | USB 2.0 |
| Cable cross section | 28 AWG |
| taps | 3 |
| Characteristics | intern |
| Feature | Hi-speed data transfers up to 480 Mbit/s |
| More information | Connections: 1x 10 pin USB 2.0 header socket > 2x USB 2.0 Type-A socket with nuts for installation, pitch 2.00mm, pin 10 = key, screw type M3, installation opening approx. 17.5 x 11.5mm, hole approx. 28.5mm hole spacing, cable diameter approx. 4mm |
| Cable length | 25 cm |
