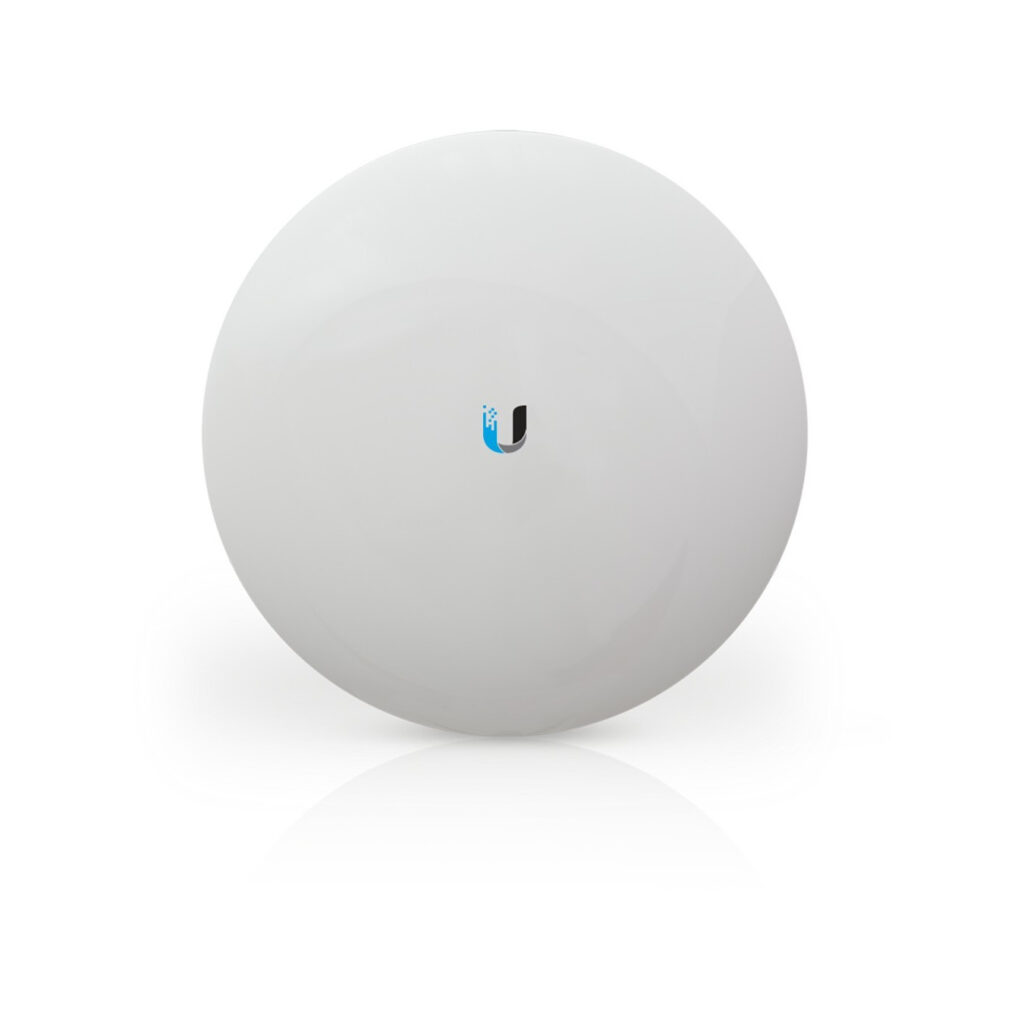

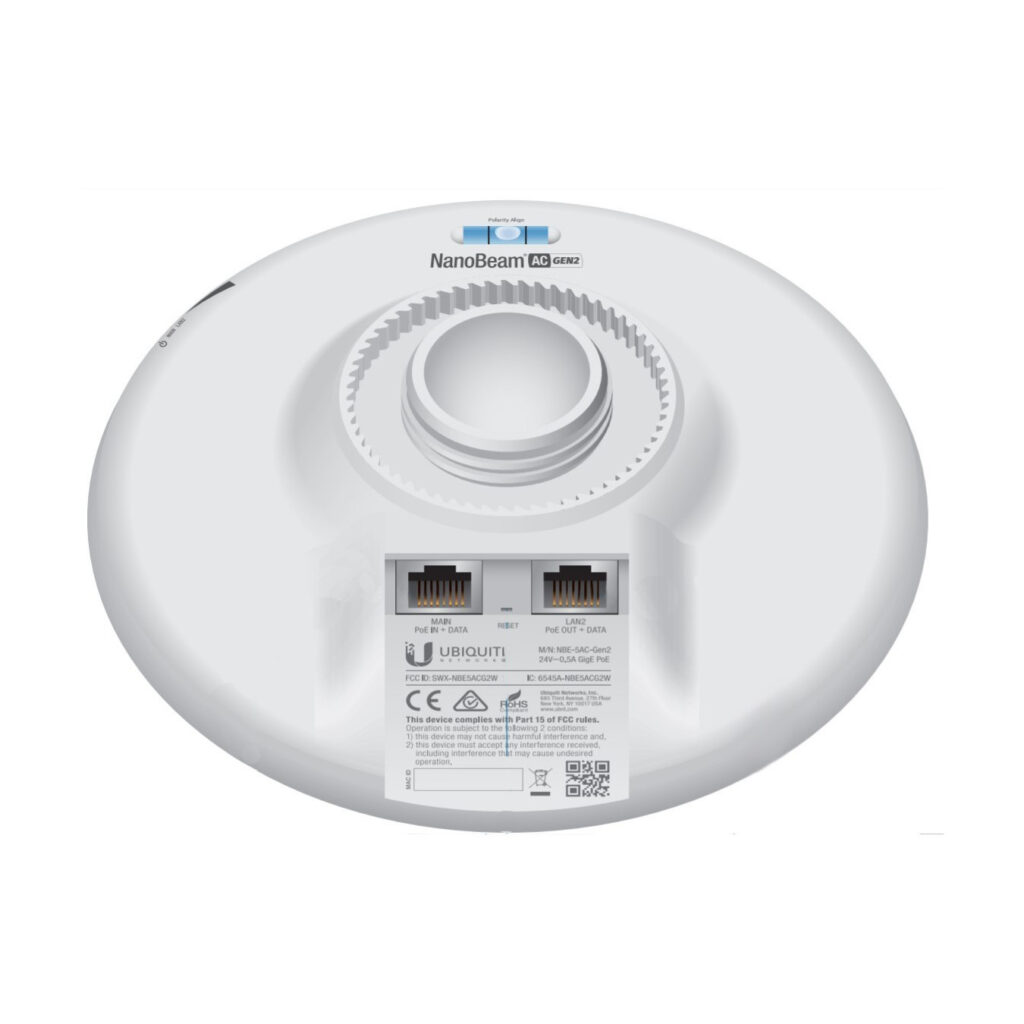

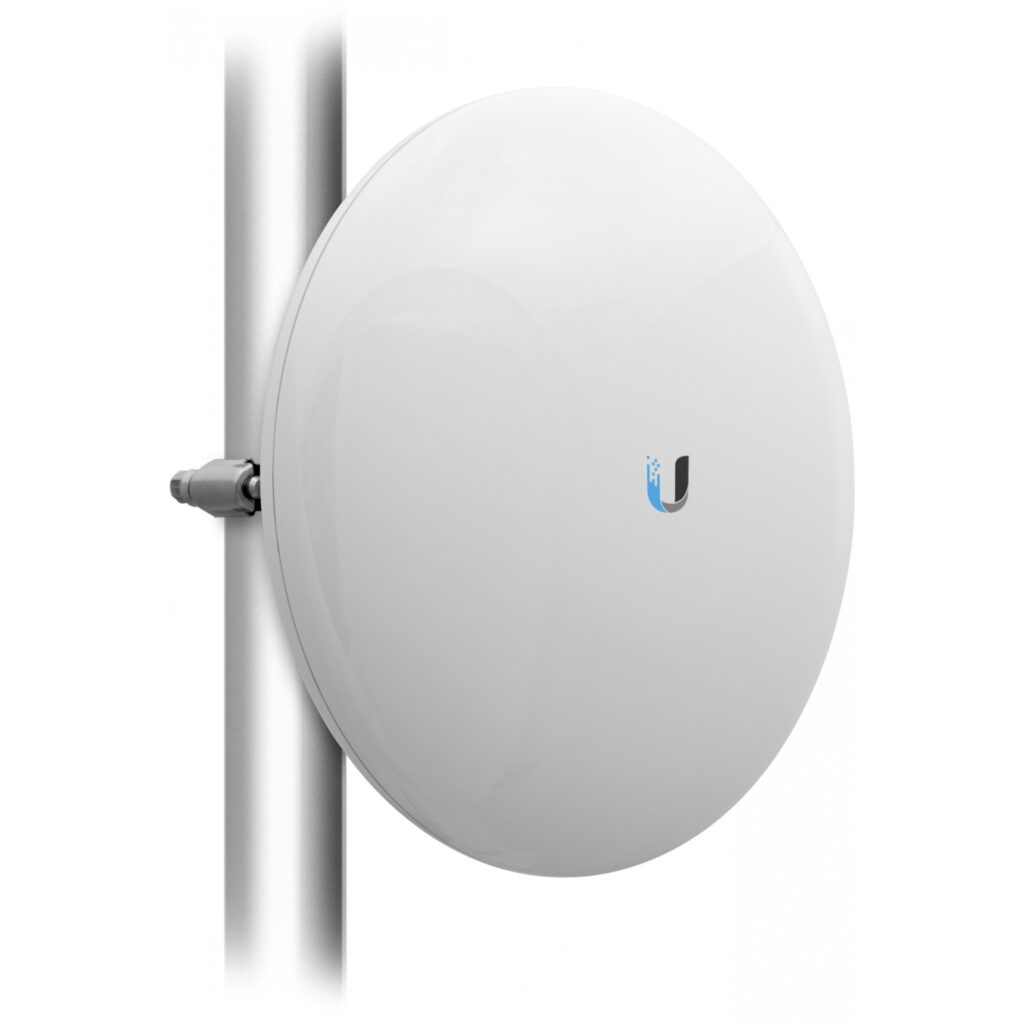

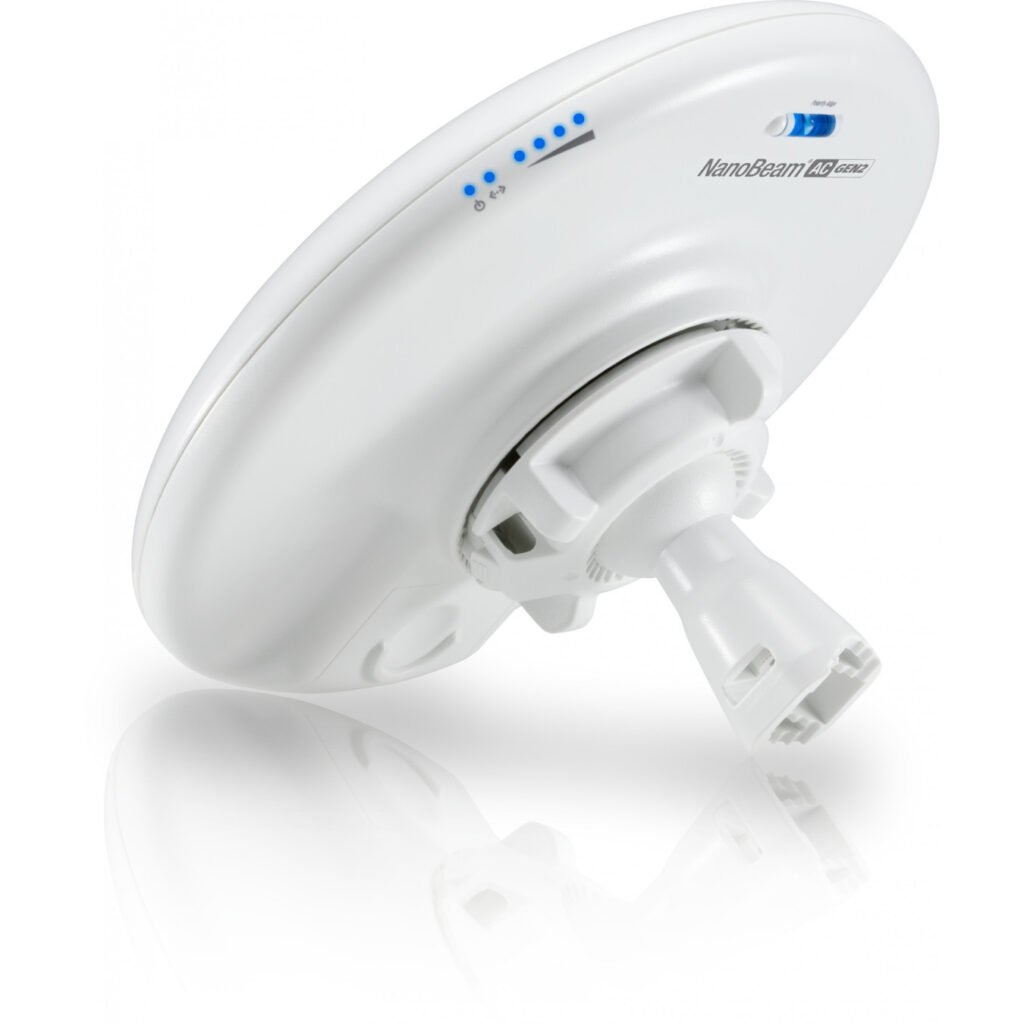

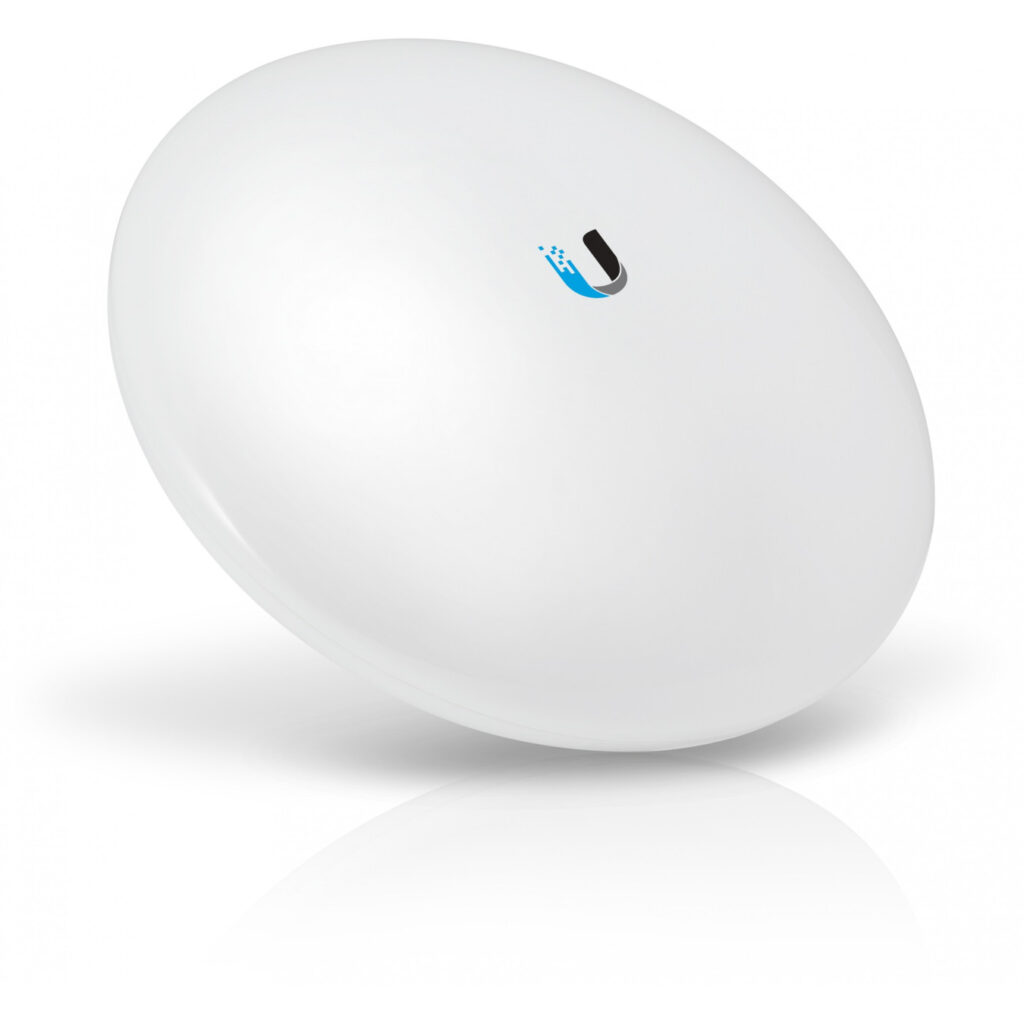

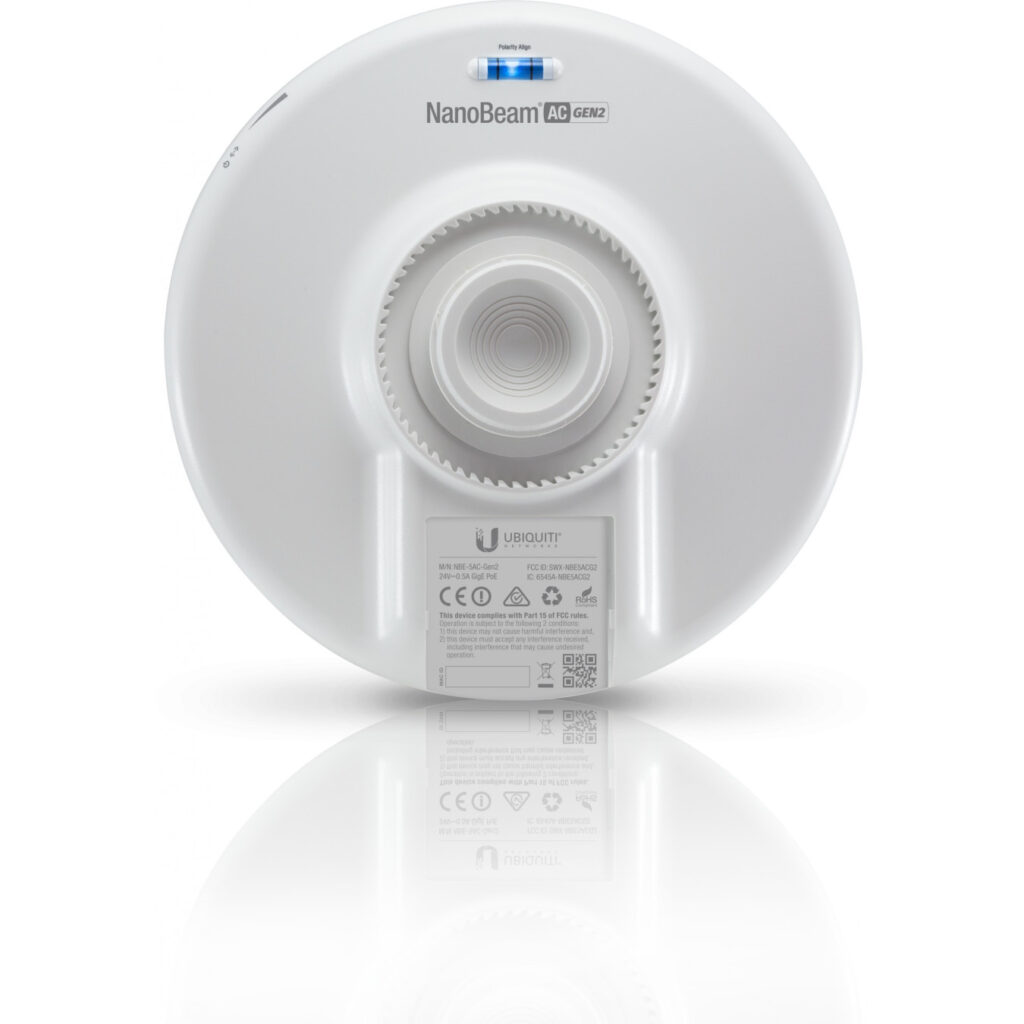

Ubiquiti NanoBeam 5AC Gen2 - 5 GHz Bridge - White, 128MB RAM, 720MHz MIPS
Compact 5 GHz NanoBeam bridge — up to 450 Mbps, 19 dBi antenna gain, 15 km range, Gigabit Ethernet (2x), 24V Passive PoE, wall/pole mount, weather-resistant design.
Available in 6–10 business days : 12 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
Ubiquiti NanoBeam 5AC Gen 2. Maximum data transfer rate: 450 Mbit/s. Maximum transfer distance: 15000 m. Antenna gain level (max): 19 dBi. Frequency band: 5.15 – 5.875| 5.15 – 5.25| 5.25 – 5.35| 5.47 – 5.725| 5.725 – 5.85 GHz. Modulation: 16-QAM. 64-QAM. 256-QAM. BPSK. QPSK. Ethernet LAN interface type: Gigabit Ethernet. Ethernet LAN data rates: 10.100.1000 Mbit/s. Security algorithms: WPA2
| Maximum data transfer rate | 450 Mbit/s |
| Maximum transfer distance | 15000 m |
| Antenna gain level (max) | 19 dBi |
| Feature | Mounting bracket(s) included |
| Frequency band | 5.15 - 5.875| 5.15 - 5.25| 5.25 - 5.35| 5.47 - 5.725| 5.725 - 5.85 GHz |
| Modulation | 16-QAM. 64-QAM. 256-QAM. BPSK. QPSK |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| Security algorithms | WPA2 |
| Product type | Network bridge |
| Material | Plastic |
| Mounting type | Wall/Pole |
| Product colour | White |
| LED indicators | LAN. Power. Signal strength |
| Processor family | Atheros |
| Processor model | MIPS 74Kc |
| Processor frequency | 720 MHz |
| Internal memory | 128 MB |
| RAM type | DDR2 |
| Power source type | PoE |
| Power consumption (max) | 8.5 W |
| DC output voltage | 24 V |
| DC output current | 0.5 A |
| Operating temperature (T-T) | -40 - 176 °F |
| Operating relative humidity (H-H) | 5 - 95% |
| Compliance certificates | CE. RoHS |
| Certification | CE. FCC. IC. RoHS |
| Width | 189 mm |
| Depth | 189 mm |
| Height | 125 mm |
| Weight | 530 g |
| Cables included | AC |
| Flash memory | 8 MB |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
