Ubiquiti EdgeRouter - ER-6P - 6-Port Gigabit Router with 1 SFP, 6 Gbps Switching, 3.4Mpps
High-performance 6-port Gigabit router with 1 SFP port; up to 3.4Mpps and 6 Gbps throughput. UNMS-managed with web-based control, QoS and rack-mountable option.
Available in 6–10 business days : 5 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068

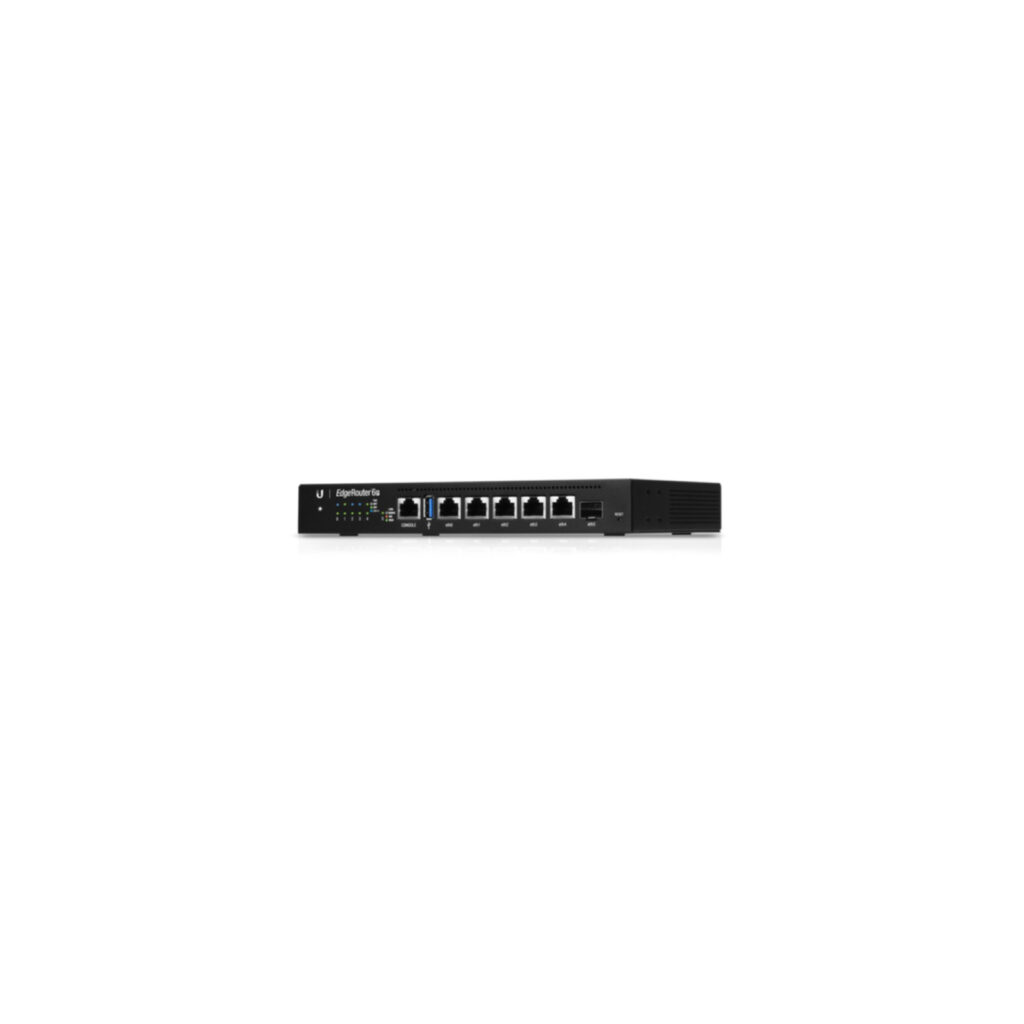

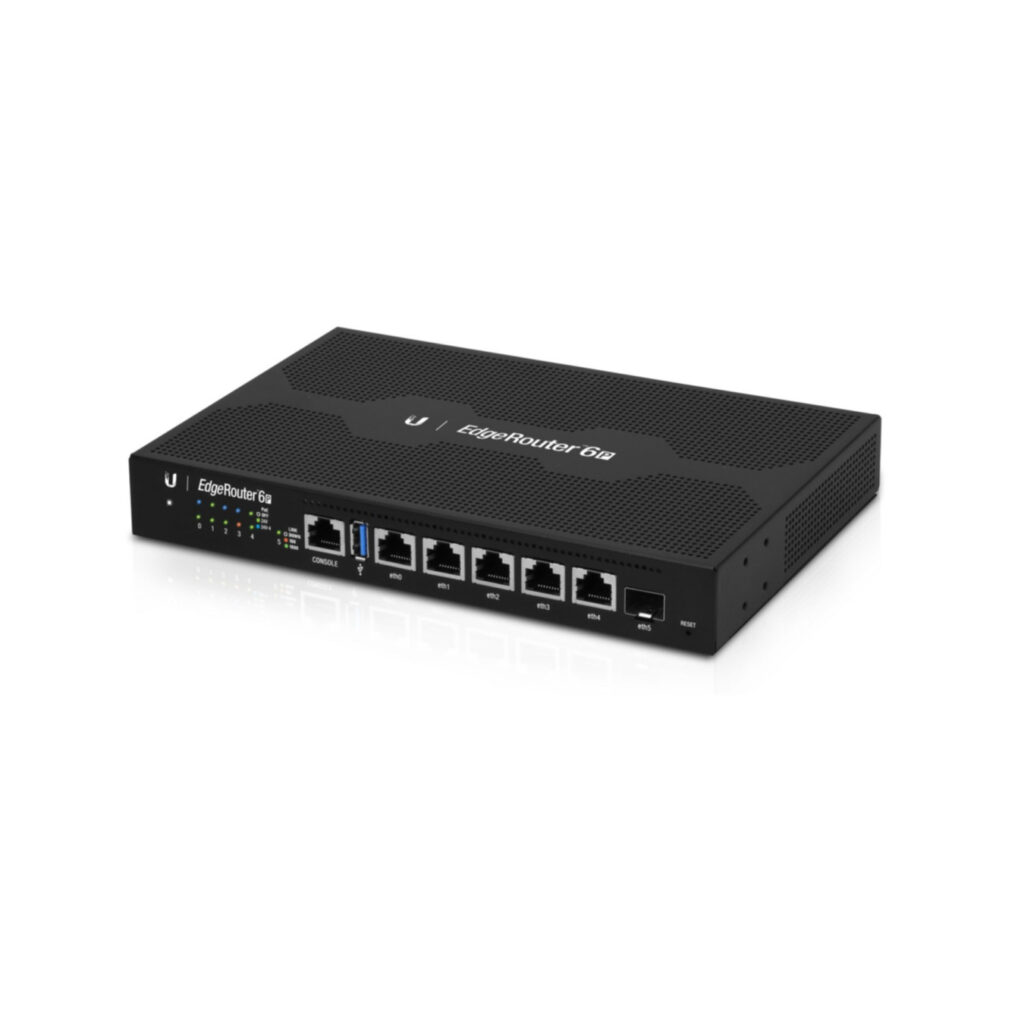

6-Port Gigabit Router with 1 SFP Port
The EdgeRouter™ 6P delivers 3.4 million packets per second routing performance in a compact and cost-effective unit.
Price/Performance Breakthrough
The EdgeRouter™ 6P offers next-generation price/performance value: up to 3.4 million packets per second processing with a line rate of up to 6 Gbps.
Versatile Design
The EdgeRouter 6P can be rack-mounted with the use of the EdgeRouter Rack Mount Kit, model ER-RMKIT (sold separately).
Centralized Management
The EdgeRouter 6P is supported and managed by UNMS™ (Ubiquiti® Network Management System), a comprehensive controller with an intuitive UI. A single control plane manages registered EdgeMAX® devices across multiple sites.
| Ethernet WAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Forwarding rate | 3.4 Mpps |
| Switching capacity | 6 Gbit/s |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Ethernet LAN (RJ-45) ports | 6 |
| Gigabit Ethernet (copper) ports quantity | 6 |
| Power over Ethernet (PoE) ports quantity | 5 |
| Installed SFP modules quantity | 1 |
| USB ports quantity | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Serial ports quantity | 1 |
| DC-in jack | Yes |
| Management protocols | UNMS, CLI, SNMP, NetFlow, LLDP, NTP |
| DHCP client | Yes |
| DHCP server | Yes |
| Security algorithms | IPSEC, SNMP, SSH |
| Firewall | Yes |
| VPN support | IPSec Site-to-Site and Remote Access OpenVPN Site-to-Site and Remote Access PPTP Remote Access L2TP Remote Access PPTP Client |
| AC adapter included | Yes |
| Manual | Yes |
| Built-in processor | Yes |
| Processor architecture | MIPS64 |
| Processor frequency | 1000 MHz |
| Processor cores | 4 |
| Storage media | eMMC |
| Internal storage capacity | 4 GB |
| Internal memory | 1024 MB |
| Internal memory type | DRAM |
| Certification | CE, FCC, IC |
| Product colour | Black |
| Rack mounting | Yes |
| Rack capacity | 1U |
| LED indicators | Activity, Link, Speed |
| Antenna type | Not supported |
| Power consumption (typical) | 16 W |
| Power source type | AC |
| AC input voltage | 110 - 240 V |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 229 mm |
| Depth | 136.5 mm |
| Height | 31.1 mm |
| Weight | 730 g |
| Package type | Box |
| Harmonized System (HS) code | 85176990 |
