Thermaltake TR2 S 550W ATX PSU 80 PLUS 230V

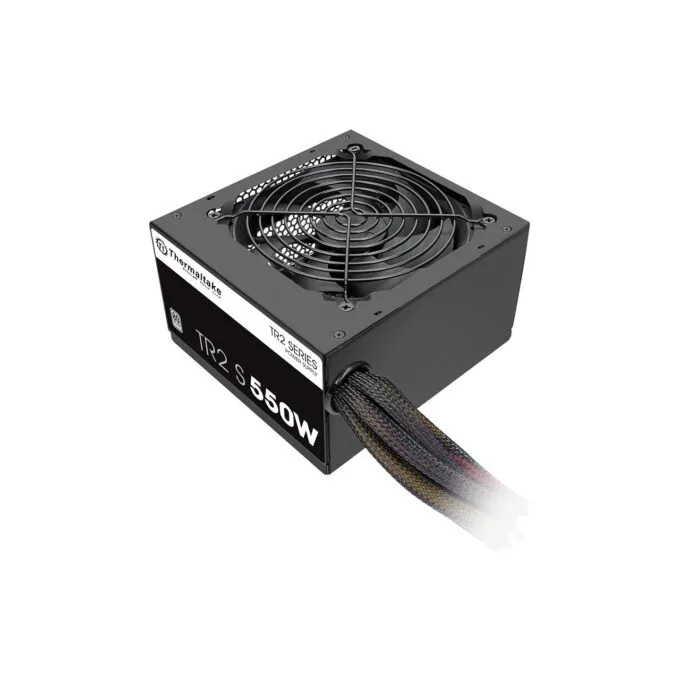

Thermaltake TR2 S 550W ATX PSU with 80 PLUS certification, active PFC, 200-240V input. Non-modular design with 20+4pin ATX, 4x SATA, 4x Molex, 2x 6+2pin PCIe connectors. 120mm fan, protections incl. OVP/UVP/OCP/OLP/SCP/UVP. Black, for PC/Server.
Το προϊόν δεν είναι διαθέσιμο
Αυτό το προϊόν δεν είναι διαθέσιμο αυτή τη στιγμή. Μπορούμε να σας προτείνουμε εναλλακτικές ή να προσπαθήσουμε να το βρούμε για εσάς. Καλέστε μας στο 22 270068 ή email offer@armenius.cy.
Das Thermaltake TR2 S 550W ist ein zuverlässiges ATX-Netzteil für PC und Server mit 80 PLUS Zertifizierung für effiziente Stromnutzung. Es bietet aktive PFC, stabile Leistung auf der +12V-Schiene (bis 45.8A) und unterstüzt anspruchsvolle Systeme mit 2x PCI Express 6+2pin Anschlüssen für GPUs.
Mit nicht-modularen Kabeln (ATX 60cm, CPU 65cm, SATA/PCIe 50cm) ist die Installation einfach. Der 120mm Lüfter sorgt für aktive Kühlung, Lagertyp hydraulisch, MTBF 100.000h. Betriebstemperatur 5-40°C, Zertifizierungen FCC/ICES/CB/cTUVus.
- Gesamtleistung: 550W
- Eingang: 200-240V, 50Hz, 8A
- Anschlüsse: 1x 20+4pin ATX, 4x SATA, 4x 4pin Molex, 2x 6+2pin PCIe
- Schutz: Überstrom, Überlastung, Überspannung, Kurzschluss, Unterspannung
- Abmessungen: 150x140x86mm, Schwarz
| Total Power | 550 W |
| AC Input Voltage | 200 - 240 V |
| AC Input Frequency | 50 Hz |
| Input Current | 8 A |
| Power Factor Correction (PFC) | Active |
| Combined Power (+3.3V) | 100 W |
| Combined Power (+12V) | 550 W |
| Combined Power (+5V) | 100 W |
| Combined Power (-12V) | 3.6 W |
| Combined Power (+5Vsb) | 12.5 W |
| Max Output Current (+3.3V) | 18 A |
| Max Output Current (+12V) | 45.8 A |
| Max Output Current (+5V) | 18 A |
| Max Output Current (-12V) | 0.3 A |
| Max Output Current (+5Vsb) | 2.5 A |
| Hold-up Time | 17 ms |
| Protections | Over Current, Over Load, Over Voltage, Over Temperature?, Short Circuit, Under Voltage |
| Motherboard Connector | 20+4 pin ATX |
| Motherboard Cable Length | 60 cm |
| Number of SATA Power Connectors | 4 |
| SATA Cable Length | 500 mm |
| Number of Molex 4pin Connectors | 4 |
| Peripheral (Molex) Cable Length | 500 mm |
| Number of PCI Express 6+2pin Connectors | 2 |
| PCI Express Cable Length | 50 cm |
| CPU Power Cable Length | 65 cm |
| Cable Type | Non-modular |
| 80 Plus Certification | 80 PLUS |
| Purpose | PC / Server |
| PSU Form Factor | ATX |
| Bearing Type | Hydraulic |
| MTBF | 100000 h |
| Product Color | Black |
| Cooling | Active |
| Fan Diameter | 12 cm |
| Number of Fans | 1 Fan |
| Operating Temperature | 5 - 40 °C |
| Storage Temperature | -40 - 55 °C |
| Operating Relative Humidity | 20 - 85% |
| Storage Humidity | 10 - 95% |
| Certifications | FCC/ICES/CB/cTUVus |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Packaging Type | Box |
