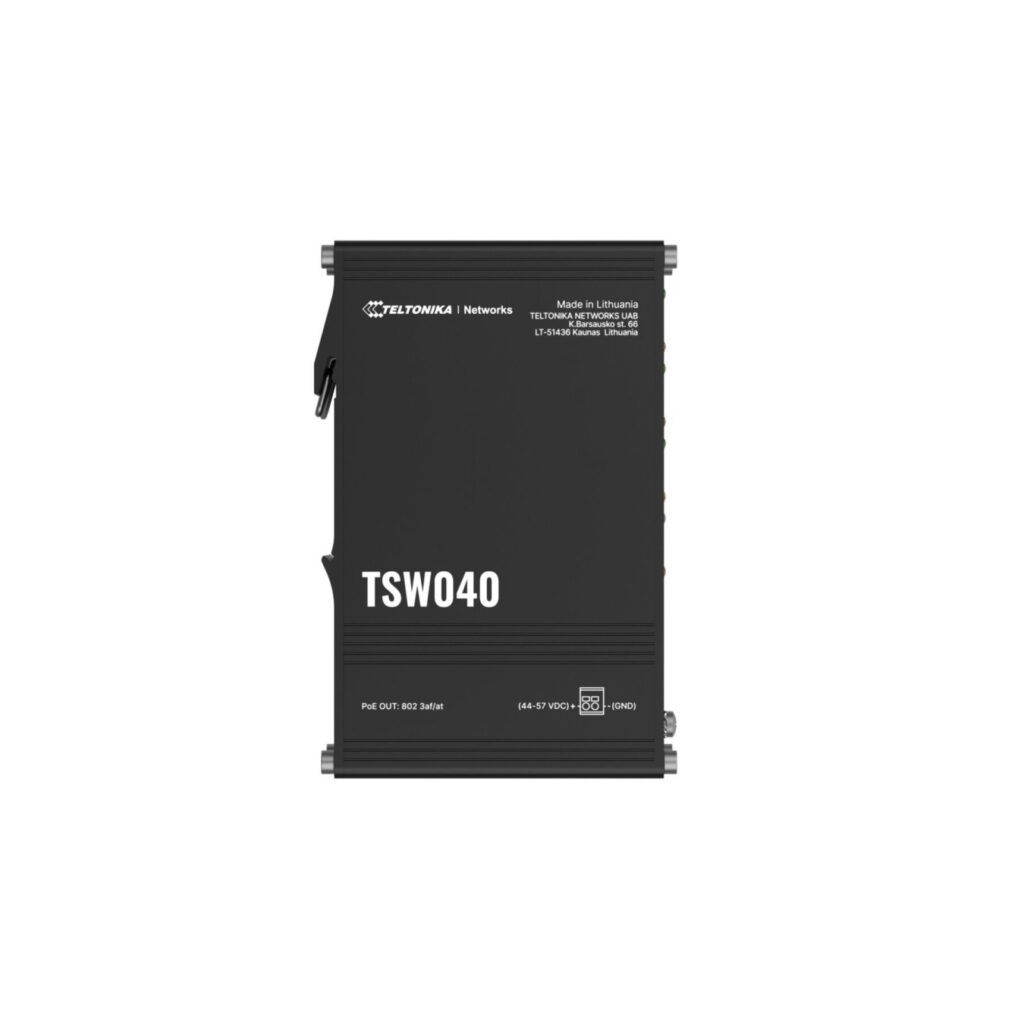

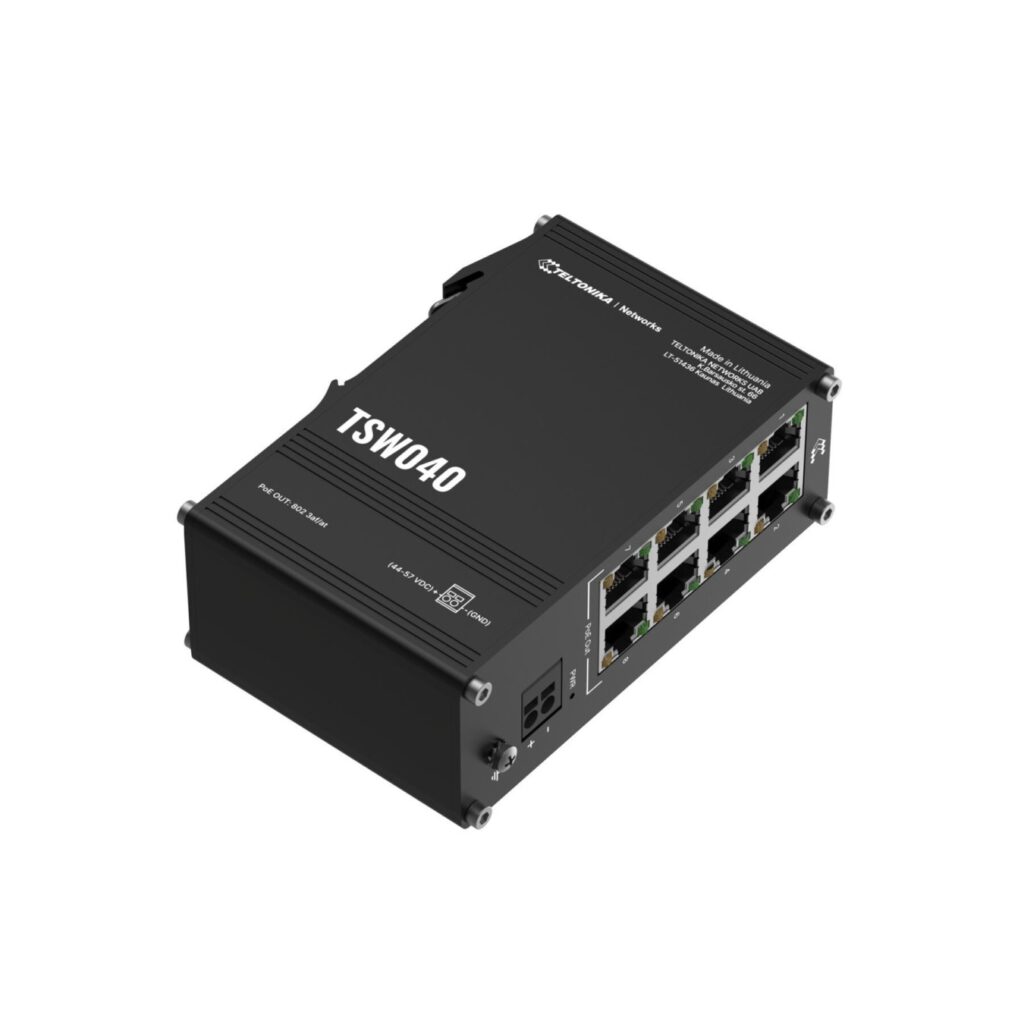

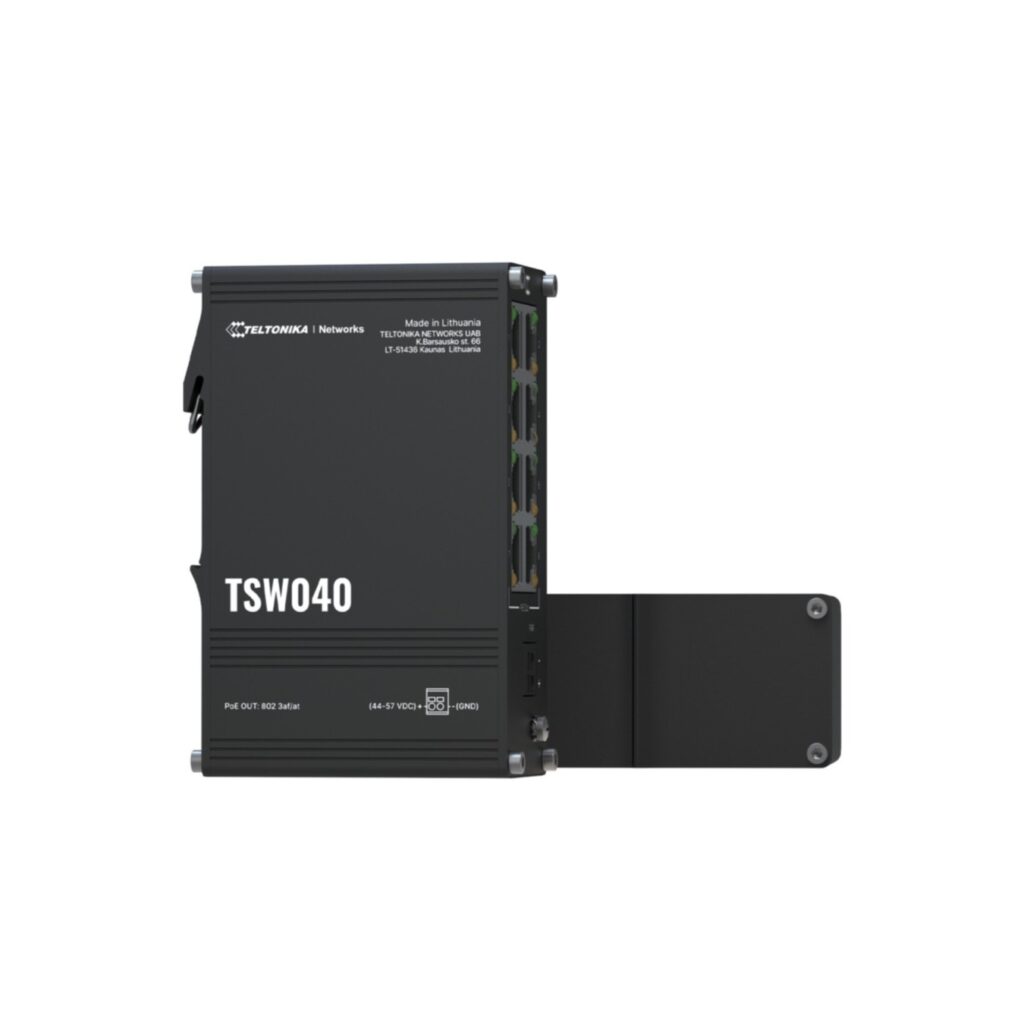

Teltonika TSW040 Unmanaged 8-Port PoE+ Switch - TSW040 - 8x Fast Ethernet, 240W PoE Budget, 48V, Black, Aluminium
73.50 €
Unmanaged 8-port PoE+ switch with 8x 10/100 PoE ports, 240 W budget, 48 V, aluminium housing, -40 to 75 °C, industrial-grade network device.
Available in 6–10 business days : 64 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068

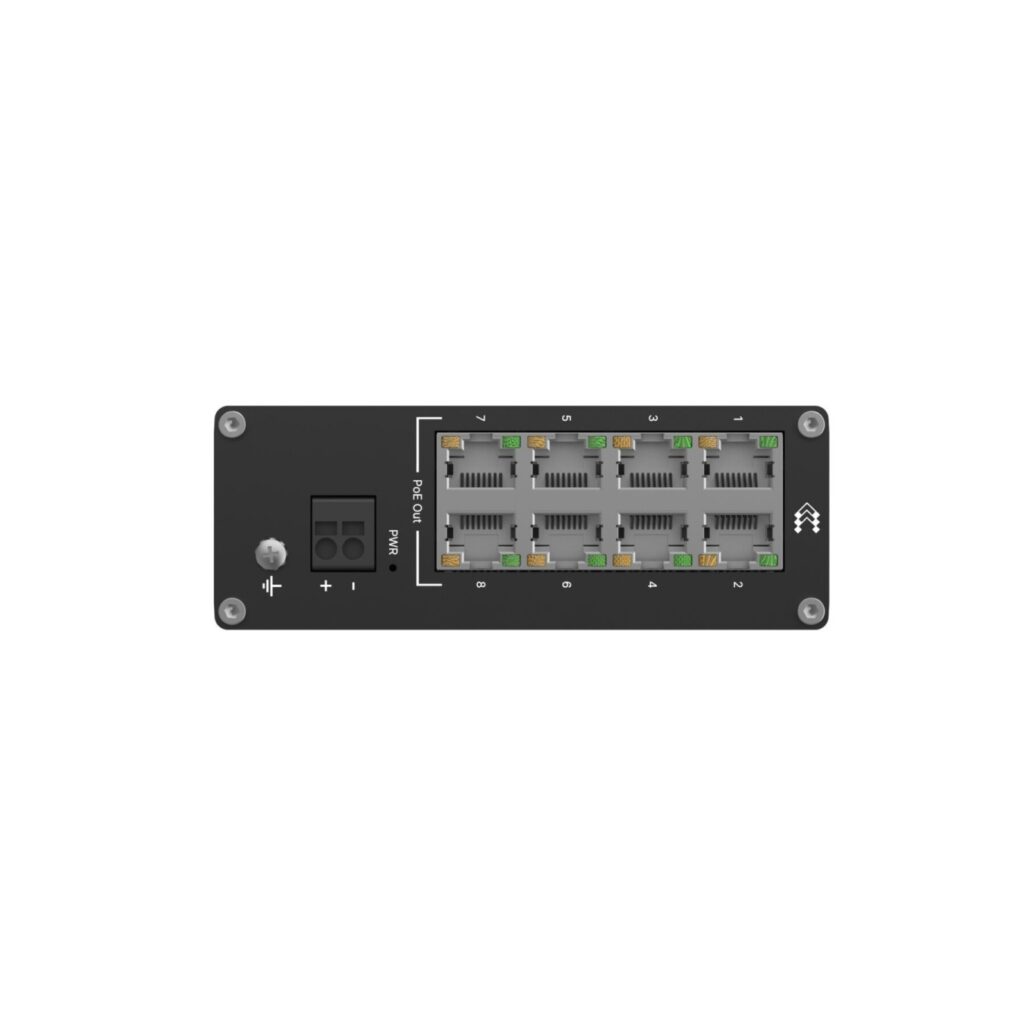

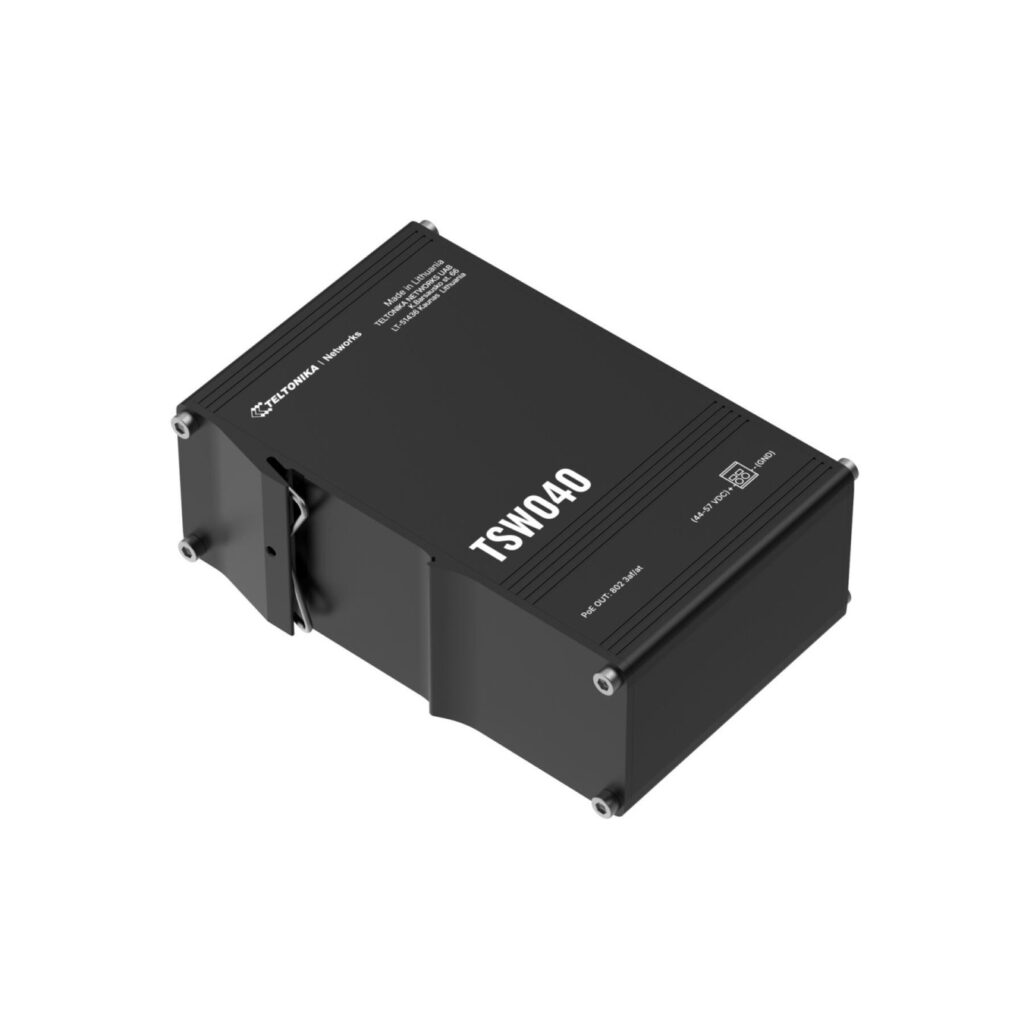

The TSW040 is an unmanaged 8-port PoE+ switch by Teltonika, featuring eight RJ45 ports with a total power budget of 240 W, or up to 30 W per port. This compact and rugged 8-port switch also features a 2-pin power input and an integrated DIN rail for easy mounting, making it ideal for industrial applications. The TSW040 has a wide voltage range of 7-57 VDC and a PoE-out voltage range of 44-57 VDC.
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 8 |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Switching capacity | 20 Gbit/s |
| MAC address table | 2048 entries |
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| Housing material | Aluminium |
| Reset button | No |
| LED indicators | Link, Power, Status |
| Power source | DC |
| Power supply included | No |
| DC input voltage | 7 - 57 V |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) voltage | 48 V |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 240 W |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 113.1 mm |
| Depth | 74.6 mm |
| Height | 41.2 mm |
| Weight | 280 g |
| Quick start guide | Yes |
