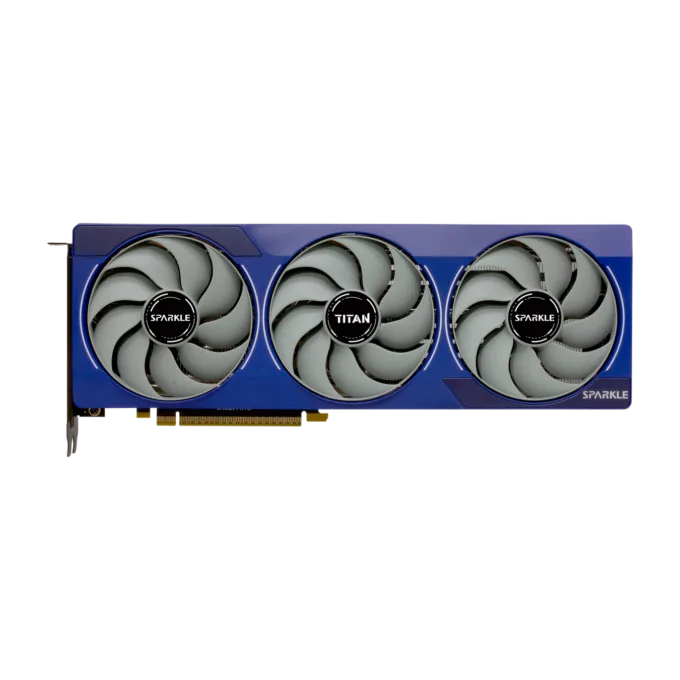

SPARKLE Intel Arc B580 TITAN OC - 12GB GDDR6, 2740 MHz, PCIe 4.0 x8
Intel Arc B580 TITAN OC GPU: 12GB GDDR6, 2740 MHz boost clock, TORN 2.0 triple-fan cooler, metal backplate. Supports 8K@120Hz, ray tracing, XeSS AI upscaling. PCIe 4.0 x8, 1xHDMI 2.1, 3xDP 2.1.
Available in 6–10 business days : 31 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The SPARKLE Intel Arc B580 TITAN OC is a high-performance graphics card featuring the Intel Battlemage architecture with 20 Xe-Cores, 20 Ray Tracing units, and 160 XMX AI engines. Factory overclocked to a 2740 MHz boost clock, it delivers excellent 1440p and capable 4K gaming with support for ray tracing, Intel XeSS AI upscaling, and up to 8K@120Hz HDR resolution.

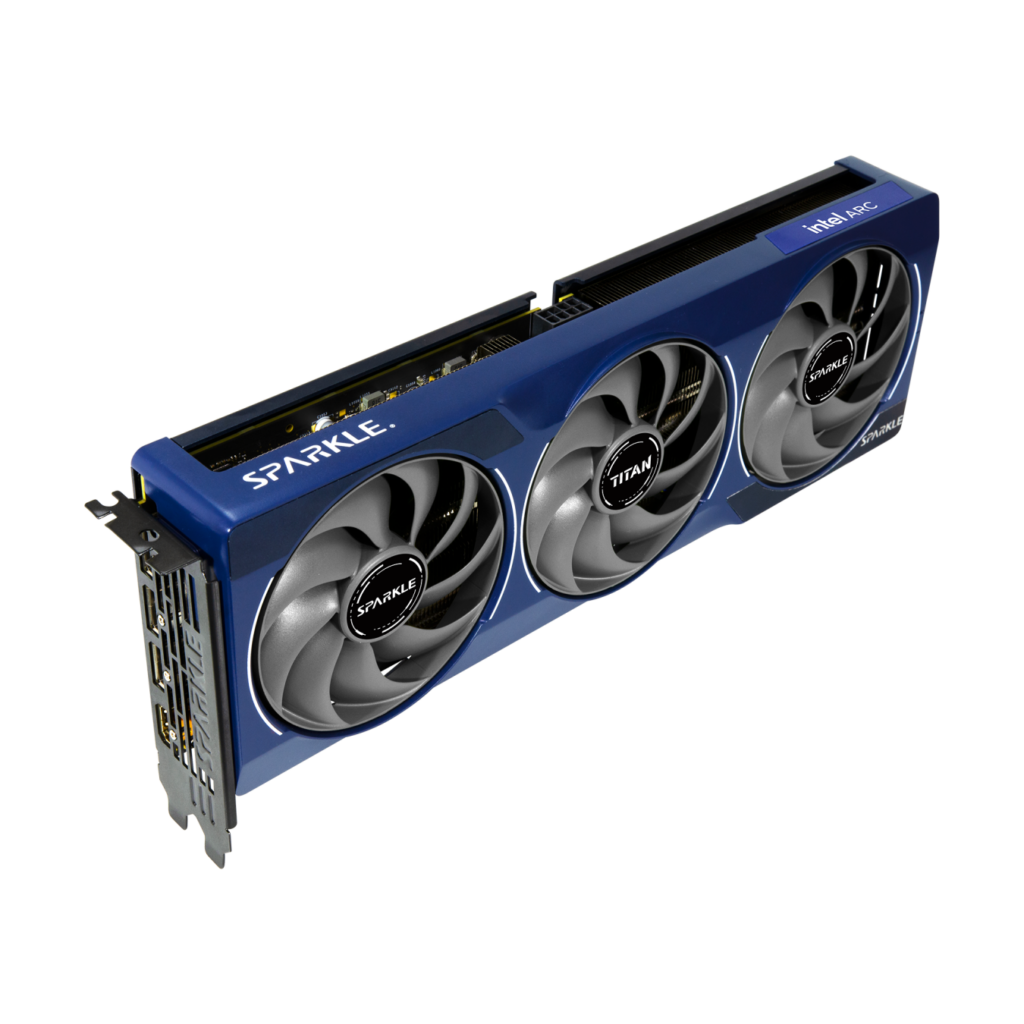

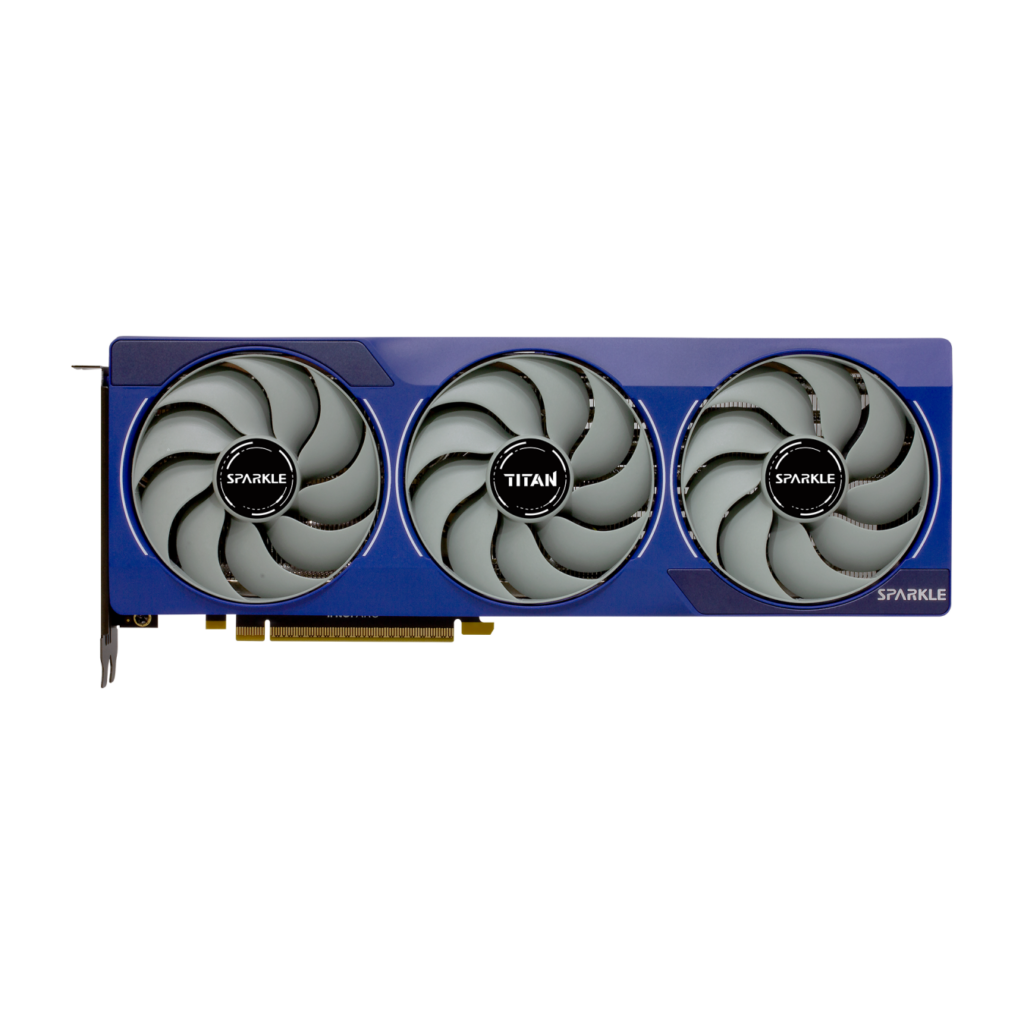

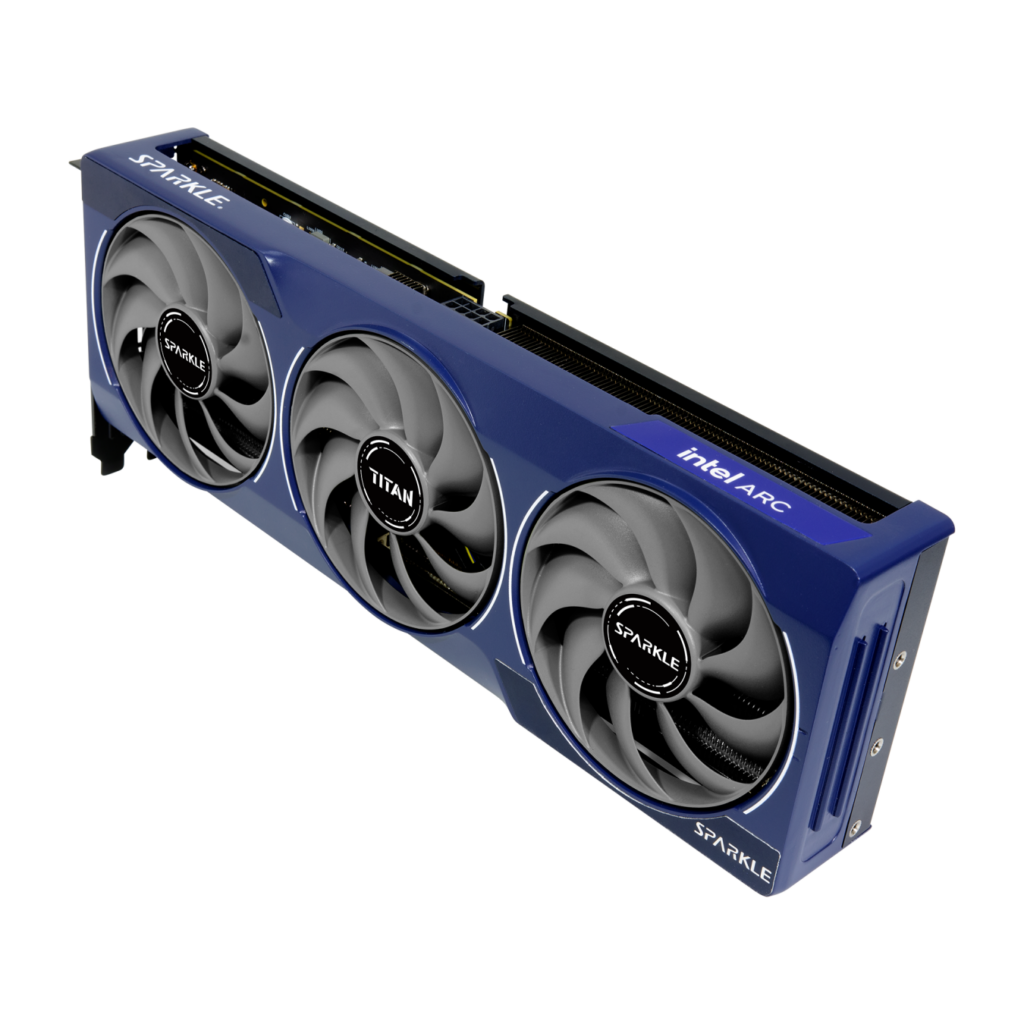

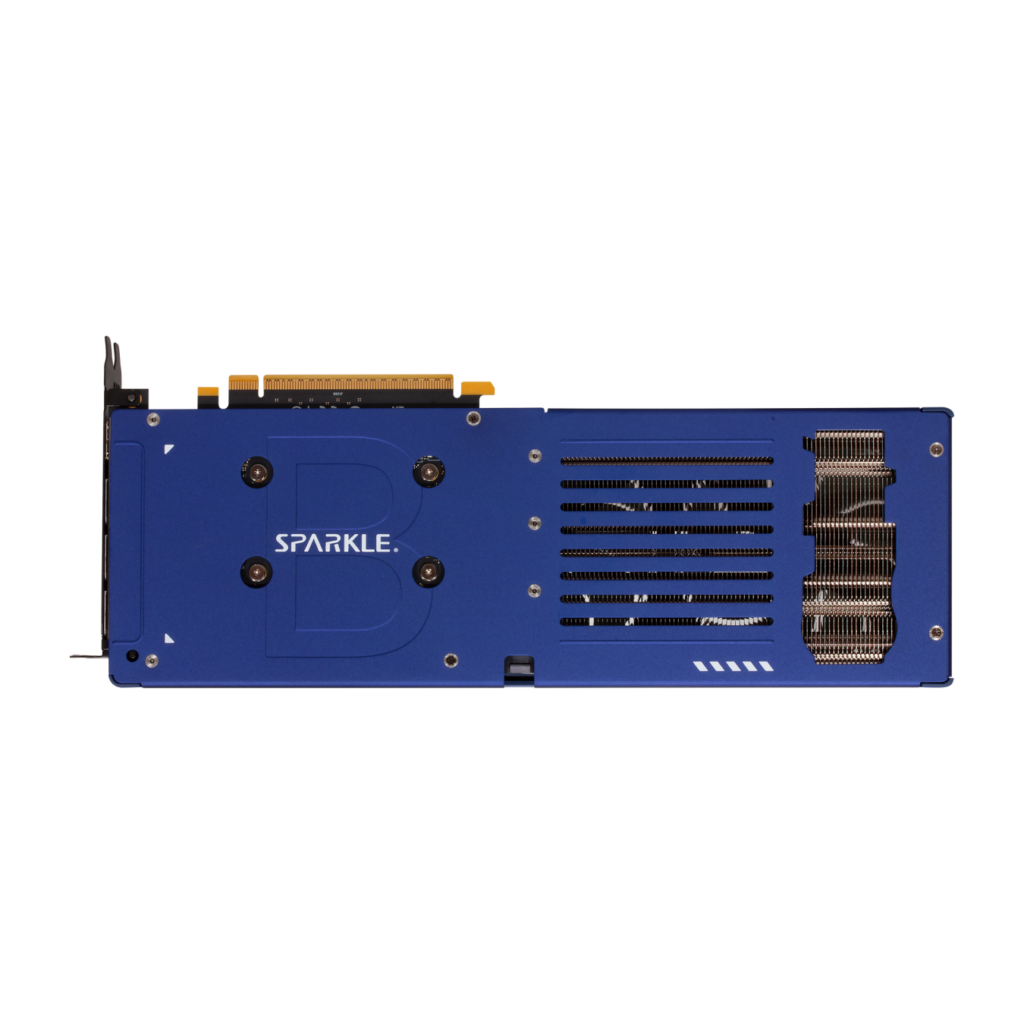

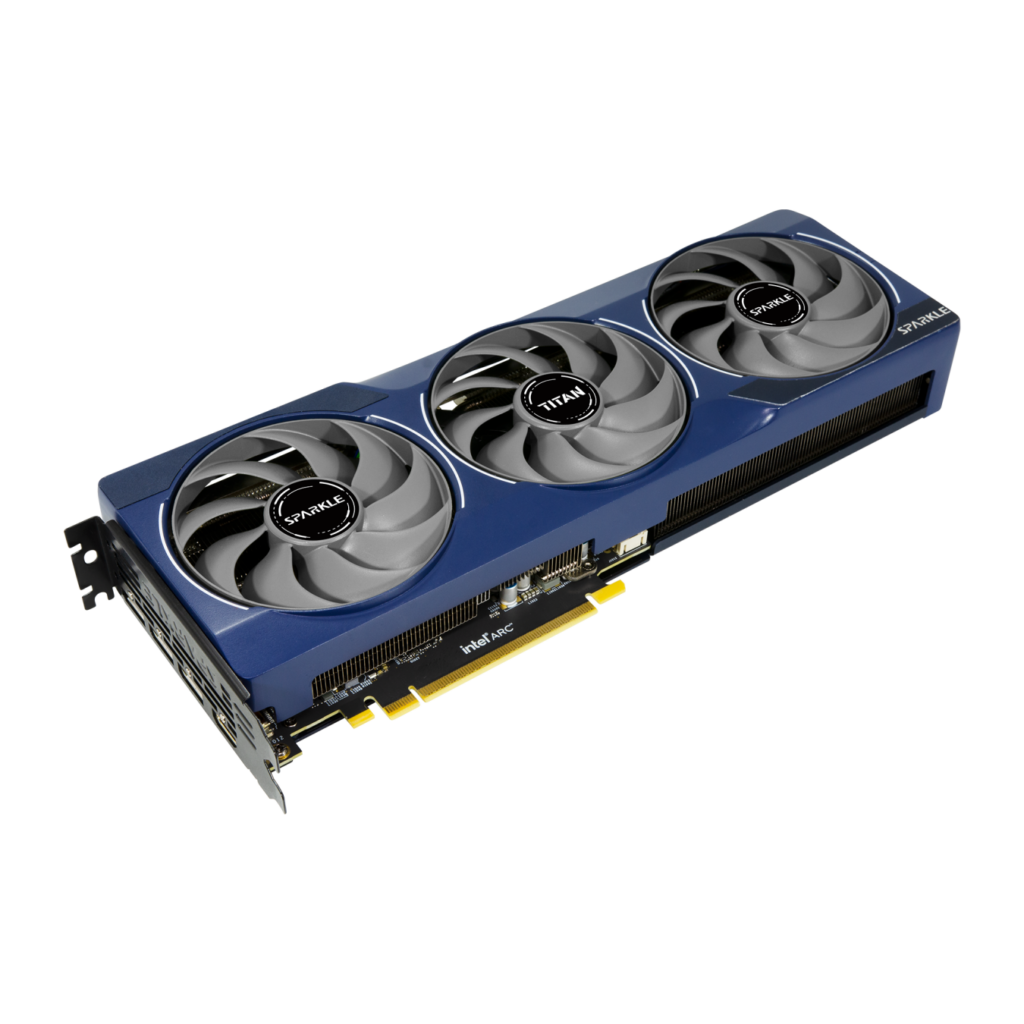

Equipped with 12GB GDDR6 memory on a 192-bit bus (456 GB/s bandwidth), the card uses PCIe 4.0 x8 interface and requires a single 8-pin power connector with a 600W PSU recommended. The TORN Cooling 2.0 system with triple axial fans, 2.2-slot design, breathing blue LED lights, and full-metal backplate ensures efficient cooling and durability. Dimensions: 315 x 117 x 44 mm, weight 954g (card only).
- ✅ 12GB GDDR6, 19 Gbps, 192-bit, 456 GB/s bandwidth

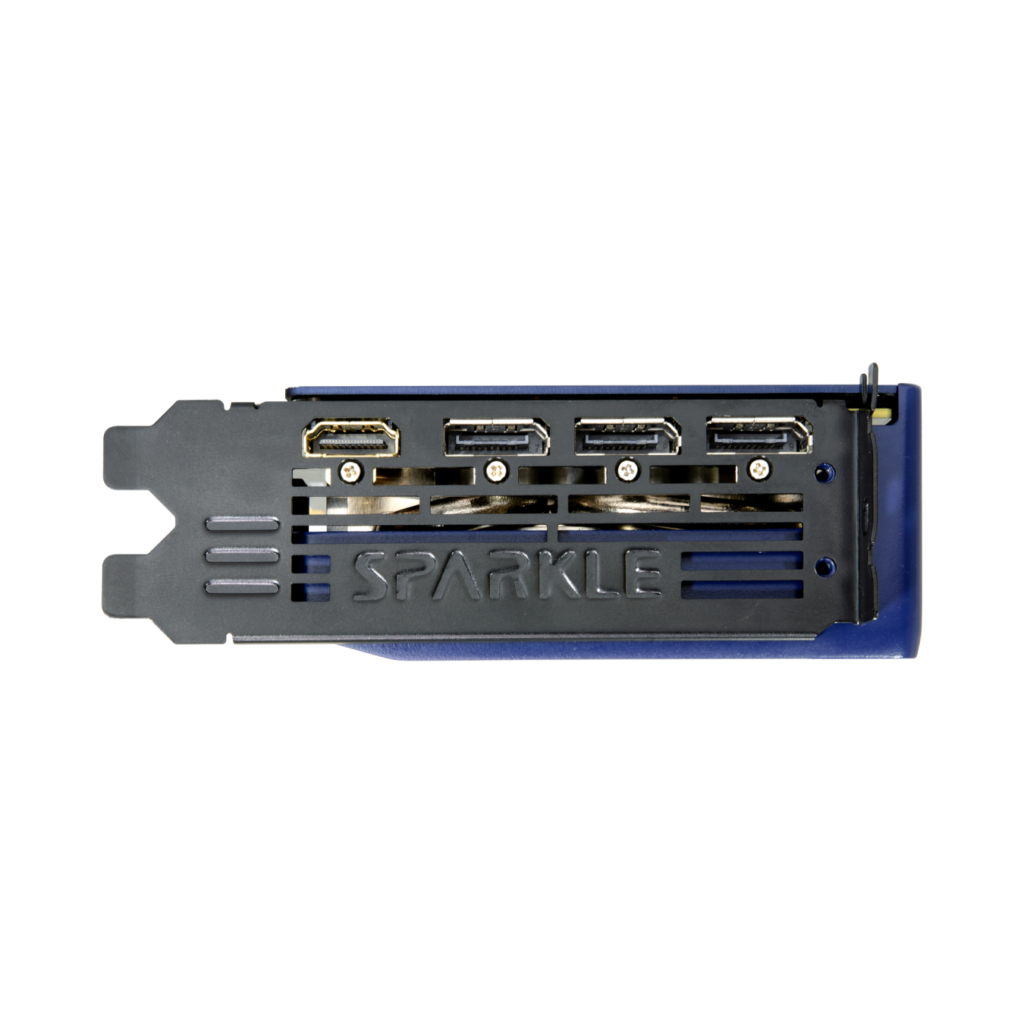

- ✅ Outputs: 1x HDMI 2.1, 3x DisplayPort 2.1
- ✅ Power: 1x 8-pin PCIe, TBP 200W

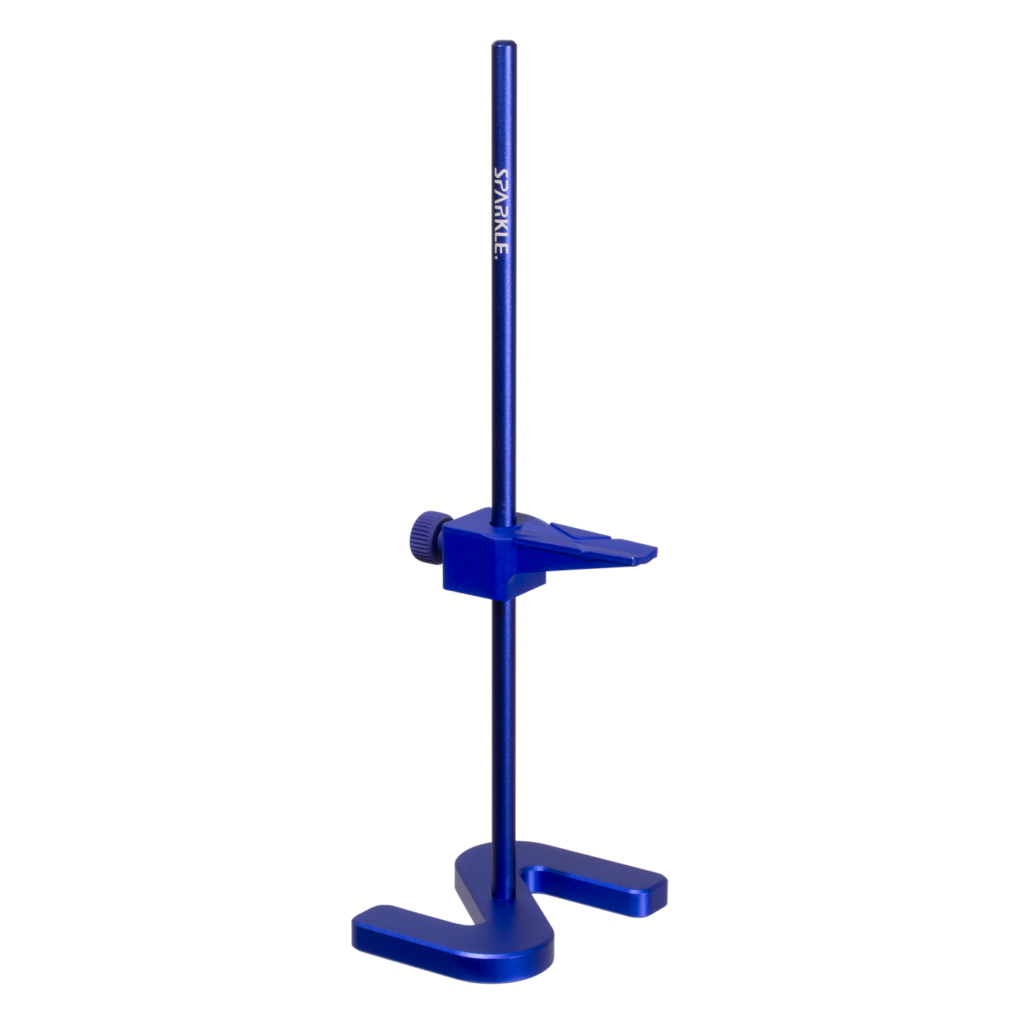

- ✅ Cooler: Triple AXL fans, metal backplate, GPU holder
- ✅ Features: XeSS, AV1 encode/decode, Resizable BAR required
| GPU Model | Intel Arc B580 |
| Boost Clock | 2740 MHz |
| Xe-Cores | 20 |
| Ray Tracing Units | 20 |
| Intel XMX Engines | 160 |
| VRAM Capacity | 12GB GDDR6 |
| Memory Interface | 192-bit |
| Memory Bandwidth | 456 GB/s |
| Memory Speed | 19 Gbps |
| PCIe Interface | PCIe 4.0 x8 |
| Outputs | 1x HDMI 2.1, 3x DisplayPort 2.1 |
| Power Connector | 1x 8-pin PCIe |
| TBP | 200 Watt |
| Recommended PSU | 600W |
| Cooler | TORN Cooling 2.0, Triple Fan, 2.2-slot |
| Backplate | Metal |
| Dimensions (Card) | 315 x 117 x 44 mm |
| Weight (Card) | 954 g |
| MPN | SB580T-12GOC |
