SATA Power Cable - 15Pin to 2x bottom + 2x top, angled
10.50 €

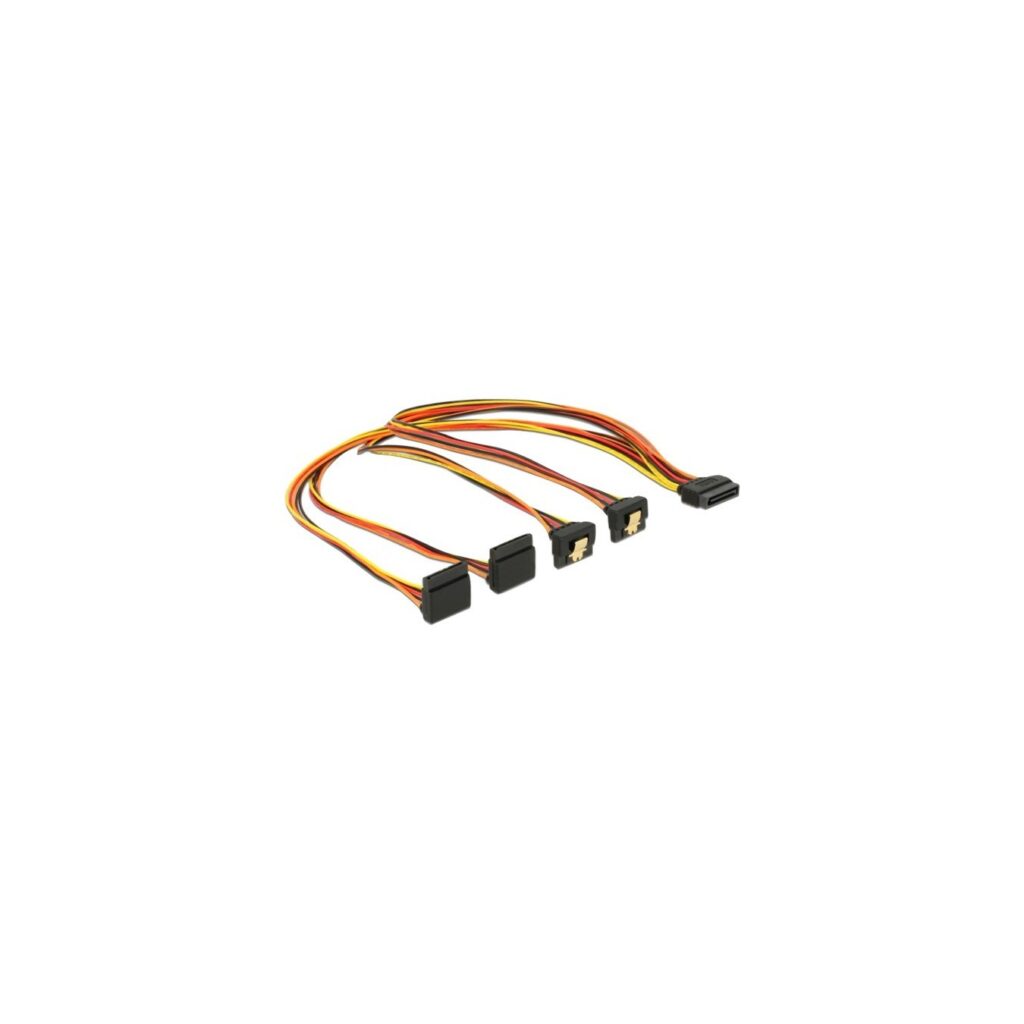

Delock 60155: 1x 15-pin SATA input to 4x SATA power sockets (2 up, 2 down) angled; 50 cm; 5 lines (12V, GND, 5V, 3.3V); 80 g.
Available in 6–10 business days : 38 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The SATA cable 60155 from Delock is used to power four SATA devices via a free SATA 15-pin power connector on the power supply. The metal clips on the sockets and the metal clip receptacle on the plug enable secure locking when connecting the cable.
| Typ | Cable |
| EAN | 4043619601554 |
| Manufacturer no. | 60155 |
| Area | Power supply |
| Connection - from | 1x 15-pin SATA (male) |
| Cable cross section | 22 AWG |
| taps | 5 |
| Characteristics | intern |
| Feature | With gold-colored metal clips |
| More information | 4x SATA 15 pin power socket with metal clip (2 x upwards / 2 x downwards angled), variant with 5 power lines (yellow = 12 V, black = GND, red = 5 V, orange = 3.3 V) |
| Cable length | 50 cm |
| Weight | 80 Gramm |
