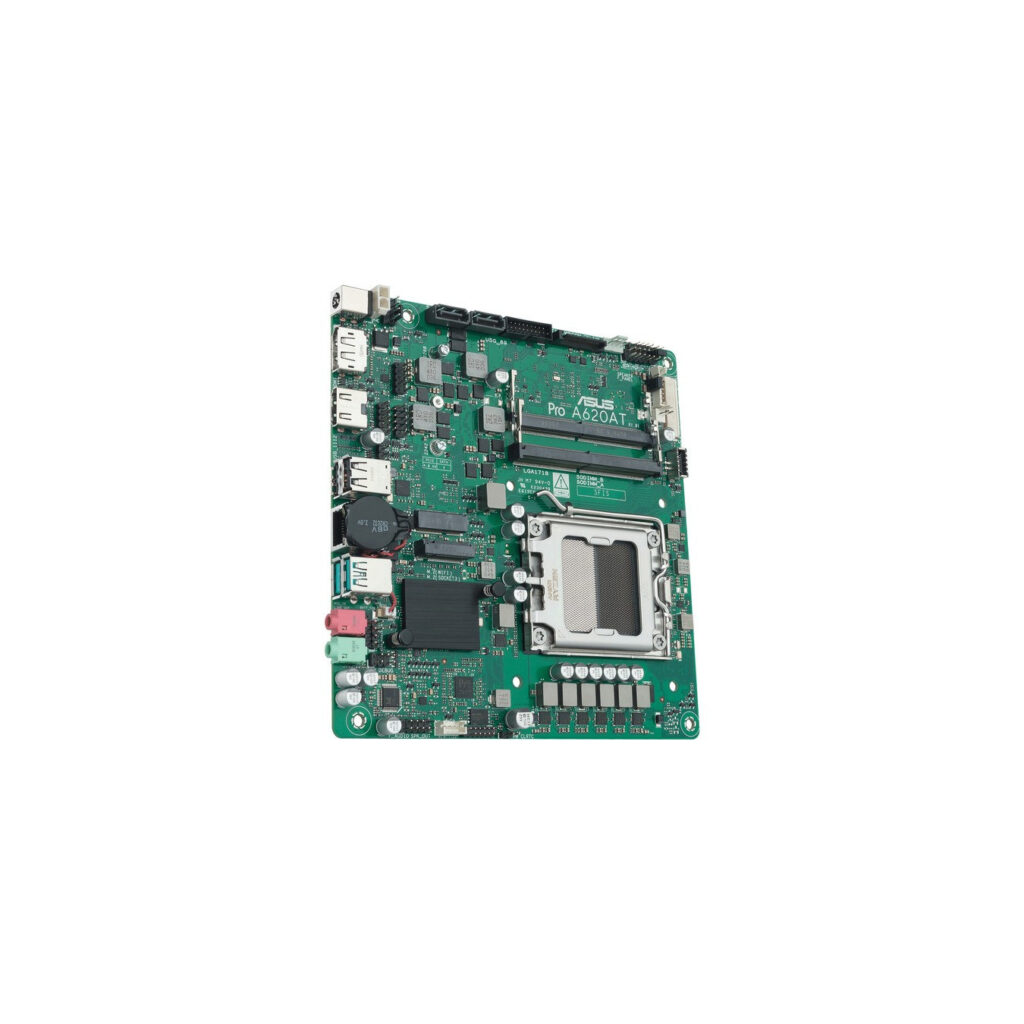

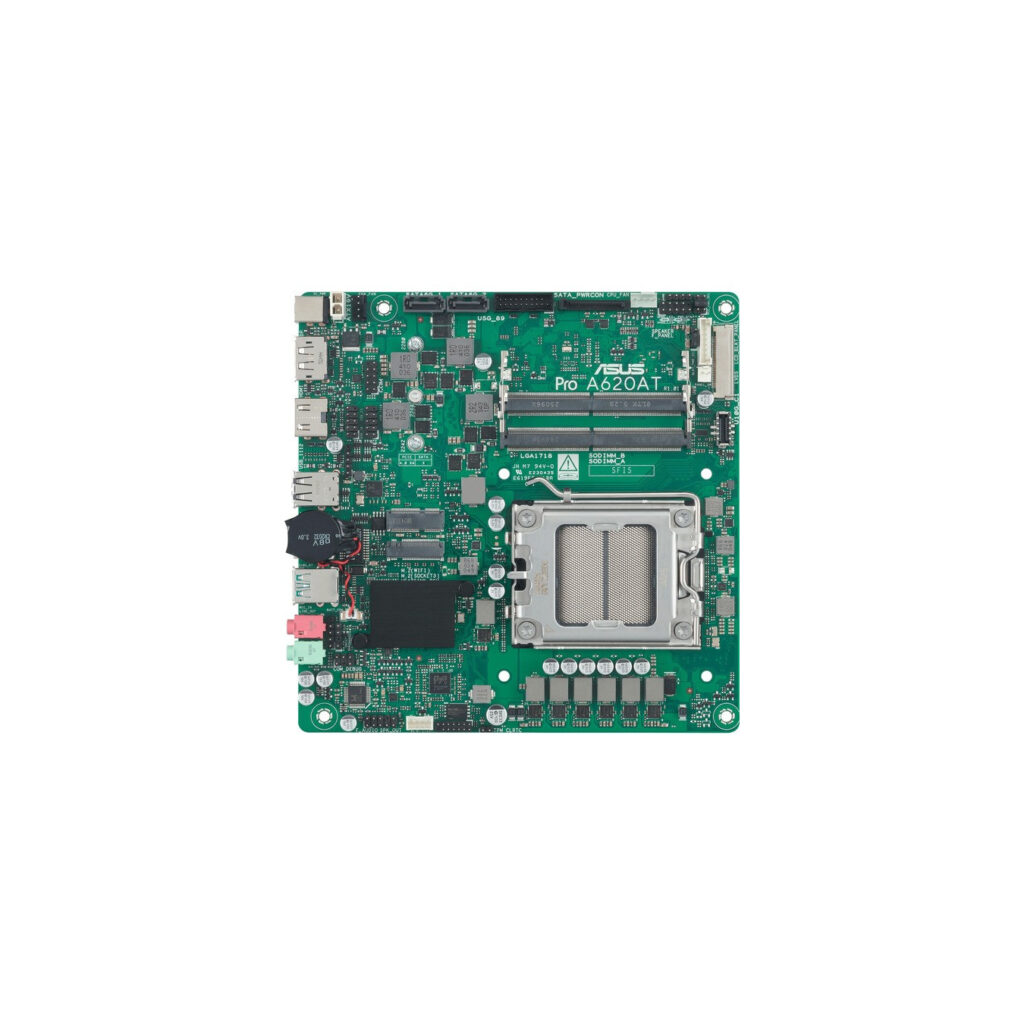

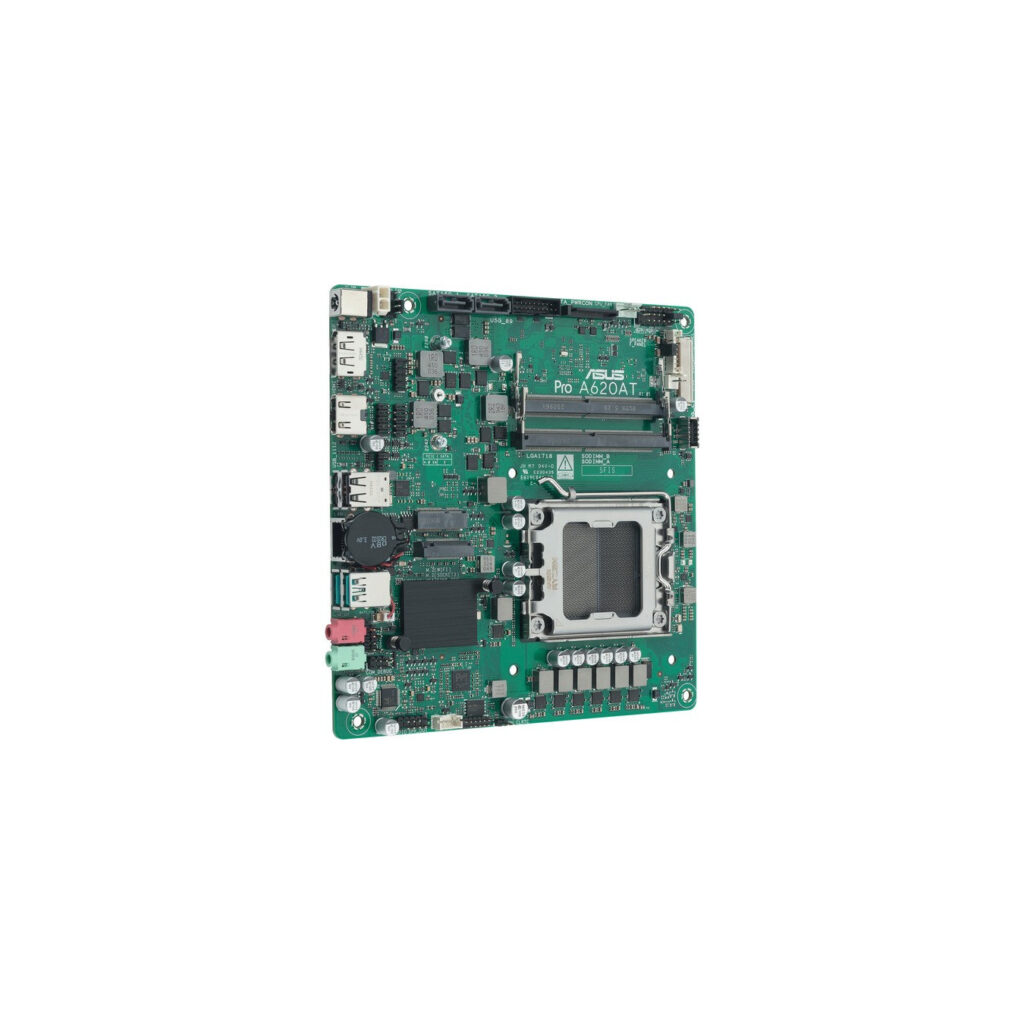

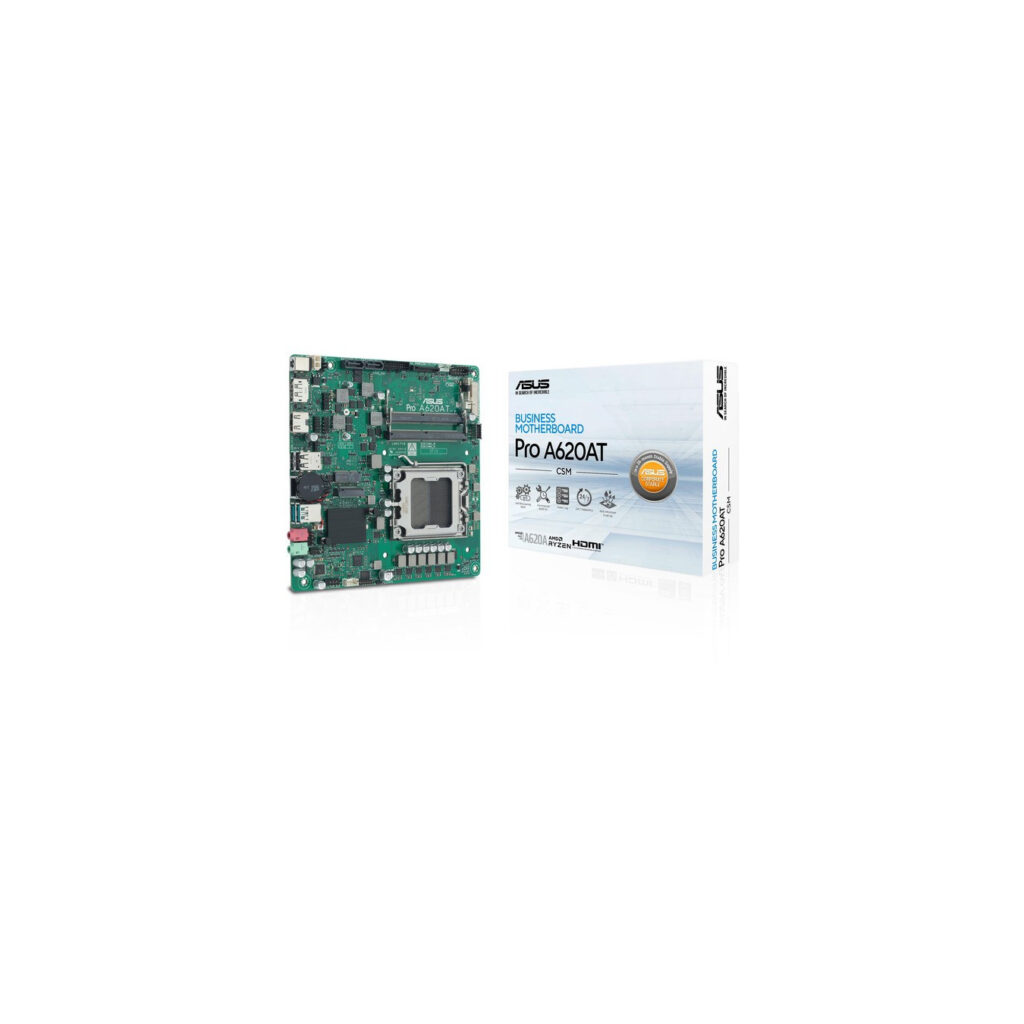

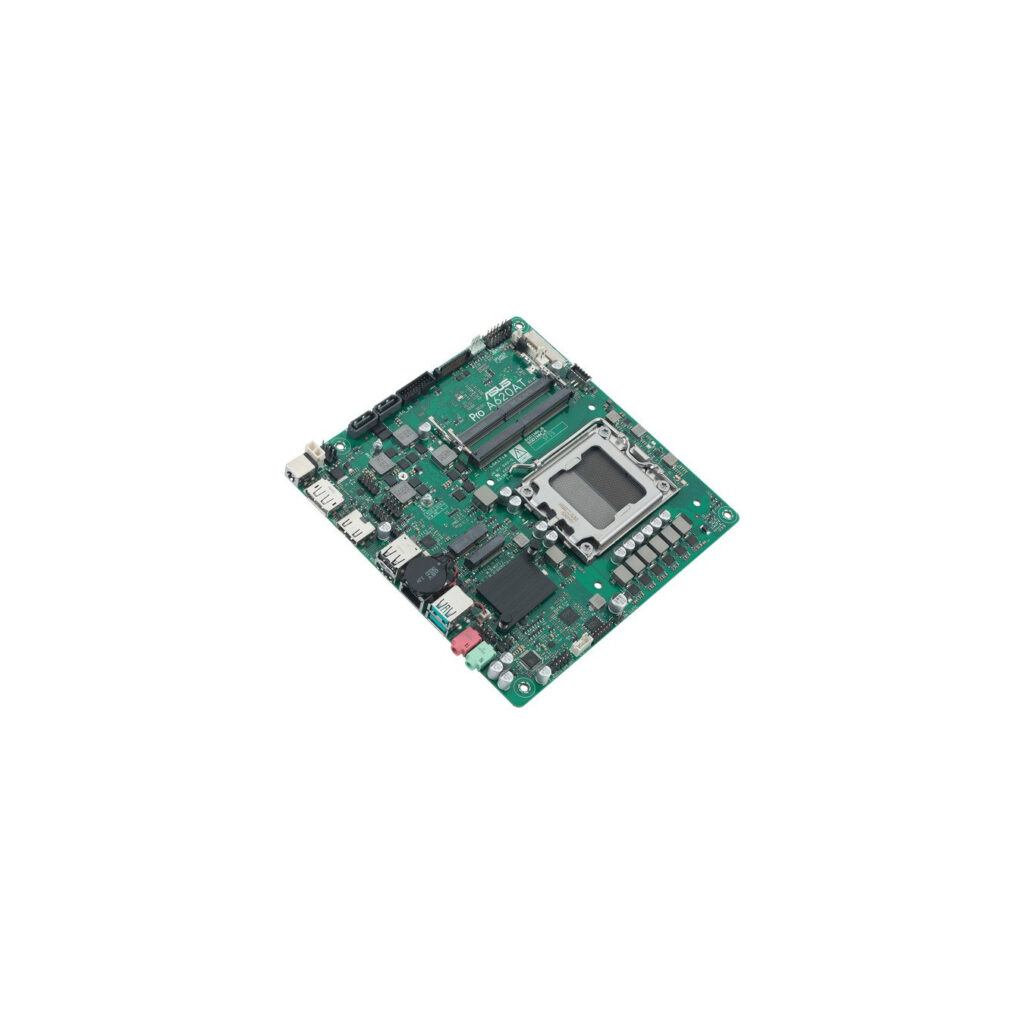

PRO A620AT-CSM, Mainboard
The mainboard PRO A620AT-CSM is based on the AMD A620 chipset and supports AMD processors for socket AM5. It has two DDR5 SO-DIMM slots in dual-channel operation for up to 128 GB o…
Available in 6–10 business days : 95 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The mainboard PRO A620AT-CSM is based on the AMD A620 chipset and supports AMD processors for socket AM5. It has two DDR5 SO-DIMM slots in dual-channel operation for up to 128 GB of RAM. The PRO A620AT-CSM also has 8-channel sound, a Gigabit LAN interface, two SATA3 ports, an M.2 port and a range of USB interfaces. This board has various features for use in business environments.
| Typ | Mainboard |
| EAN | 4711636116053 |
| Manufacturer no. | 90MB1L5M-M0EAYC |
| base | AM5 |
| Max. supported CPUs | 1 |
| Operating system support | Windows 11 ready |
| Processor - Supported Models | Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge) |
| Chipset | AMD A620 |
| Form factor | Thin Mini-ITX |
| use | PC |
| Power supply | extern |
| Memory - maximum | 128 GB |

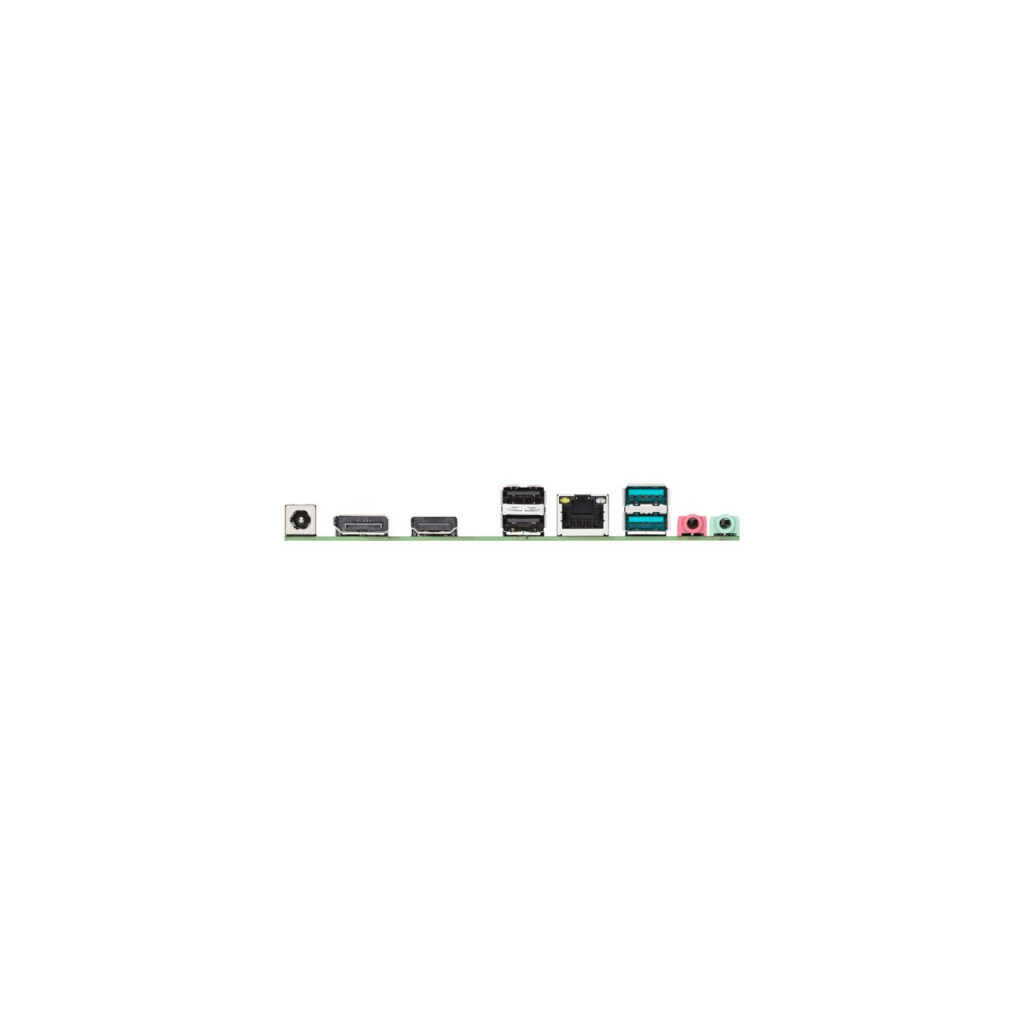

| Ports (external) - USB-A 3.2 Gen 1 (5 Gbit/s) | 2 |
| Connectors (internal) - SATA | 2 |
| Ports (optional) - USB 3.2 Gen 1 (5Gbps) | 2 |
| Onboard Graphics | The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. |
| LAN | RTL8111EPV-CG Ethernet |
| Features | 1 x LVDS connector |

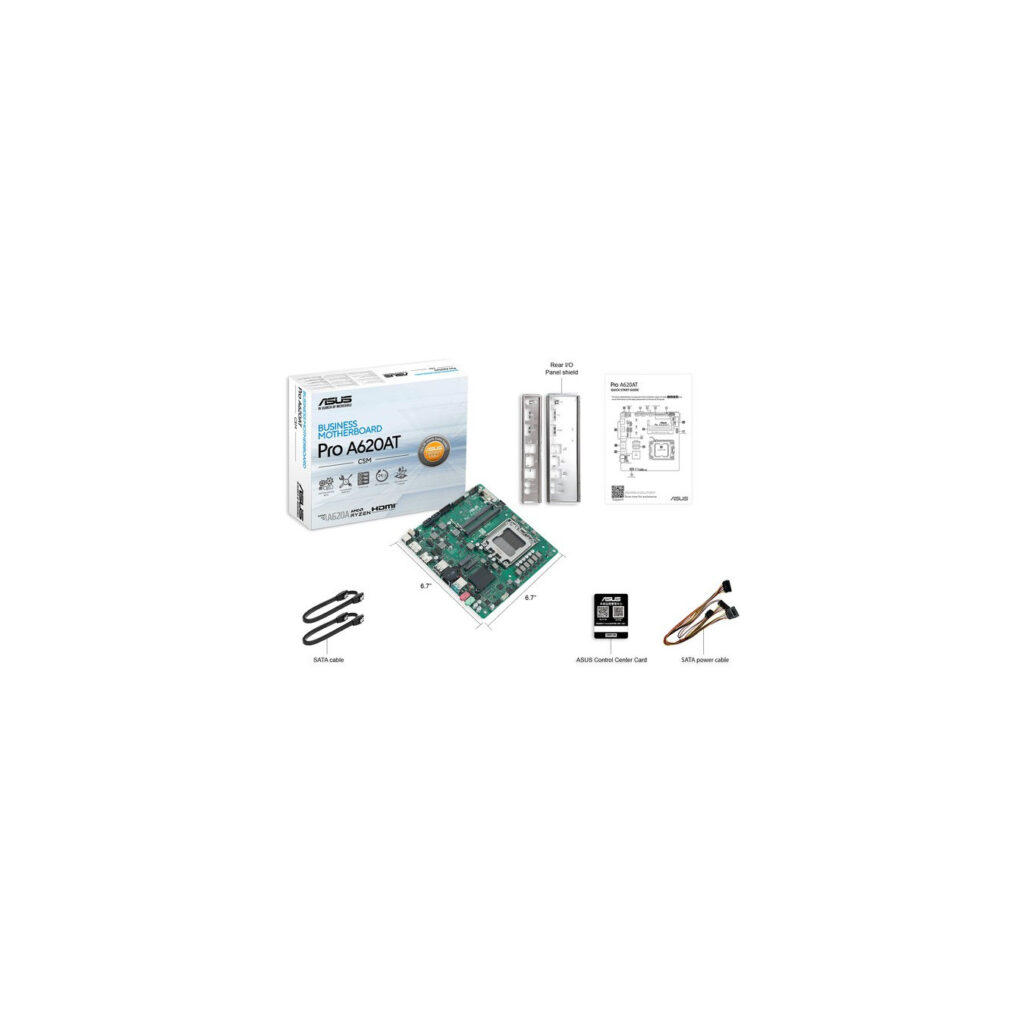

| Accessories - available | 2 x SATA 6Gb/s cable, 1 x SATA power cable, 2 x I/O panels, 1 x quick guide |
| Dimensions | Width: 170mm x Height: 170mm |
