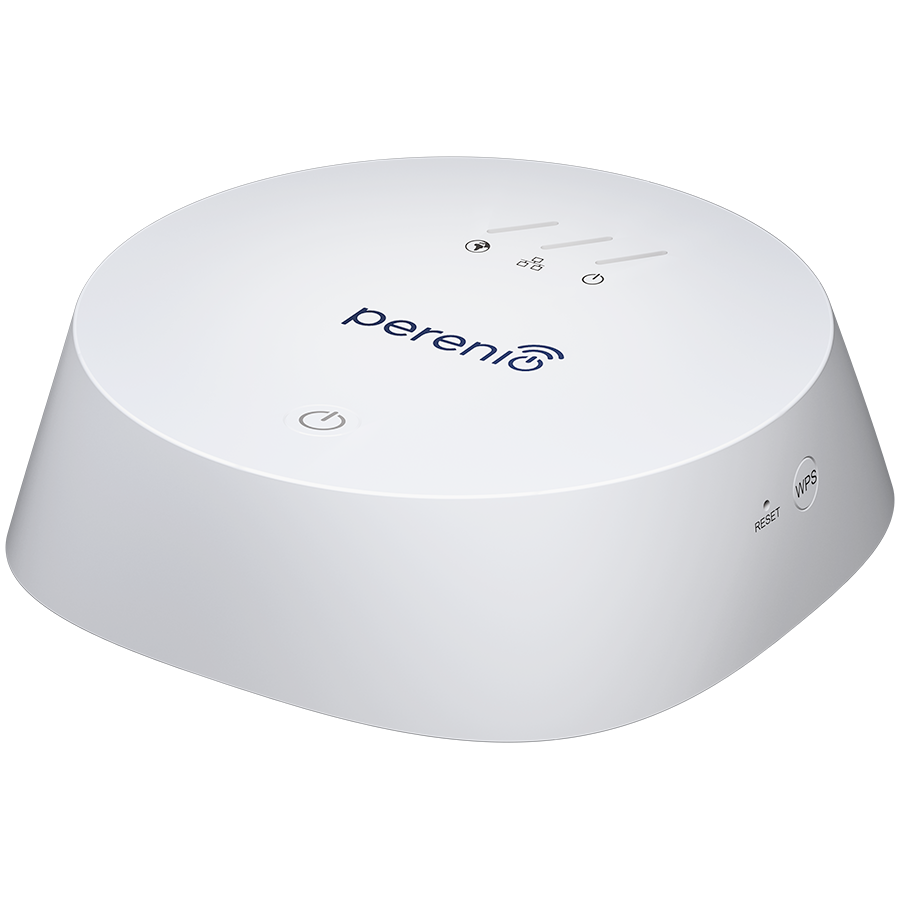

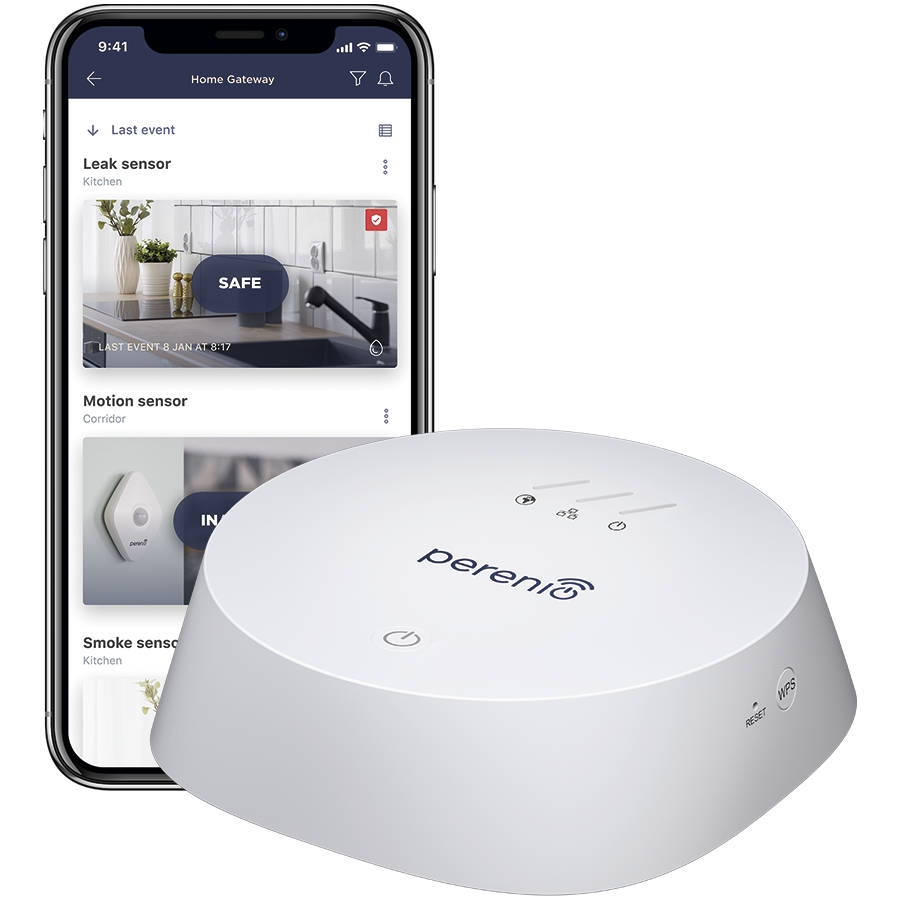

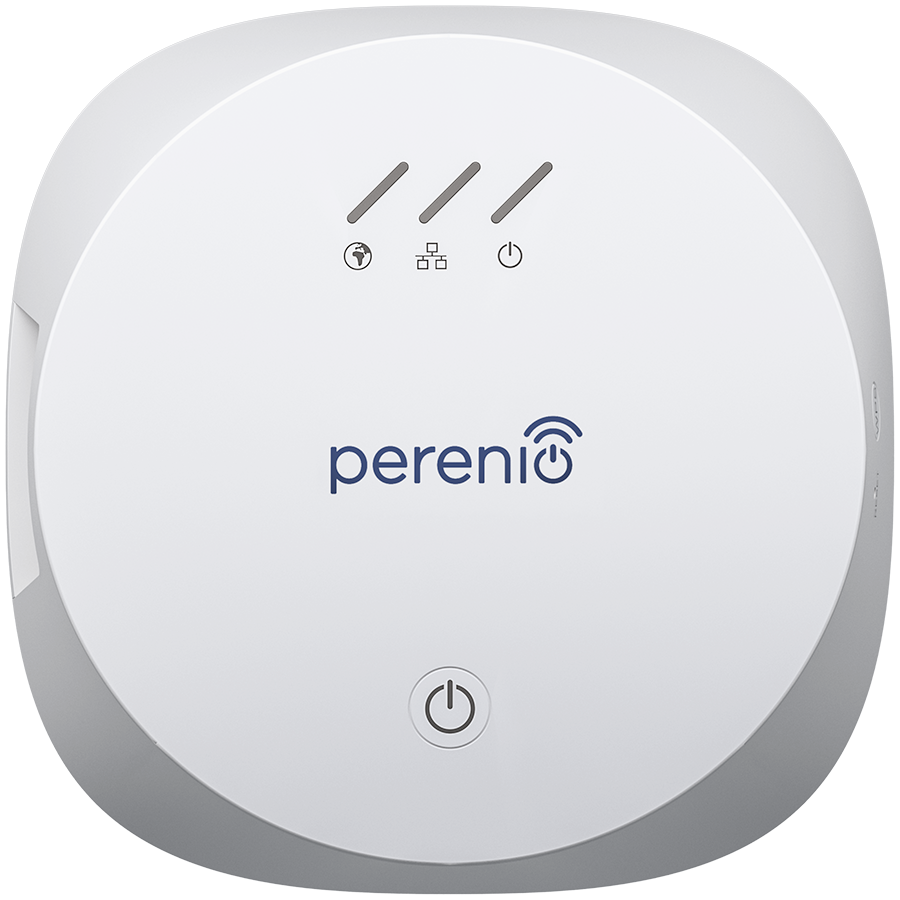

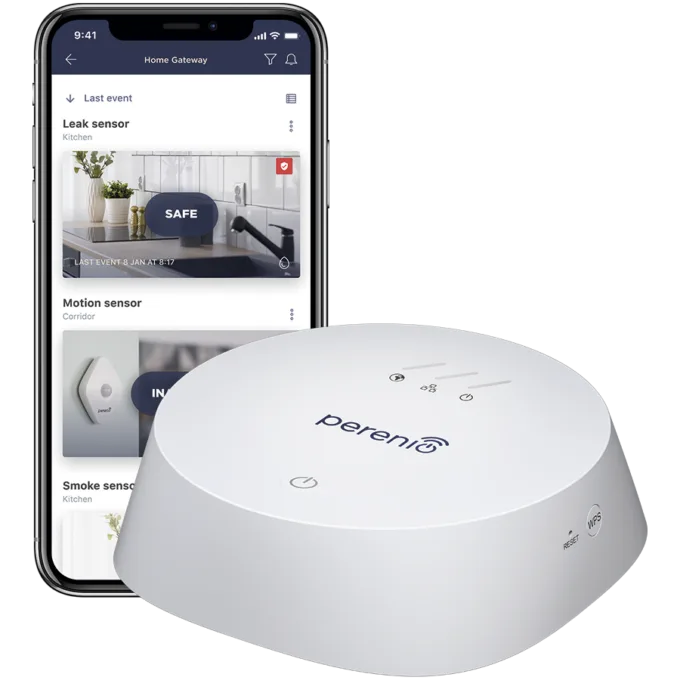

PEACG01 Control Gateway
28.00 €
Available in 14–18 business days : 3 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
PEACG01 Control Gateway
Specifications
| Item Number | PEACG01 |
|---|---|
| Product Type | Smart Gateway Hub |
| Communication Technology | Wi-Fi (IEEE 802.11b/g/n) Ethernet (10/100Mbps RJ-45) ZigBee 3.0 (IEEE 802.15.4) |
| WEP/WPA2 Encryption | Support of 64-/128-bit encryption |
| Supported Protocols | TCP/IP |
| IoT Protocols | MQTT CoAP |
| Compatibility | Android (5.1 and higher) iOS (12 and higher) |
| SoC | QCA4531 (Wi-Fi), EFR32/Cortex-M4 (ZigBee) |
| Flash | 128 MB (NAND Flash)/512 KB (NOR Flash) |
| Zig Bee Network Distance | 40 m |
| Operating Frequency Band | 2400 MHz – 2483.5 MHz |
| Server | Cloud |
| Max Number of Connected Devices | 100 |
| Smart Antenna Type | Built-in |
| Smart Antenna Type | Built-in |
| RTC Module | Built-in |
| Installation | For indoor installation only On a horizontal surface |
| Case Material | Polycarbonate |
| Color | White |
| Certificate | CE, EAC, RoHS, UA.TR |
| Data Protection | GDPR Compliance |
| Product Size | 110x110x31 mm |
| Gross Weight | 259 g |
| Weight Netto | 123.7 g |
| Specifications | 5V/0.7A |
| Power Consumption | 5 W (max) |
| Operating temperatures | 0°C to +40°C |
| Operating Humidity | 5% to 85% (non-condensing) |
| Non-Operating Temperatures | -20°C to +70°C |
| Non-Operating Humidity | 5% to 85% (non-condensing) |
| Protection Enclosure Standards | IP21 |
| Warranty Products Returnable | Yes |
| Warranty Term (month) | 24 |
| Warranty Validation Criteria | Serial Number |
| Warranty Term Notes | 24 months – for CIS 24 months – for EU, UK, TR 36 months – for NO, SE |
| #Color | #FFFFFF |
| Color box dimensions (mm) | 159x159x71 mm |
| Single pack gross weight (kg) | 0.465 kg |
| Carton weight (kg) | 9.85 kg |
| Quantity of the boxes per pallet (by air)(pcs) | 540 |
| Dimensions of pallet (by air) | 120x100x127.9 cm |
| Quantity of the boxes per pallet (by sea)(pcs) | 900 |
| Dimensions of pallet (by sea) | 120x100x207.5 cm |
| EAN code for master box | 8595248142862 |
