PCI Express x8 - 2x USB 3.2 Gen 2x2 Type C + 2x USB 3.2 Gen 1 Type A, USB Controller
Delock PCIe USB expansion card adds four external USB 3.2 ports: 2x USB-C and 2x USB-A via PCIe x8 slot.
Το προϊόν δεν είναι διαθέσιμο
Αυτό το προϊόν δεν είναι διαθέσιμο αυτή τη στιγμή. Μπορούμε να σας προτείνουμε εναλλακτικές ή να προσπαθήσουμε να το βρούμε για εσάς. Καλέστε μας στο 22 270068 ή email [email protected].

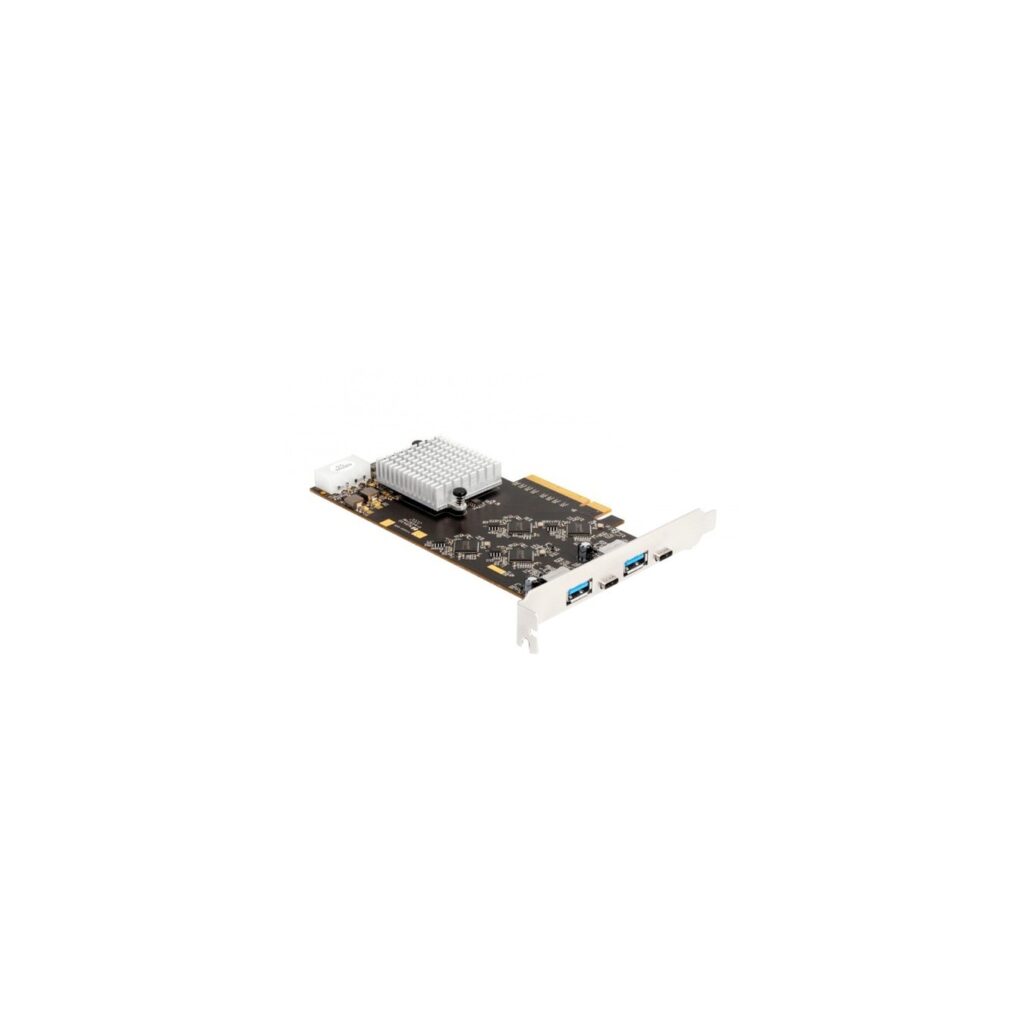

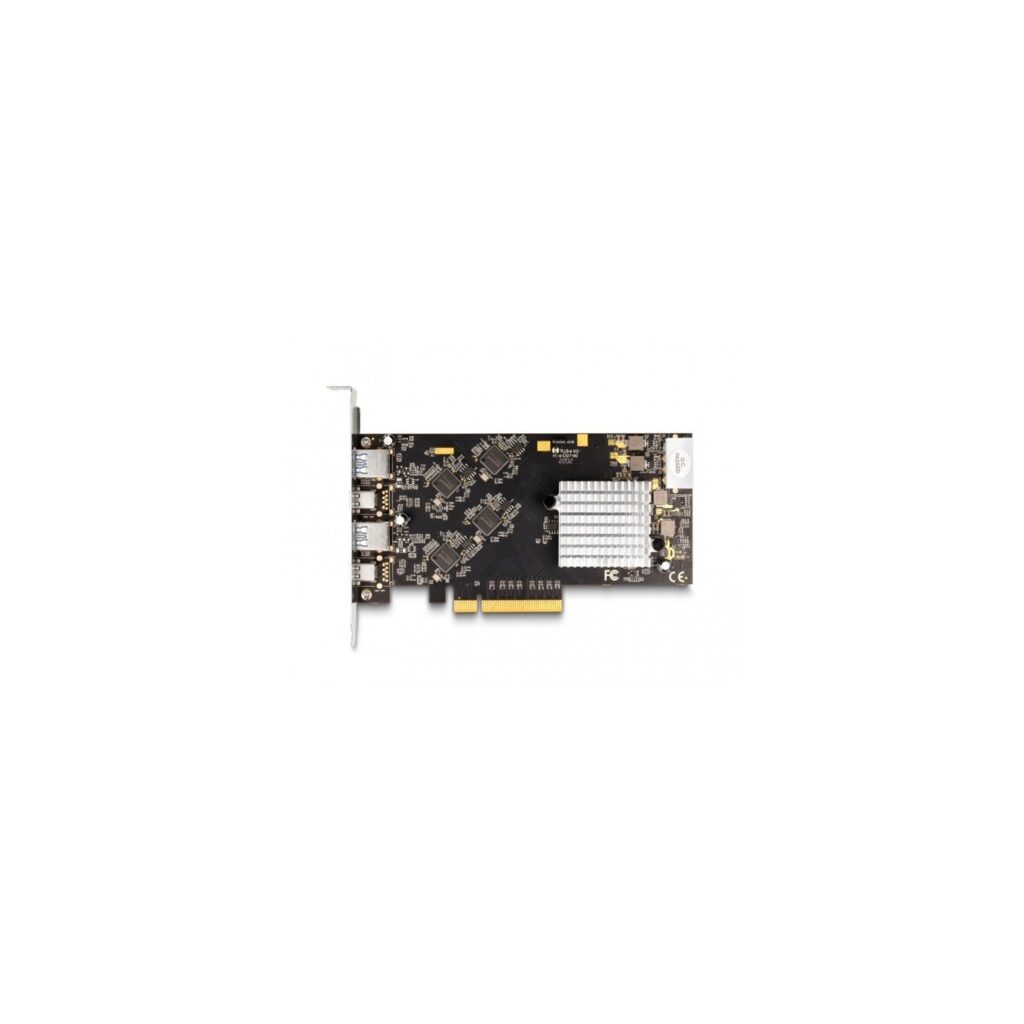

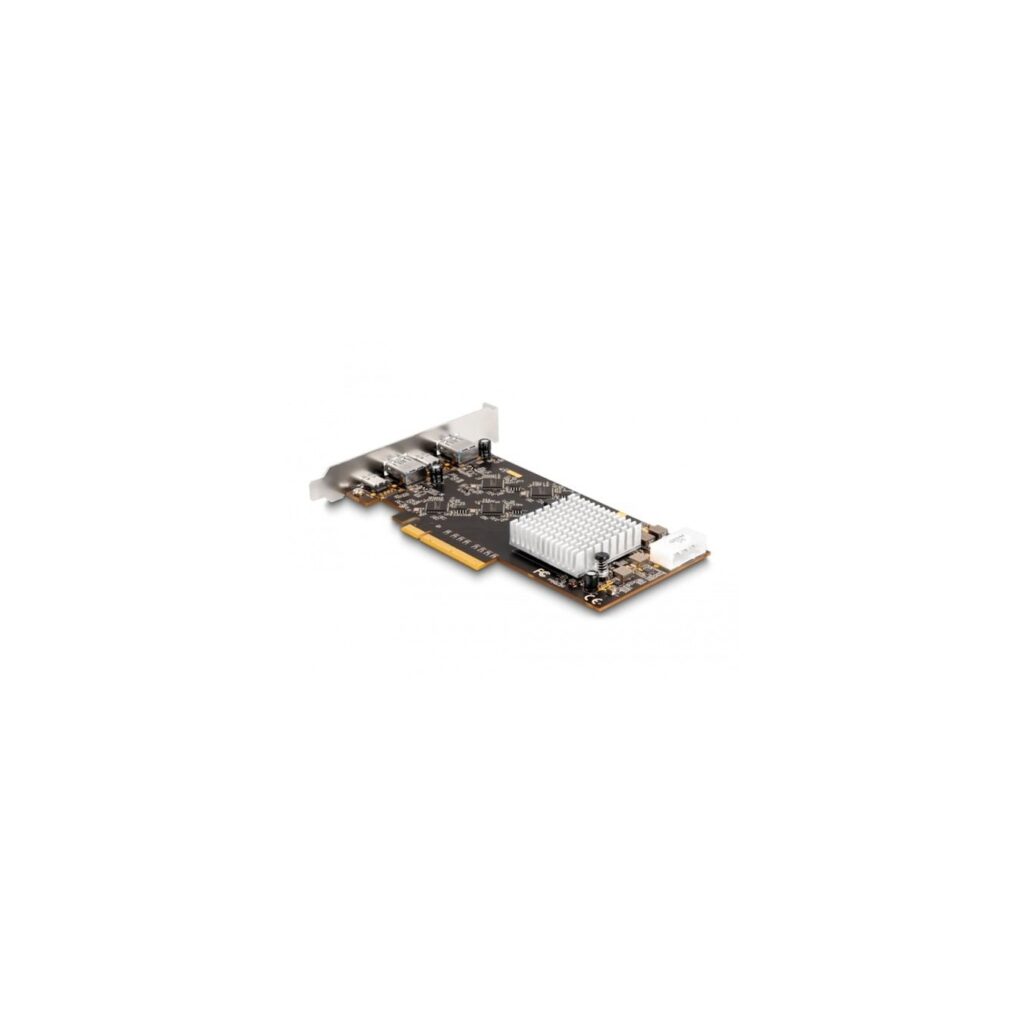

The PCI Express card from Delock expands the PC with four external USB 3.2 ports, two USB-C™ and two USB Type-A ports. Various USB devices can be connected to the card, such as: B. docking stations, card readers, external housings, etc., can be connected. The card has four ASM3242 chipsets, a separate chipset for each USB port. This ensures the high data transfer rate of 20 Gbps on the USB Type-C™ ports and 10 Gbps on the USB Type-A ports when used simultaneously. The PCIe card can be powered via the PCIe port. If this is not enough, the card has a 4-pin power connector. A maximum of 5 V / 3 A is output on the USB Type-C™ ports and 5 V / 0.9 A on the Type-A ports, a maximum of 7.8 A on all ports together.
| Typ | USB-Controller |
| EAN | 4043619900978 |
| Manufacturer no. | 90097 |
| Controller Art | USB 3.2 (5 Gbit/s), USB 3.2 (10 Gbit/s), USB 3.2 (20 Gbit/s) |
| slot | PCIe x8 Version 3.0 |
| Chip | Asmedia ASM3242, Pericom PI7C9X3G816GP |
| Connections - external | 2x USB A, 2x USB C |
| directly usable devices | 4 |
| Operating System - Supported | Linux, Windows 8, Windows 10, Windows 11 |
| Feature | 2x USB 3.2 Gen 2x2 Type C | 2x USB 3.2 Gen 1 Type A | Bootable | Supports UASP | Supports eXtensible Host Controller Interface (xHCI) specification 1.1 | Supports multiple INs |
| Accessories - available | Instruction manual |
