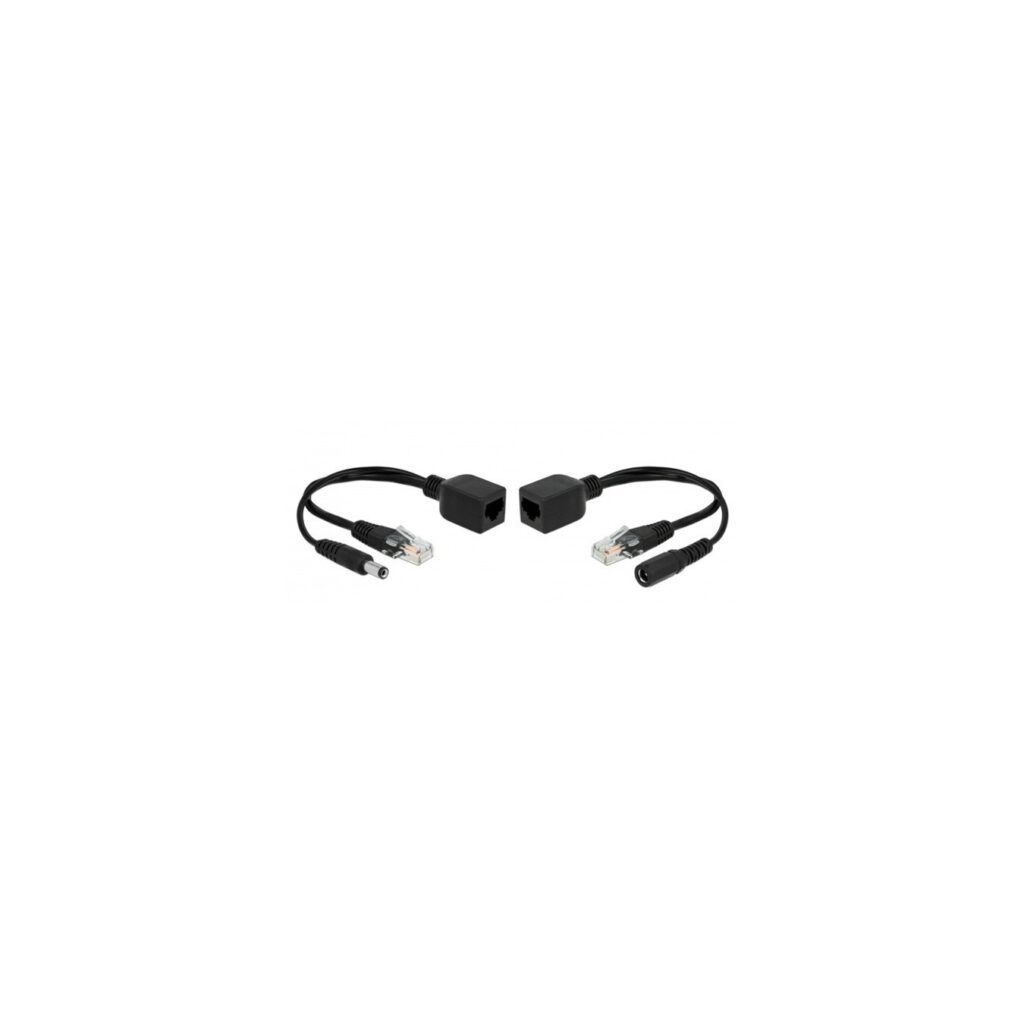

Passive PoE Adapter Set - RJ-45 to DC 5.5 x 2.5mm
19.50 €
Two-part passive PoE adapter set enables power transmission over a patch cable for 10/100 Mbps Ethernet; requires both adapters.
Available in 6–10 business days : 86 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
With the Delock adapter set 66024, a network cable can be used for a 10/100 Mbps Ethernet connection and at the same time for transmitting power. This requires two adapters that are connected to the cable. Then there are DC sockets and plugs available on both sides for connecting a power supply.
| Typ | Adapter |
| Color | schwarz |
| EAN | 4043619660247 |
| Manufacturer no. | 66024 |
| Application example | For power transmission via a patch cable |
| Area | network |
| Connection - from | 2x RJ-45 (socket) |
| shielding | U/UTP |
| Characteristics | Adapter, Set, extern |
| More information | DC 5.5 x 2.5mm plug/socket, power: 9 - 57 volts, max. 800 mA, pin assignment: 1/2, 3/6 data, 4/5(+), 7/8(-) current |
| Notice | One adapter cannot be used alone, the second adapter is always required. |
| Cable length | 21 cm |
| Weight | 58 Gramm |
