NZXT Mainboard - N7 B850 - Black
410.50 €
NZXT N7 B850 mainboard with AM5 socket, DDR5, 4 slots, up to 192 GB memory.
Available in 6–10 business days : 31 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The NZXT N7 B850 Black is based on the AMD B850 chipset and supports AMD processors for Socket AM5. It has four DDR5 slots for up to 192 GB of memory. The NZXT N7 B850 Black’s additional features include a PCIe 5.0 x16 slot and two PCIe 4.0 x16 slots (x2 lanes). The NZXT N7 B850 Black also has 6-channel sound, a 2.5 Gigabit LAN interface, four SATA3 ports, WiFi 6E, Bluetooth 5.2, three M.2 ports and a number of USB interfaces.
| Typ | Mainboard |
| EAN | 5056547207285 |
| Manufacturer no. | N7-B85XT-B1 |
| base | AM5 |
| Max. supported CPUs | 1 |
| Operating system support | Windows 10 ready, Windows 11 ready |
| Processor - Supported Models | Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge) |
| Chipset | AMD B850 |
| Slots - PCIe x16 | 3x (davon: 1x PCIe x16, 2x PCIe x2) |
| BIOS - EFI-BIOS | And |
| Form factor | ATX |
| use | PC |
| Power supply | ATX12V (24-Pin + 2x 8-Pin) |
| Memory - maximum | 192 GB |
| Ports (external) - USB-C 3.2 Gen 2 (10 Gbit/s) | 1 |
| Connectors (internal) - SATA | 4 |
| Ports (optional) - USB 3.2 Gen 1 (5Gbps) | 2 |
| SATA Controller | AMD B850 |
| directly usable RAID levels | 0, 1, 10 |
| USB-Controller | AMD B850 |
| Onboard Graphics | The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. |
| Sound | Realtek ALC1220 |
| LAN | Realtek 2.5G LAN |

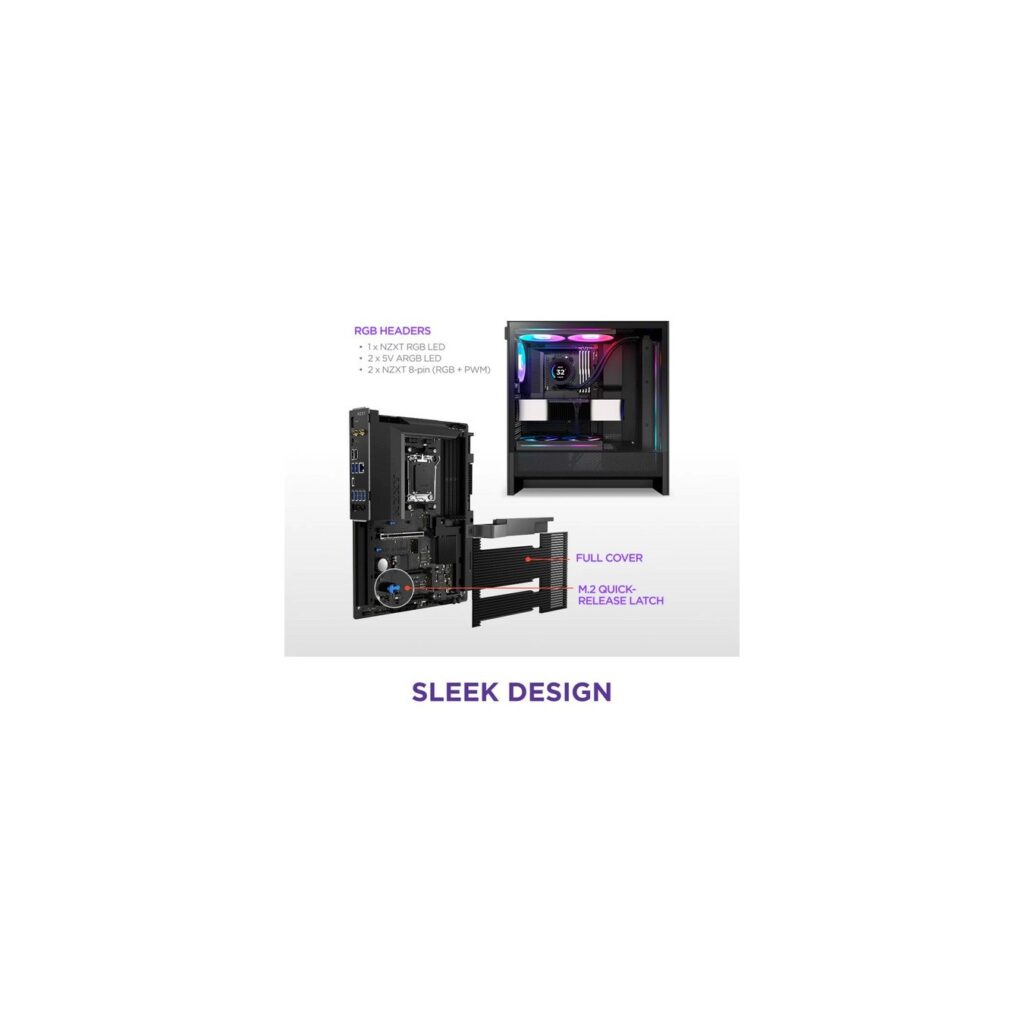

| Features | 2x NZXT 8-Pin (PWN + RGB) connectors |
| More information | In order to support the latest processor cores, a BIOS update may be required. |
| Dimensions | Width: 244mm x Height: 305mm |
| Warnings and safety information | Warnings: Attention: Product contains a button cell or coin battery. |
