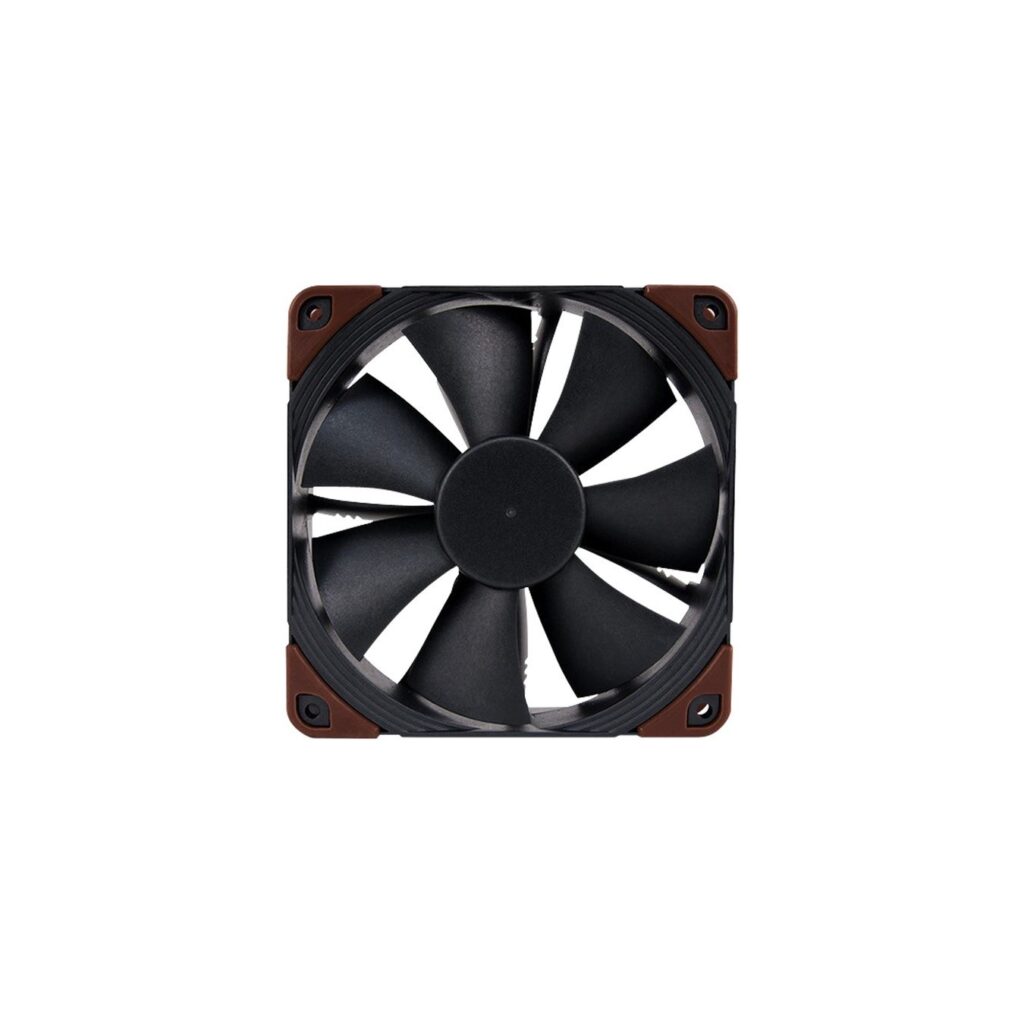

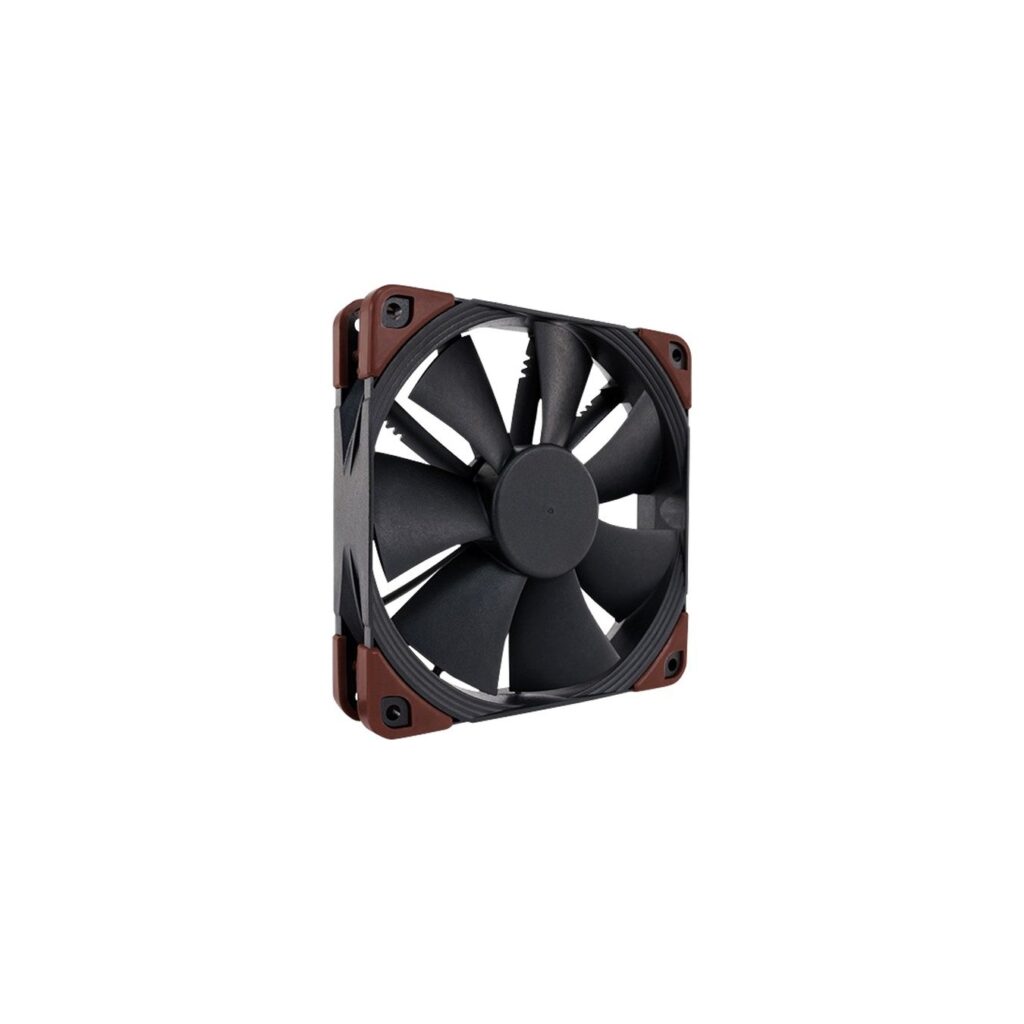

NF-F12 case fan - NF-F12 iPPC-2000 IP67 PWM - case fan
Industrial IP67-rated case fan with PWM control; 120x120x25 mm, 450–2000 RPM, 121.8 m³/h, 3.94 mm H2O, 12V, 1.2W, 29.7 dB, 264 g.
Το προϊόν δεν είναι διαθέσιμο
Αυτό το προϊόν δεν είναι διαθέσιμο αυτή τη στιγμή. Μπορούμε να σας προτείνουμε εναλλακτικές ή να προσπαθήσουμε να το βρούμε για εσάς. Καλέστε μας στο 22 270068 ή email [email protected].
Designed for industrial applications and designed to withstand heavy use and operation in difficult conditions, the NF-F12 industrialPPC (PPC stands for Protected Performance Cooling) is a more robust, faster-spinning version of the award-winning retail model. Thanks to the excellent aerodynamic efficiency of the NF-F12 design and a new three-phase motor, the industrialPPC versions with their higher speed offer real high-performance cooling, but have moderate noise and power consumption compared to fans that rotate at comparable speeds. With its fiberglass-reinforced polyamide construction and extended water and dust protection, the NF-F12 industrialPPC is also suitable for use in demanding environments. At the same time, the high-quality SSO2 bearing offers an MTBF of over 150,000 hours. Complemented by Noctua’s usual reliability, the NF-F12 industrialPPC is a perfect choice for particularly challenging applications that require superior cooling performance and maximum operational reliability.
| Typ | Case fan |
| EAN | 4716123315407 |
| Manufacturer no. | NF-F12 iPPC-2000 IP67 PWM |
| Art | Case fan |
| Fastening | screwed |
| volume | 29,7 dB |
| speed | 450 bis 2,000 U/min |
| Fan storage | SSO |
| Volume flow | 121,8 m³/h (71,7 cfm) |
| Air pressure | Up to 3.94 mm/H2O |
| Power connection | 4-Pin-PWM |
| Voltage range | 12 Volt |
| Power consumption | 1,2 Watt |
| Dimensions - Fan1 | Quantity: 1 piece, width: 120 mm, height: 120 mm, depth: 25 mm |
| Weight - Total | 264 Gramm |
