Mini PCIe I O full size 4 x serial RS-232, interface extension
54.00 €

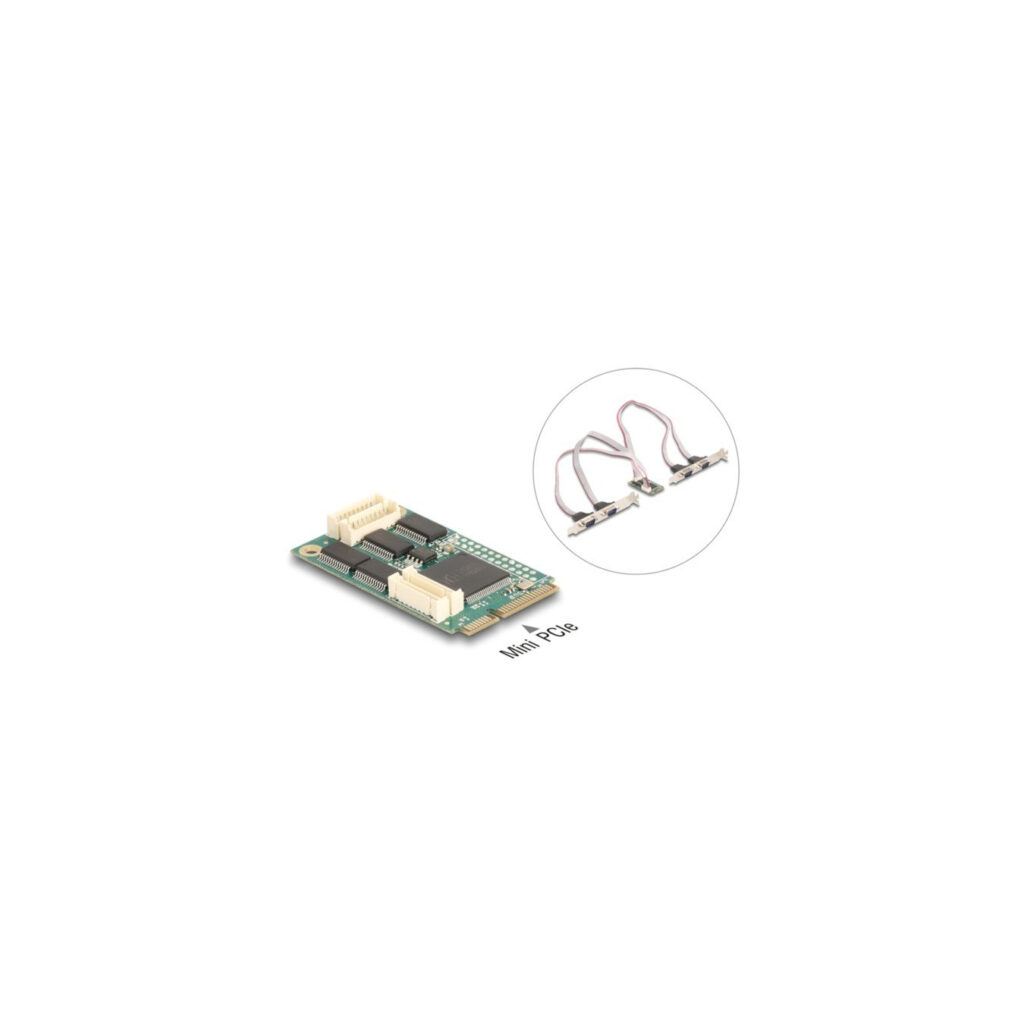

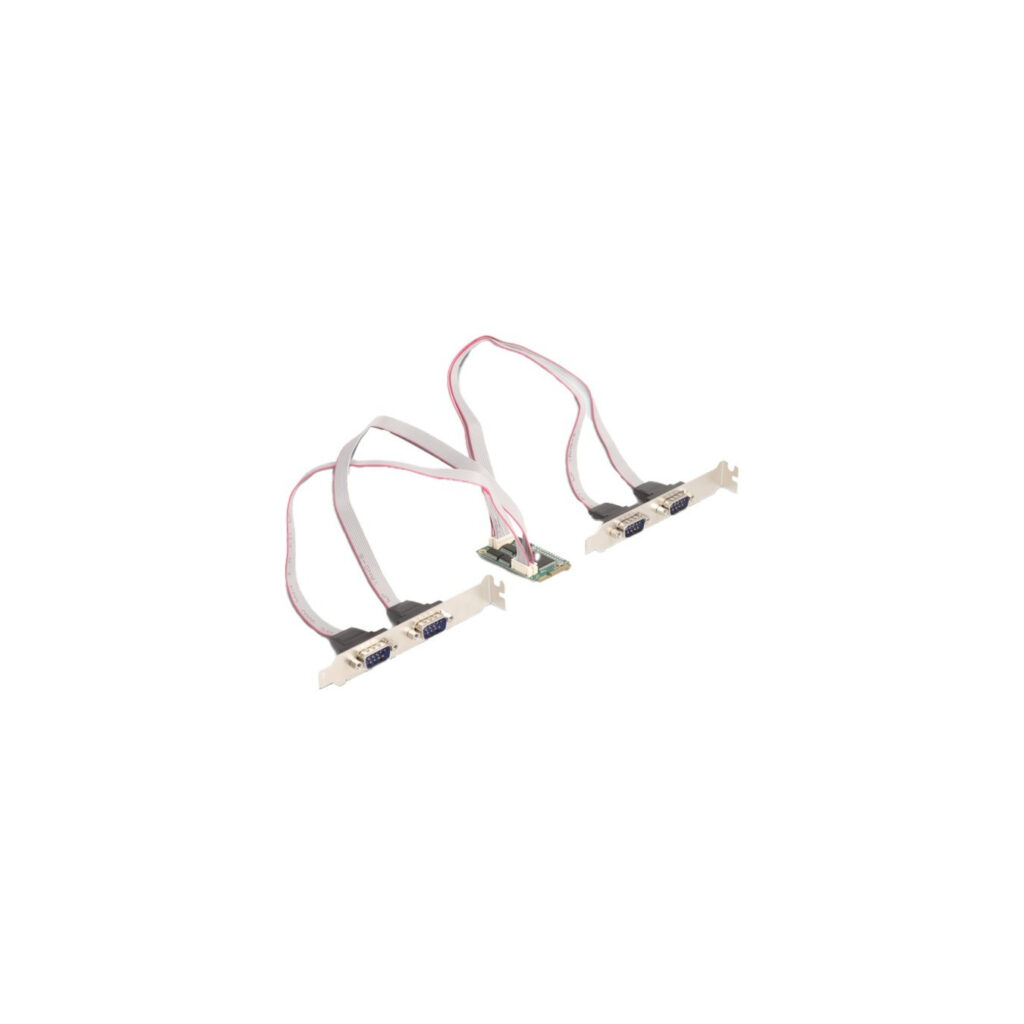

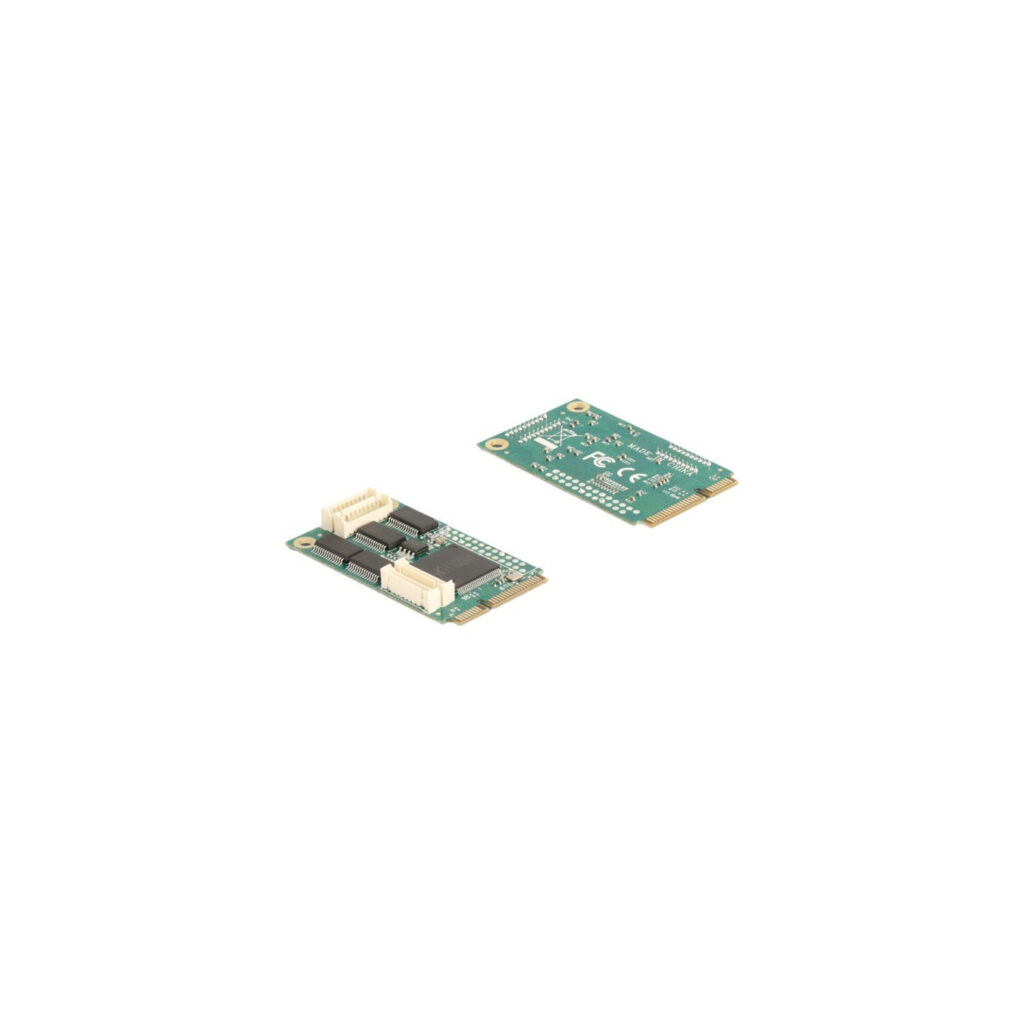

The Mini PCIe I/O full size 4 x serial RS-232 card from Delock expands your system with four additional RS-232 interfaces. This allows various serial devices such as printers, cash…
Available in 6–10 business days : 49 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068
The Mini PCIe I/O full size 4 x serial RS-232 card from Delock expands your system with four additional RS-232 interfaces. This allows various serial devices such as printers, cash register systems and modems to be connected to the computer.
| Typ | Interface extension |
| EAN | 4043619952786 |
| Manufacturer no. | 95278 |
| slot | Mini-PCIe |
| Chip | WCH382L |
| Operating System - Supported | Windows 10, Windows 11, Windows Server 2022 |
| Feature | Data transfer rate up to 460.8 Kbps | FIFO: 4 x 256 bytes | Data bits: 5, 6, 7, 8 | Stop bits: 1, 2 | Parity bit: even, odd, none, marked, empty | Flow control: none, hardware RTS/CTS, software | XON/XOFF | Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI | Cable length including connections: approx. 25 cm |

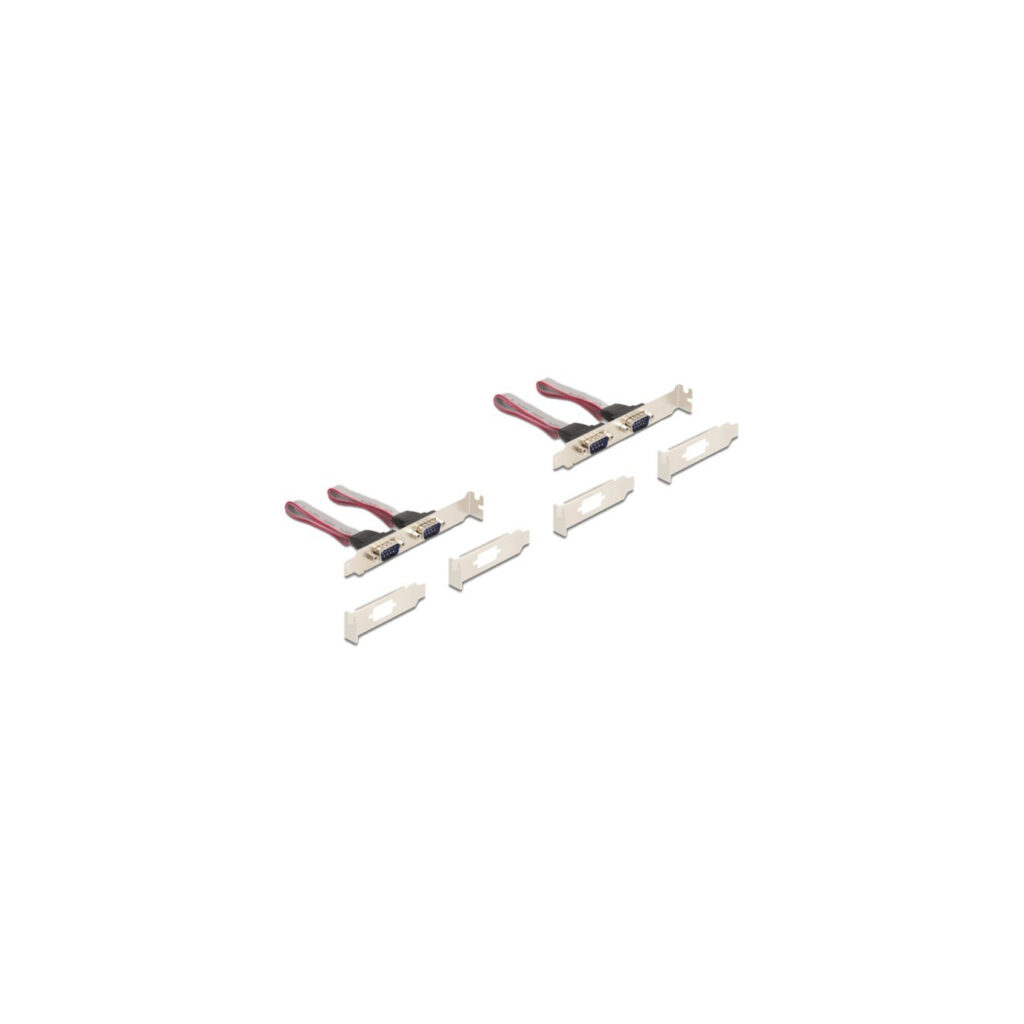

| Accessories - available | 4 serial connection cables, 2 x standard cover, 4 x low profile cover, operating instructions |
| Dimensions | Width: 51mm x Height: 30mm x Depth/Length: 10mm |
