MikroTik CCR2004-1G-2XS-PCIe - 1G Ethernet 2x25G SFP28 PCIe Router
High-performance PCIe router card with 4-core 2GHz ARM CPU, 4GB RAM, 1x1G Ethernet, 2x25G SFP28. Ideal for servers needing integrated 25G routing, firewall, VPN. RouterOS L6, max 25W.
Available in 2–3 business days : 5 τεμάχιο
For any questions about this item, availability, or delivery times, please contact us at 22 270068

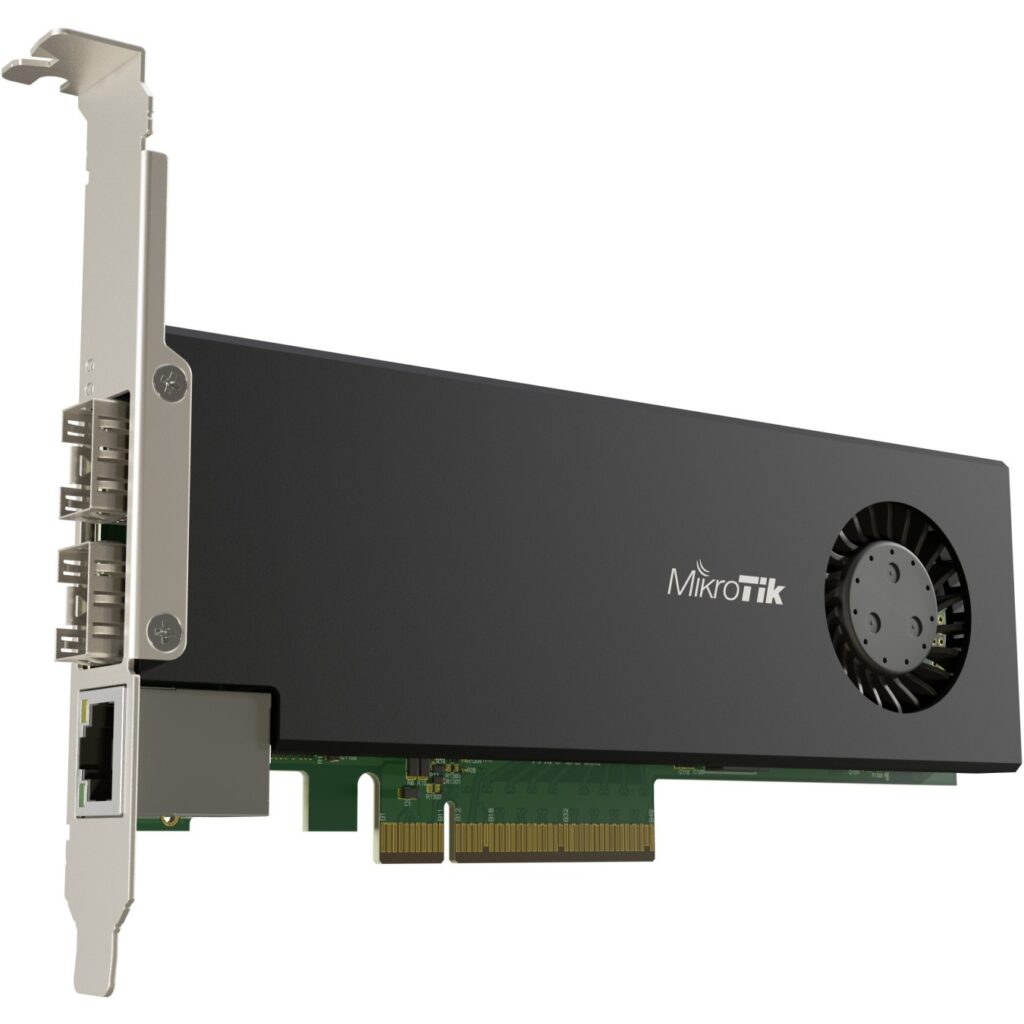

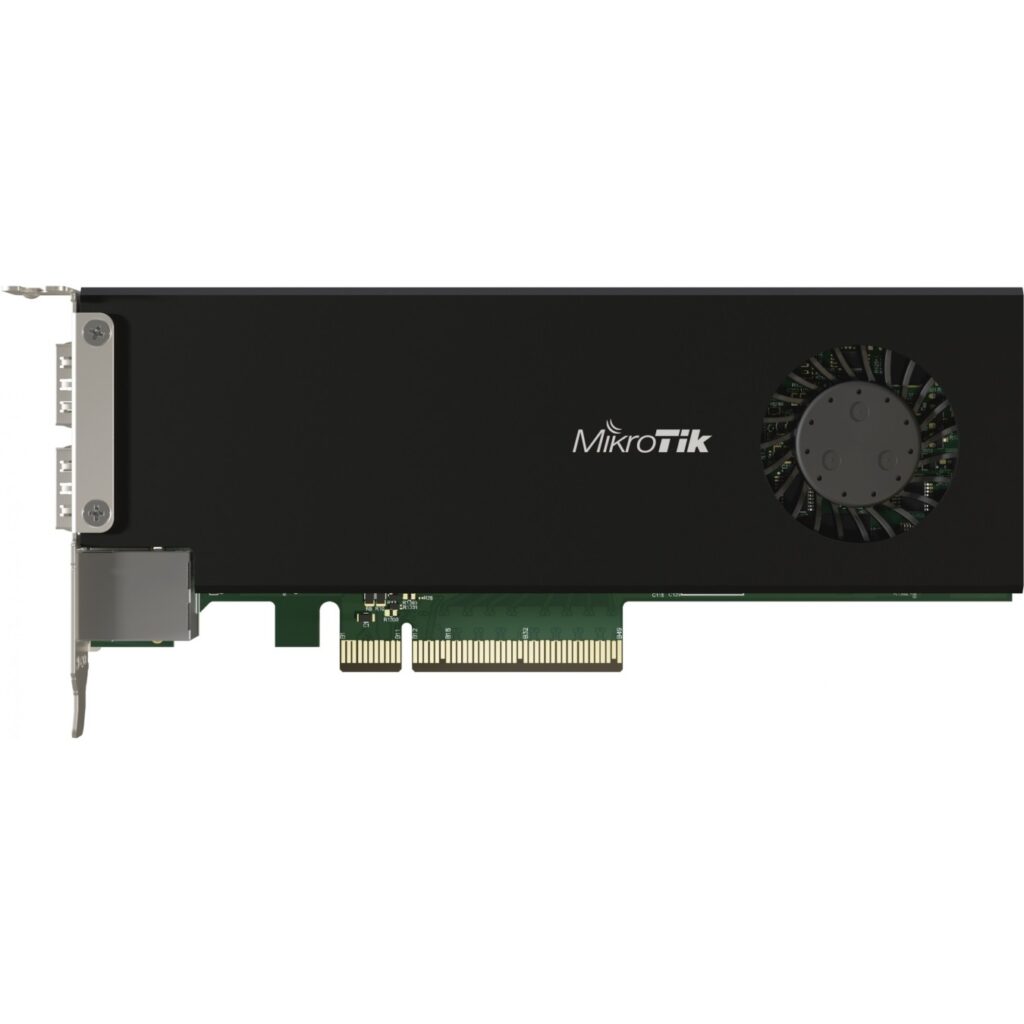

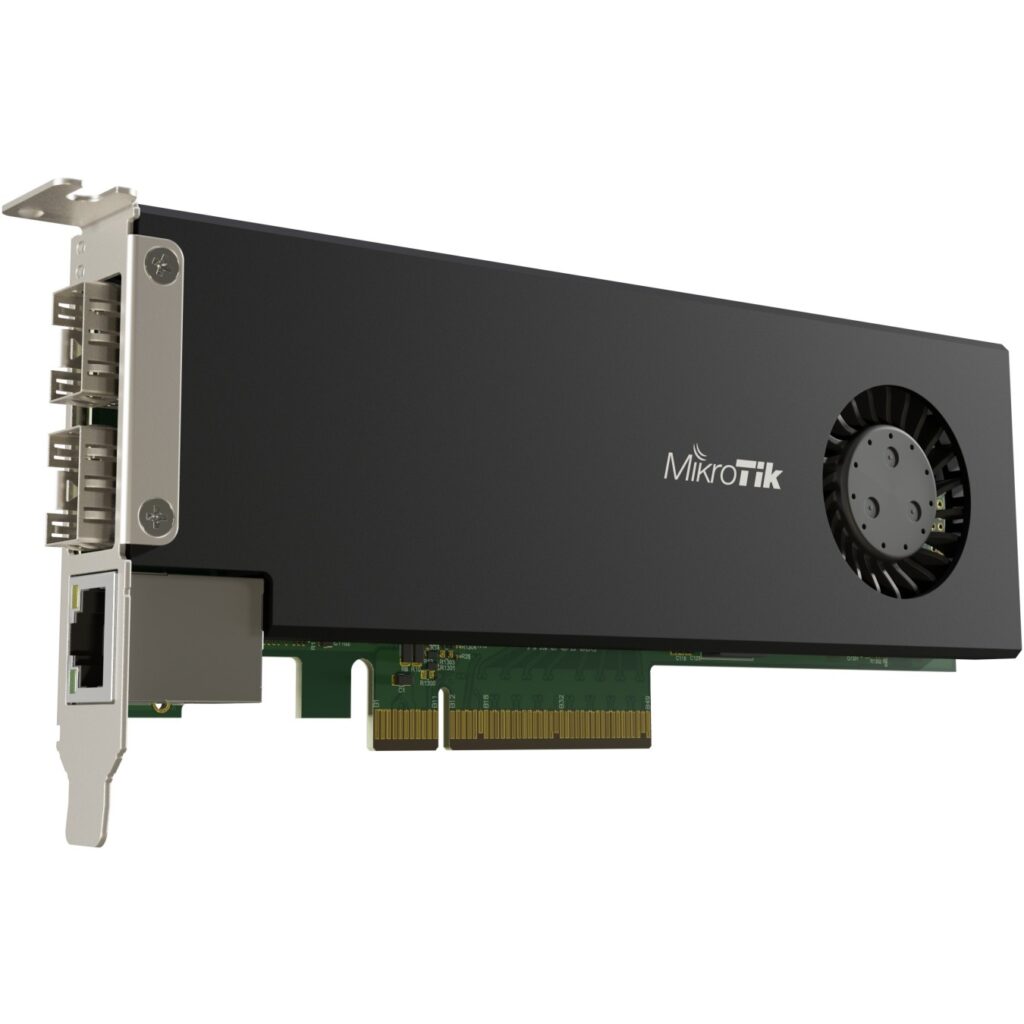

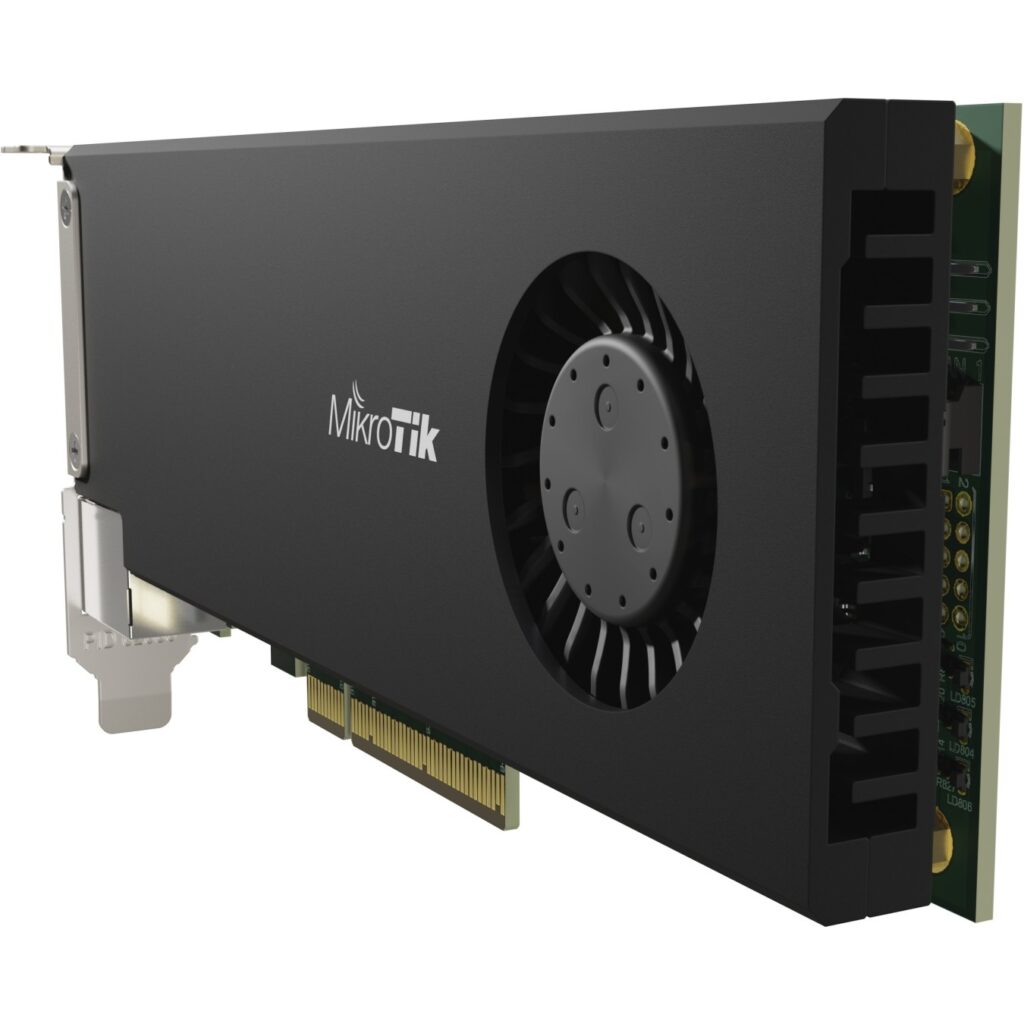

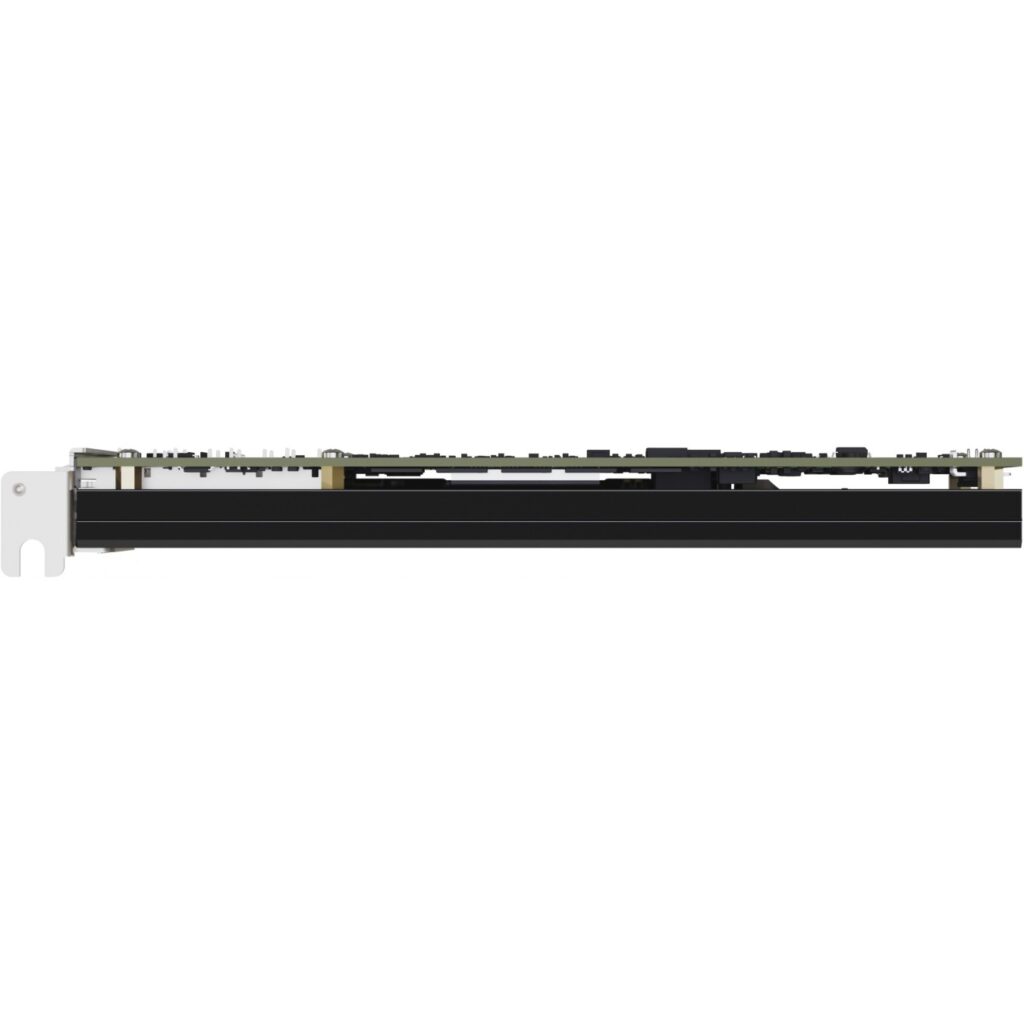

The MikroTik CCR2004-1G-2XS-PCIe is a powerful PCIe 3.0 x8 network interface card that integrates full router capabilities directly into servers and workstations. Featuring a quad-core AL32400 ARM 64-bit CPU at 2 GHz, 4 GB DDR4 RAM, and 128 MB NAND storage, it delivers wire-speed performance up to 100 Gbps across its ports. This compact card (170x69x18 mm) includes 1x Gigabit Ethernet port and 2x 25G SFP28 ports, perfect for high-speed data centers, enterprises, and multimedia environments requiring efficient space-saving networking solutions.
Running RouterOS with License Level 6, it supports advanced features like hardware-accelerated IPsec VPN, firewall rules, VLANs, QoS, load balancing, and traffic monitoring. The card appears as four virtual Ethernet interfaces by default: two passthrough 25G SFP28 and two bridged with the 1G port for management. Monitors for CPU/PCB temperature and voltage ensure reliability in -20°C to +60°C environments. Max power consumption is 25 W with active cooling fan.
- CPU: AL32400 4-core 2 GHz ARM 64bit
- Memory: 4 GB DDR4 RAM + 128 MB NAND
- Ports: 1x 1G Ethernet, 2x 25G SFP28
- Interface: PCIe 3.0 x8
- OS: RouterOS v7 License 6
- Power: Max 25 W, IP20 rated
| Product code | CCR2004-1G-2XS-PCIe |
| CPU | AL32400 2 GHz |
| CPU architecture | ARM 64bit |
| CPU core count | 4 |
| Size of RAM | 4 GB |
| RAM type | DDR4 |
| Storage | 128 MB, NAND |
| Number of 1G Ethernet ports | 1 |
| Number of 25G SFP28 ports | 2 |
| PCIe interface | PCIe 3.0 x8 |
| Operating system | RouterOS (License level 6) |
| Dimensions (device) | 170 x 69 x 18 mm |
| Operating temperature | -20°C to +60°C |
| Max power consumption | 25 W |
| Certifications | CE, EAC, ROHS, IP20 |
